Innovative Pultrusion Solutions to Transform Your Manufacturing Process

Customization:	Available
Voltage:	380V
Warranty:	1 Year

Send Inquiry

Product Description

⚙️ Basic Information Overview

Model NO.:

Pultrusion machine

Product Name:

Four Axis Winding Machine for FRP Electrical Pipe

Available Models:

10t, 12t, 15t, 20t, 25t, 30t, 40t, 50t

Main Advantages:

Automation, High Productivity

HS Code:

3917290000

Capacity:

5000 units

📦 Packaging & Delivery

Package Size: 300.00cm * 200.00cm * 200.00cm

Gross Weight: 1000.000kg

Transport: By Sea

🚀 Innovative Pultrusion Solutions

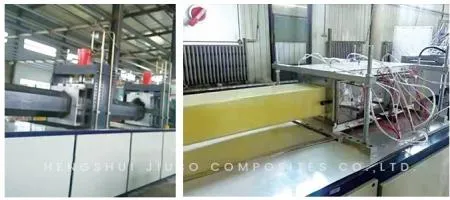

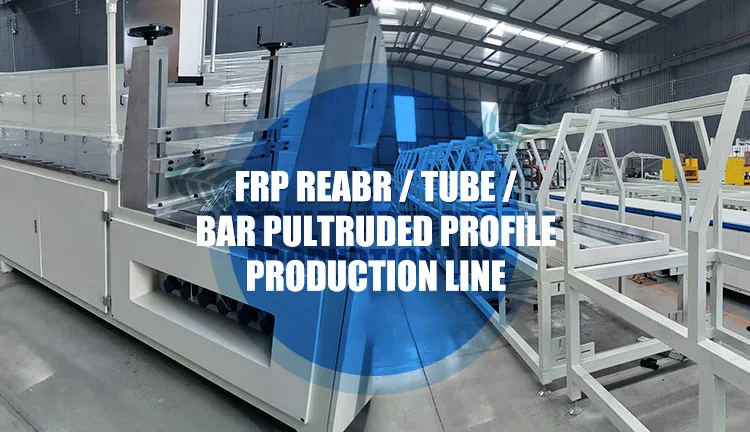

Hydraulic Reciprocating Pultrusion Equipment

Technical Specifications:

Mold mounting plate size: 1170×900×20mm
Mold length: 900mm
Adjustable plate height: 0~80mm
Temperature control sections: 4
Heating plate: Effective width 400mm, length 840mm, thickness 40mm
Maximum traction clamping window: 1000mm(W) × 300mm(H)
Traction force: 200-800kN
Pultrusion speed: 0.1~1.0m/min

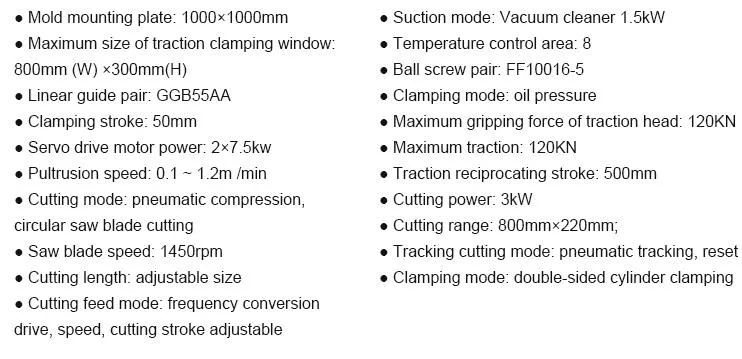

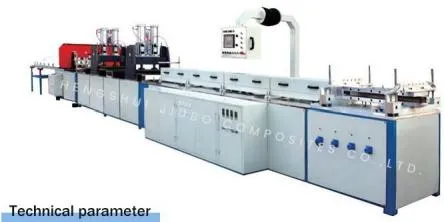

Lead Screw Type FRP Production Line

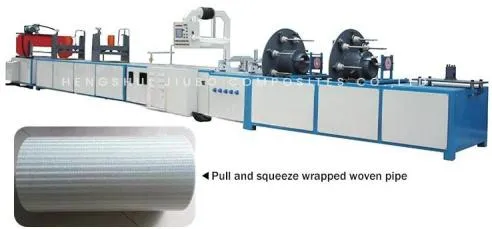

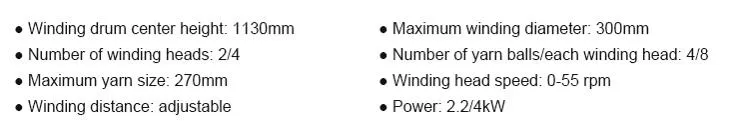

FRP Pultrusion Winding Production Line

This line represents the perfect integration of pultrusion and winding processes. It enhances both longitudinal and transverse strength, allowing for continuous pipe production and significantly improved efficiency. Uniform winding of glass fiber and reinforcing materials ensures superior pressure resistance.

Glass Fiber Composite & Profile Equipment

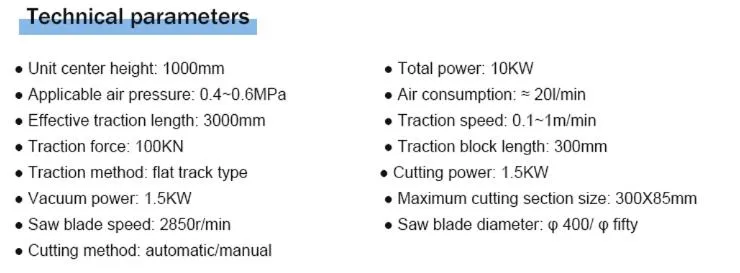

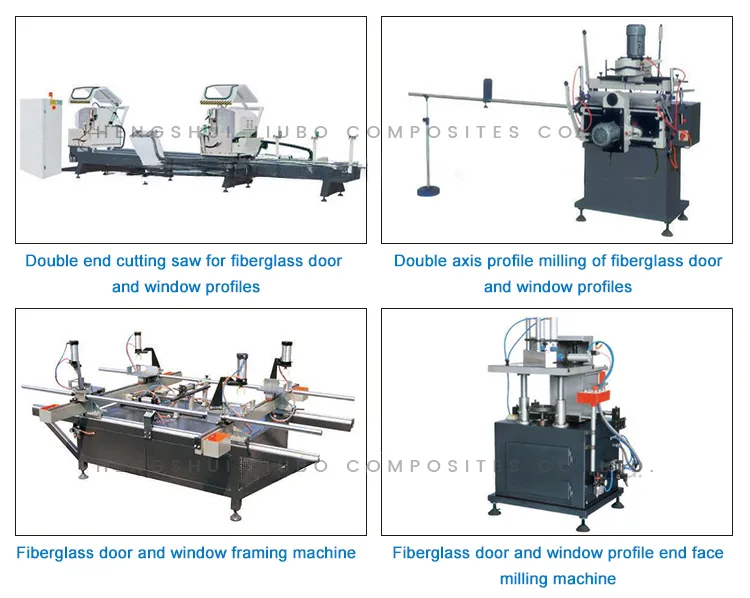

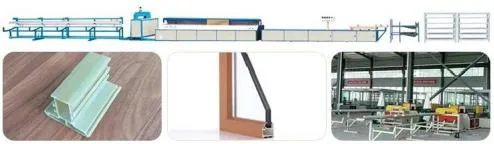

Fiberglass Door and Window Profile Extrusion:

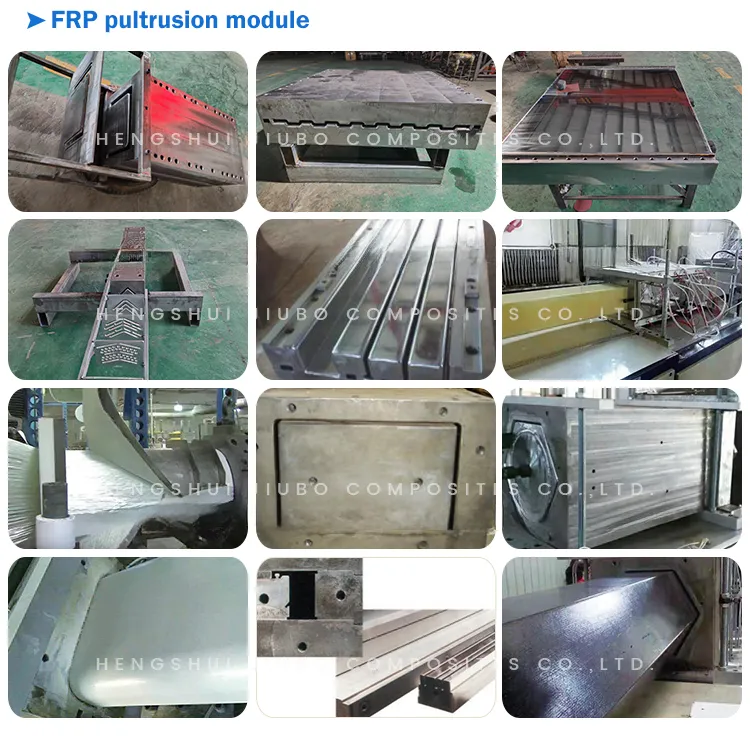

Carbon Fiber Cable Composite Core Equipment

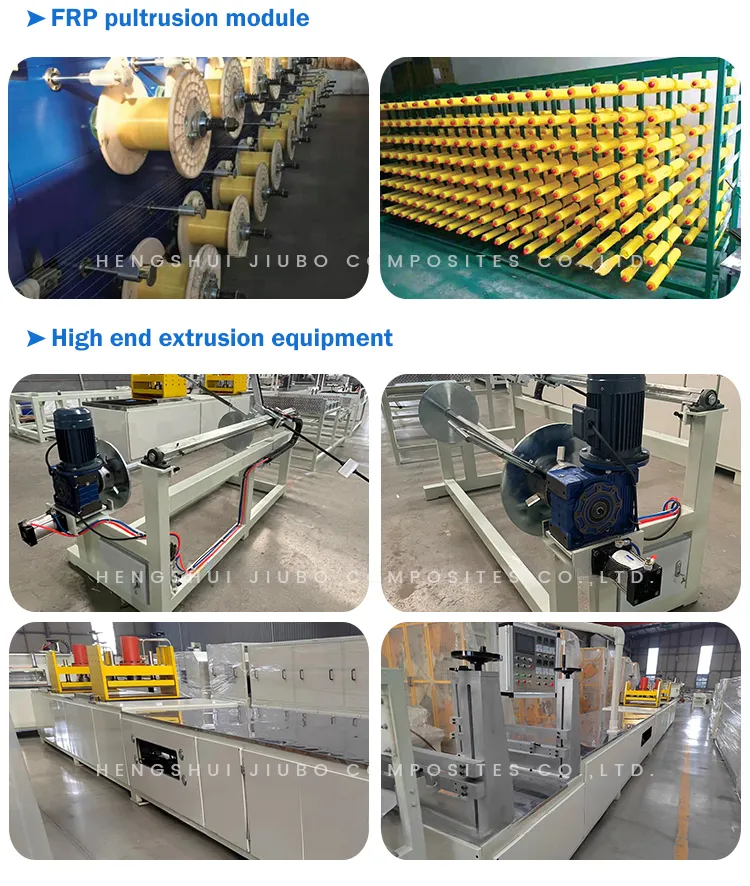

Steel structure yarn frame with 120 spindles.
Equipped with yarn guide devices and ceramic sleeves to prevent scraping or broken strands.
Post-curing device (minimum 2m length) for enhanced heat curing.
Crawler tractor with 4-ton traction force.
Traction speed: 0.1~1m/min (continuously adjustable).
Take-up reel diameter range: 1500~2500mm.

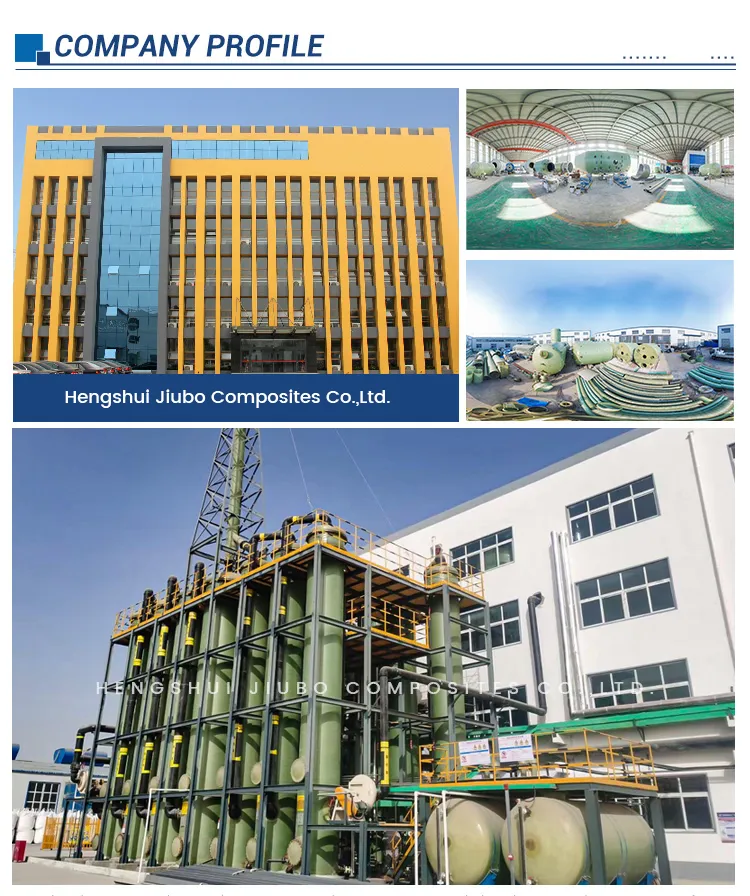

🏭 Manufacturing & Certification

Specialized in the production and sales of complete sets of chemical equipment and fiberglass production lines. Our expertise covers EPC chemical equipment series including potassium sulfate and sulfuric acid equipment, as well as microcomputer-controlled FRP pipe and tank winding lines.

International Certifications

Our management systems are certified according to ISO 9001, ISO 14001, and ISO 45001 standards, ensuring high-quality global export standards.

❓ Frequently Asked Questions

1. What are the main advantages of your pultrusion machines? Our machines feature high automation and productivity, allowing for consistent quality with minimal manual intervention.

2. What models of pultrusion machines do you offer? We provide various models ranging from 10t to 50t (including 12t, 15t, 20t, 25t, 30t, and 40t) to meet different production scales.

3. How does the winding production line improve pipe strength? By integrating pultrusion and winding, the machine ensures uniform distribution of fibers, which significantly enhances both longitudinal and transverse pressure resistance.

4. Can the pultrusion speed be adjusted? Yes, the traction speed range is typically 0.1~1.0m/min and is continuously adjustable to suit different material requirements.

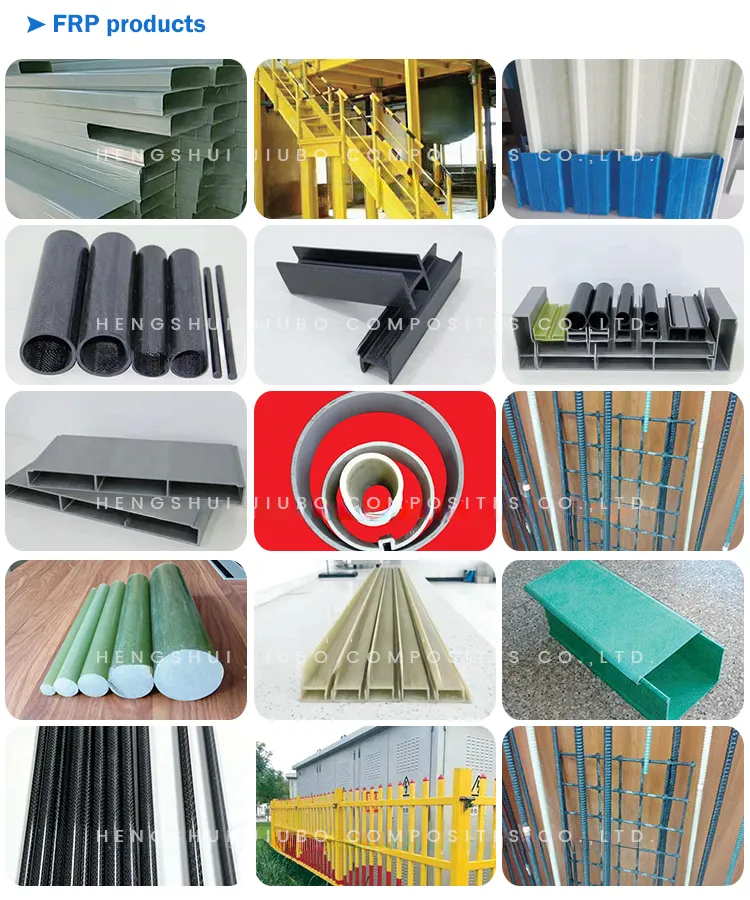

5. What materials can be processed with this equipment? The equipment is designed for fiberglass (FRP), carbon fiber cable composite cores, and various composite profiles for doors, windows, and industrial pipes.

6. Is the equipment compliant with international standards? Yes, the production process and management systems are certified under ISO 9001, ISO 14001, and ISO 45001.
