Product Description & Functions

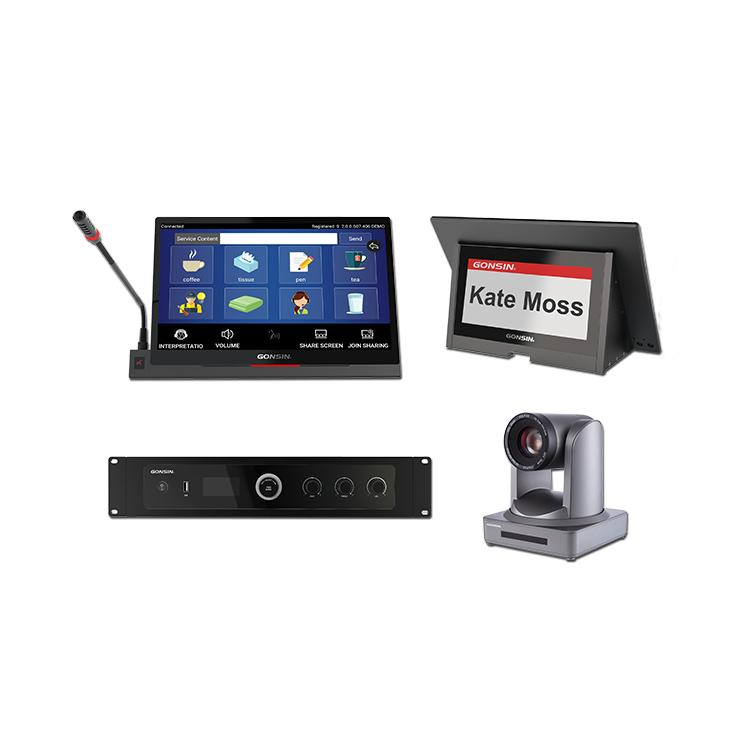

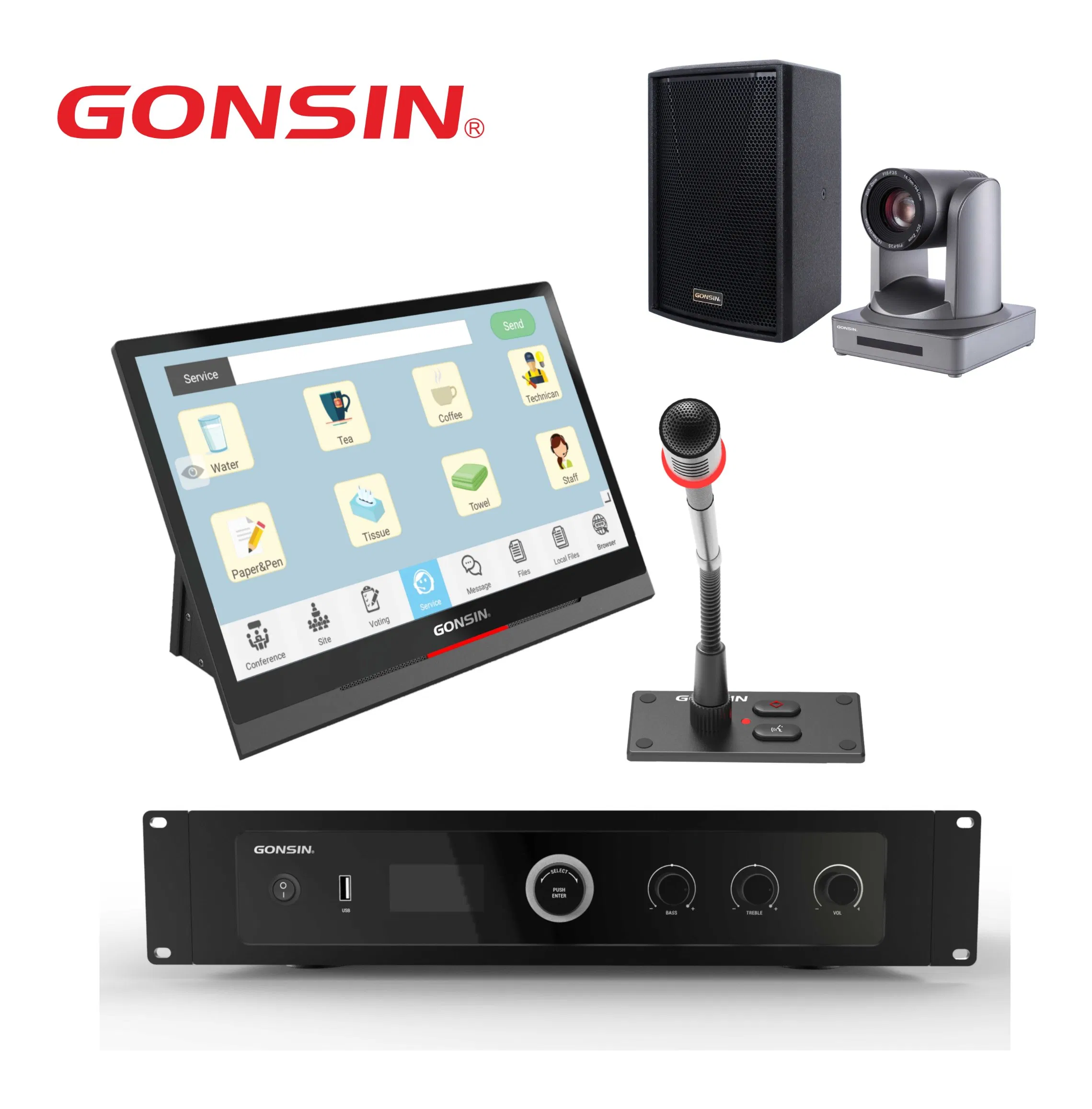

DCS-2062DI Basic Functions Overview
- In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
- Full digital audio technology with built-in high-speed CPU and high-performance DSP processor

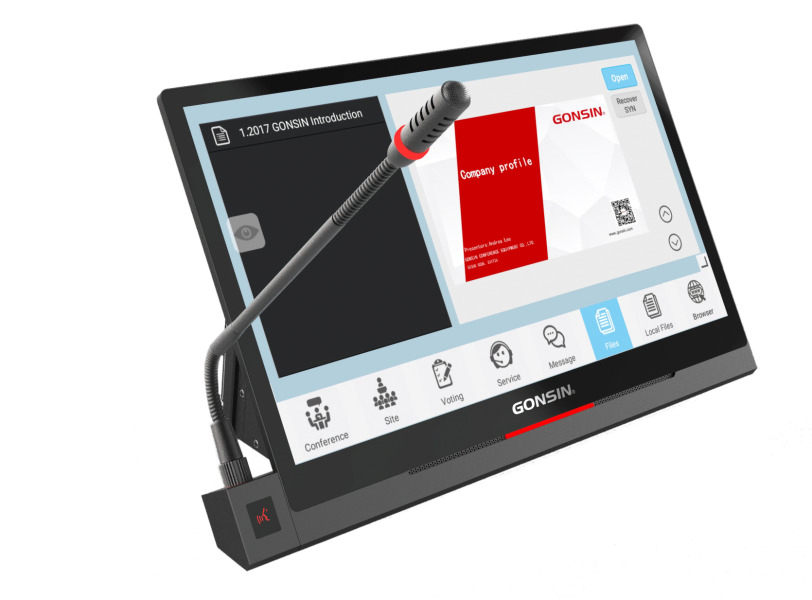

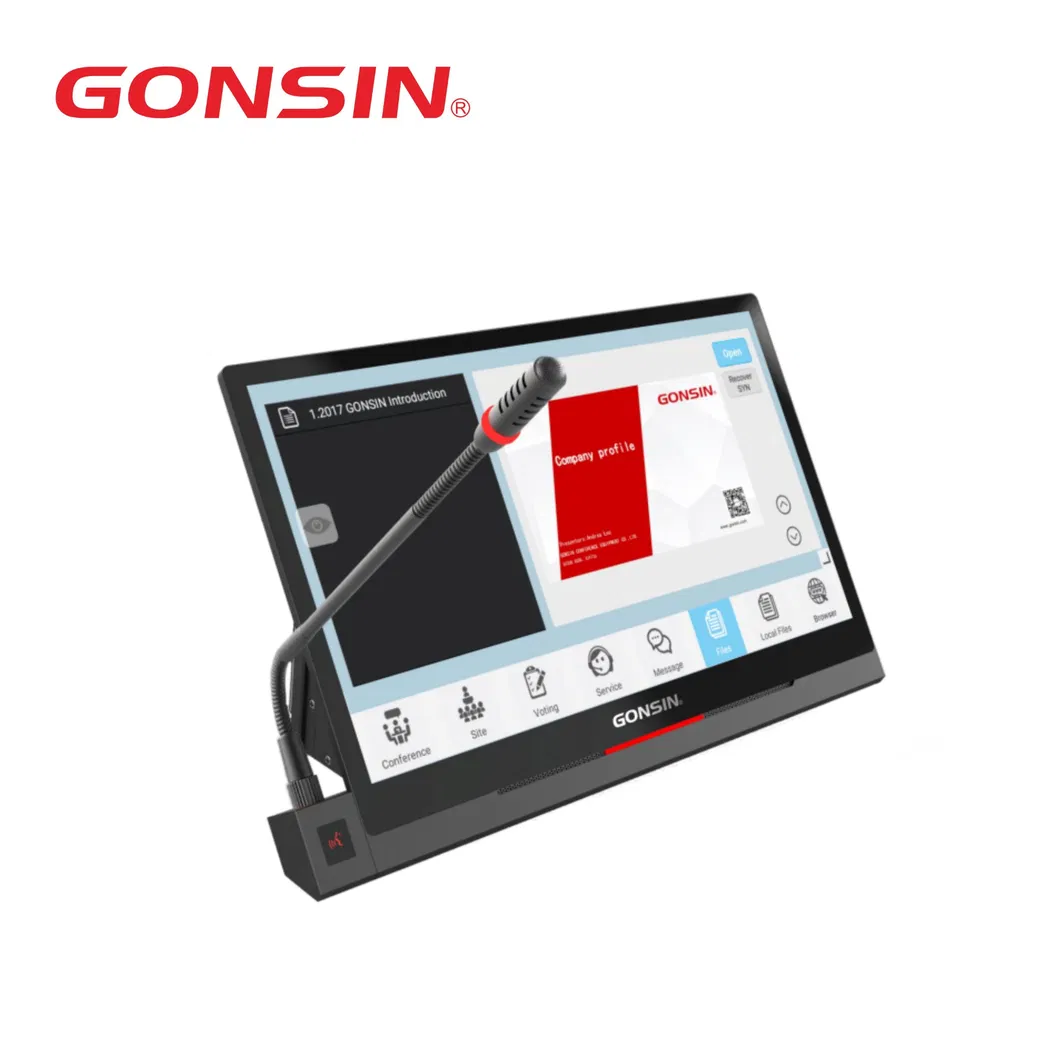

- 15.6 inches LCD touch screen (1920 × 1080 resolution, 10 points touch) with slim bezel design
- Electronic nameplate utilizes 10.1 inches HD LCD screen (1280 × 800) for high-quality image display
- Synchronous user information display (Name, Position, Logo) with customized templates
- Flexible cabling: daisy-chain, star, or mixed connection via standard network cables
- Attendance registration and Voting functions initiated by chairman terminal
- Digital conference files management: supports DOC, PDF, PPT, JPG, MP4, and more
- Advanced Screen Sharing and Whiteboard functions for real-time collaboration
- Developed on Android platform with data encryption for high information security

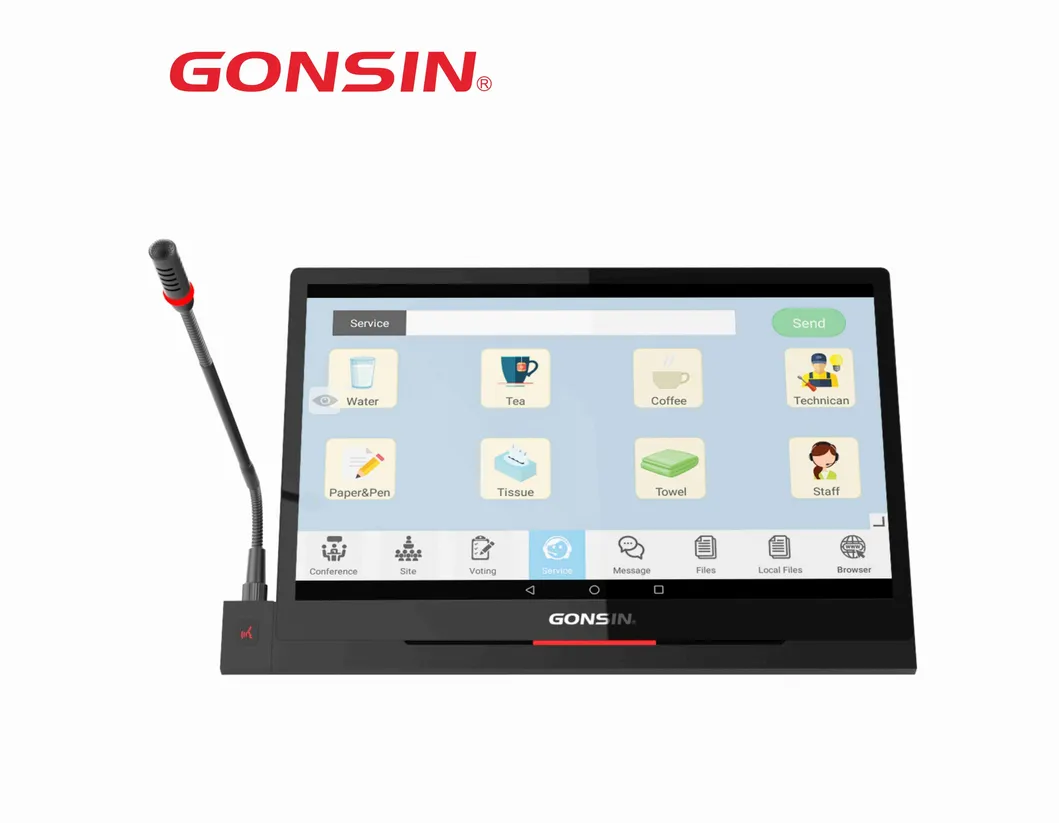

Desktop All-in-one Discussion and Interpretation (Single Screen) Features
- Luminous capacitive touch control mic button for accurate response
- 48KHz audio sample frequency; response from 20Hz to 20KHz
- Built-in DSP to remove low-frequency noise and improve sound clarity
- Pluggable gooseneck microphone (standard 410mm) with red ring indicator
- Highly resistant to mobile phone interference
- Multiple system modes: VOX, Auto, FIFO, Operator

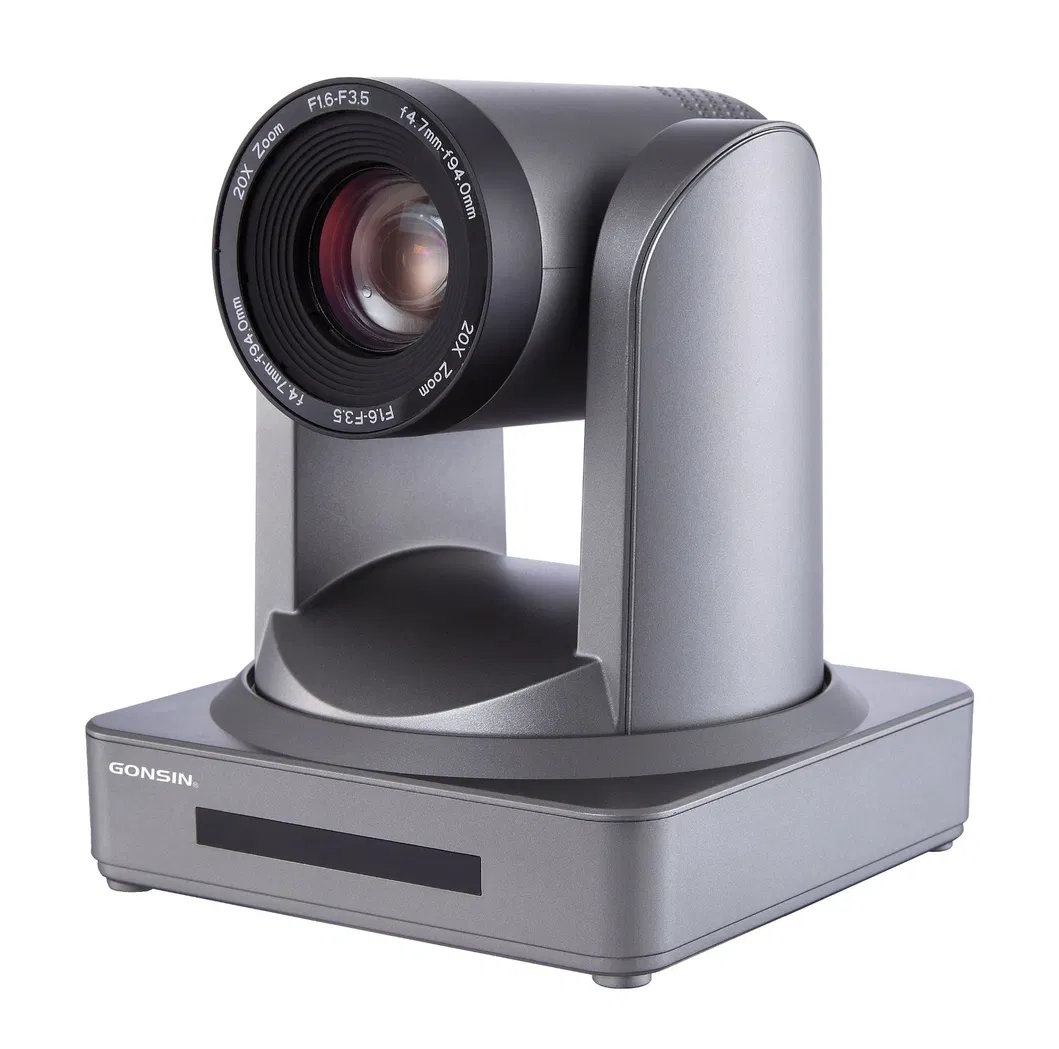

- Supports automatic video tracking (SD and HD)
- Chairman priority button to override delegate terminals

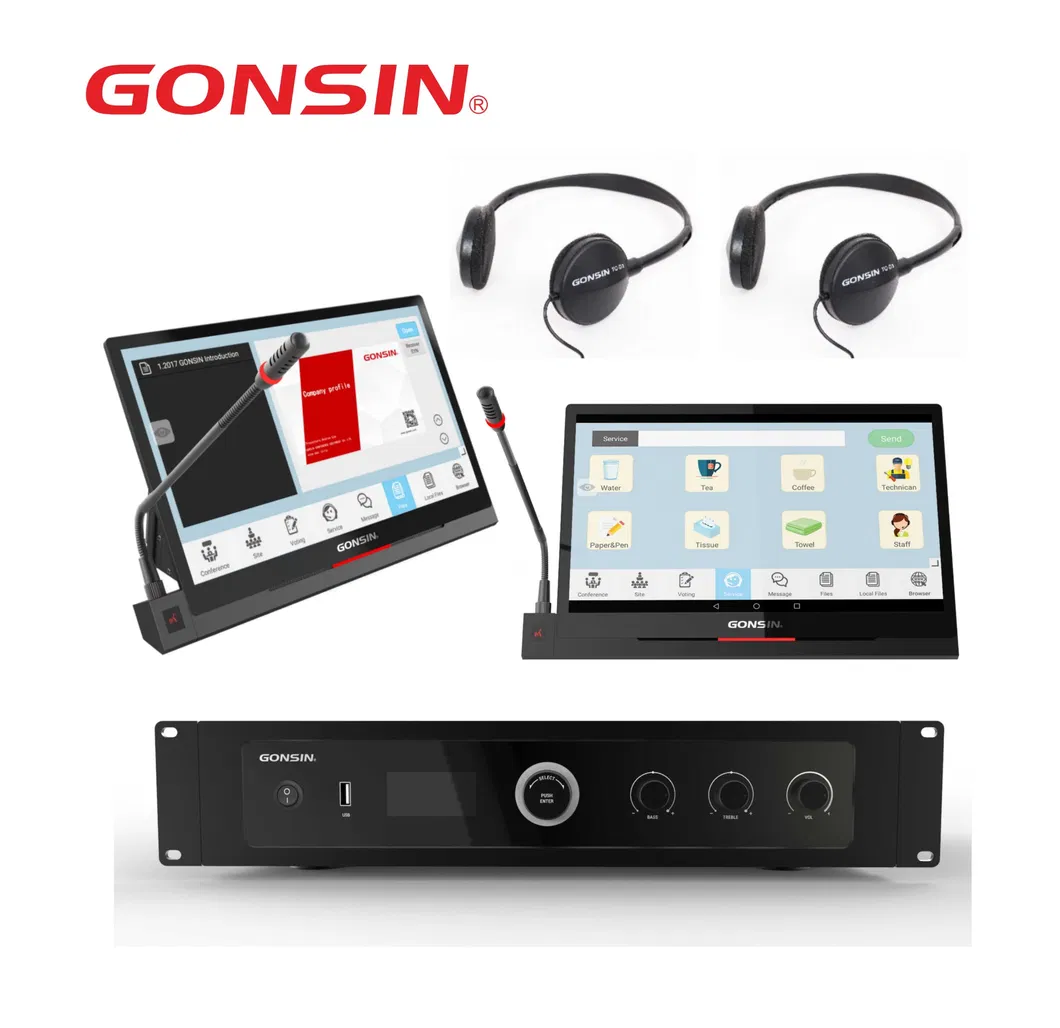

- Supports 32 (1+31) channels simultaneous interpretation
?
Frequently Asked Questions
What international standards does this system comply with?
The system is fully compliant with the IEC60914 international standard for conference systems, ensuring high-quality digital audio processing and transmission.

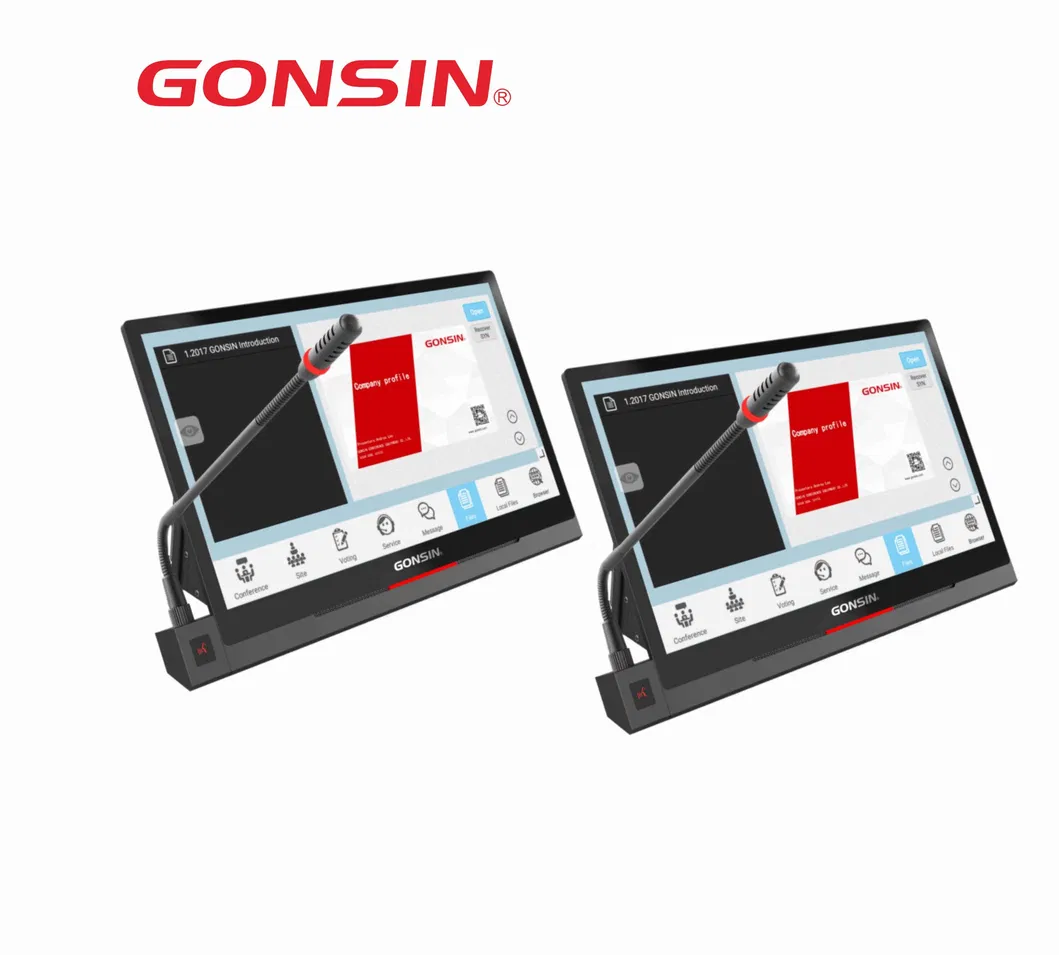

Does the terminal support file browsing and sharing?
Yes, the paperless terminal supports browsing and sharing various file formats including DOC, PDF, PPT, JPG, PNG, MP4, and more. Users can also make notes on files and save them to the server.
How many simultaneous interpretation channels are supported?
The system supports up to 32 (1+31) channels of simultaneous interpretation, which can be selected directly via the paperless LCD screen.
What are the key display specifications?
The main conference terminal features a 15.6-inch LCD touch screen with 1920x1080 resolution. The dual-screen model also includes a 10.1-inch HD electronic nameplate for displaying user info.
What microphone modes are available?
The system supports multiple operation modes including VOX (voice-activated), Auto, FIFO (First-In-First-Out), and Operator mode to suit different conference requirements.
Can the system be expanded for large-scale projects?
Yes, the system supports unlimited capacity via wired network cable connections and allows for flexible cabling (daisy-chain, star, or mixed) to simplify construction.
