Elevator Safety Detection Management Solution

Customization:	Available
After-sales Service:	7*24 Hours
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

LCP

Application

Lift/Elevator/Escalator/Moving Walk

Speed Range

0.2-9.99m/S

Speed Resolution

0.001m/S

Speed Accuracy

≤1%

Acceleration Accuracy

≤2%

Test Range

0-1000n

Spring Elastic Coefficient

44.31n/mm

Sensor Gap Width

>200mm

Displacement Range

0-1m

Displacement Accuracy

0.1mm

Return Time Accuracy

<0.01s

Sampling Frequency

≥1000Hz

Wireless Transmission Distance

0-500m(Open Space)

HS Code

9031809090

Production Capacity

50 Set /Year

Packaging & Delivery

Package Size

66.00cm * 40.00cm * 44.00cm

Package Gross Weight

4.500kg

Product Description

Elevator Safety Detection Management Solution

This system is a set of intelligent lift testing equipment. By changing different accessories, it can realize multiple functions including: lift speed, upward braking distance, lift overspeed governor, escalator synchronization rate and speed deviation, escalator braking distance, lift door pinch force measurement, lift buffer return time, lift acceleration, lift guide rail distance and coplanarity, wire rope tension, traction wheel wear test and lift balance factor etc.

◈ Key Features & Functions

✔

Measure response time of electric safety device and safety gear.

✔

Two-way overspeed governor drive.

✔

Measure lift speed and upward braking distance.

✔

Escalator synchronization rate and speed deviation calculation.

✔

Lift door closing resistance and kinetic energy analysis.

✔

Compression stroke and return time of buffer measurement.

✔

Comprehensive Ride Quality analysis (A95 acceleration, vibration peaks).

✔

Wire rope tension and average deviation calculation.

✔

Lift balance factor via no-load power method.

✔

Data automatic saving, export, and intuitive curve analysis.

Product Show

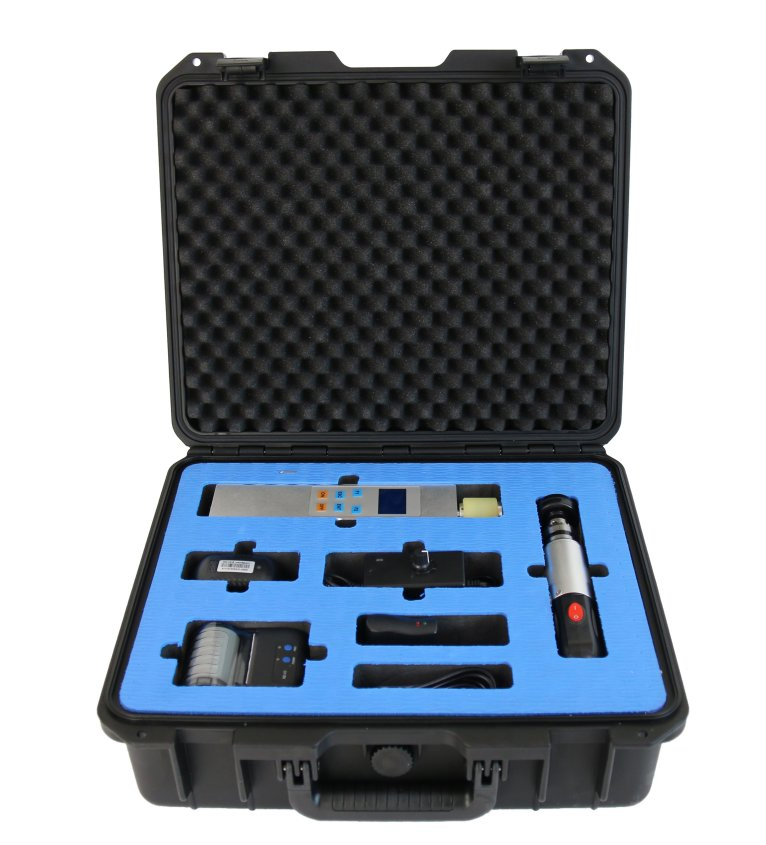

LCP-01

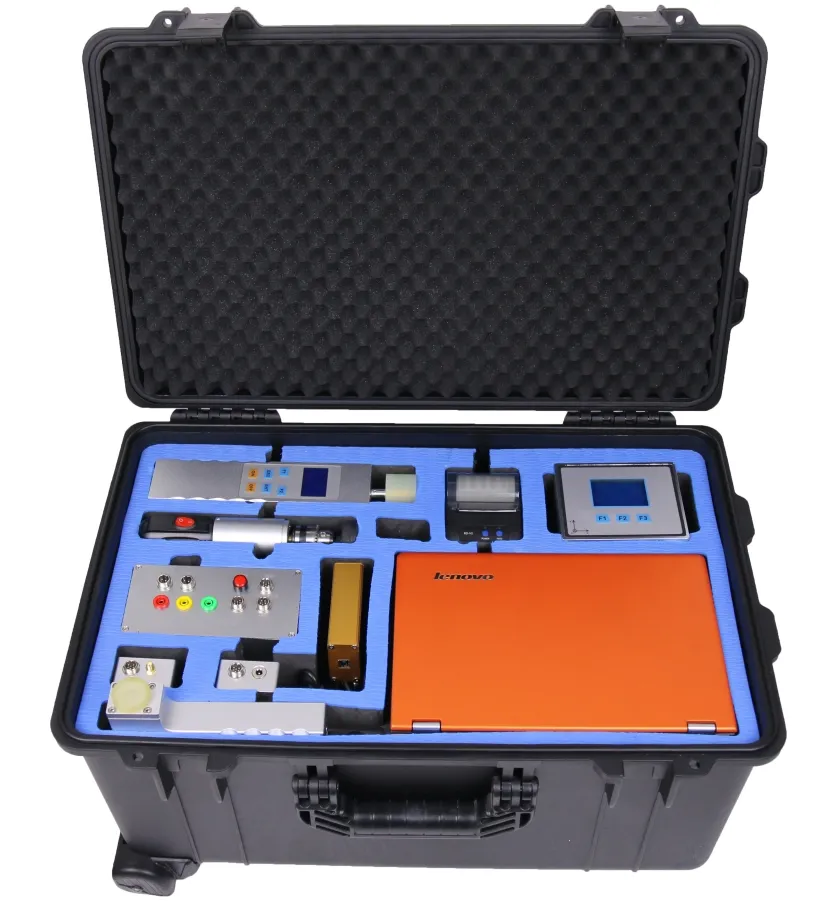

LCP-02 to 06

Technical Specifications

Overspeed Governor Speed range: 0.2-9.99m/s Resolution: 0.001m/s Accuracy: ≤1%	Lift Balance Factor Accuracy: ±0.02 Power Accuracy: <0.5% Voltage: ≤AC 500V Current: ≤AC 50A	Lift Door Pinch Force Range: 0-1000N Accuracy: ±3N Elastic Coeff: 44.31N/mm
Buffer Return Displacement: 0-1m Accuracy: 0.1mm Time Accuracy: <0.01s Freq: ≥1000Hz	Guide Rail & Coplanarity Distance: 0.2-30m Accuracy: ≤0.5mm Laser Wavelength: 650nm	Wire Rope Tension Capacity: 0-5000N Diameter: 6-16mm Resolution: 1N Accuracy: ≤2%

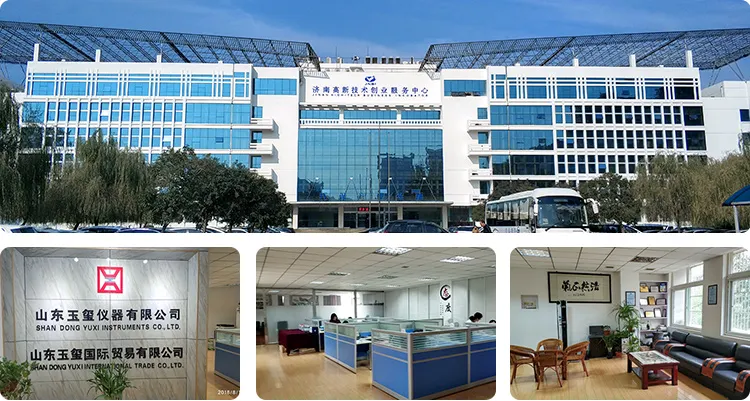

Professional Manufacturing

Equipped with world-class production equipment and internationalized workshops, we specialize in the manufacture of instruments and equipment with over 19 years of expertise. Certified with ISO 9001, we export to 50+ countries, offering reliable instruments backed by R&D innovation and strict quality control.
