Durable Ply Woodcase for Agriculture and Waste Water Solutions

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

DECENT64276

Type

Centrifuge

Method

Chemical Treatment

Usage

Industrial, Agriculture, Hospital

Inlet Pressure

101.32kpa

Speed

2930-4800rpm

Color

Custom Made

Specification

ABB/SIEMENS Starter

Product Description

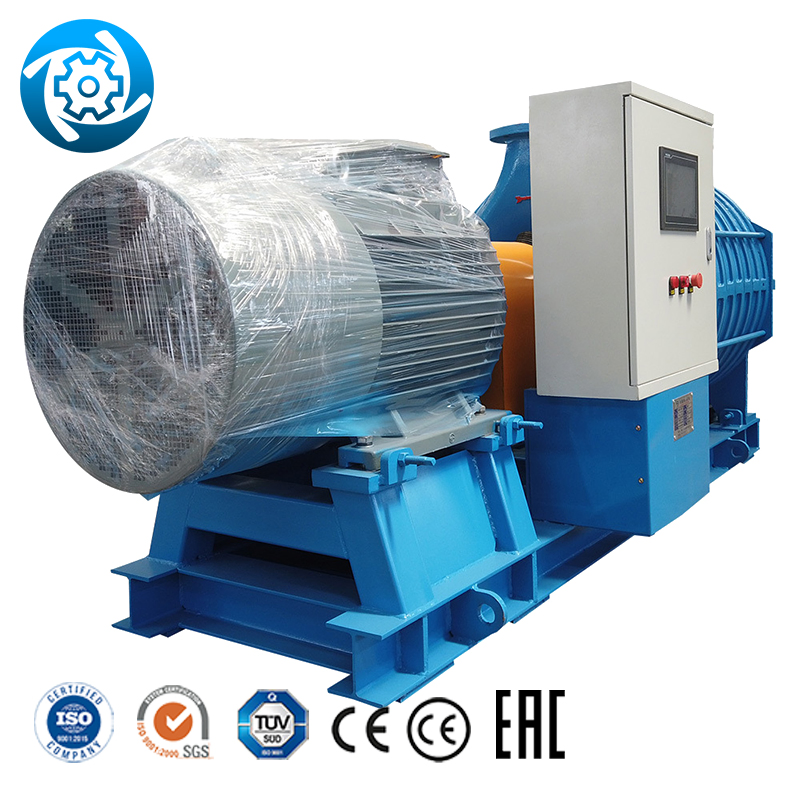

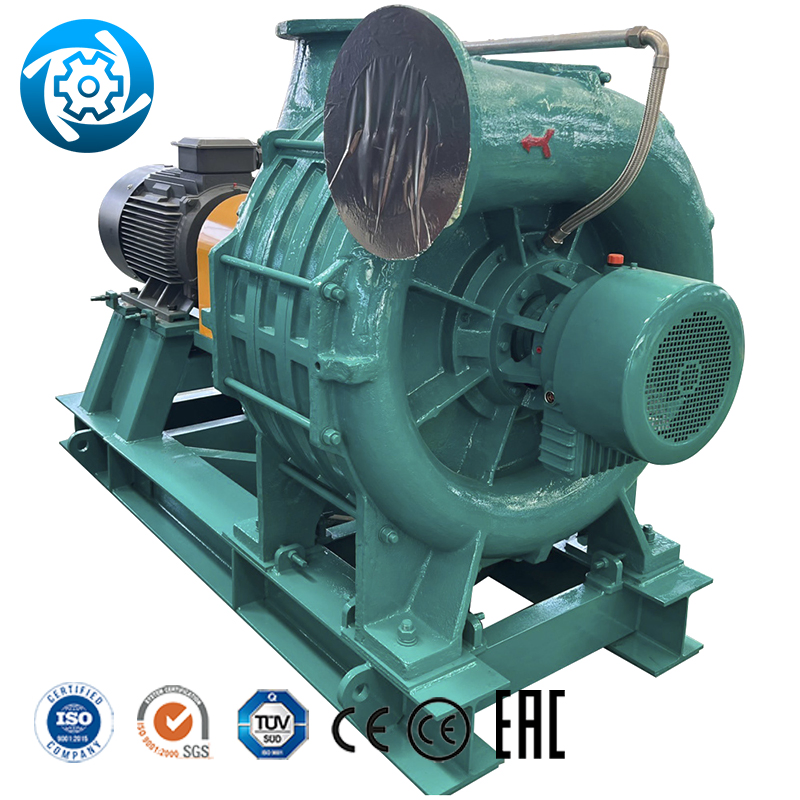

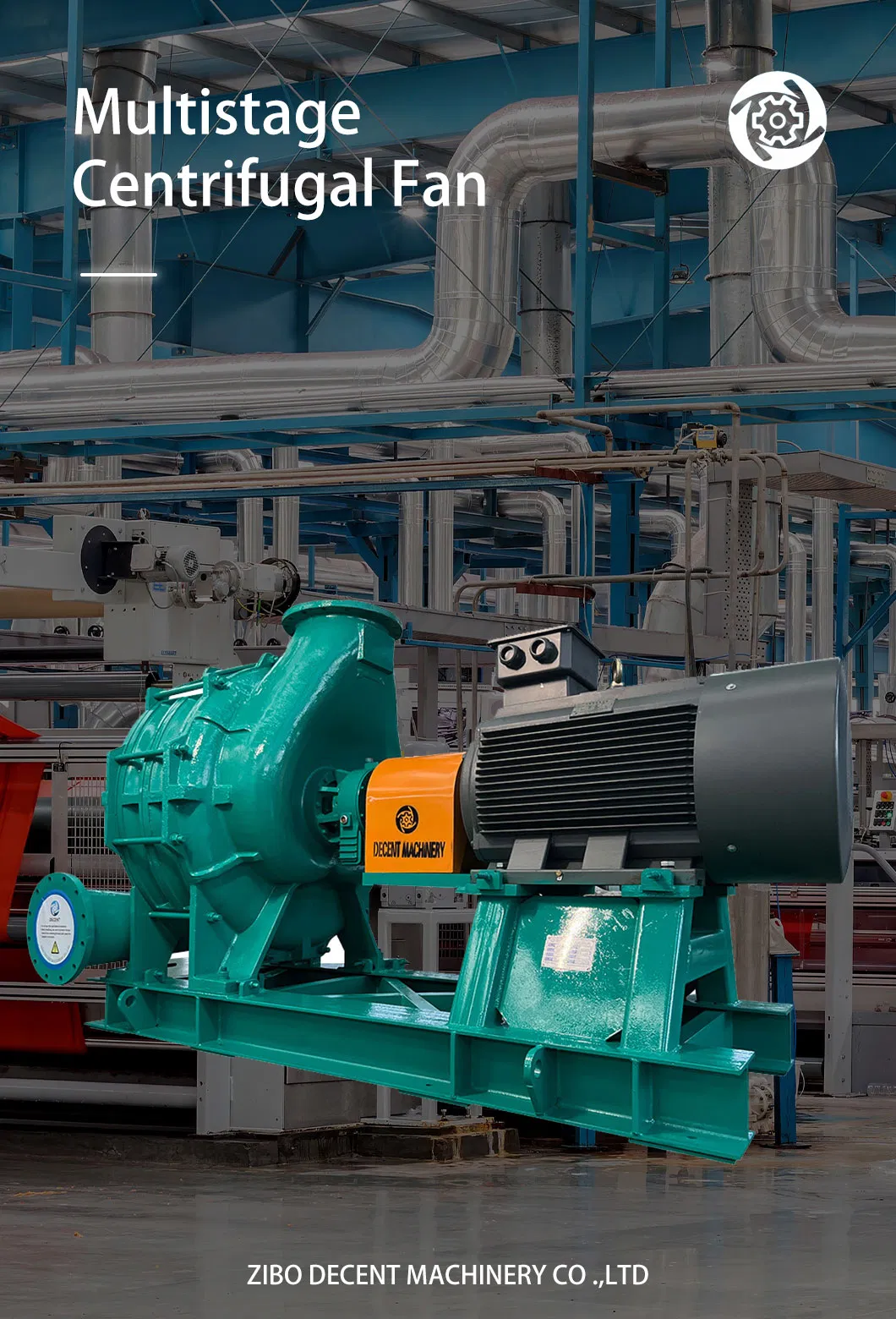

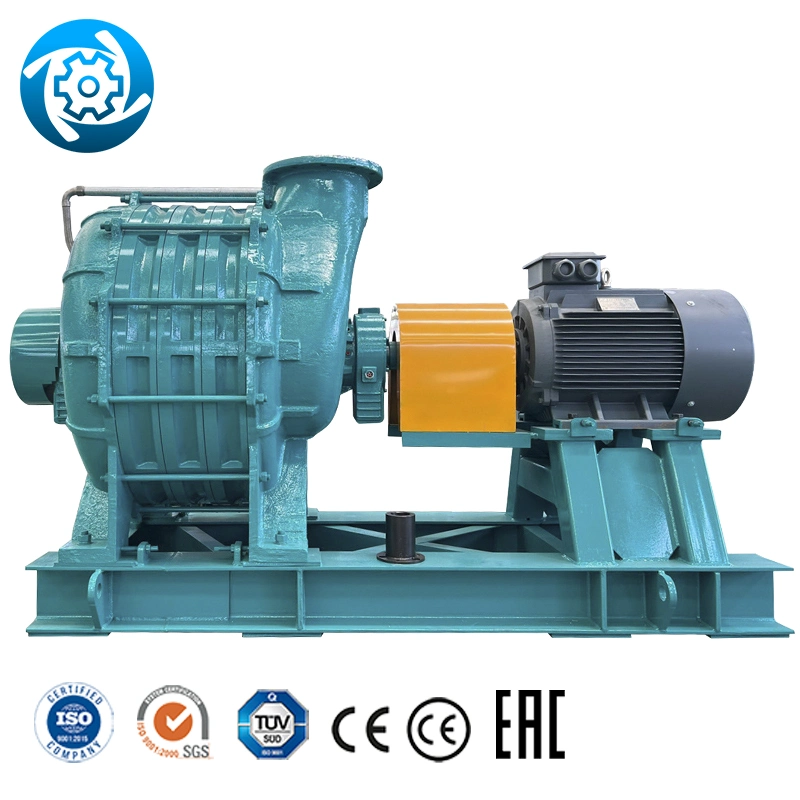

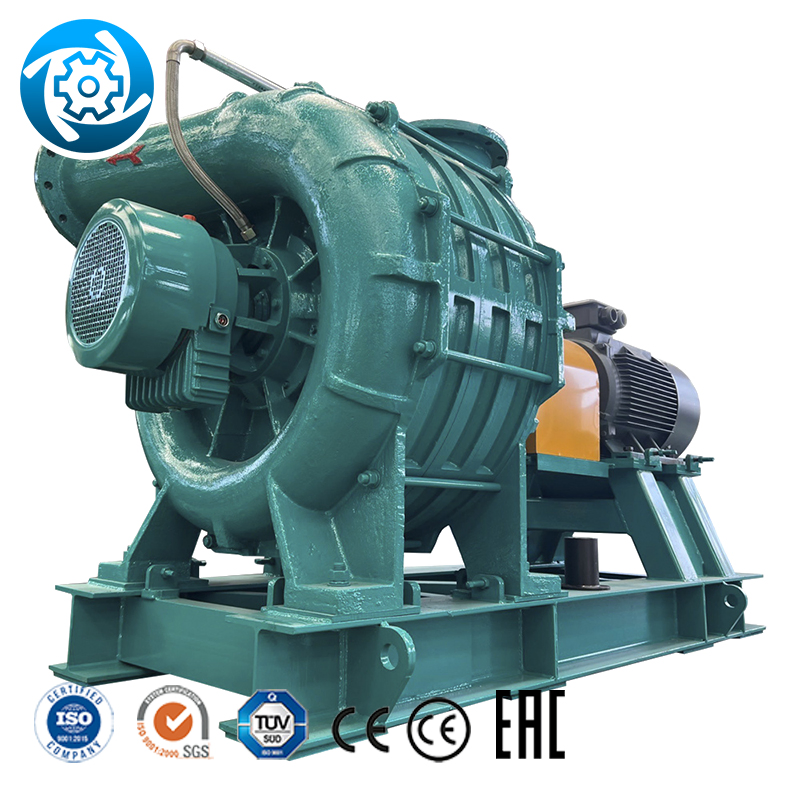

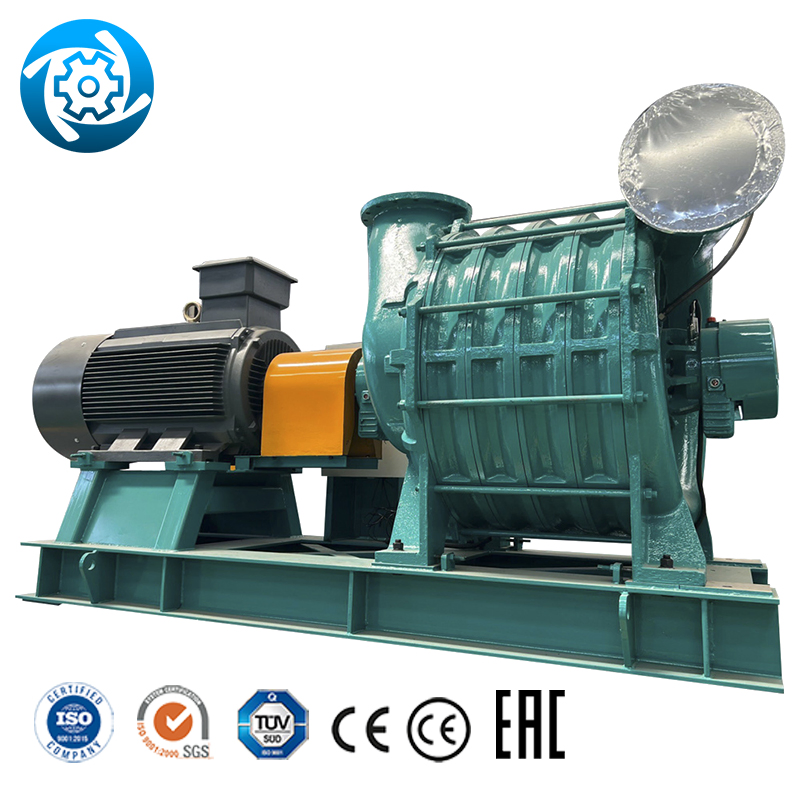

Double Inlet Speed Control Compact Multistage Centrifugal Fan Blower is designed for high-performance applications such as sewage treatment. The range includes multiple models offering pressure up to 98Kpa or vacuum to -40Kpa, with flow rates ranging from 35 to 220 m³/min.

This series of casting multistage centrifugal blowers utilizes advanced technology to ensure advanced performance levels. By adopting proprietary technologies, these blowers achieve significantly lower noise levels, reduced vibration, and superior efficiency compared to standard industrial competitors.

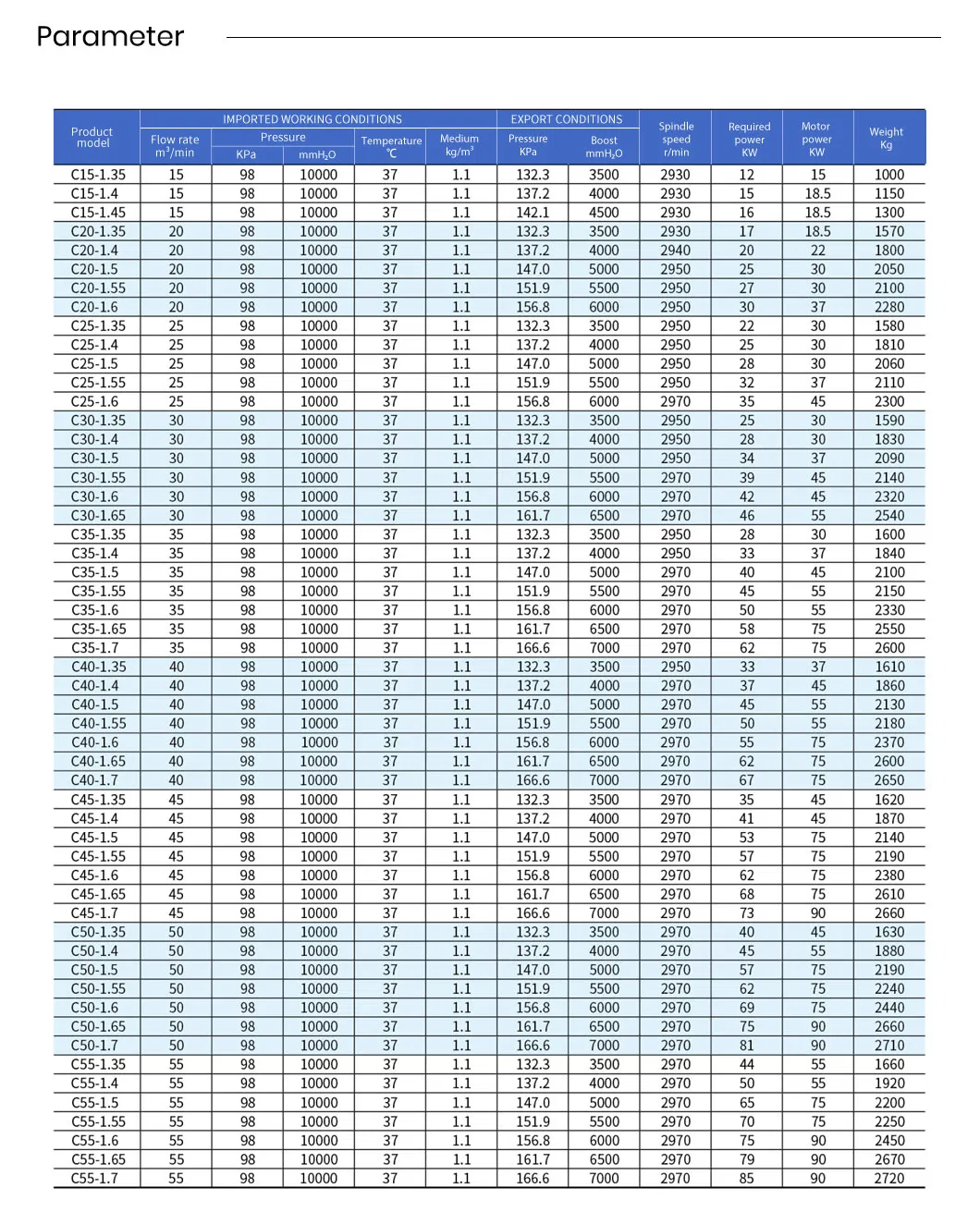

Product Parameters

Model	Air Capacity	Pressure	Model	Air Capacity	Pressure
C220	0-220m³/min	-27.4 to 68.6Kpa	C200	0-200m³/min	-29.4 to 73.5Kpa
C180	0-180m³/min	-35.3 to 88.2Kpa	C160	0-160m³/min	-40 to 98Kpa
C150	0-150m³/min	-40 to 98Kpa	C140	0-140m³/min	-40 to 98Kpa
C130	0-130m³/min	-40 to 98Kpa	C120	0-120m³/min	-40 to 98Kpa
C110	0-110m³/min	-40 to 98Kpa	C100	0-100m³/min	-40 to 98Kpa
C90	0-90m³/min	-35.3 to 88.2Kpa	C80	0-80m³/min	-35.3 to 88.2Kpa

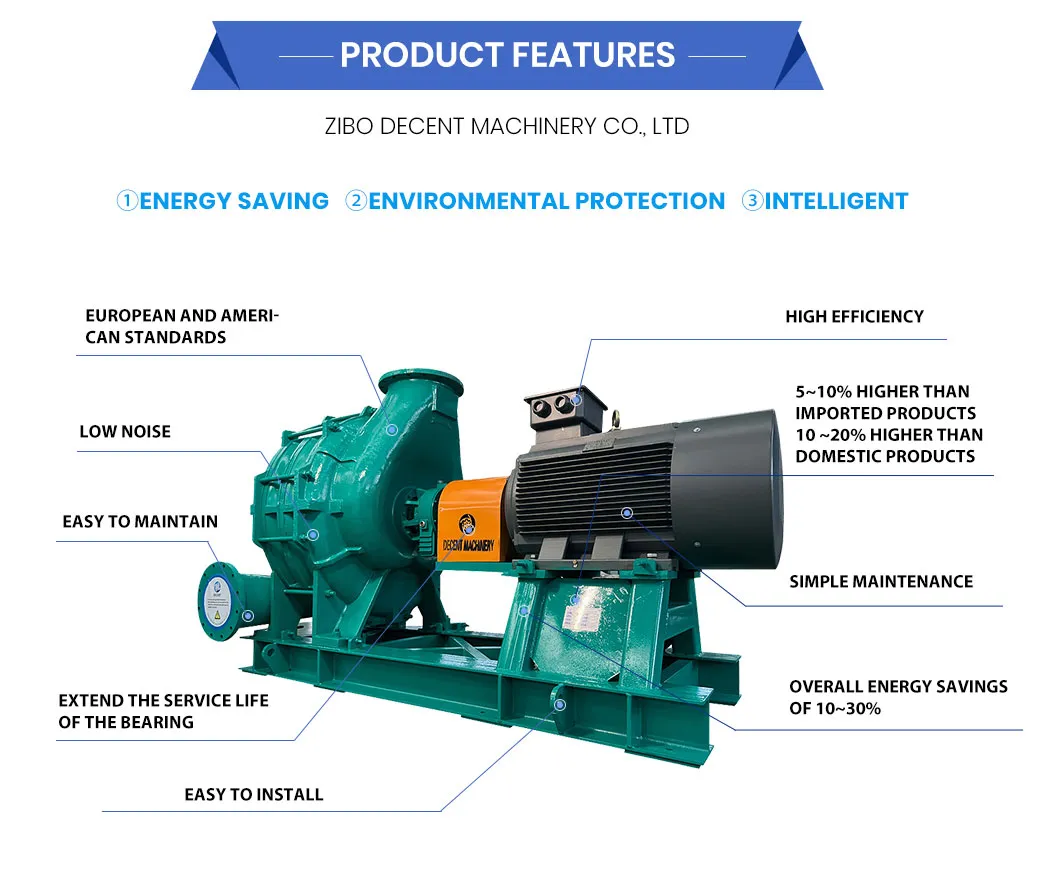

Key Product Features

✓Streamlined shell design reduces energy loss.

✓3D meridian plane impeller for maximum efficiency.

✓Impeller intake diversion ring improves inlet fluidity.

✓Airfoil return-flow blades for high static pressure.

✓Polytropic efficiency optimized up to 78%.

✓Dual speed compatibility (50Hz and 60Hz).

✓Strict dynamic balancing for low vibration and noise.

✓Minimal easy-worn parts for easy maintenance.

Industrial Applications

●Water & Wastewater Treatment

●Biogas Recovery & Process Gas Conveying

●Vacuum Cleaning & Air Knife Drying

●Floatation & Mineral Beneficiation

●Galvanization & Electric Plating

●Desulfurization & Blast Furnace Processes

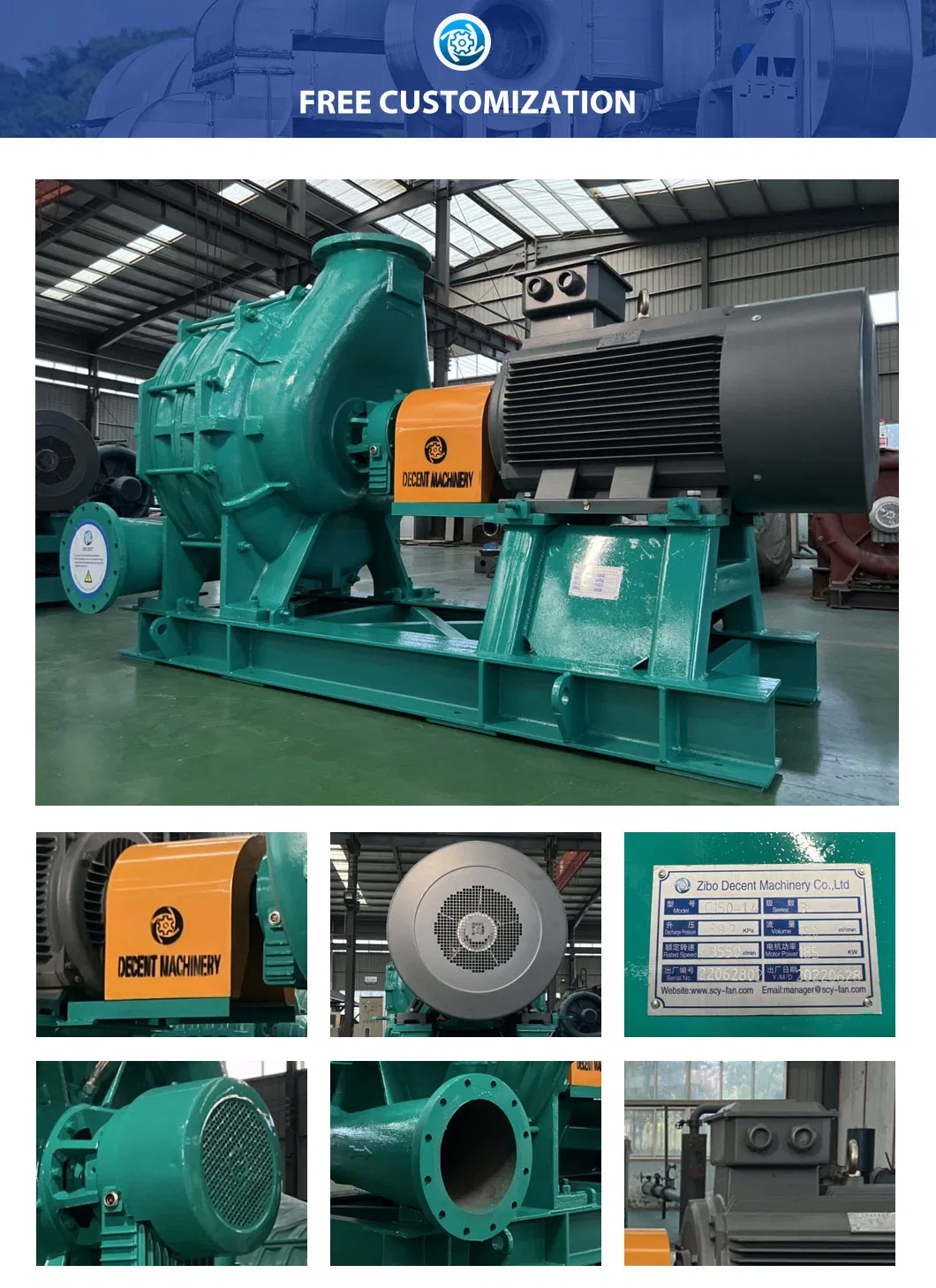

Visual Showcase

Frequently Asked Questions

Q1: What is the maximum pressure range of these blowers?

The product performance ranges up to 98Kpa pressure or to -40Kpa vacuum.

Q2: Can the blower operate at both 50Hz and 60Hz?

Yes, the blowers are designed to meet two rotating speeds of 50Hz and 60Hz with a wide adjustment range.

Q3: What makes this multistage centrifugal fan more efficient?

It uses three-dimensional meridian plane and compound curve technology for the impeller, achieving a polytropic efficiency of up to 78%.

Q4: Is maintenance difficult for these units?

No, the structure is advanced and reasonable with few easy-worn parts, making installation, operation, and maintenance very convenient.

Q5: What are the primary applications for this blower?

Key applications include wastewater treatment, biogas recovery, vacuum cleaning, and industrial gas conveying.

Q6: How does the design reduce noise and vibration?

Through strict dynamic balancing of the rotor and fluid analysis technology to optimize flow paths, noise and vibration are kept at world-advanced low levels.
