Innovative Dual-Laser Technology for Efficient Contract Manufacturing Solutions

Customization:	Available
Warranty:	2 Year
File Format:	STEP, IGES, SLC, CLI, STL

Overview

Nozzle Number:Dual-Laser

Connection:WiFi

Precision:<100mu

Thickness:20-80mu

Printer Material:Plastic, Metal

Forming Tech:SLM

OS:Windows 10

Trademark:HUIYAO LASER

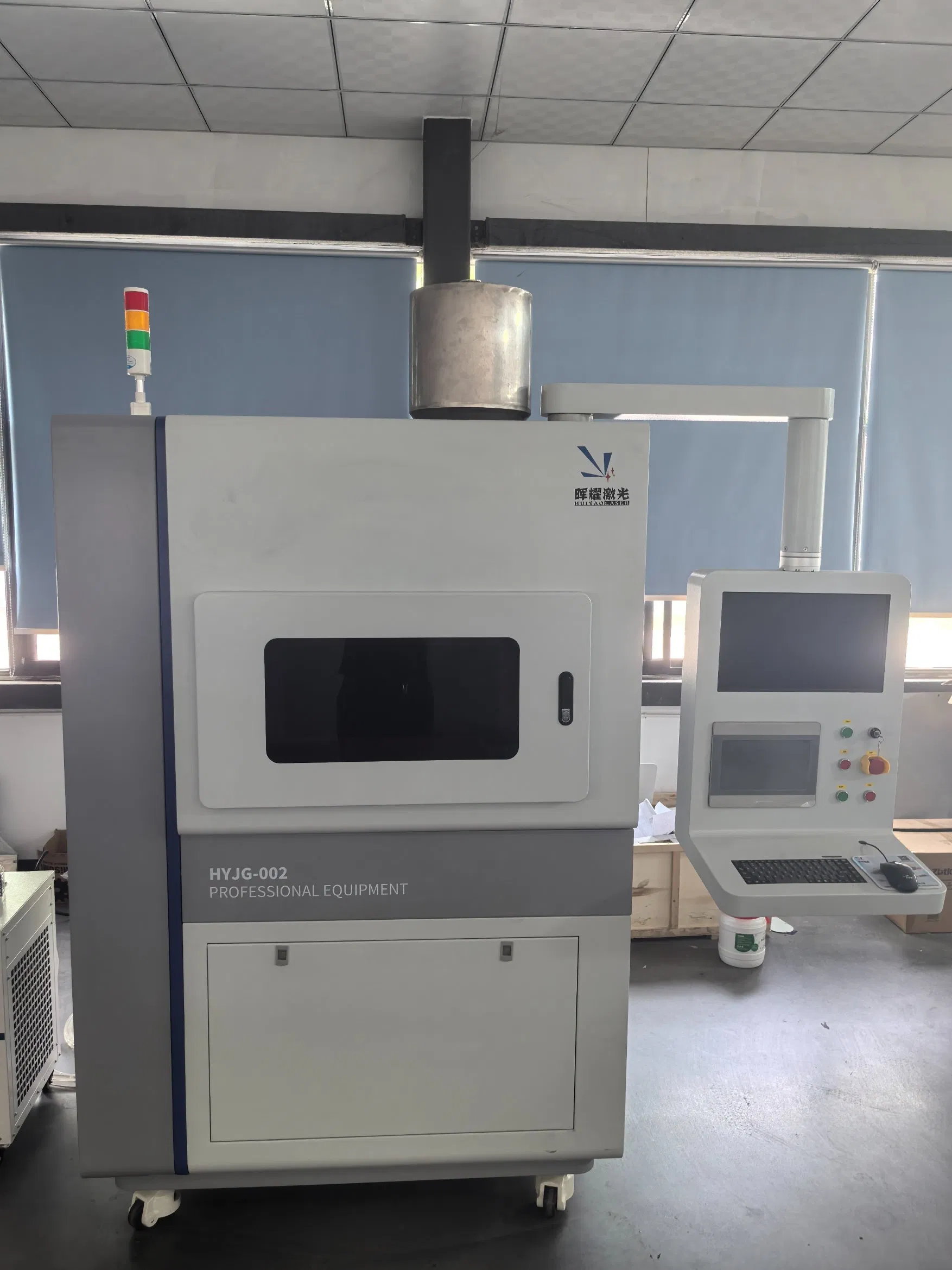

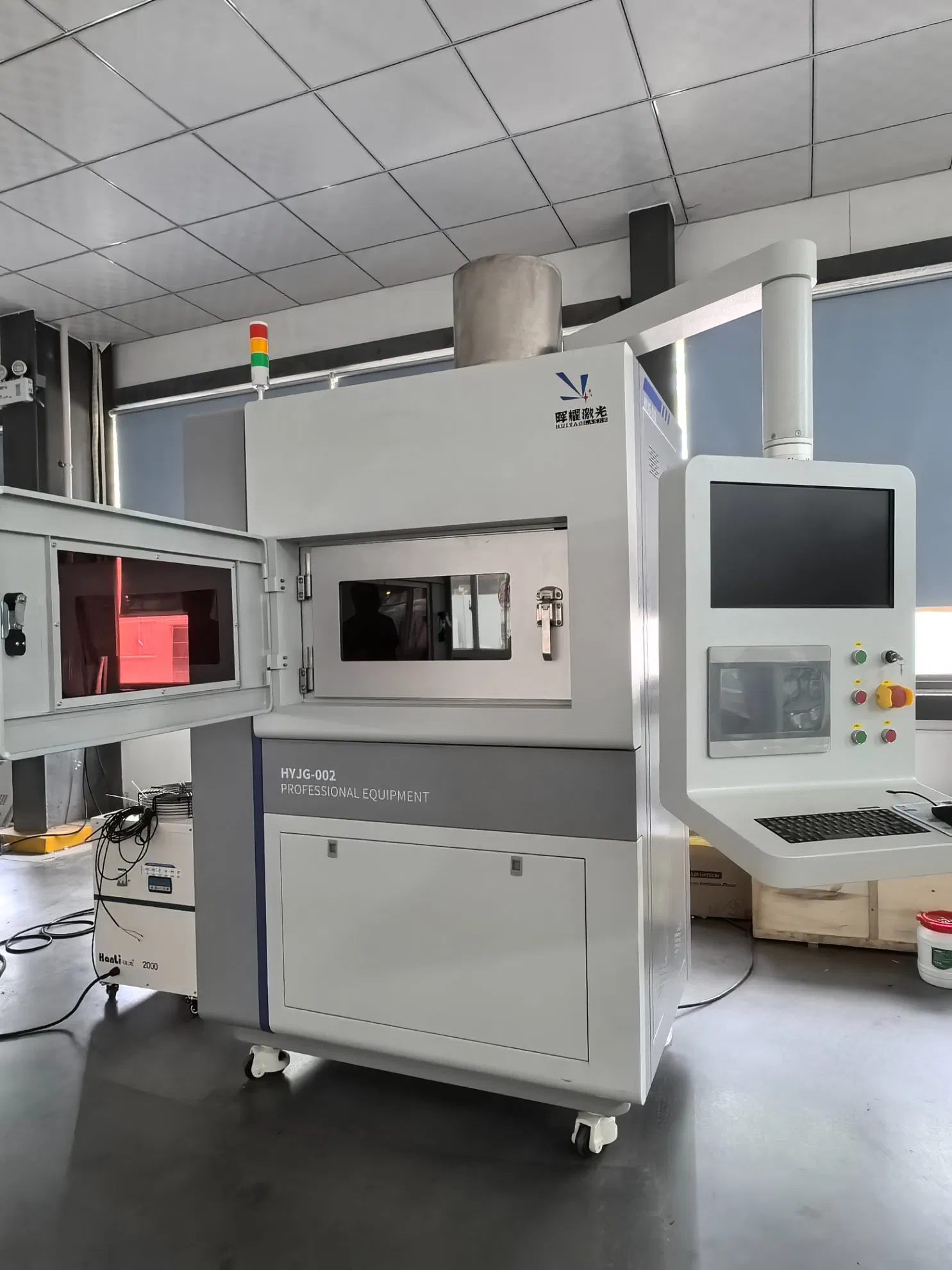

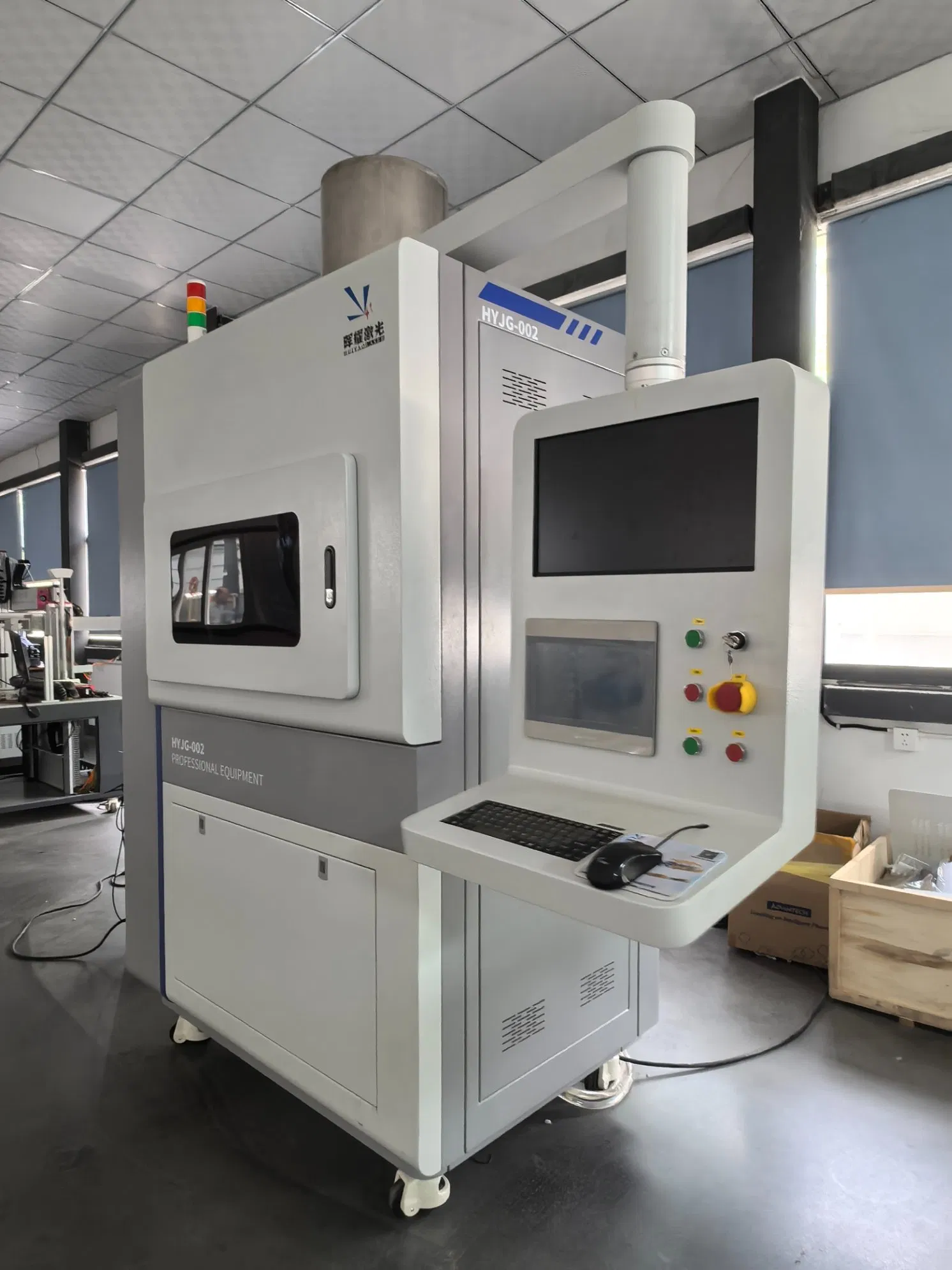

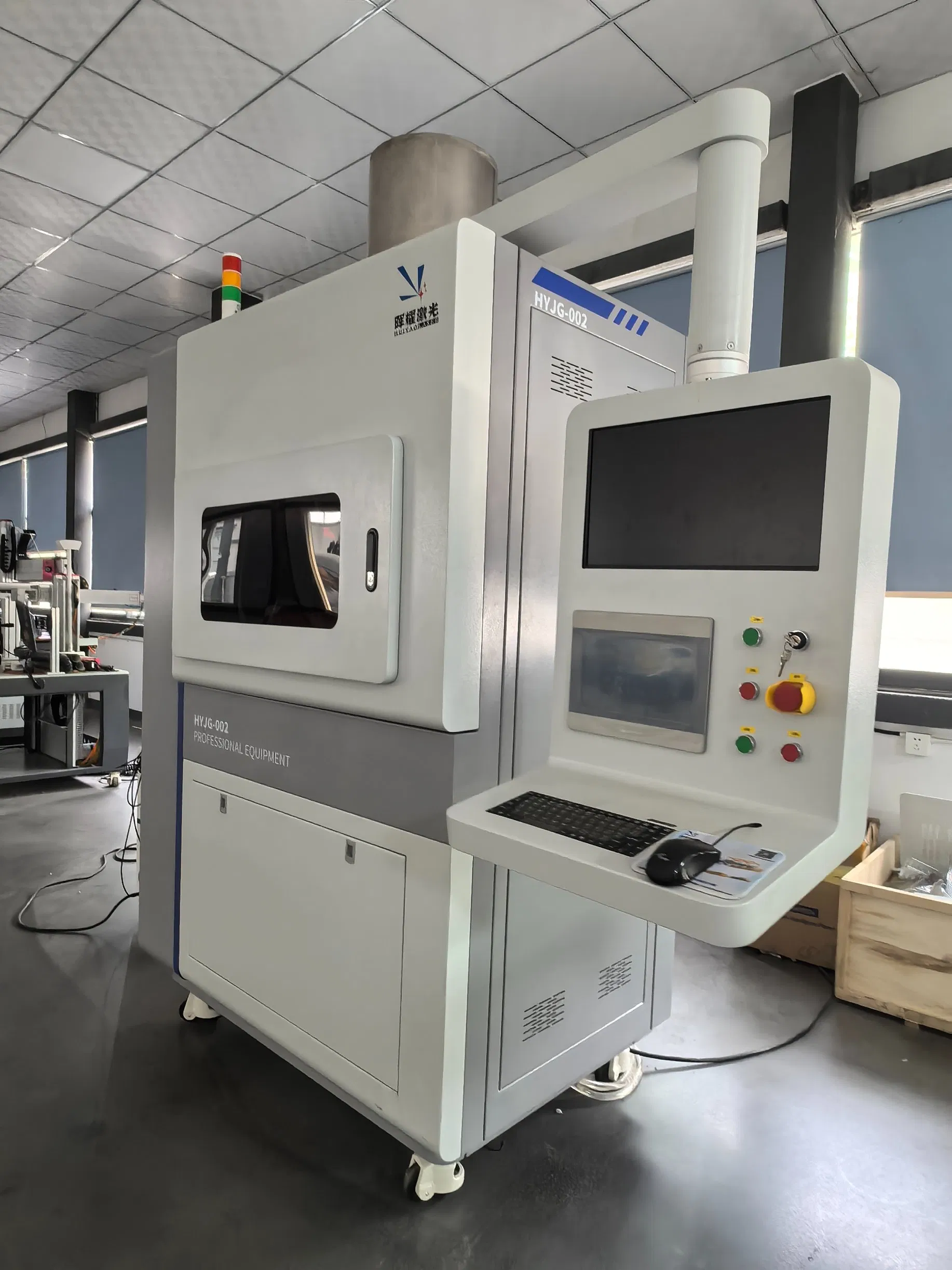

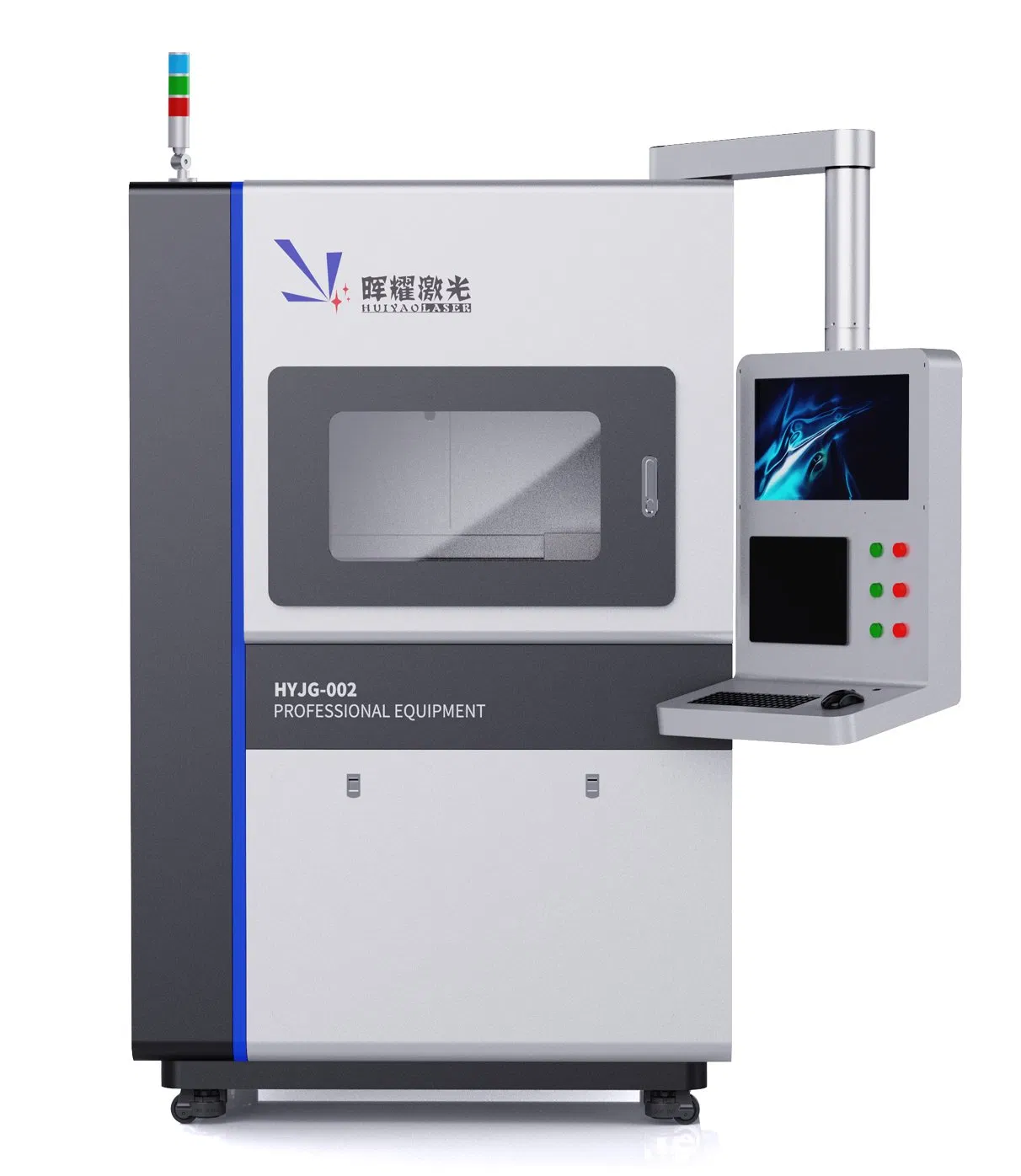

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology (500W primary laser + 200W secondary laser), closed-loop powder management (powder utilization rate ≥95.7%), and intelligent quality monitoring, the system reliably produces titanium alloy orthopedic implants with 50-200μm porous structures and nickel-based superalloy components.

Key Features

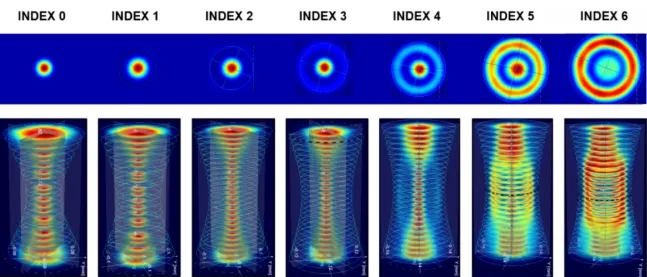

Adjustable Laser Spot

Adjust the laser spot from 35-80μm to optimize energy distribution for diverse materials.
Smaller spots (35-50μm) enable ultra-fine details for microstructures.
Larger spots (60-80μm) boost efficiency for bulk components.

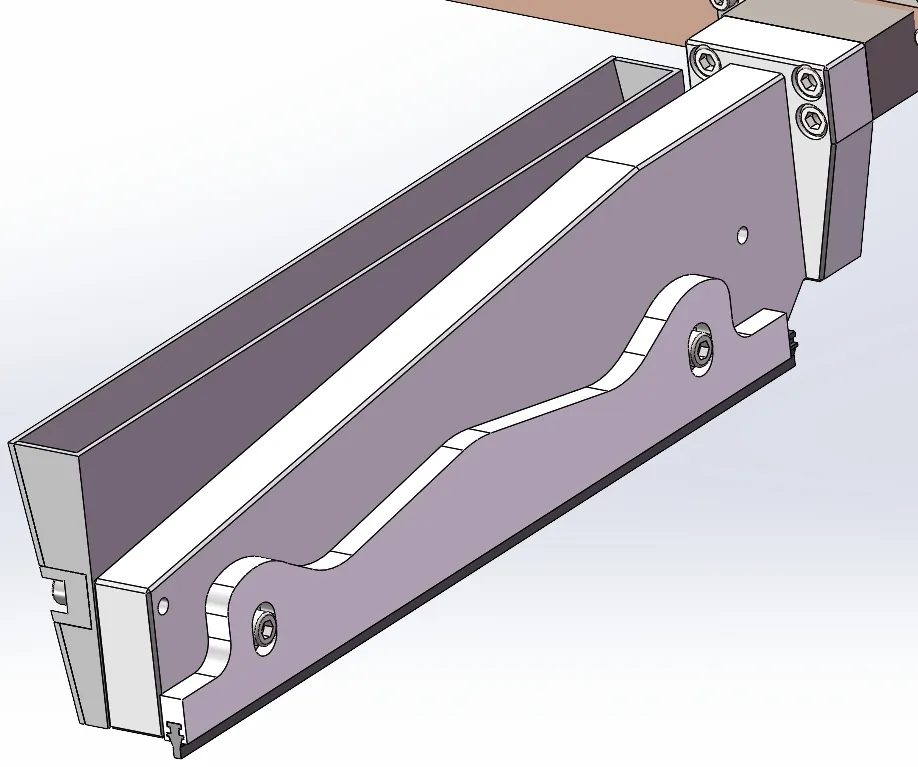

Dual Scraper System

Equipped with soft/hard dual scrapers to ensure printing accuracy.
Prevents thin-walled part jamming and improves reliability.

High Precision & Density

Layer thickness: 0.02-0.05mm.
Density: up to 99%-100%.
Surface roughness: Ra 6-15 μm.

Technical Specifications

Parameter	Specification
Model	SLM Dual-Laser
Laser	IPG 500W / Domestic Laser
Build Size	Diameter 252mm
Spot Size	≈40μm
Scanning System	ScanLab
Layer Thickness	0.02-0.05mm
Part Density	99%-100%
Accuracy	±0.1mm
Surface Roughness	Ra 6-15μm
Compatible Materials	Stainless Steel, Titanium Alloys, Aluminum Alloys, High-Entropy Alloys

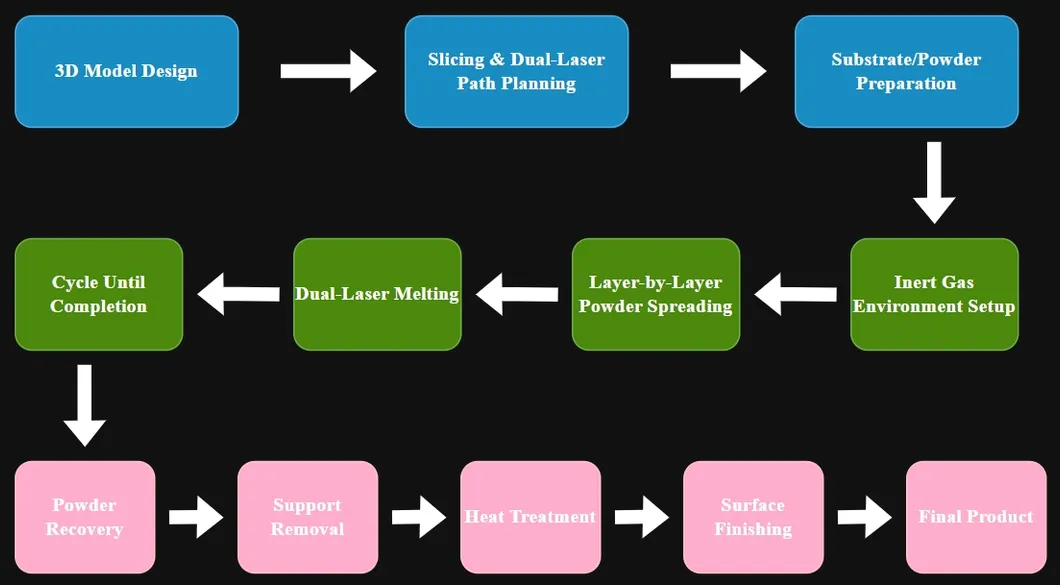

Product Process Flow

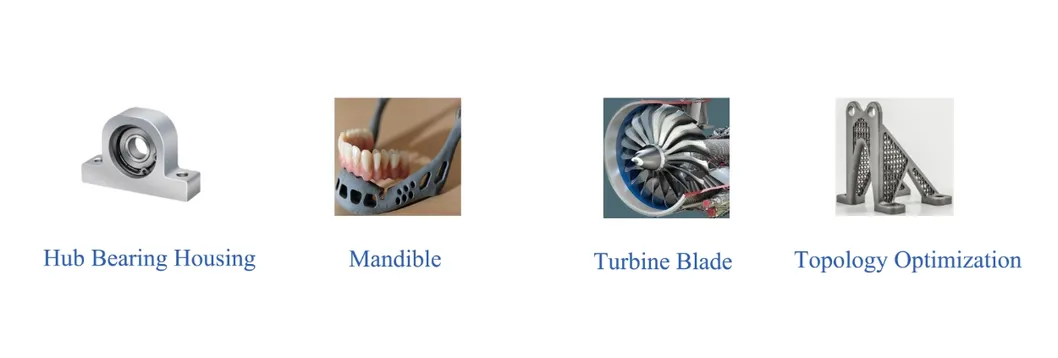

Application Fields

Medical: Porous titanium alloy orthopedic implants.
Aerospace: Superalloy turbine blades with internal cooling.
Industrial: Conformal cooling injection molds.
Customization: Topology-optimized lightweight components.

Services and Support

Material parameter package customization (30+ metal powders).
Equipment operation certification training.
24/7 remote diagnostics and real-time oxygen monitoring.

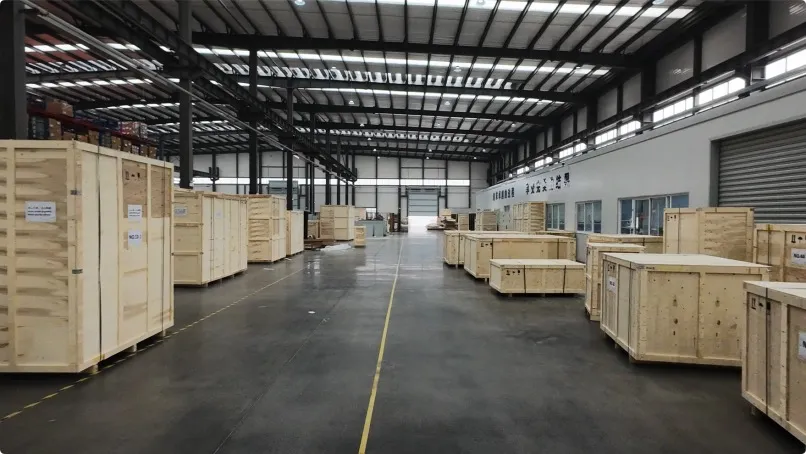

Packaging & Shipping

Precision Protection, Global Assurance
Every system is meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement. Our logistics network ensures 99.9% damage-free delivery to 50+ countries.

Exhibition & Clients

Frequently Asked Questions

What checks are required before starting the equipment?

Ensure sufficient inert gas supply (oxygen <100ppm), verify powder filling (min. 30% of build chamber), and calibrate scraper leveling (tolerance ±0.01mm).

How to extend the lifespan of the laser system?

Regularly clean laser optics every 200 hours, avoid full-power operation (keep ≤80%), and maintain stable cooling at 20±2ºC.

How to maintain the powder recycling system?

Clean the sieve after each print, inspect delivery pipes monthly, and replace powder filters every 500 hours or 200kg of powder processed.

How to handle abnormal alarms during operation?

Record the alarm code, check sensor status (oxygen, temp, pressure), and contact technical support with your equipment log files.

How to ensure consistent print quality?

Regularly calibrate the laser beam path (every 100 hours), use standard test pieces for verification, and monitor melt pool stability in real-time.

What should be considered for long-term equipment shutdown?

Empty and clean the powder/build chambers, disconnect power, drain the cooling system, and perform a monthly self-check start.
