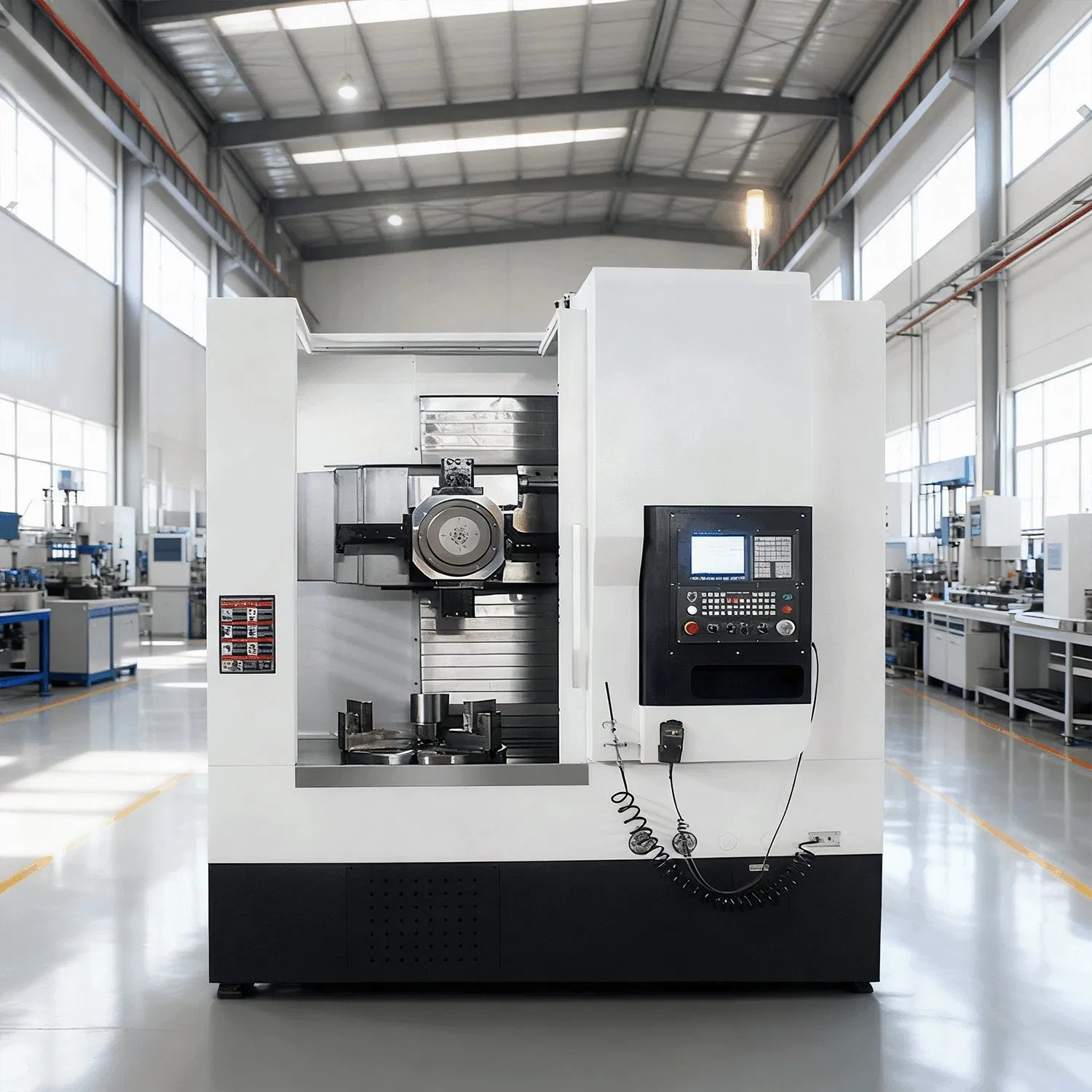

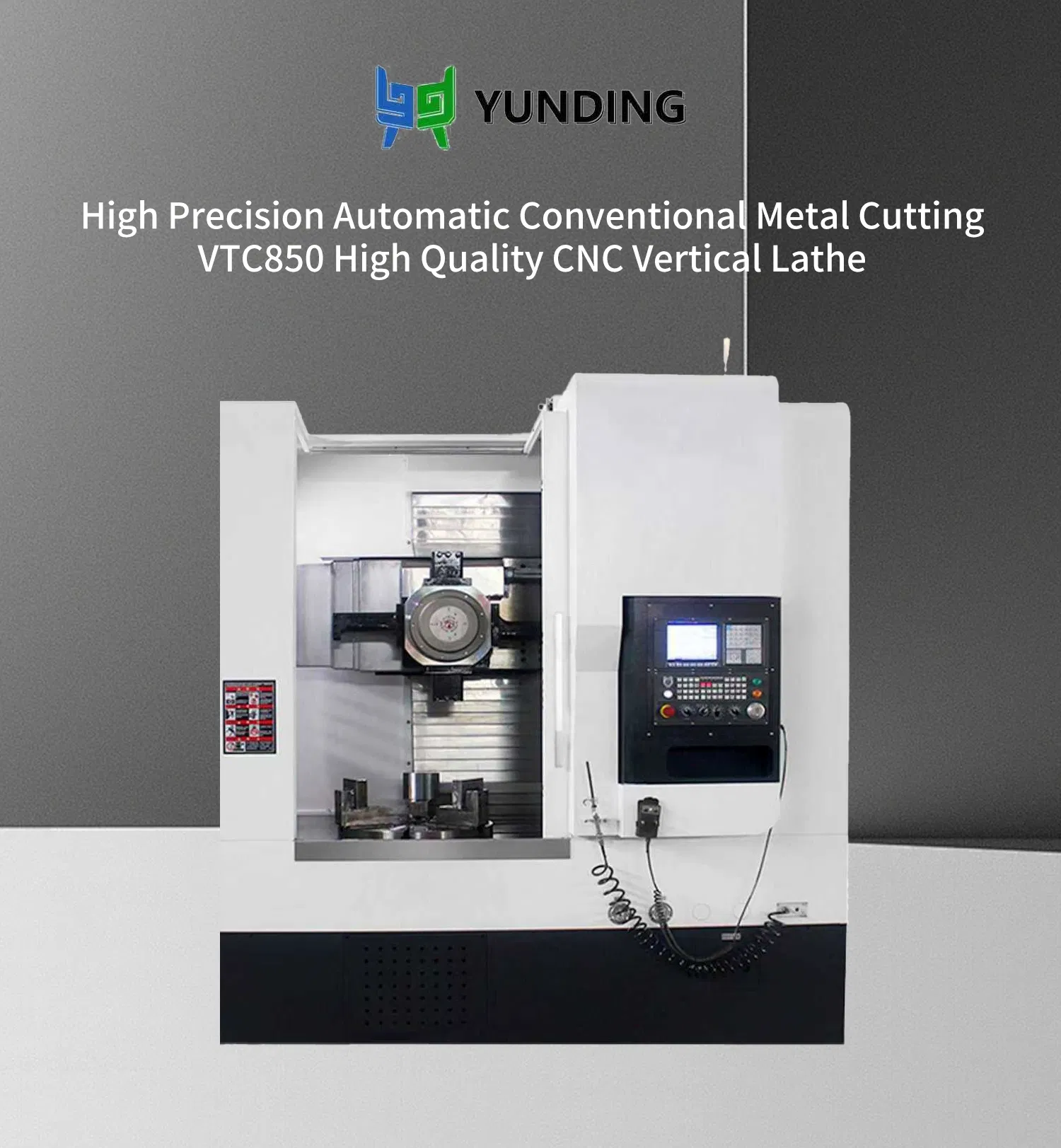

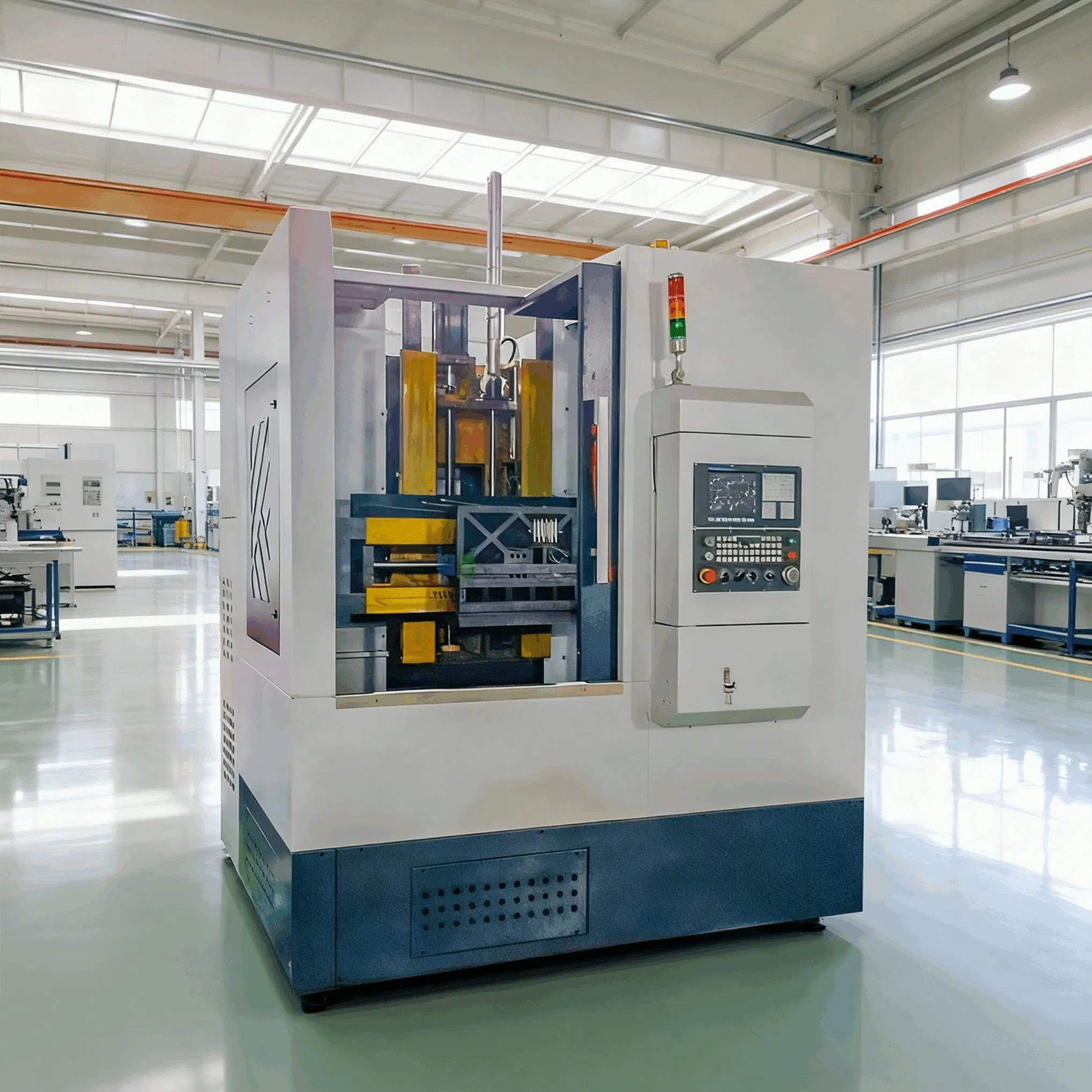

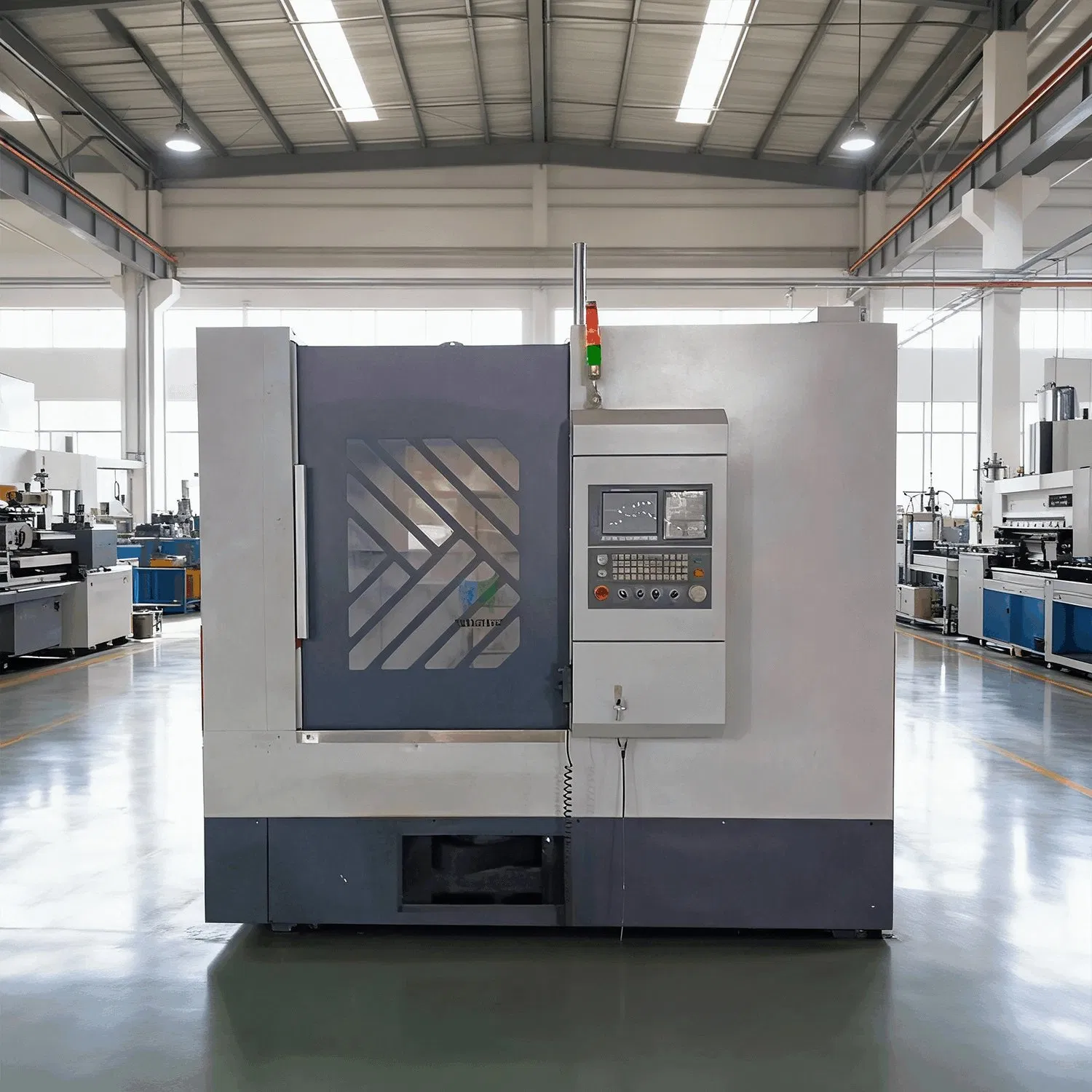

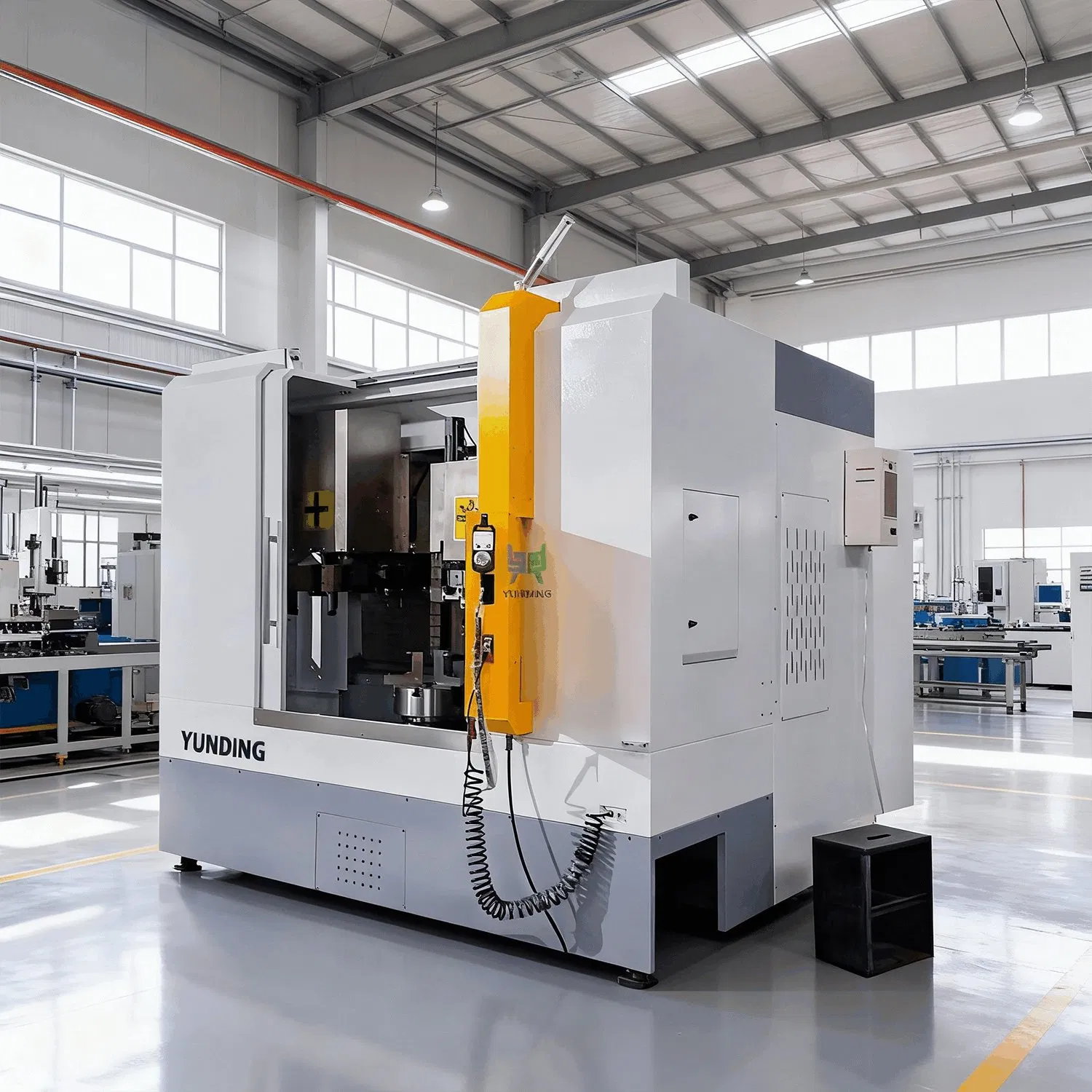

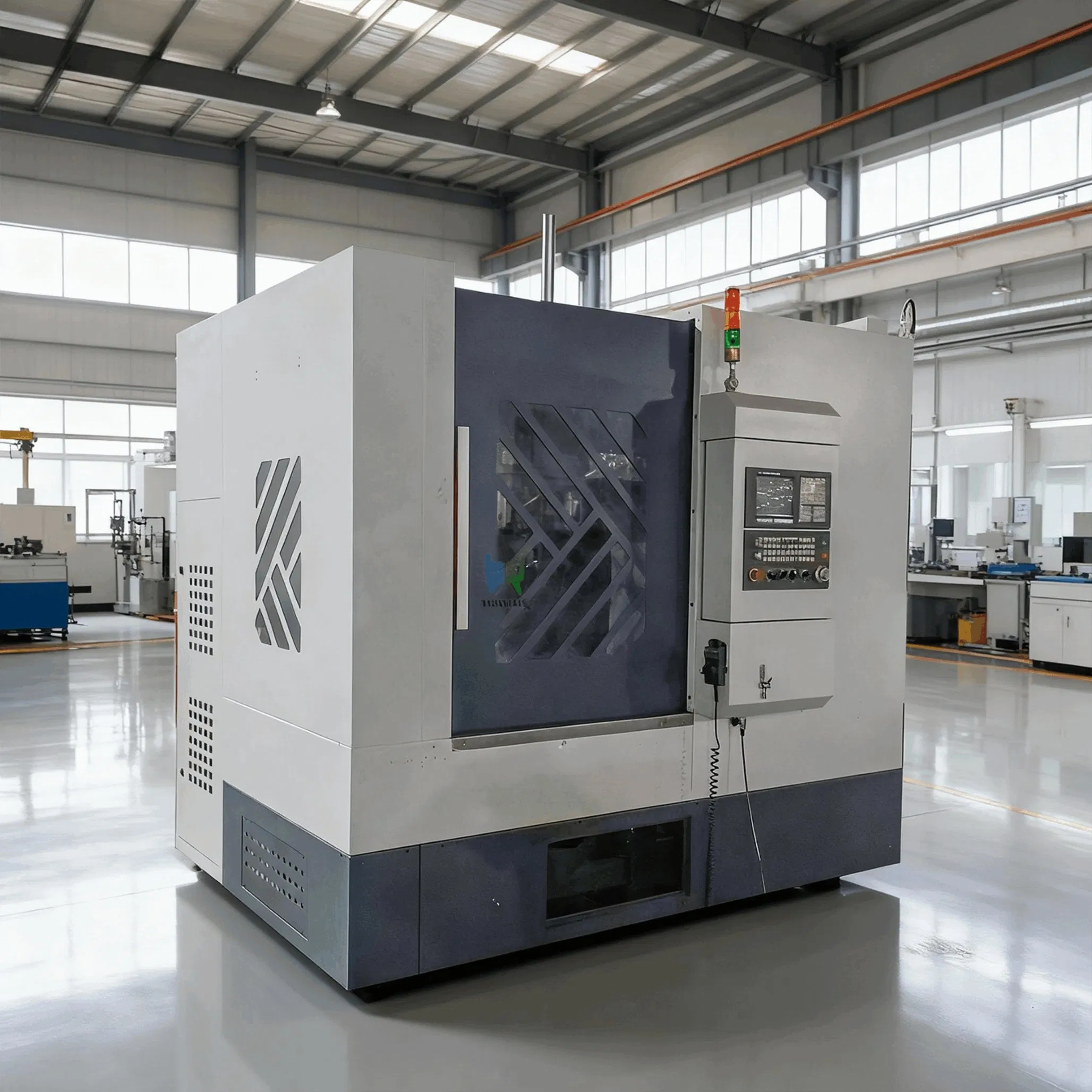

Digital Twin Vtc850 Vertical CNC Lathe Full Process Digitization Metal Processing

Customization:	Available
After-sales Service:	Online After-Sales Service
Warranty:	1 Year

Basic Specifications

Model NO.

VTC850

Application

Metal

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Max.Swing Diameter

900mm

Max.Turning Diameter

850mm

Spindle Taper

A2-11

Weight

8800kg

Production Capacity

2000

Condition

New

Professional Vertical CNC Lathe Manufacturing

Application & Advantages

Vertical CNC lathes are primarily designed for processing large and heavy workpieces with significant radial dimensions but relatively small axial dimensions. They excel at handling complex shapes such as cylindrical surfaces, end faces, conical surfaces, and holes for discs, wheels, and sleeves.

High Precision: Clamping under own weight ensures a tight fit and reduces gravitational inertia.
Versatile: Ideal for thin-walled and irregular parts.
Space Saving: Occupies only 1/2 the floor area of a horizontal lathe of the same specification.
Automation Ready: Easier to connect for automated assembly lines.

Technical Specification

Specification	Unit	VTC850 Data
Max. swing diameter	mm	900
Max. turning diameter	mm	850
Vertical tool post travel (vertical)	mm	650
Vertical tool post travel (horizontal)	mm	-600
Spindle speed range	r/min	50-800
Main motor power	KW	22/30
X axis rapid traverse	m/min	15
Z axis rapid traverse	m/min	12

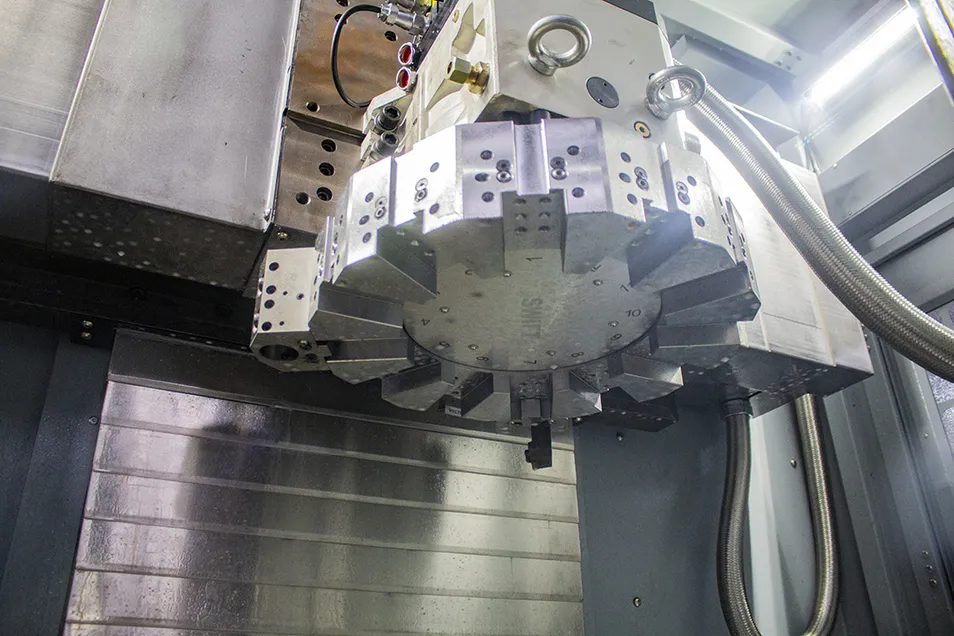

Turret type	-	8 position hydraulic turret
Positioning accuracy	mm	±0.008

Frequently Asked Questions

How can I choose the most suitable machine for my needs?

Please provide your specific requirements or product drawings. Our technical team can evaluate your needs and recommend the best model for your specific processing tasks.

What are the main product categories available?

We specialize in a wide range of machinery including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.

What are the standard trade and payment terms?

We accept FOB, CFR, and CIF terms. Payment is typically handled via T/T (30% deposit, 70% balance before shipment) or irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set for most CNC equipment. Some smaller, low-cost auxiliary machines may require higher quantities.

What information is needed for a precise price evaluation?

Please provide your industrial voltage requirements and the dimensions/material of your workpieces. Sending a technical drawing is highly recommended for the most accurate evaluation.

How do vertical lathes compare to horizontal lathes?

Vertical lathes offer better stability for heavy parts due to gravitational clamping and occupy significantly less floor space, making them ideal for large-diameter workpiece processing.
