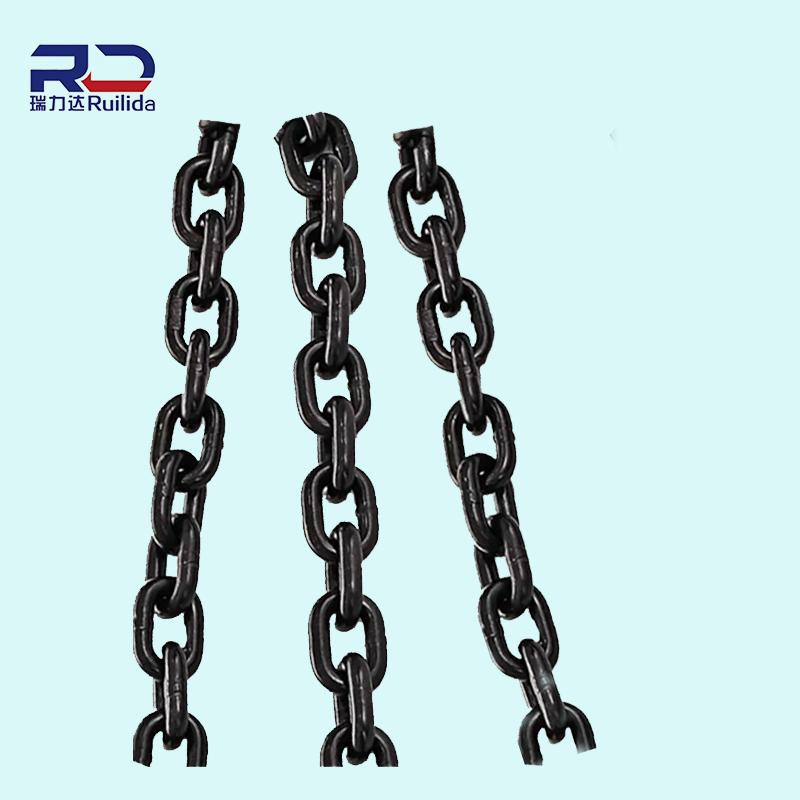

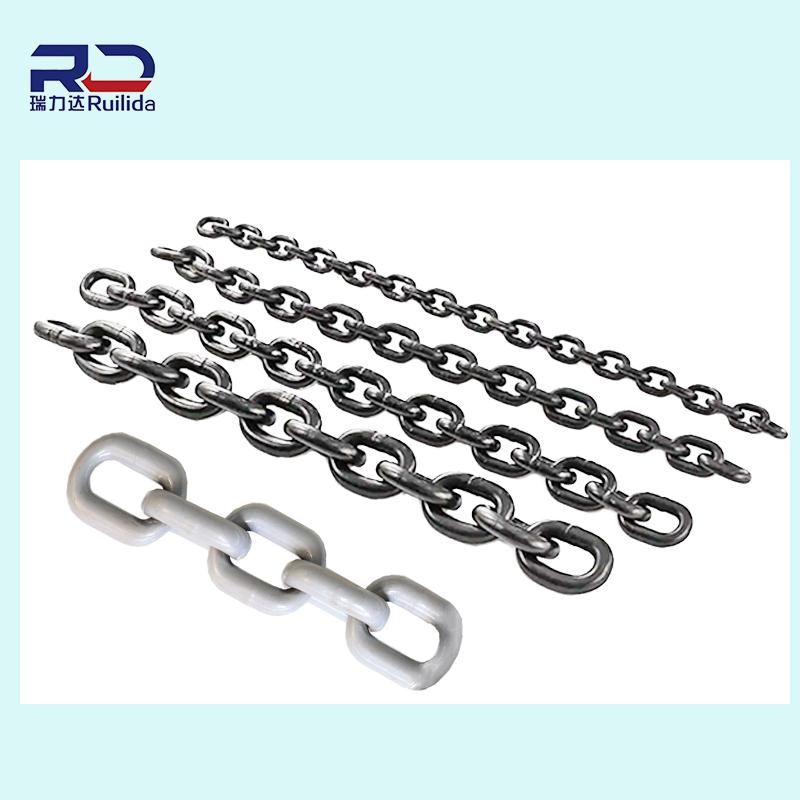

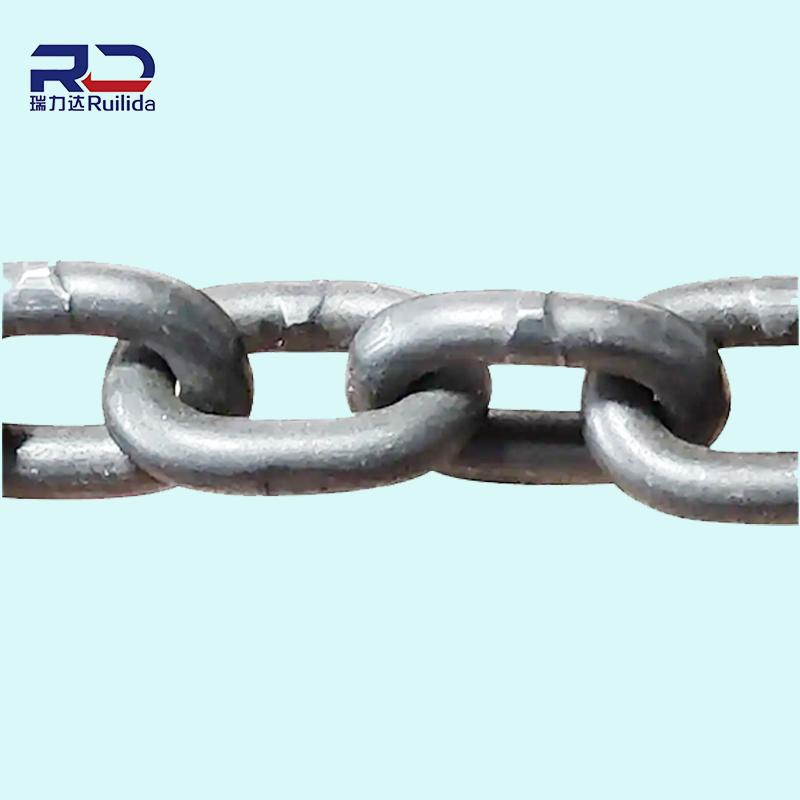

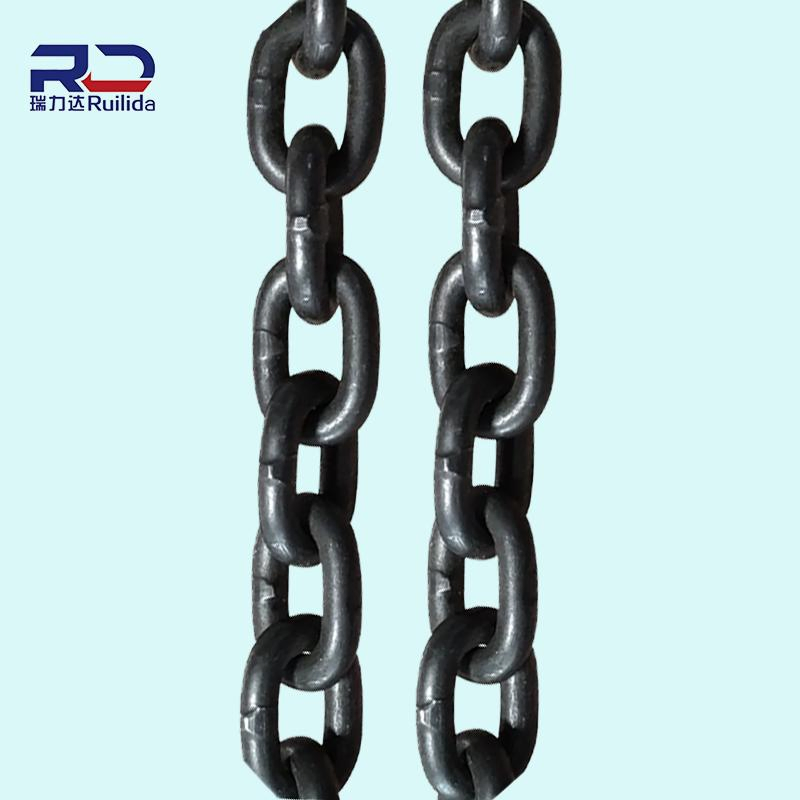

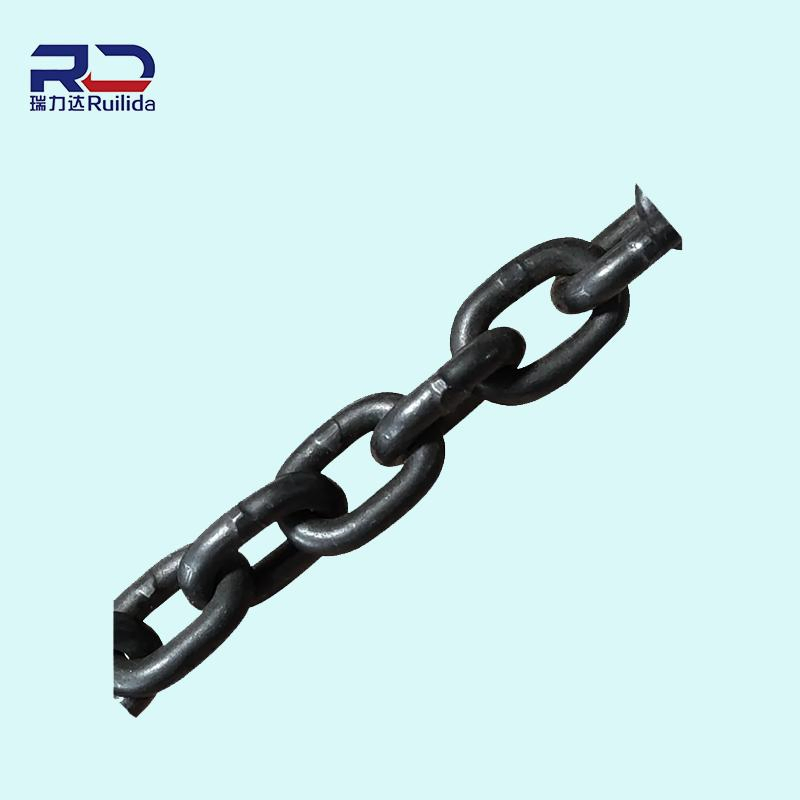

Digital Twin-Monitored Round Link Chain - for Steel Mill Conveyor (ABS)

⚡ Overview & Basic Info

Model NO.G80/G100

Surface TreatmentBaking Paint

FeatureFire Resistant

Chain Size14mm-42mm

StructureWelded Chain

ColorBlack

Lead TimeWithin 15 Works Days

Trade TermEXW, FOB, CFR, CIF

Product NameMine Round Link Chain

Zinc PlatedSurface

HS Code7315820000

Production Capacity500ton/Month

📦 Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm

Package Gross Weight1000.000kg

Transport PackagePacked in Wooden Case

⚙️ Product Description

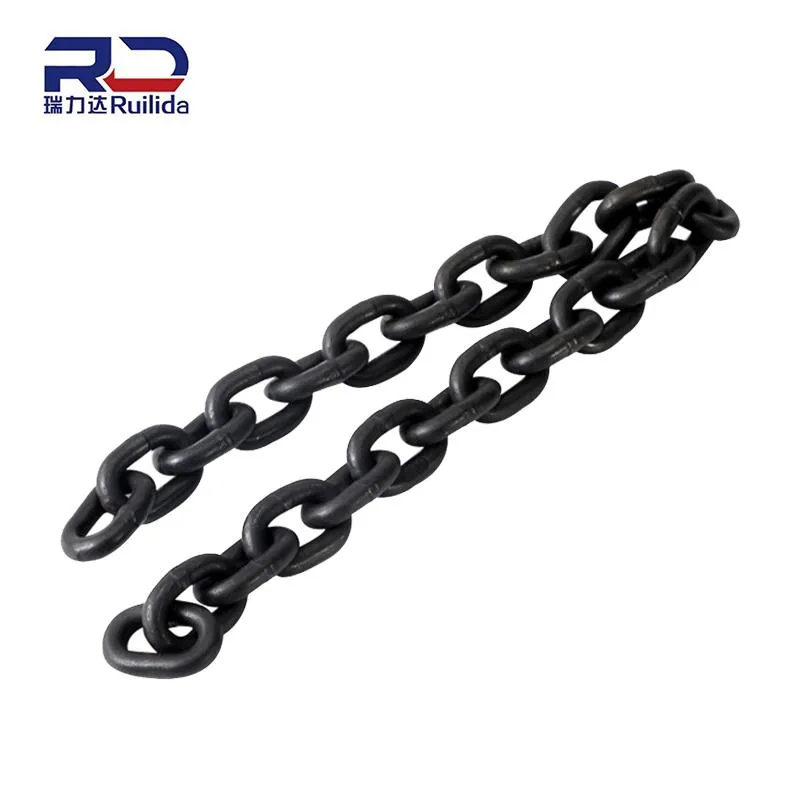

Applications: Scraper conveyors, scraper transfer machines, coal mining machines, tunneling machines, coal plows and other industrial equipment.
Material: High-quality alloy steel manufactured under ISO, DIN, BS, and GB standards.
Strength Grades: Available in Grade 100 (Grade D), Grade 80 (Grade C), and Grade 63 (Grade B).
Safety Guarantee: Verification load is minimum breaking load x 80%.

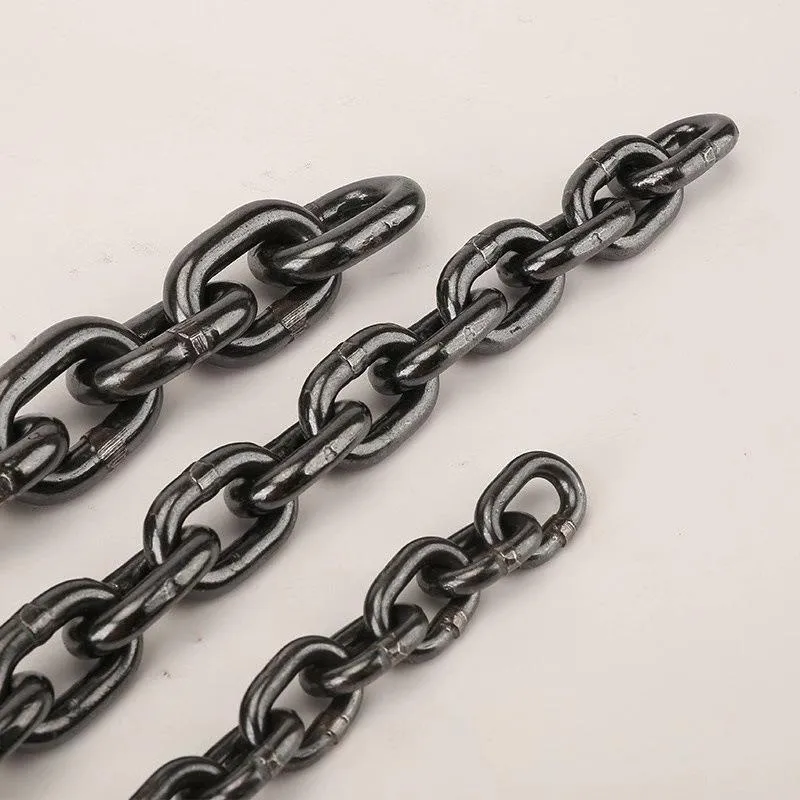

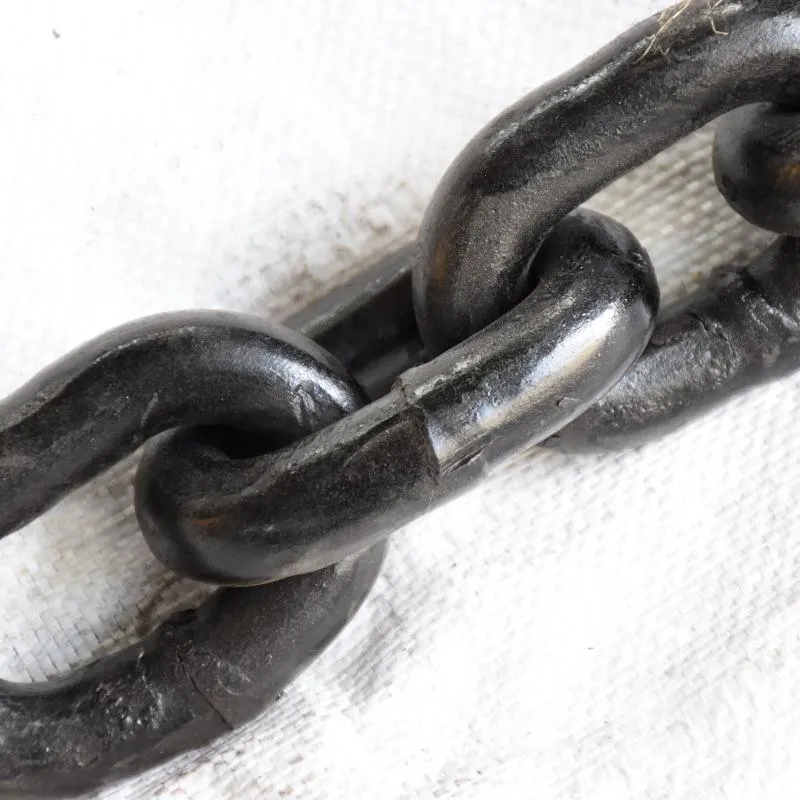

📊 Technical Parameters

Size (d×p)	Diameter (d)	Pitch (p)	Min Inner Width (b1)	Max Outer Width (b2)	Weight (kg/m)
14×50	14±0.5	50±0.6	17	48	4
18×64	18±0.5	64±0.5	21	60	6.6
22×86	22±0.7	86±0.9	26	74	9.5
26×92	26±0.8	92±0.9	30	86	13.7
30×108	30±0.9	108±1.1	34	98	18.0
34×126	34±1.0	126±1.2	38	109	22.7
42×146	42±1.1	146±1.5	46	133	36.0

Enhanced Performance: Compared with standard chains, our Grade C reinforced (>900MPa) and Grade D (>1050 MPa) round link chains feature exceptional wear resistance and high strength. Our unique heat treatment process ensures optimal hardness distribution: high hardness in the arc for wear resistance, and lower hardness in the straight edges for superior toughness and shock absorption.

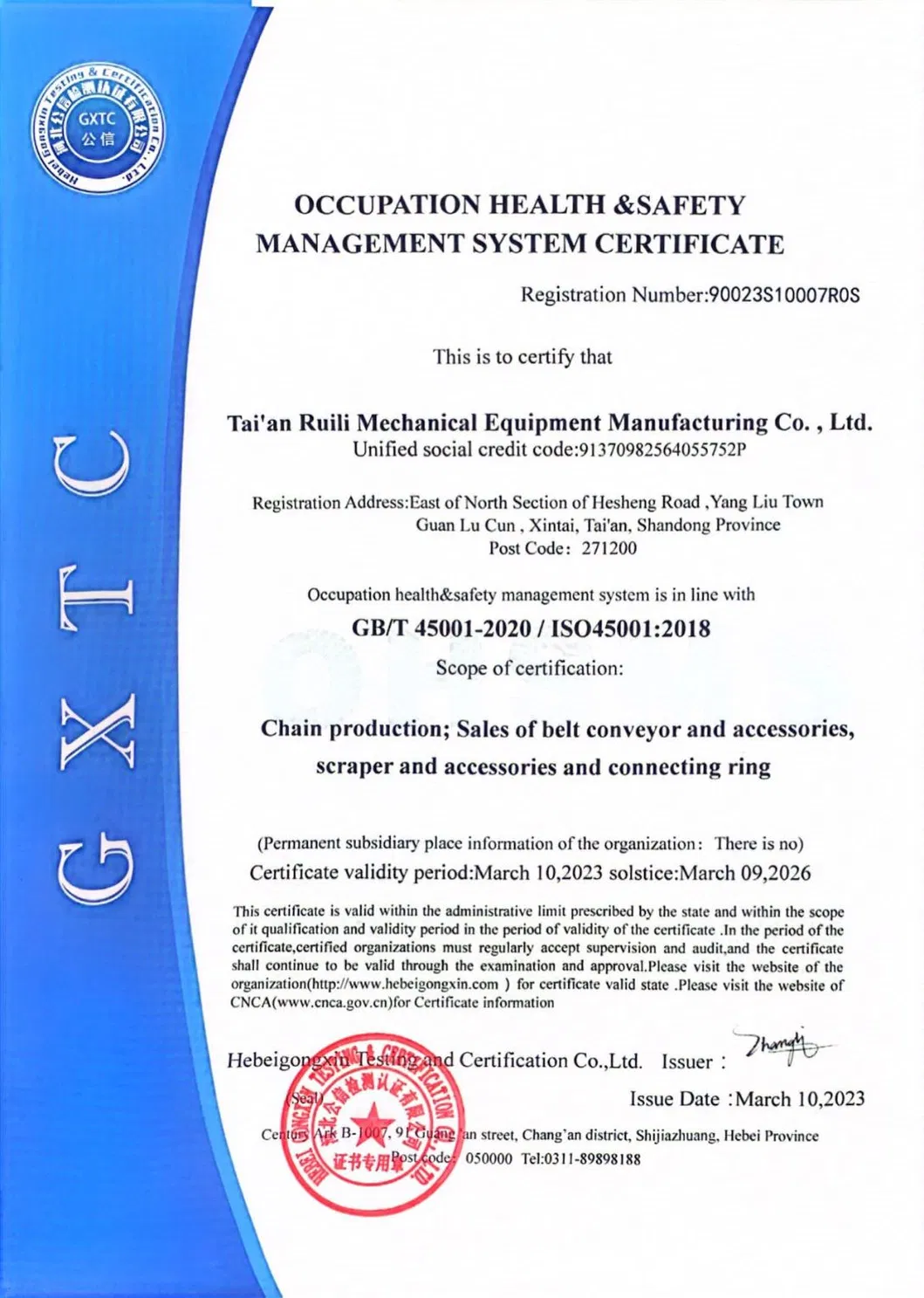

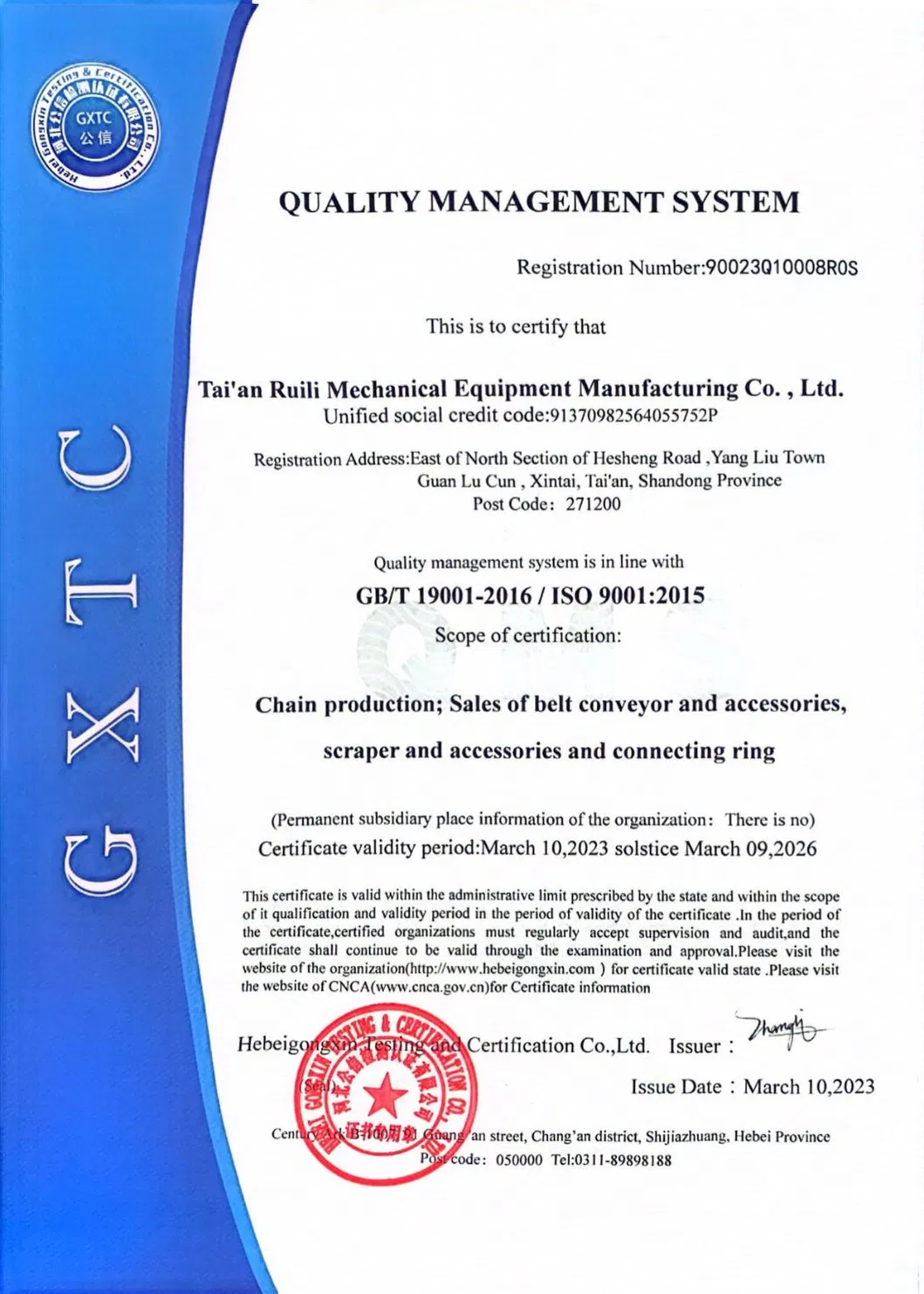

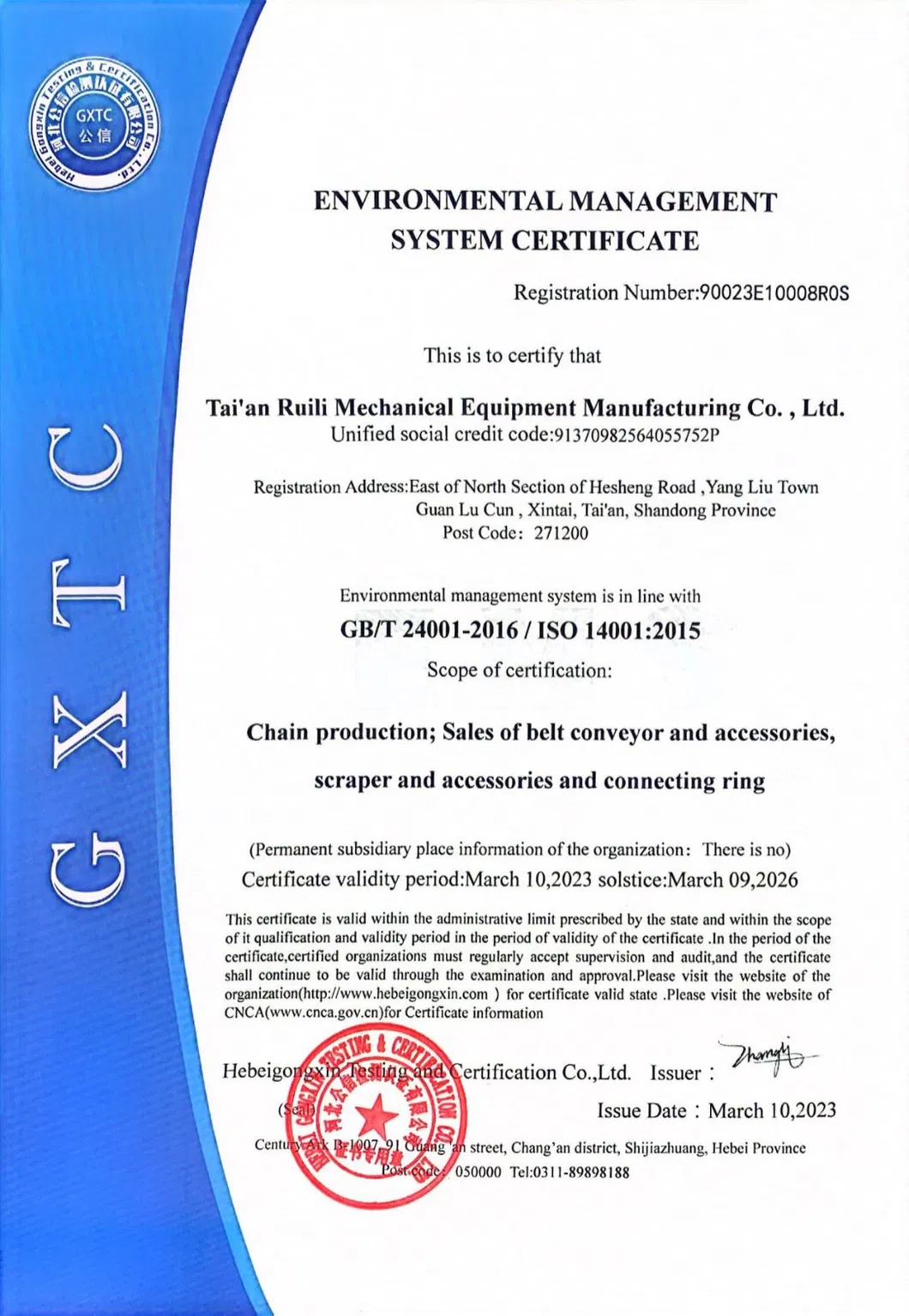

📜 Certifications

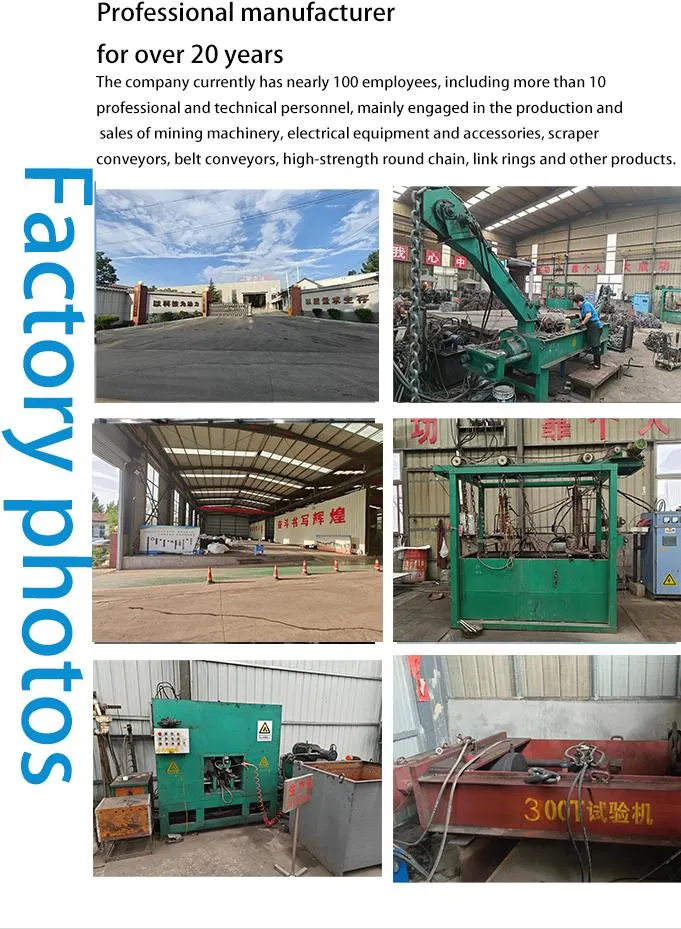

🏭 Manufacturing & Logistics

Material Selection: Thicker, industry-standard materials with zero compromise on quality.
Advanced Facilities: Program-controlled production lines, automatic heat processing, and shot blasting machines.
Customization: Tailored specifications to meet unique customer requirements.
Experience: Over 20 years of specialized production experience in the mining chain industry.
