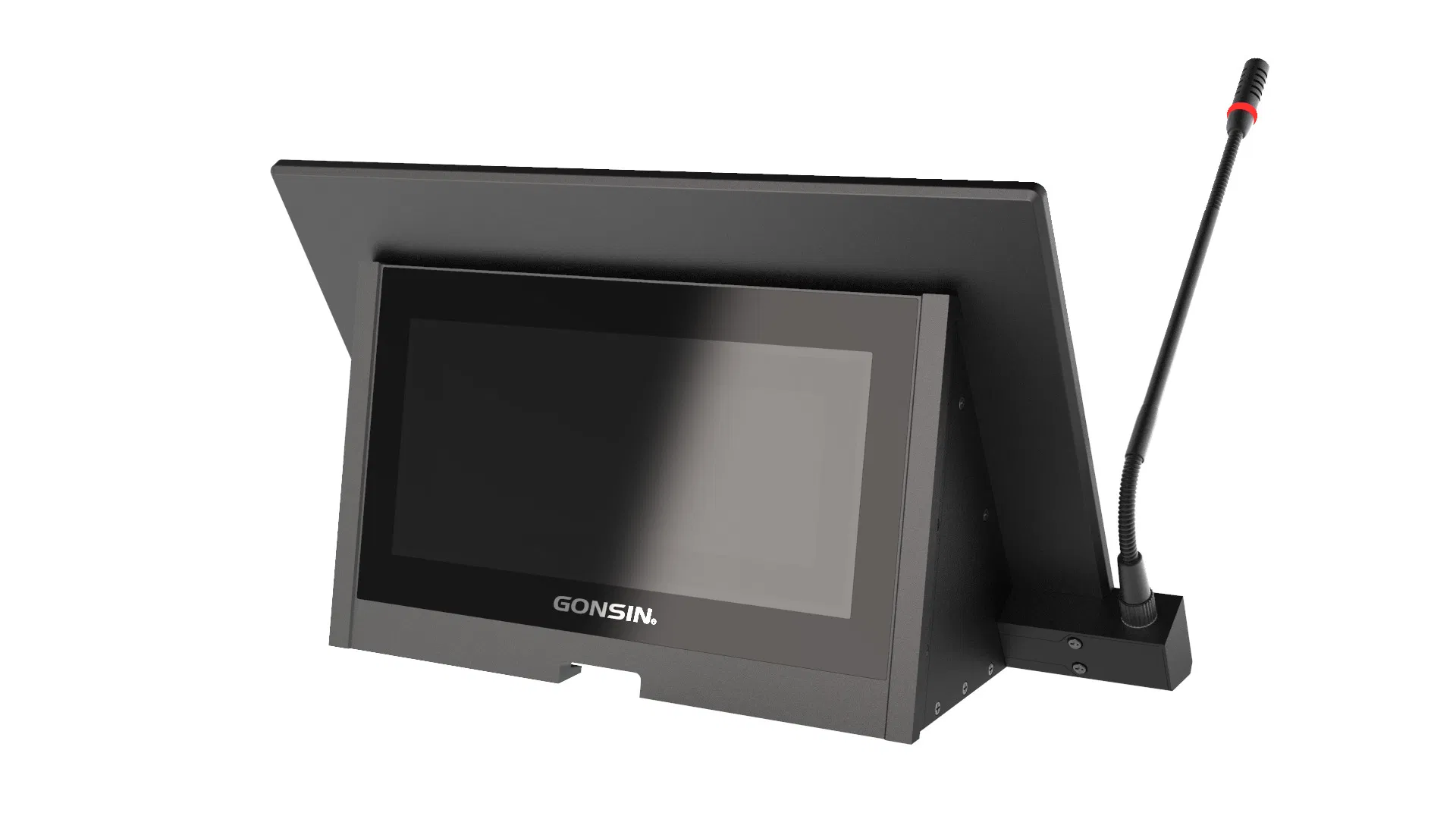

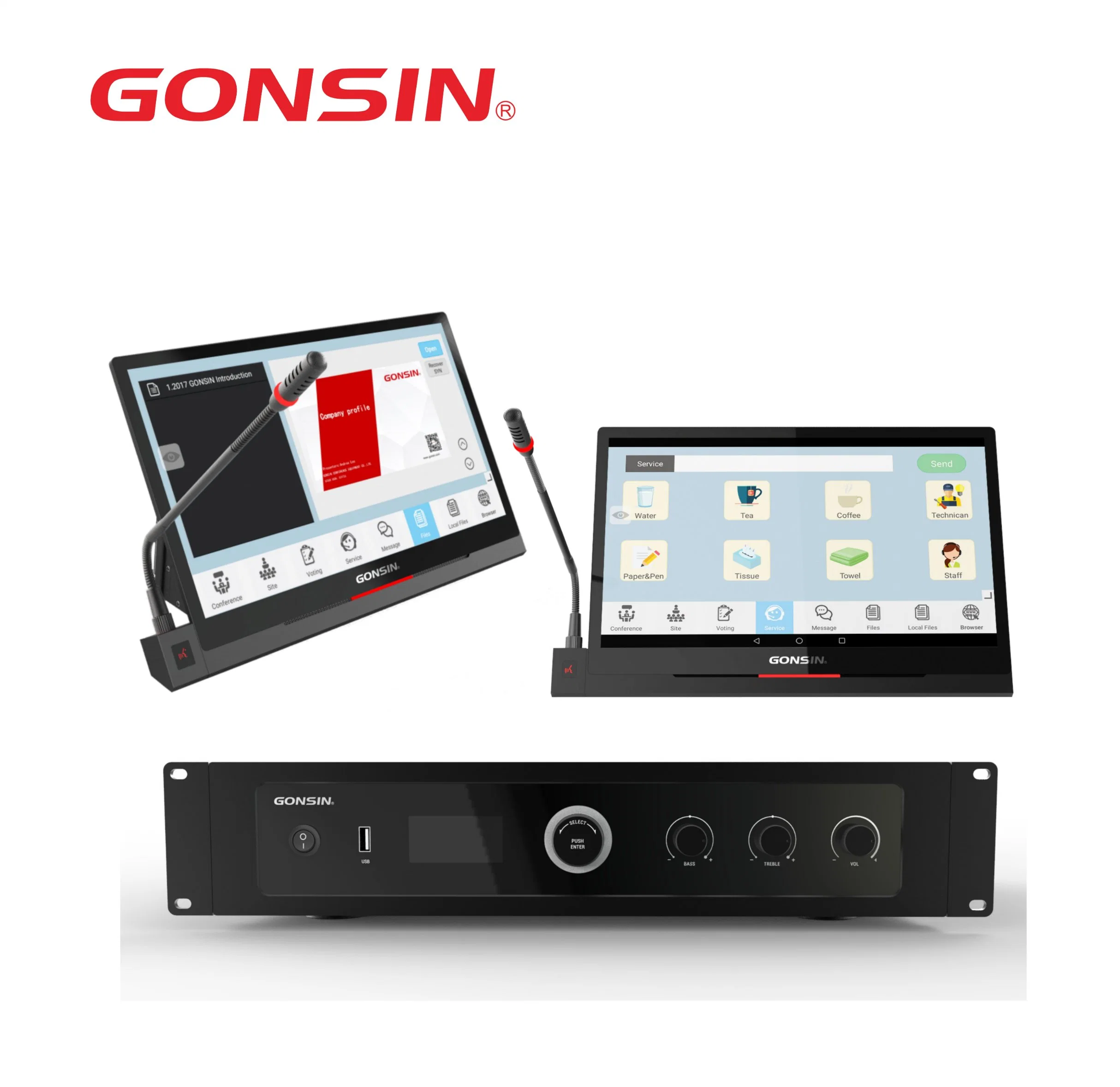

Digital Paperless Touch Screen Finger Recognition System with Discussion Microphones

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

Basic Specifications

Model NO.
DCS-2061
Installation
Desktop
Connection
Network Cable
Display
35mm*18mm
Audio Frequency
30Hz-20kHz
Thd
<0.05%
Interpretation
32 Channels
Vox Sensitivity
H/M/L
Microphone Type
Uni-Directional Electret Condenser
Weight
0.6kg
Communication
Wired
Origin
China

Product Description

DCS-2062DI Core Functions

  • Utilize digital audio processing and transmission technology in compliance with IEC60914 international standard.

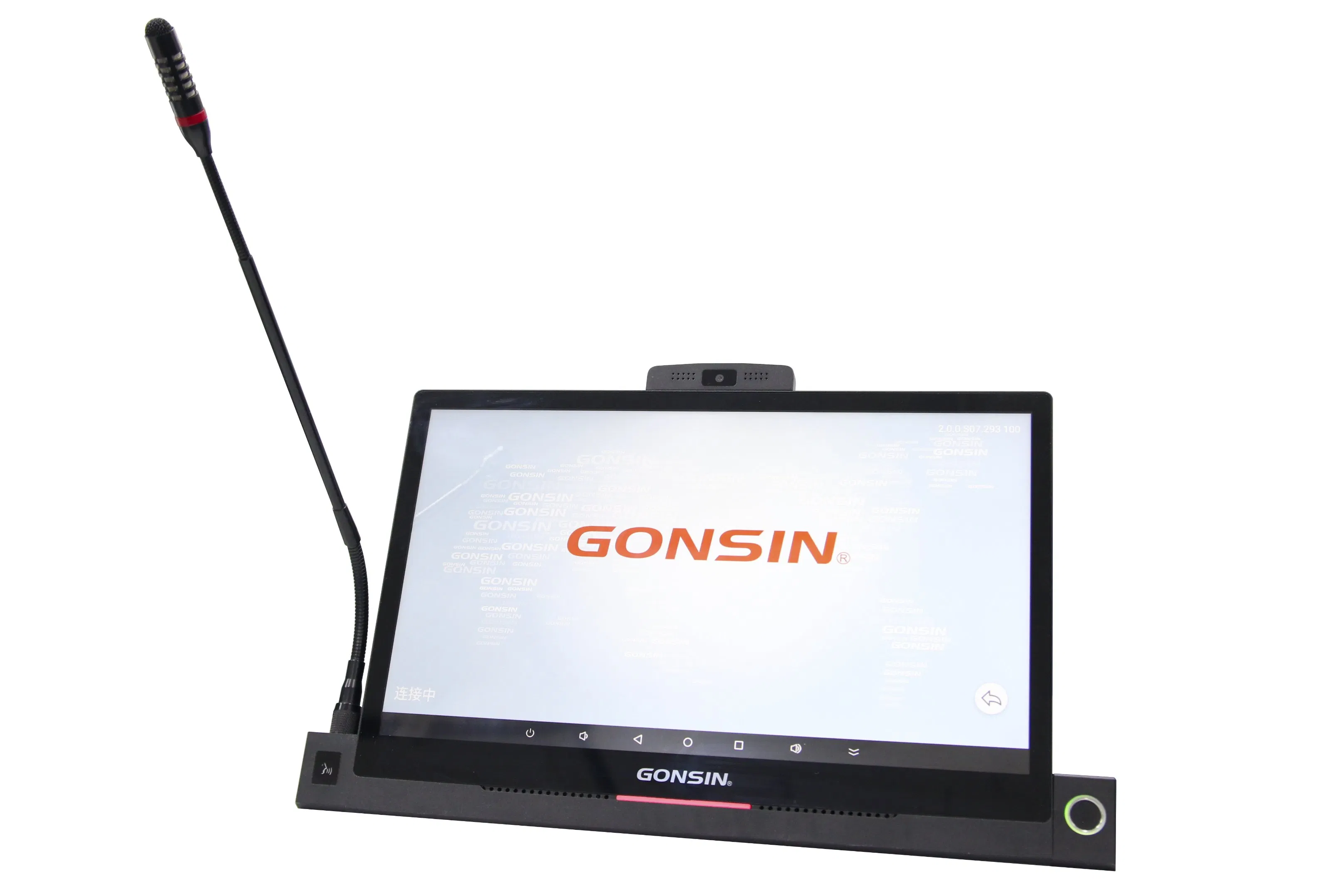

  • 15.6 inches LCD screen (1920 × 1080 resolution) supporting 10 points touch control with a slim narrow bezel design.
  • Electronic nameplate utilizing 10.1 inches super bright HD LCD screen (1280 × 800) for synchronous user information display.
  • Flexible cabling supporting daisy-chain, star, and mixed connections for high system stability and reliability.
  • Integrated attendance registration, voting, and call service functions displayed directly on the LCD screen.
  • Digital conference file management: supports browsing and screen sharing of various formats (DOC, PDF, PPT, MP4, etc.).
  • Developed on Android platform with data encryption to ensure information security.

Advanced Discussion & Interpretation Features

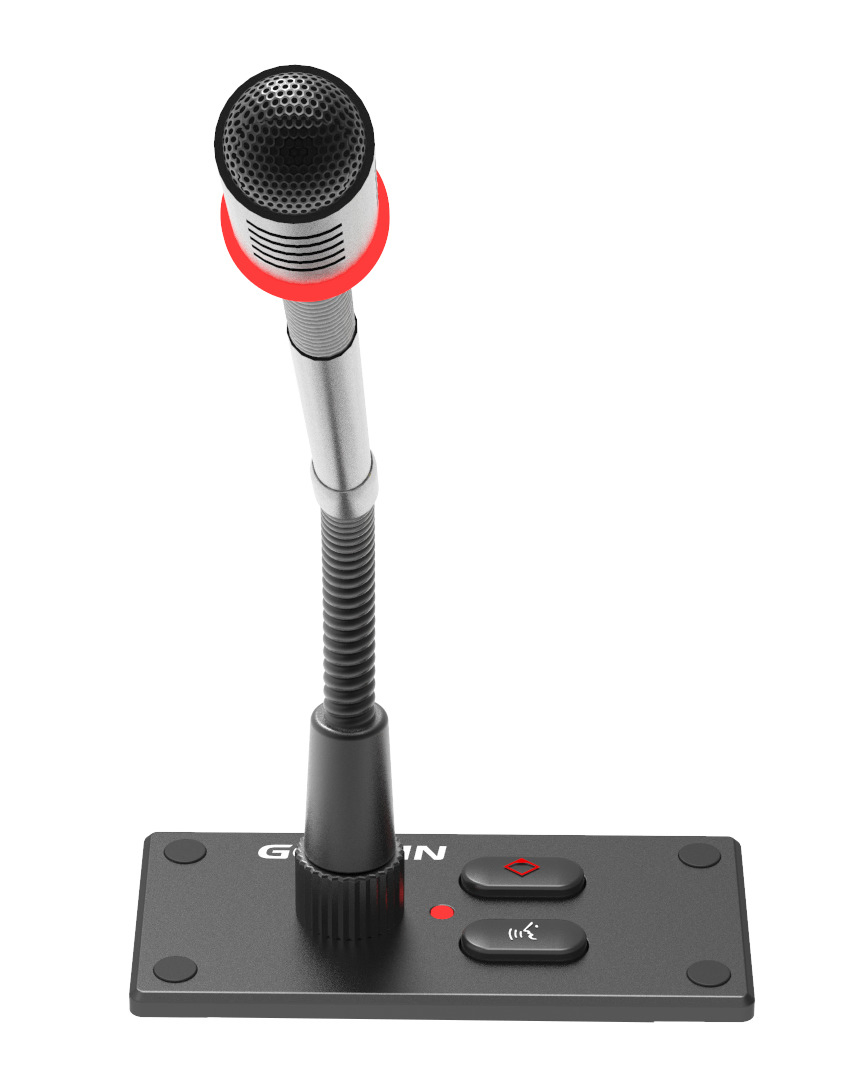

  • Luminous capacitive touch control mic button for accurate response and long service life.
  • Acoustic frequency response up to 20Hz~20KHz with built-in DSP processor to eliminate acoustical shock.
  • Supports 32 (1+31) channels simultaneous interpretation with channel selection on the paperless screen.
  • VOX function: voice-activated microphone with adjustable sensitivity and timeout settings.

Frequently Asked Questions

What are the display specifications of the paperless terminal?
The terminal features a 15.6-inch HD LCD main screen with 1920x1080 resolution and 10-point touch control, plus a 10.1-inch electronic nameplate for attendee information.
How many channels of simultaneous interpretation does it support?
The system supports up to 32 (1+31) channels of simultaneous interpretation, which can be selected directly via the touch screen.
What file formats can be browsed on the system?
It supports a wide range of formats including DOC, DOCX, PDF, PPT, PPTX, JPG, PNG, BMP, MP4, AVI, FLV, and WMV.
Is the connection stable for large-scale installations?
Yes, it uses standard network cables and supports daisy-chain, star, or mixed connections. The failure of one unit does not affect the operation of others.
Does the microphone feature any interference protection?
Yes, the units are designed to be highly resistant to mobile phone interference and use digital DSP processors to ensure clear audio quality.
Can the chairman terminal override other units?
Yes, the chairman terminal has priority functions to override active delegate units and can initiate voting or attendance registration.
