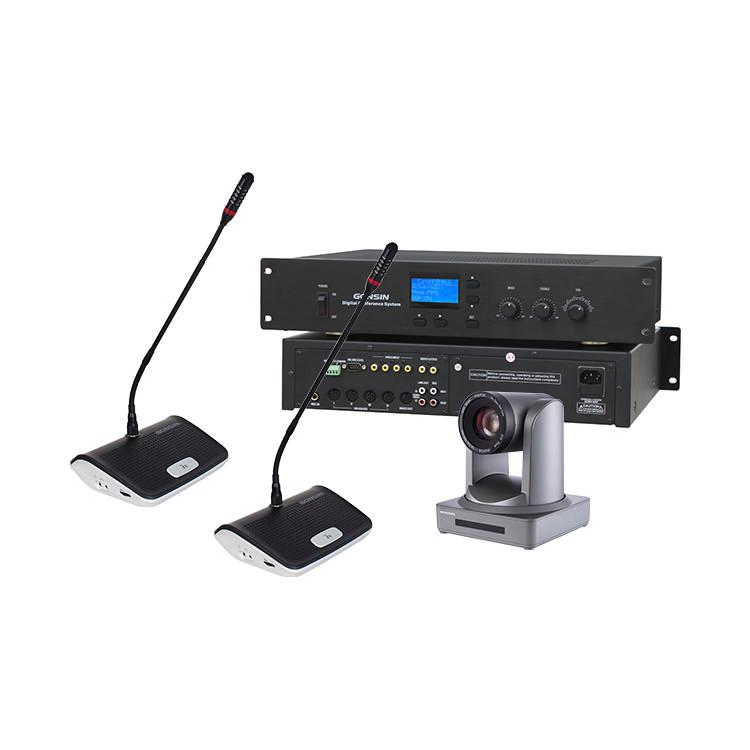

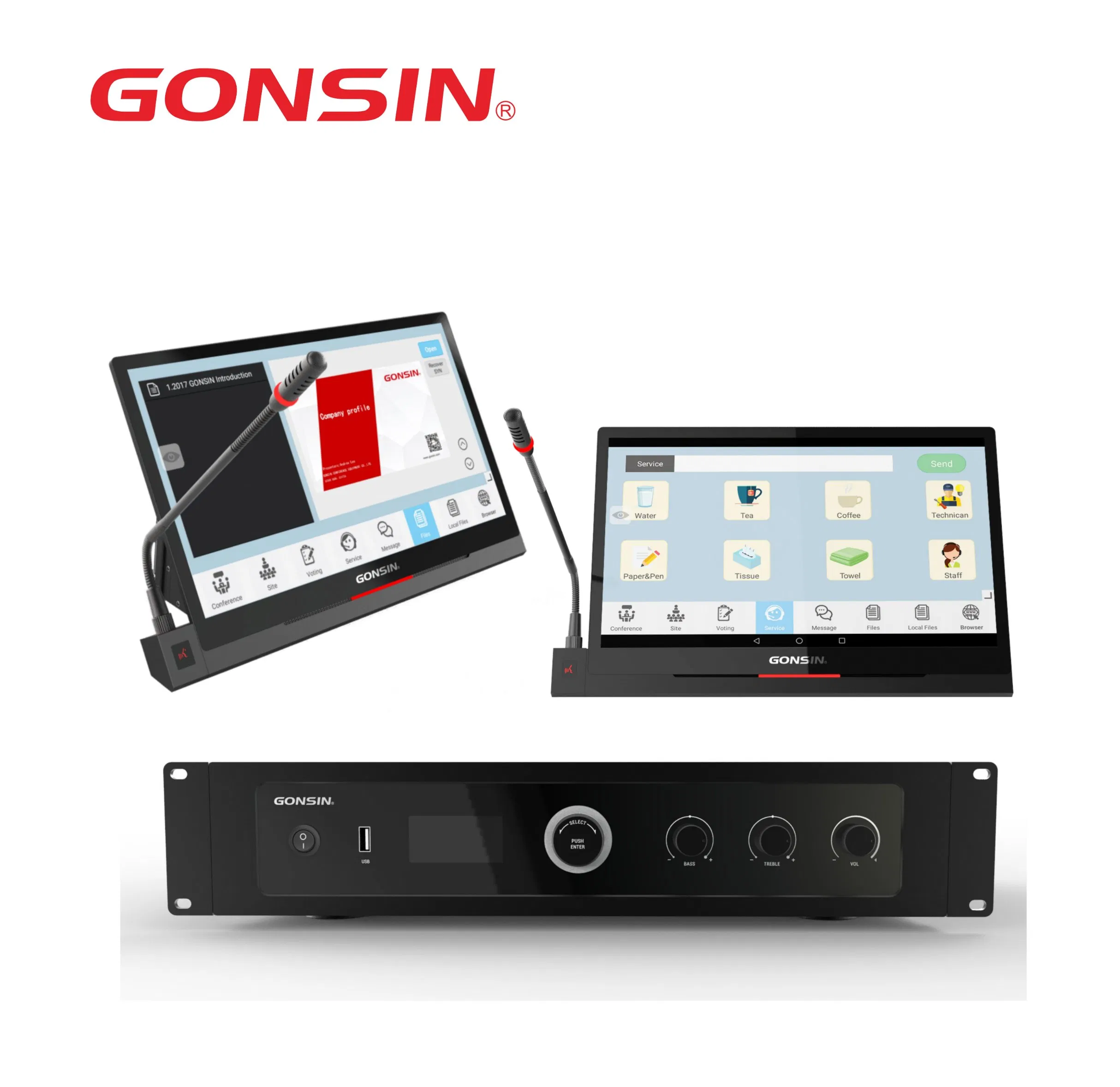

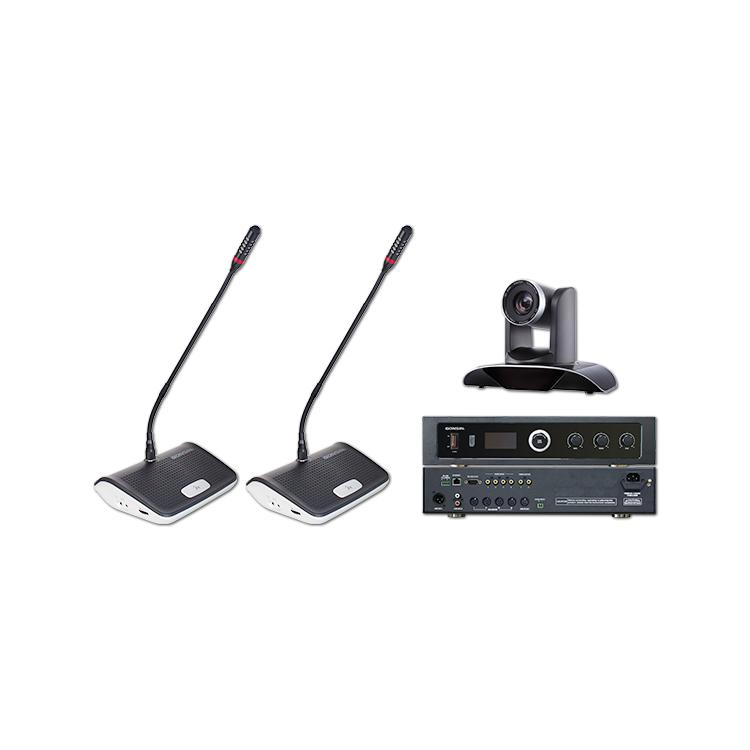

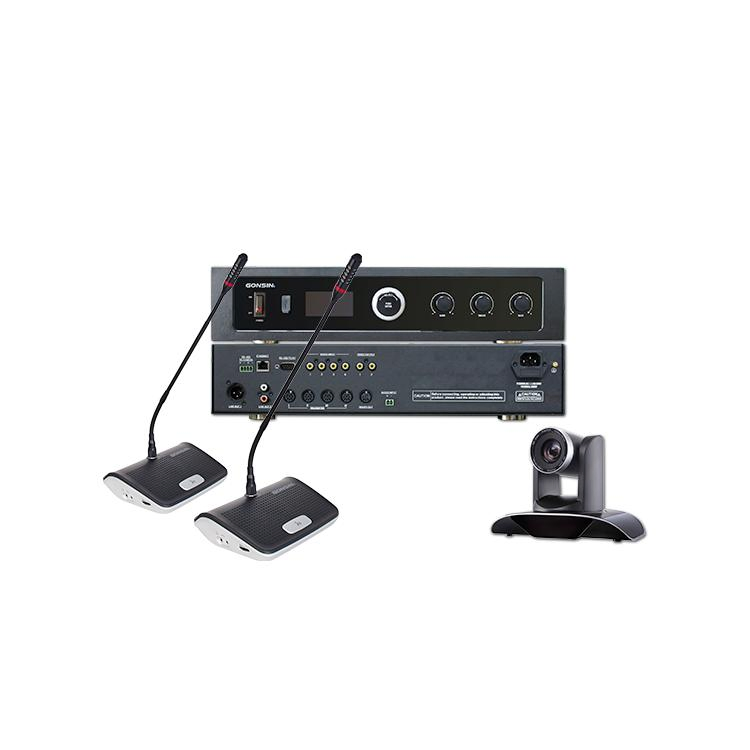

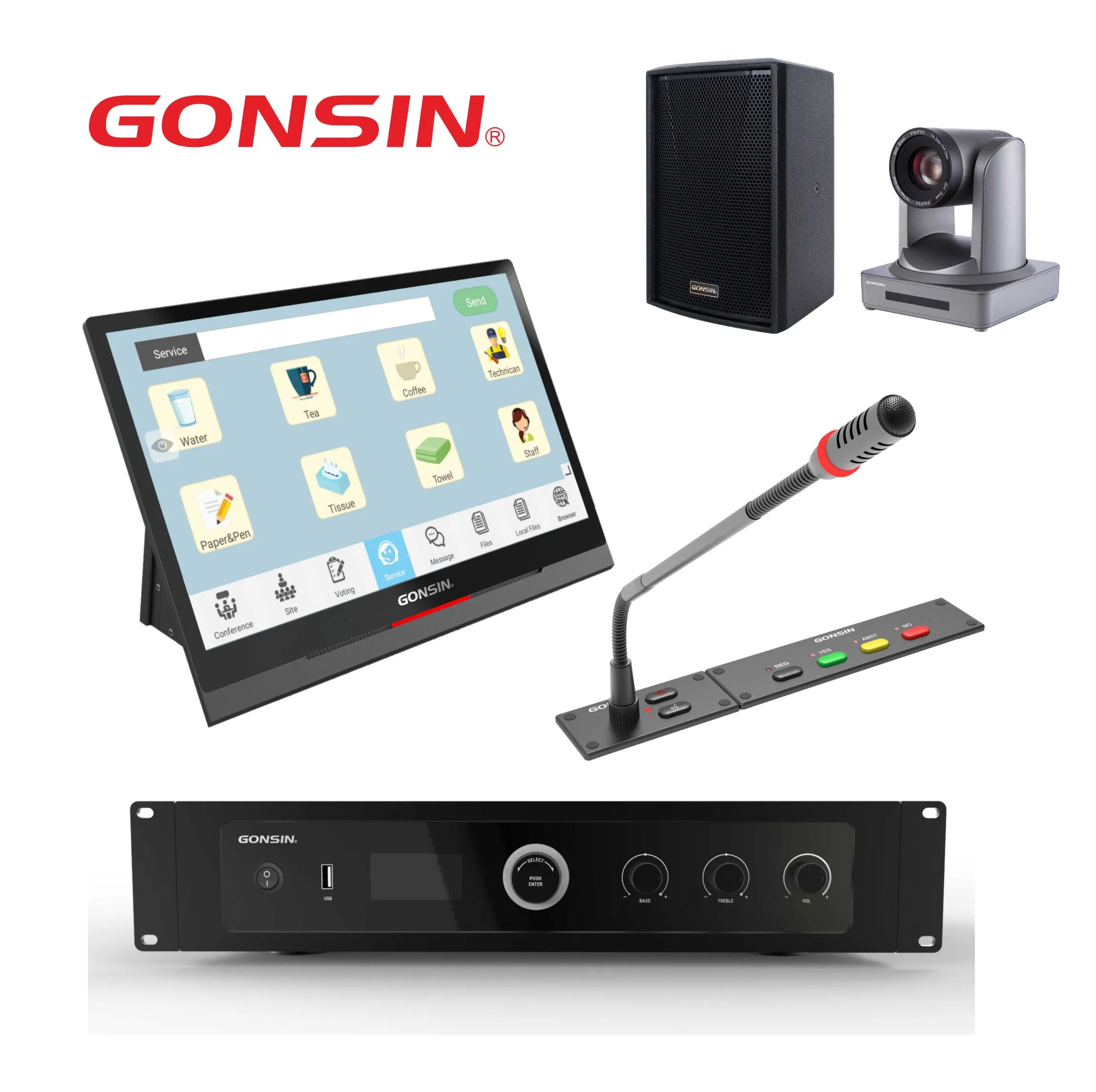

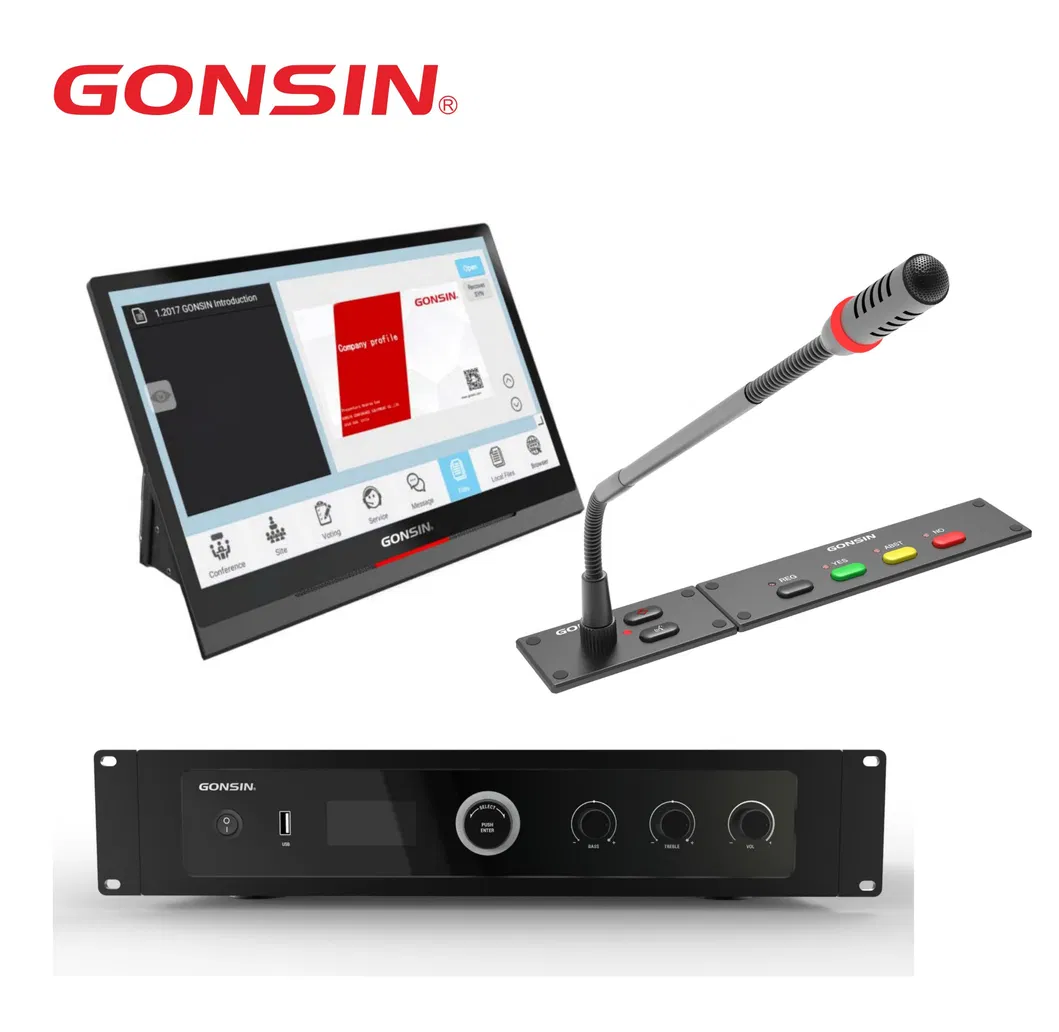

Desktop All-in-One Paperless Conference System with Discussion and Interpretation

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

Basic Specifications
Model NO.
DCS-2061DI
Installation
Desktop
Connection
Network Cable
Display
35mm*18mm
Audio Frequency
30Hz-20kHz
Thd
<0.05%
Interpretation
32 Channels
Vox Sensitivity
H/M/L
Microphone Type
Uni-Directional Electret Condenser
Weight
0.6kg
Composition
LCD Display
Communication
Wired
Origin
China
Capacity
2000 Sets / Month
DCS-2062DI Basic Functions
  • Compliant with IEC60914 international standard, utilizing digital audio processing and transmission technology.
  • Full digital audio technology with built-in high-speed CPU and high-performance DSP.
  • 15.6 inches LCD screen (1920 × 1080) with 10-point touch control and slim bezel design.
  • 10.1 inches HD LCD electronic nameplate (1280 × 800) for high-quality image display.
  • Synchronous display of user info (name, position, organization, Logo) with customized templates.
  • Supports independent adapter power or distributed power management via system hub.

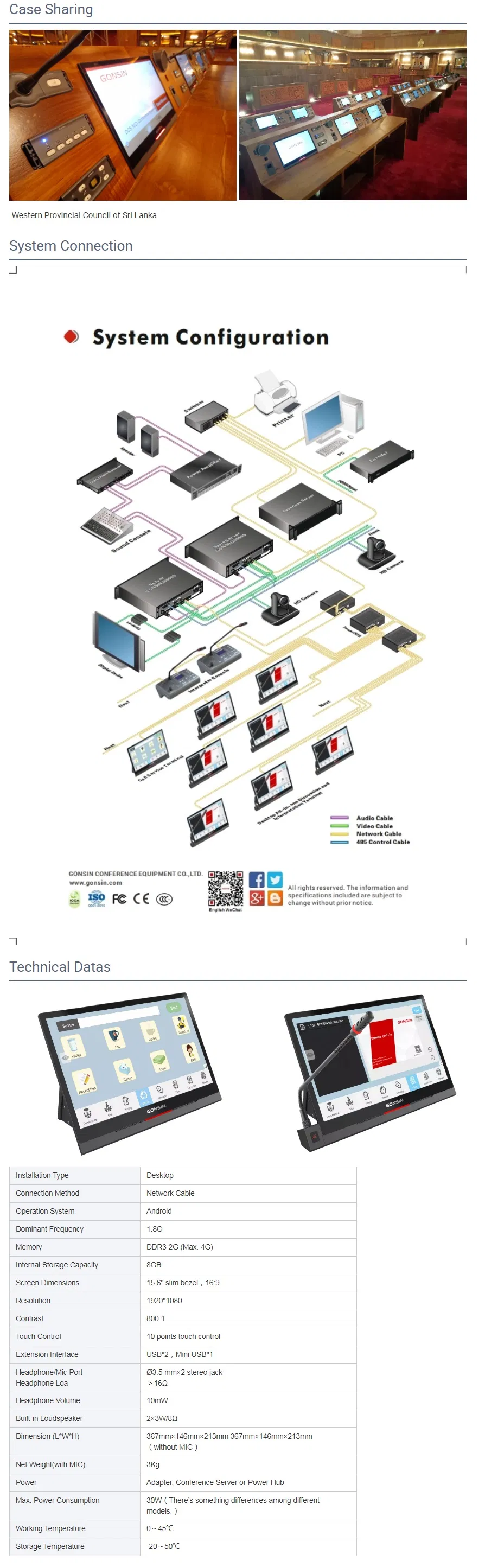

  • Daisy-chain, star, and mixed connection support for high system stability.
  • Bottom-mounted cabling for hidden or open installation to keep desktops tidy.
  • Built-in dual 2W loudspeakers and adjustable 9-level volume control via touch screen.
  • Comprehensive conference functions: attendance registration, voting, and call service.
  • Advanced file management: browsing and sharing DOC, PDF, PPT, and media files.
  • Screen sharing and synchronization across all terminals for collaborative viewing.
  • Android-based platform with data encryption for enhanced information security.
  • Supports digital whiteboard, internet browsing, and USB file reading.
Chairman Terminal Exclusive Functions:
  • Mass system message broadcasting to all terminals.
  • Topic control, voting initiation, and mandatory screen sharing.
  • Real-time monitoring of attendance, voting results, and mic status.
Discussion & Interpretation Enhancements
  • Luminous capacitive touch mic button for accurate response and long life.
  • 48KHz audio sampling rate with 20Hz~20KHz frequency response.
  • Adjustable audio sensitivity (7 levels) for individual or uniform terminal control.
  • Pluggable gooseneck microphone with cardioid pickup and red ring indicator.
  • Multiple system modes: VOX (voice activation), Auto, FIFO, and Operator.
  • Automatic video tracking compatible with SD and HD cameras.
  • Support for 32 (1+31) channels of simultaneous interpretation.
Frequently Asked Questions
What are the main screen and nameplate specifications?
The system features a 15.6-inch main touch screen with 1920x1080 resolution and a 10.1-inch HD LCD electronic nameplate for participant information.
Does this system support simultaneous interpretation?
Yes, it supports up to 32 (1+31) channels of simultaneous interpretation, which can be selected directly on the paperless LCD screen.
What types of file formats can be browsed during a meeting?
The terminal supports common formats including DOC, DOCX, PDF, PPT, PPTX, and various image/video formats like JPG, PNG, MP4, and AVI.
How is the system wired for stability?
It uses standard network cables and supports daisy-chain, star, or mixed connections. The failure of one unit does not affect the rest of the system.
Is the microphone resistant to interference?
Yes, the hardware is designed to be highly resistant to mobile phone interference and uses digital processing to ensure clear sound.
Can participants vote using these terminals?
Yes, the system includes built-in voting and customized voting functions that can be initiated and managed by the chairman terminal.
