| Model NO. | IX2 AIR SE |
| Detector Type | 12μm Uncooled Infrared Detector |
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5~14μm |
| Frame Rate | 25Hz |

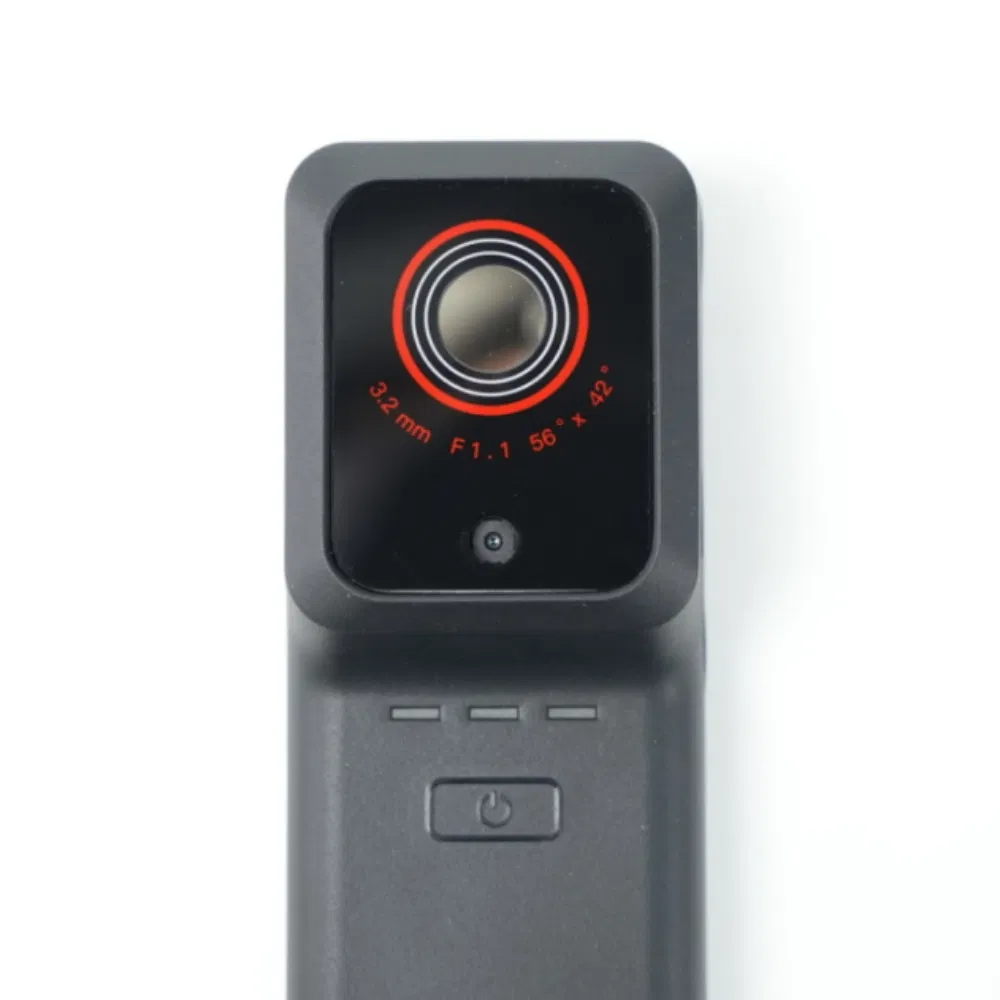

| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focus Mode | Fixed Focus |
| Measurement Range | -20°c~+150°c, +100°c~400°c |
| Package Size | 18.70cm * 11.80cm * 5.50cm |

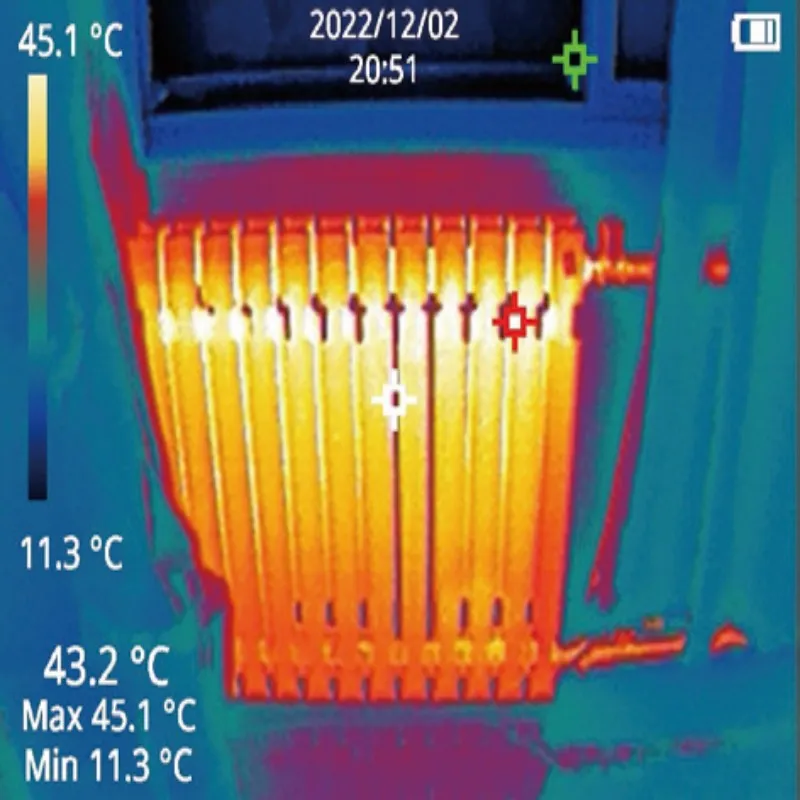

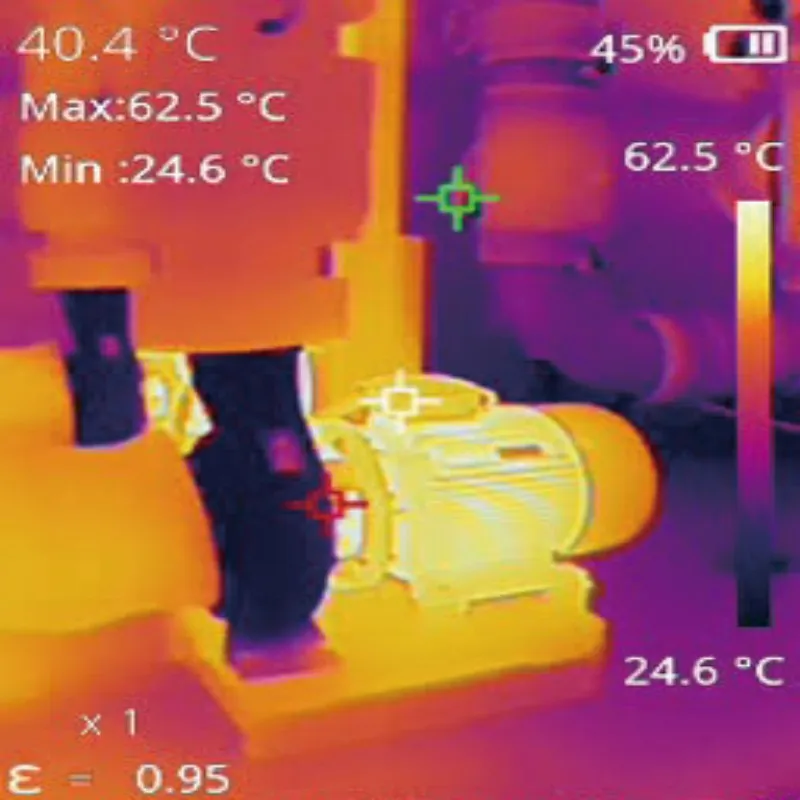

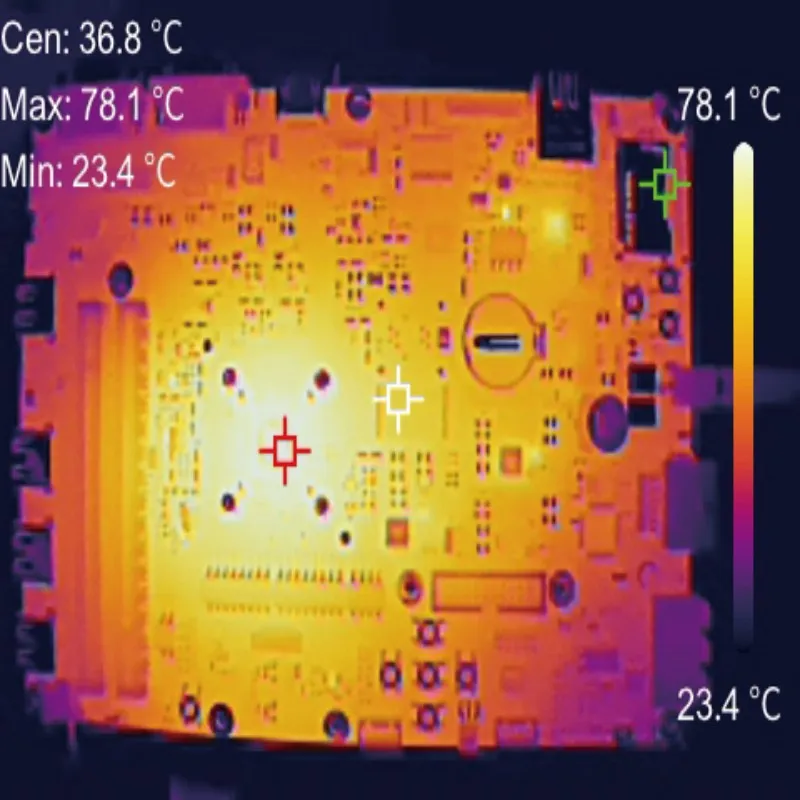

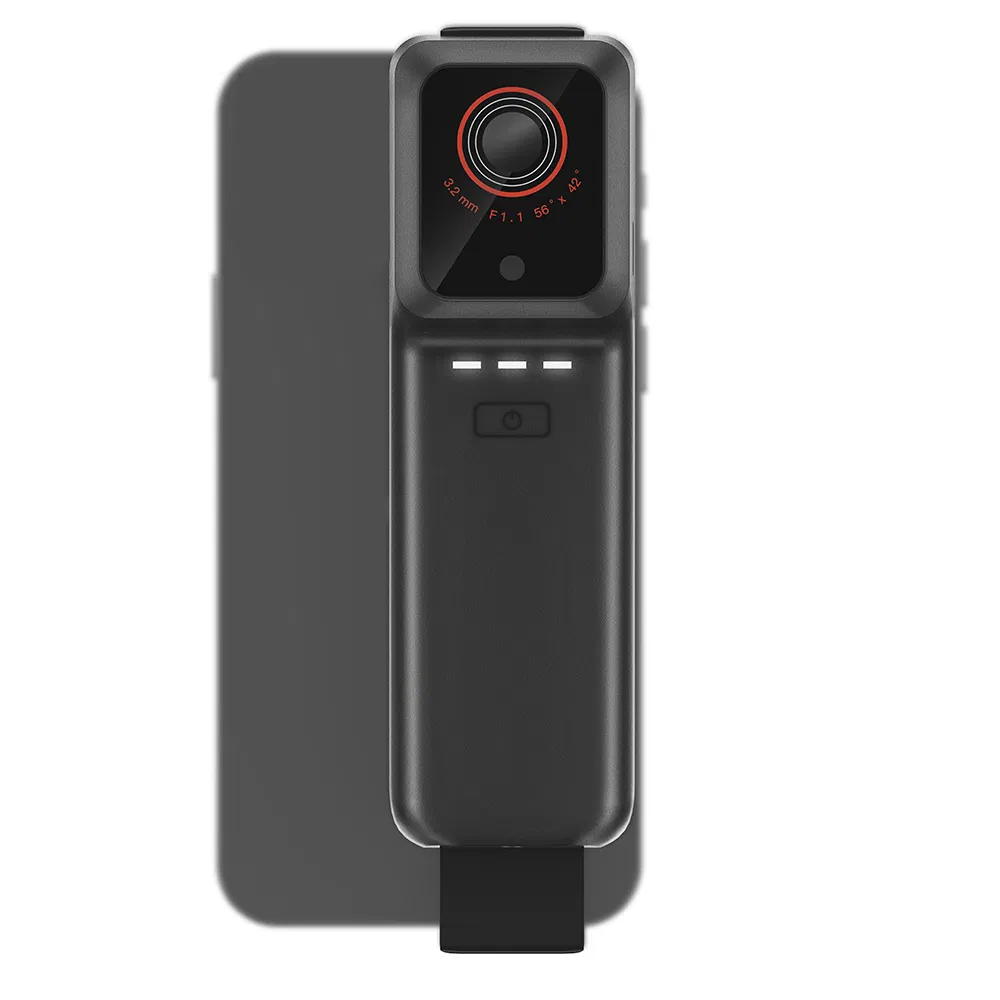

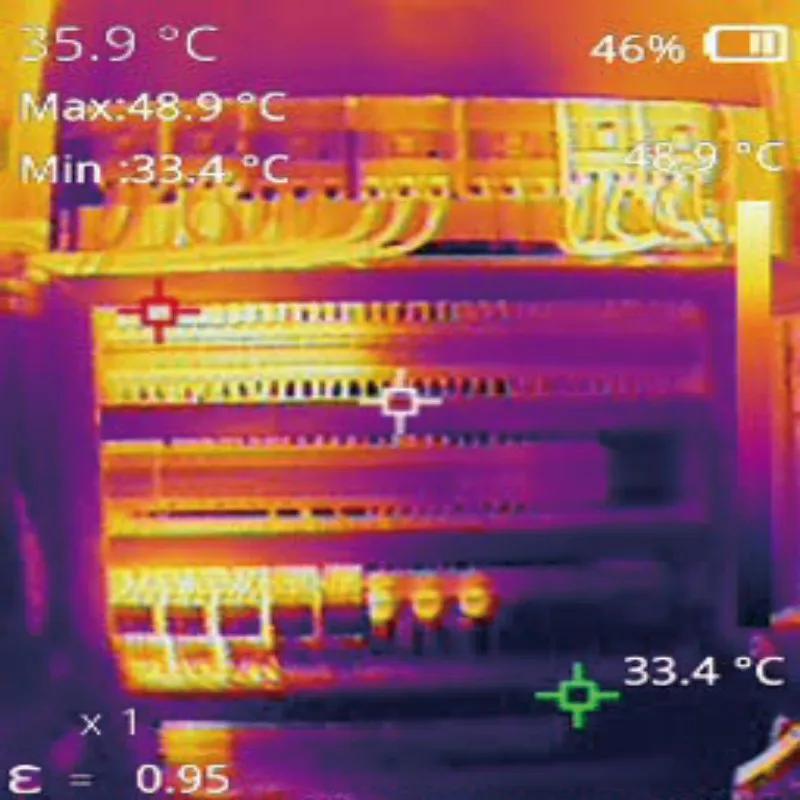

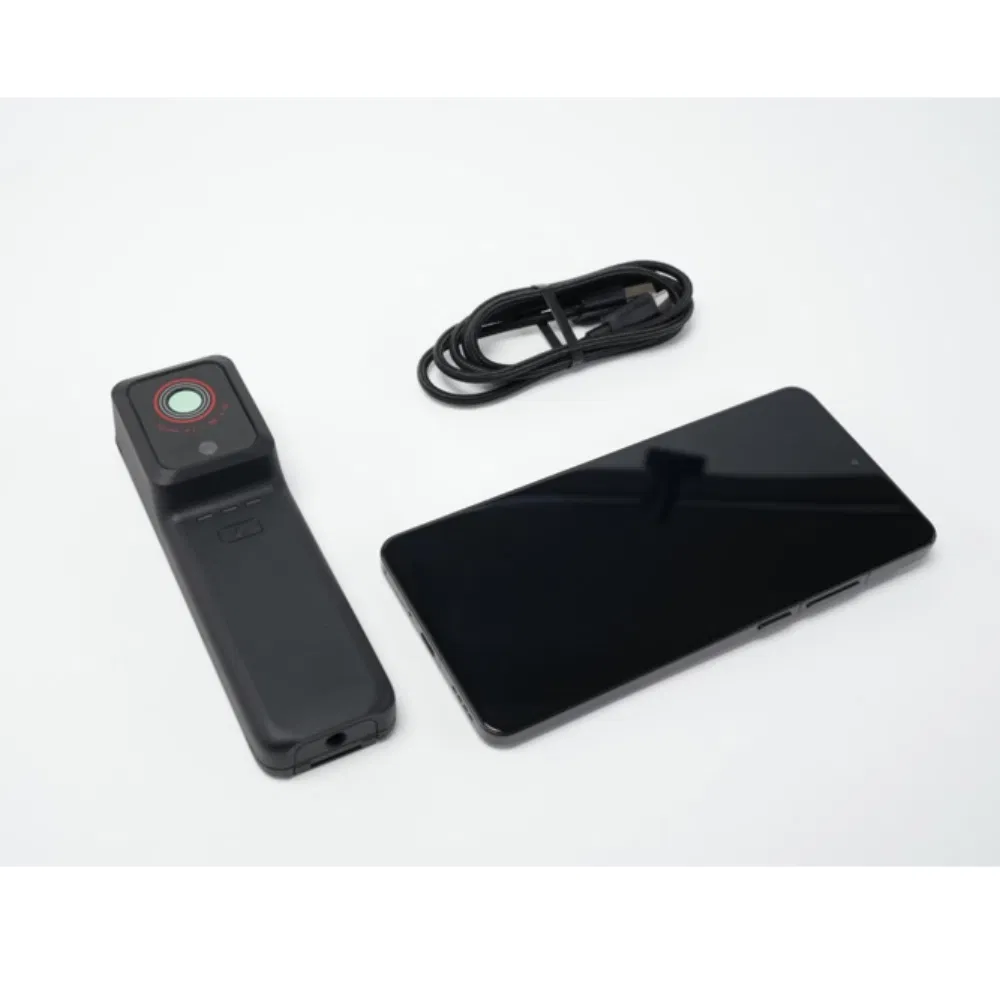

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios. It supports wireless image transmission and operation. With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.

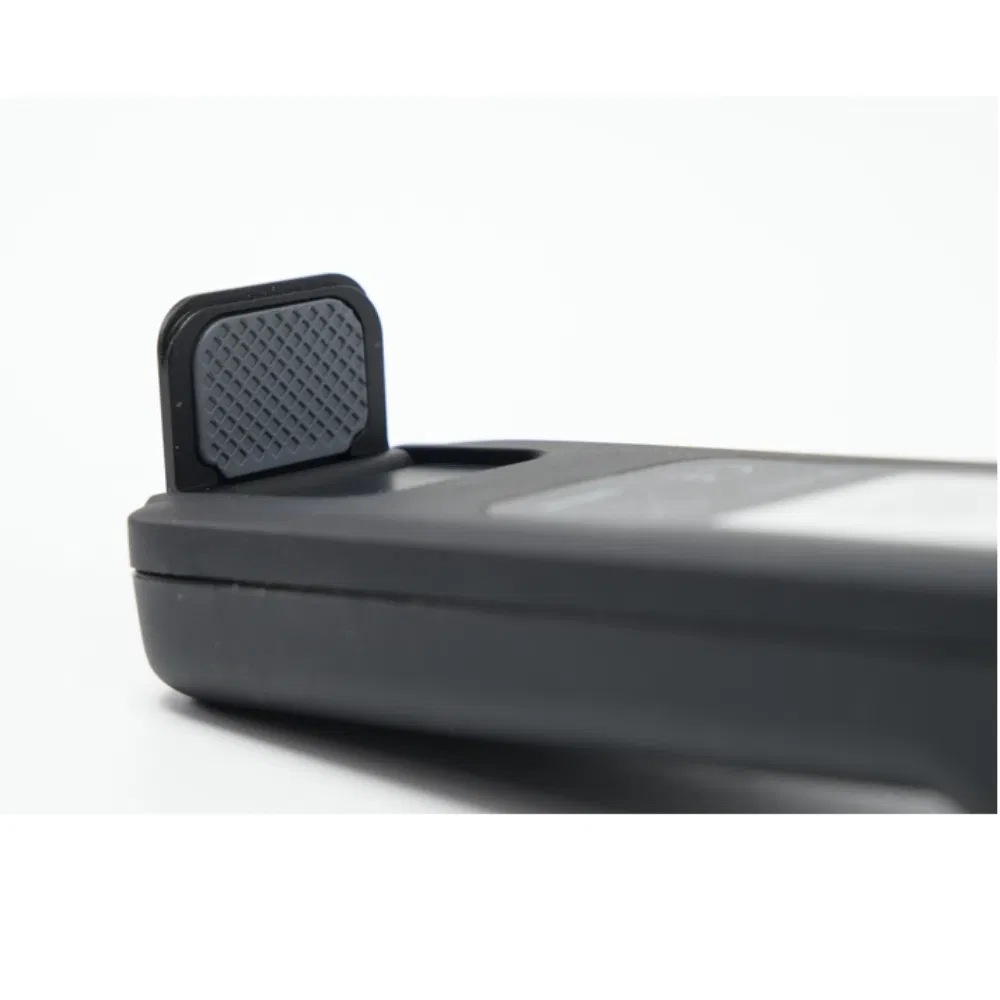

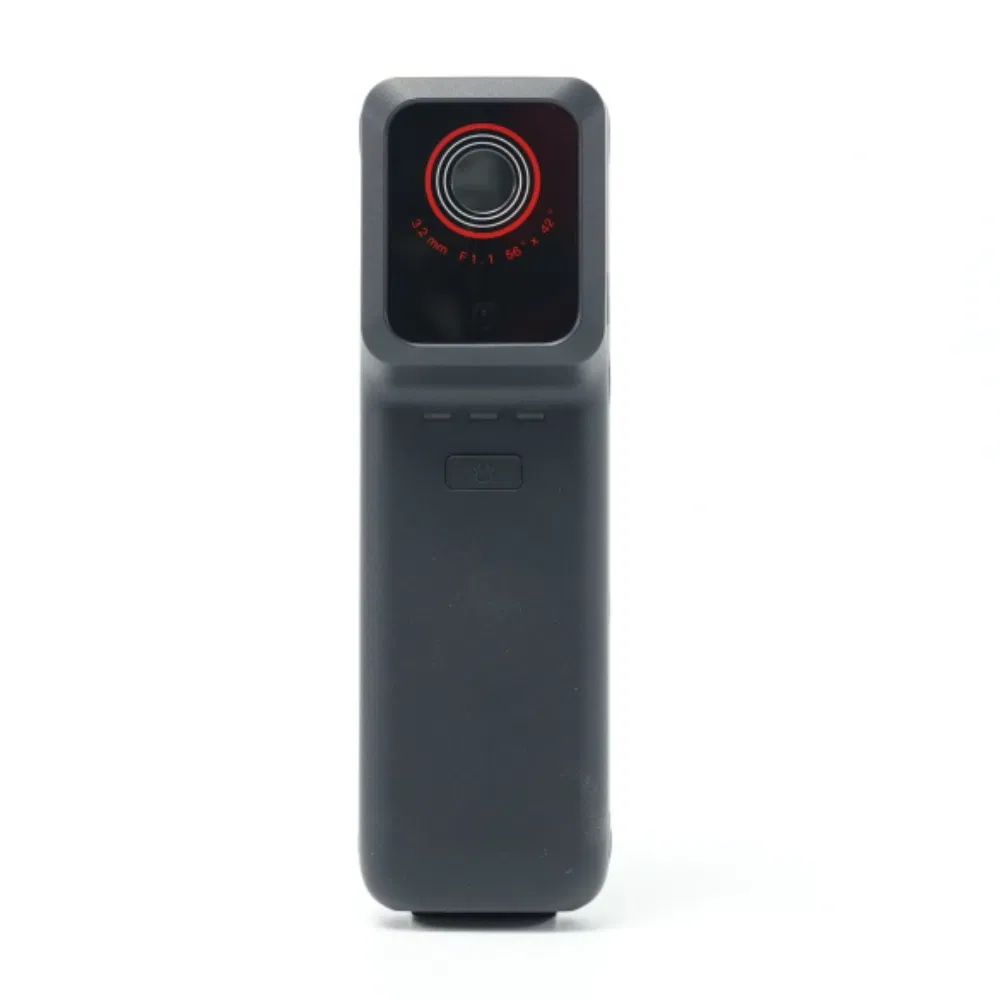

Image transmission delay < 300ms. With 2 hours of battery life, productivity is always alive. The fuselage comes with a back clip and standard threaded holes, which can be matched with various accessories to facilitate users to observe targets at different angles.
Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size. 40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C. Four image modes + 7 palettes.
IP54 waterproof and dustproof, 2m drop protection, light and slim design. Faster Wi-Fi connection with Bluetooth assistance; OTA upgrades via mobile app. Professional app supports real-time and offline analysis.
| Feature | IX2 AIR SE Details |
|---|---|
| Thermal Imaging | |
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 256×192 |
| NETD | <40mK (25°C, F1.0) |
| IFOV | 3.75mrad |
| Measurement Accuracy | ±2ºC or ±2% of readings |
| System & Power | |
| Communication | Wi-Fi, USB, Bluetooth |
| Battery Capacity | 1050mAh (Approx. 2h life) |
| Ingress Protection | IP54 |
| Weight | 130g |
