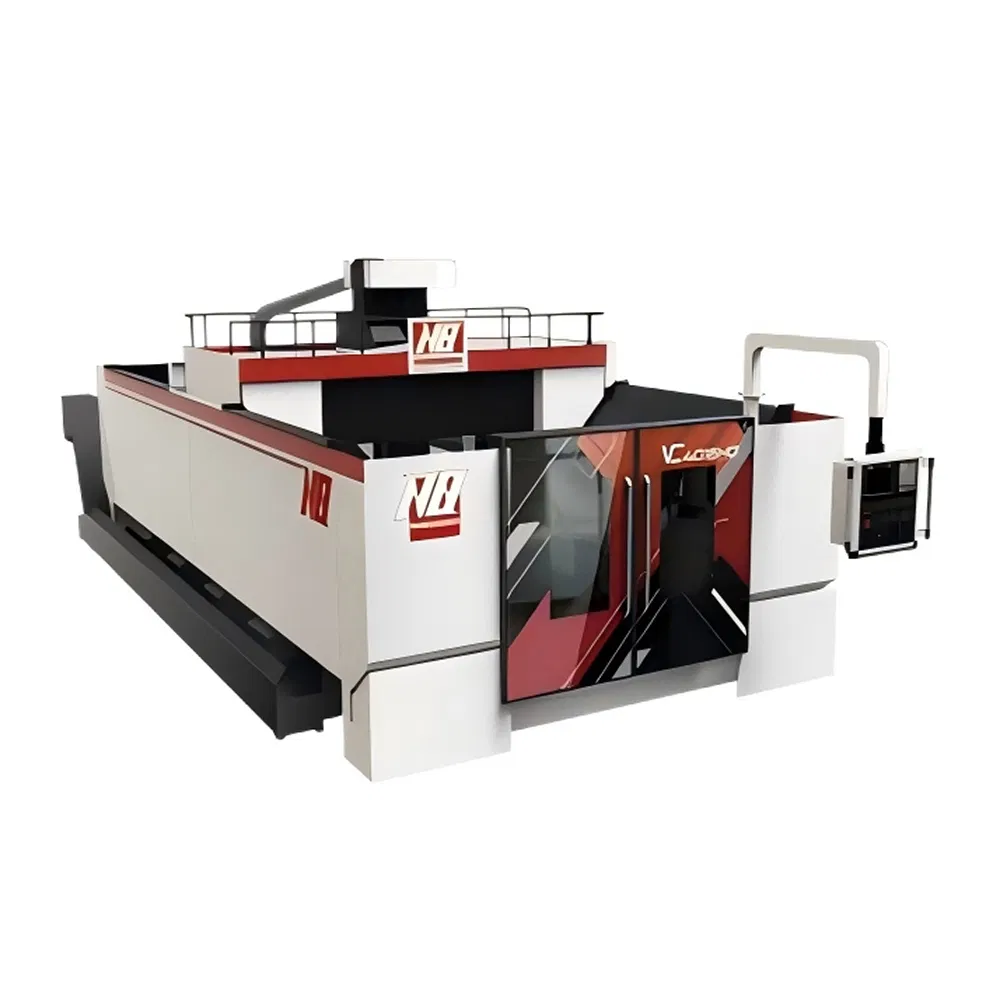

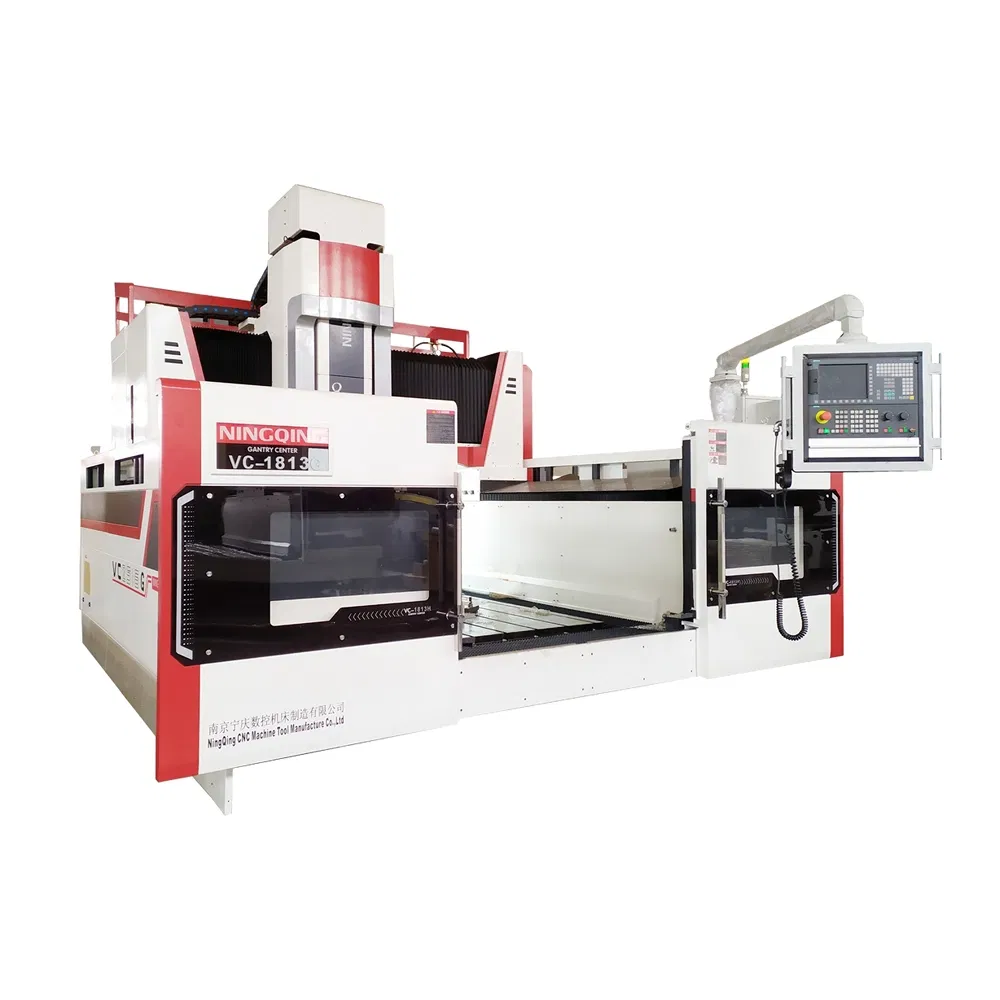

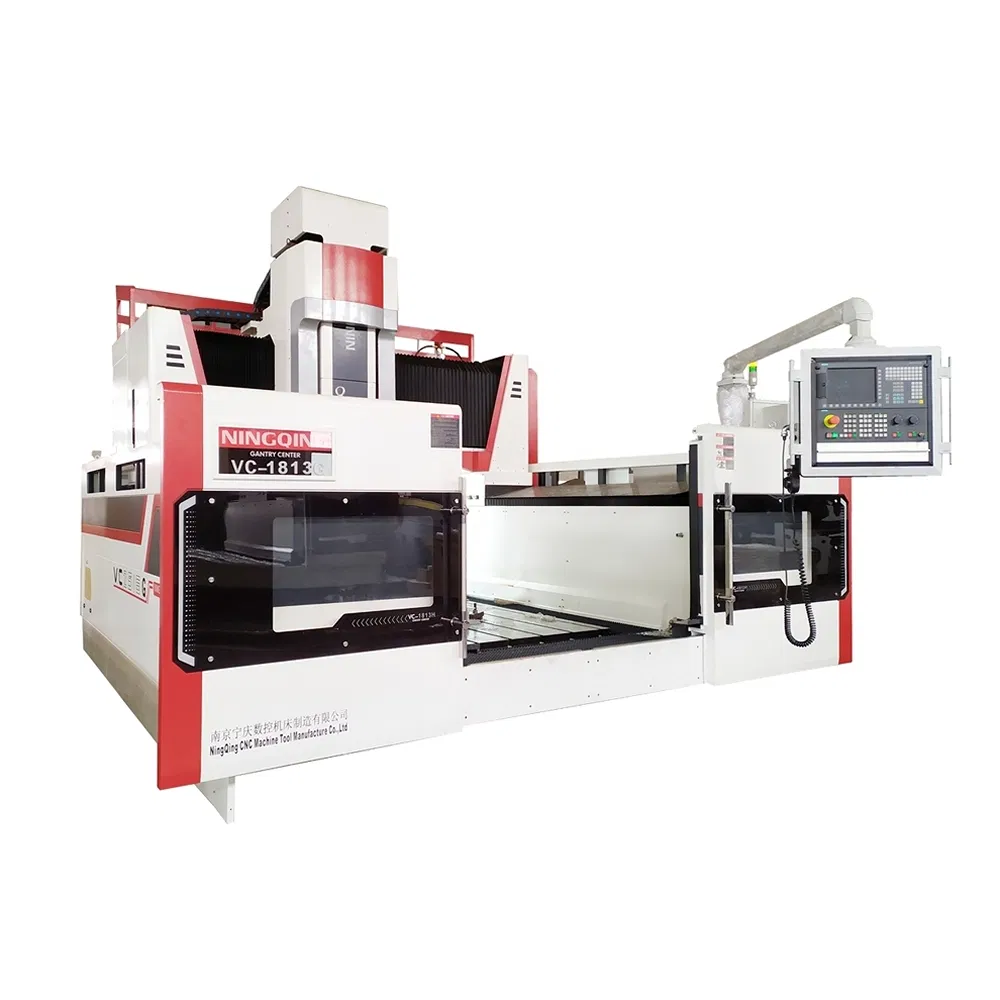

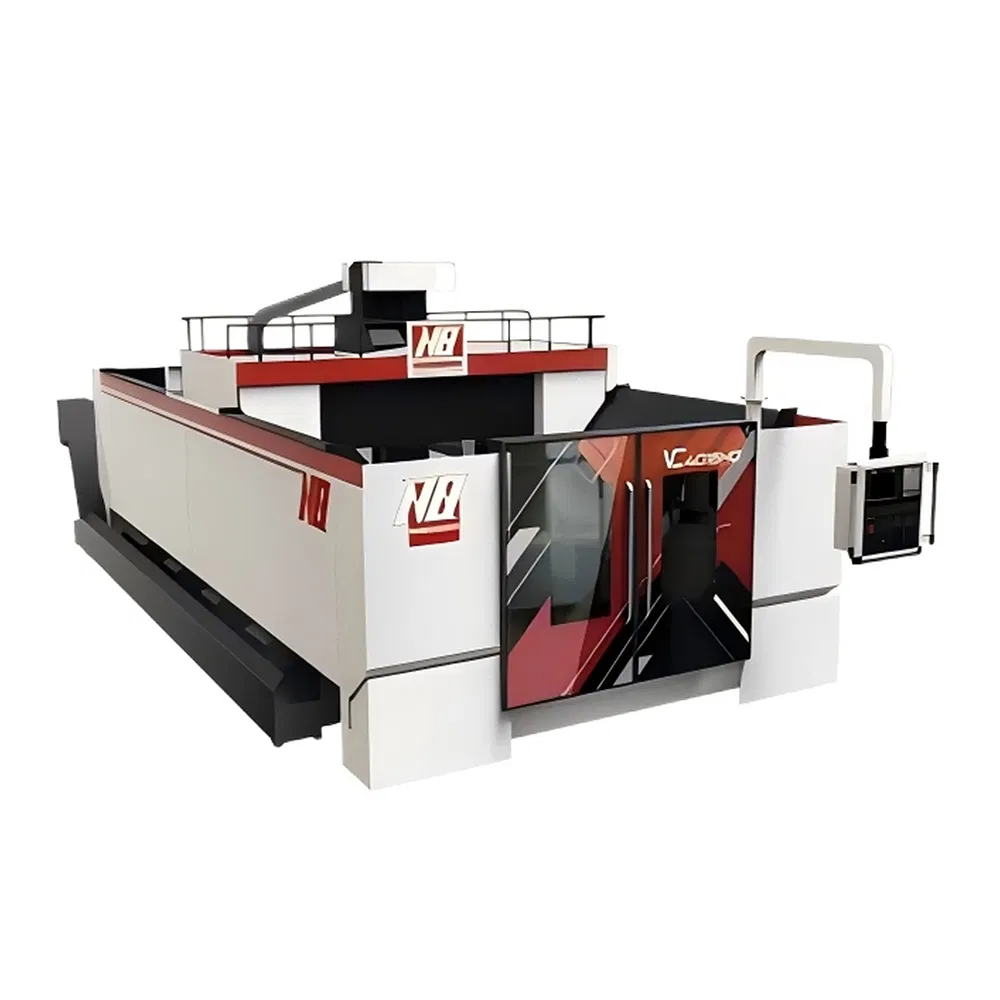

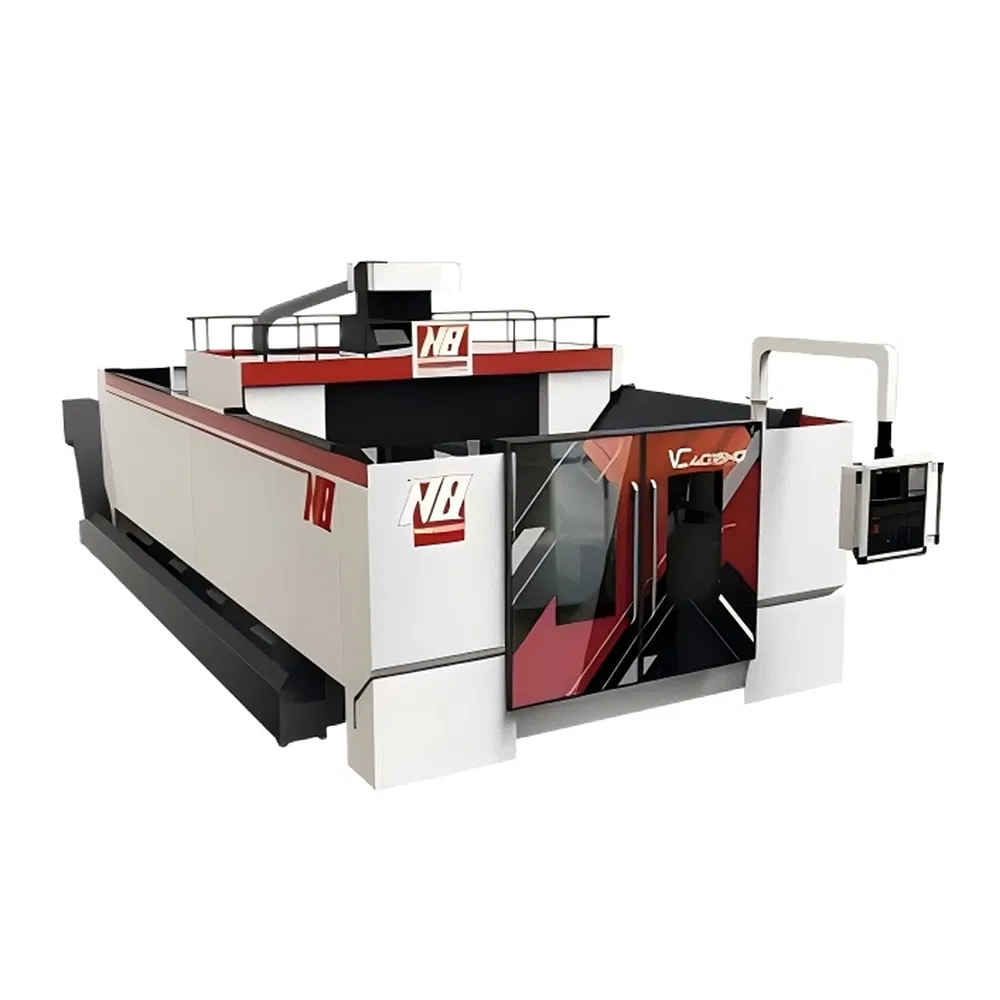

This machine tool is a crossbeam mobile high-speed machine with a fixed worktable. It mainly consists of a bed, crossbeam, crossbeam slide, slider, chip removal device, lubrication system, cooling system, electrical control cabinet, and CNC system.

Machine bed (including worktable), left and right guide rail seats, crossbeam, Z-direction slide table, etc. are made of high-quality resin sand cast iron, subjected to secondary aging treatment of thermal aging and vibration aging to accurately remove stress. The structure is optimized using finite element analysis to achieve maximum rigidity, especially with an arch bridge structure for the crossbeam which effectively suppresses sagging. It is ideal for high-precision machining of molds and non-ferrous metals.

The workbench is an integral box-shaped structure with reinforced ribs, measuring 1900mm x 1300mm. It remains fixed during machining to ensure stability.

Equipped with German INNA high-precision high-speed electric spindle (22kw/29.2Nm). The system includes SMC pneumatic components and an automated lubricating oil circuit for the guide rails and ball screws.
