Efficient Automatic Steel Tube Hot DIP Galvanizing Equipment Solution

Customization:	Available
Type:	Coating Production Line
Coating:	Galvanized

Send Inquiry

Product Description

Basic Specifications

Substrate

Steel

Certification

CE, ISO

Condition

New

Annual Capacity

130 Thousand Tons

Heating Method

Natural Gas

Voltage

380V

Design Service

Available

Installation Service

Available

HS Code

85433000

Production Capacity

200 sets/Year

★

Introduction

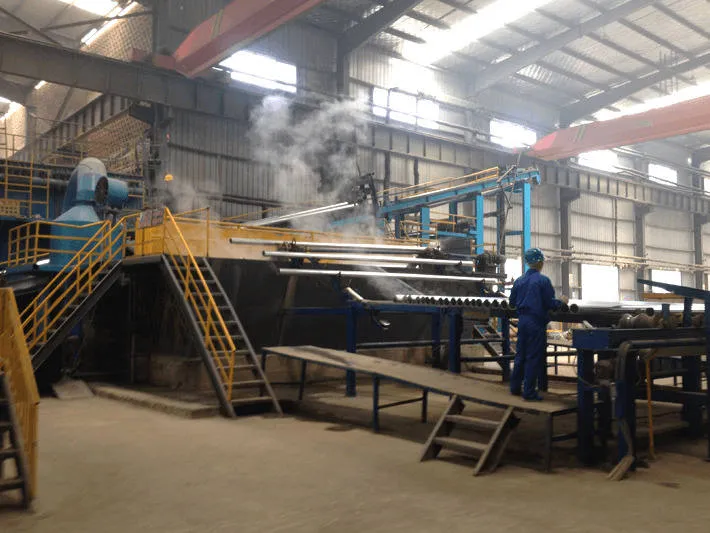

Continuous Steel tube Hot Dip Galvanizing production line is designed to produce galvanized steel pipes and other steel workpieces for anti-corrosion function.

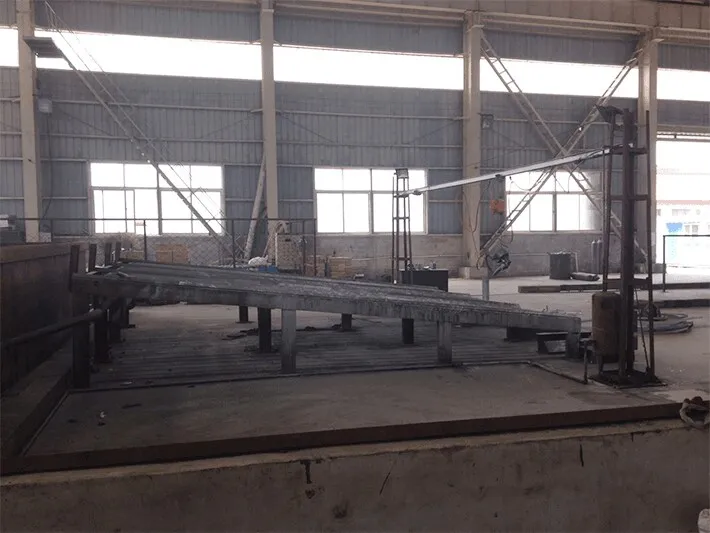

Steel Tube Hot DIP Galvanizing Equipment

Our galvanizing line is designed by our experienced engineers, it ensures the uniformity of the galvanized layer on steelworks, and with good corrosion resistance and adhesion strength, the mature technology is approved and favorable by hundreds of modern galvanizing industry.

⚙

Key Components

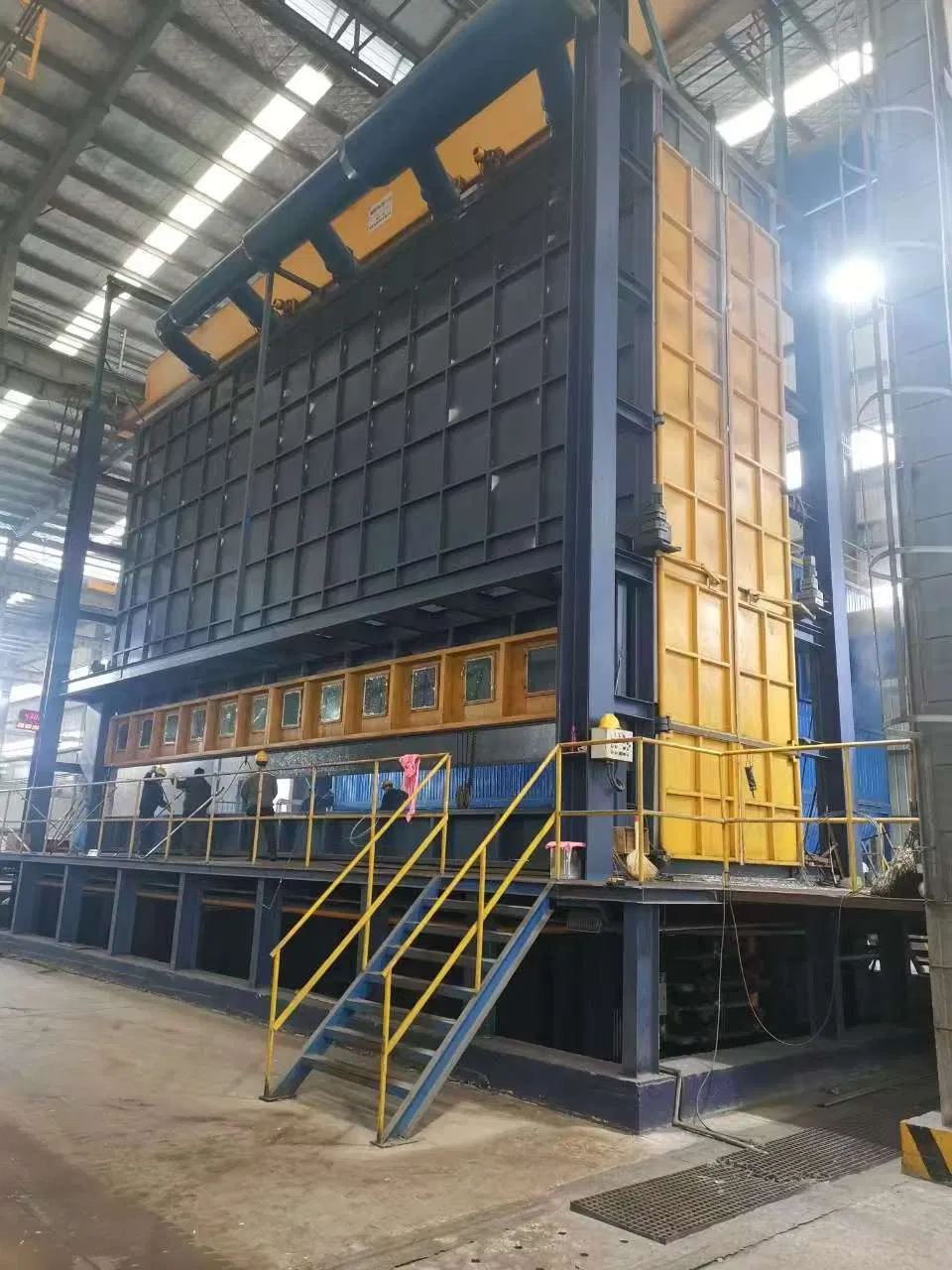

HDG Furnace & Zinc Kettle

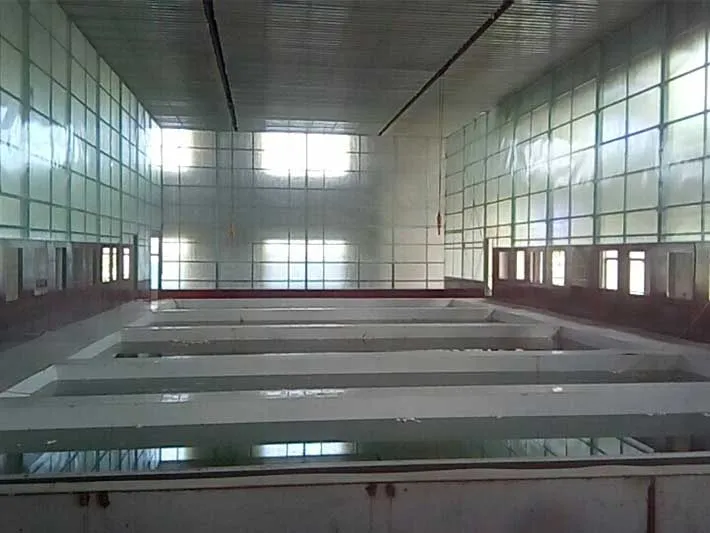

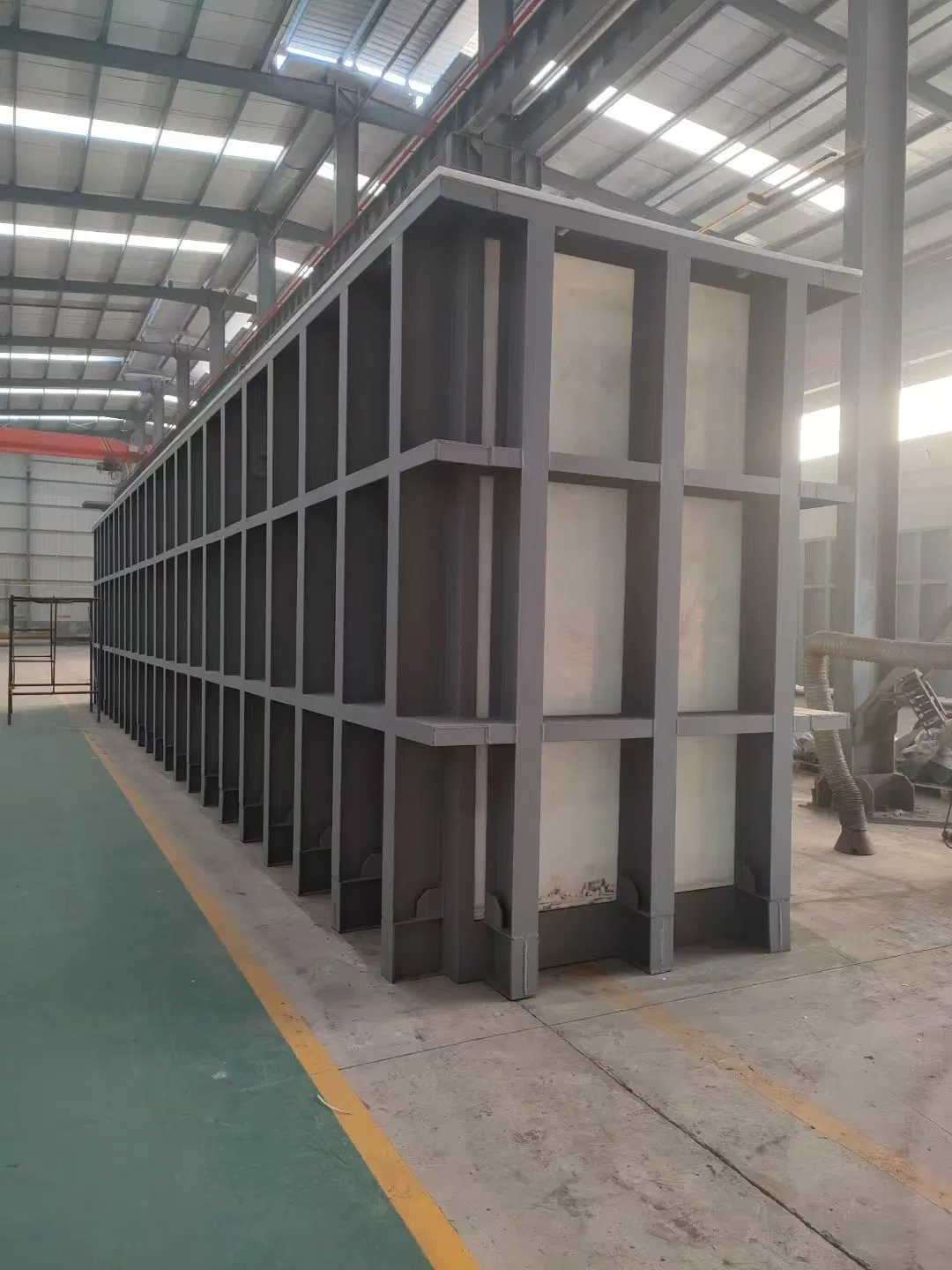

Chemical Pretreatment Tank

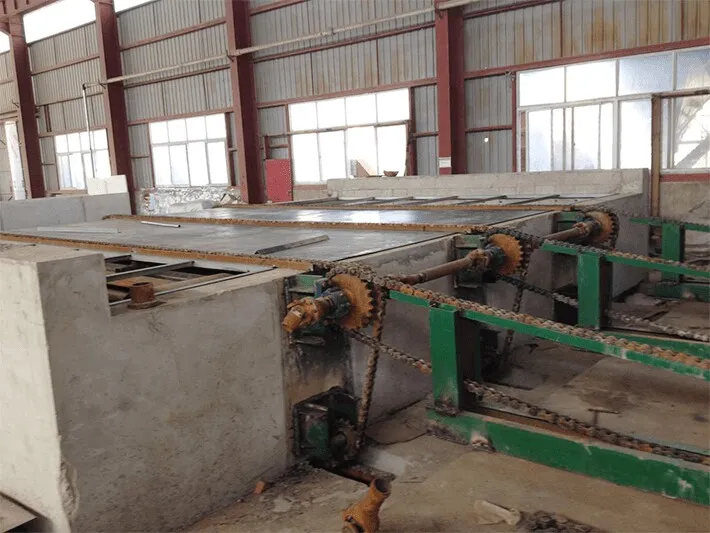

Mechanical Transmission System
The Acid Mist Treatment System

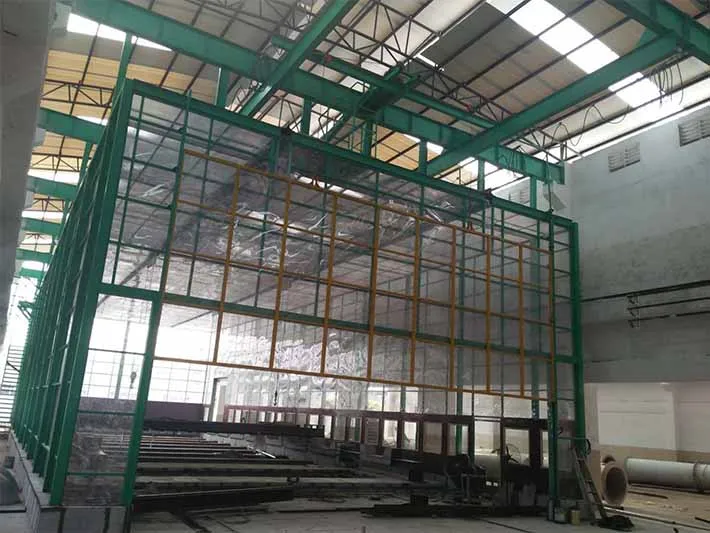

White Fume Removal Equipment

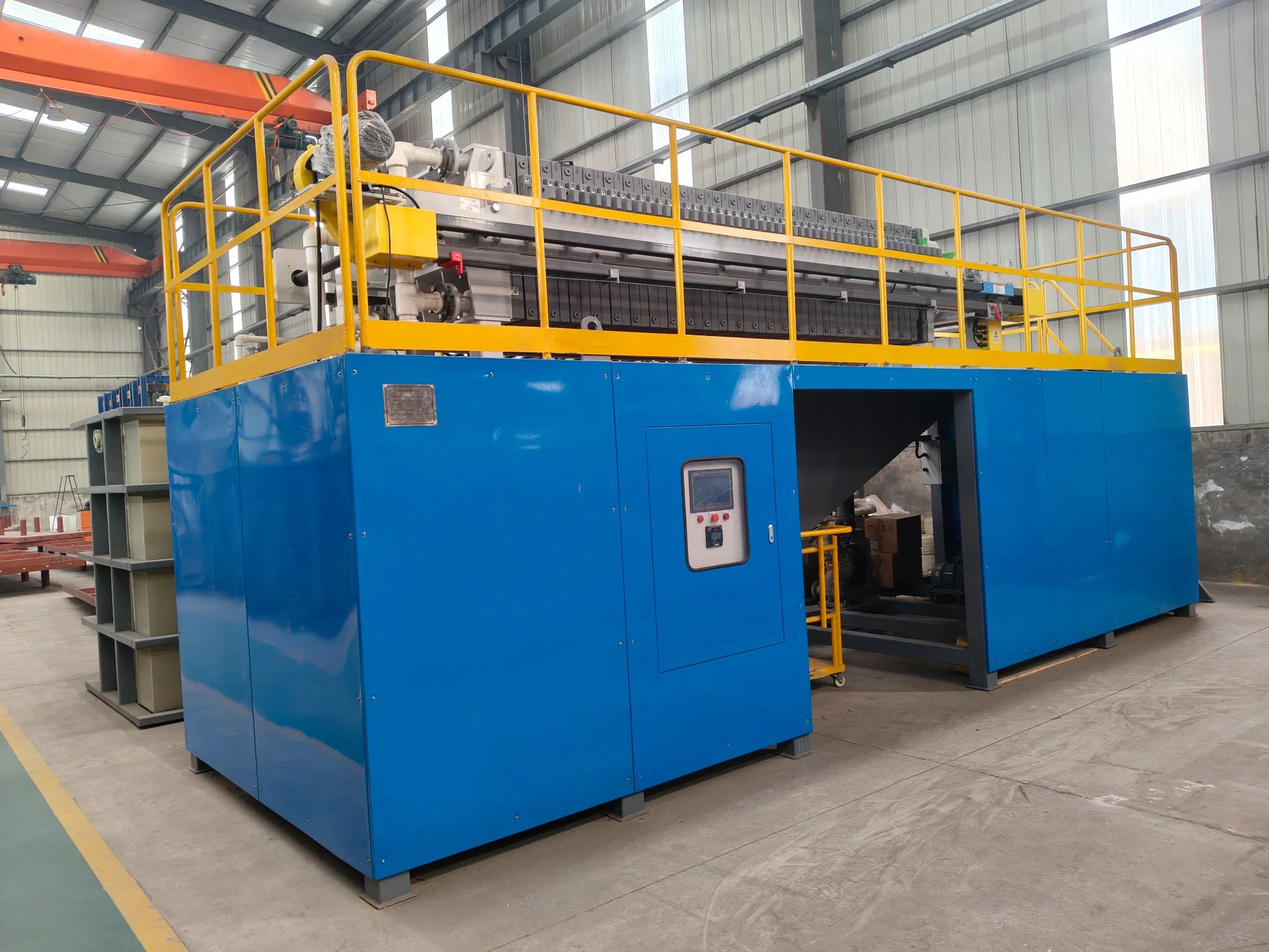

Waste Acid Regeneration Treatment & Recycle System
Clean Water Neutralisation & Recycle System
Flux Regenerating System

🔄

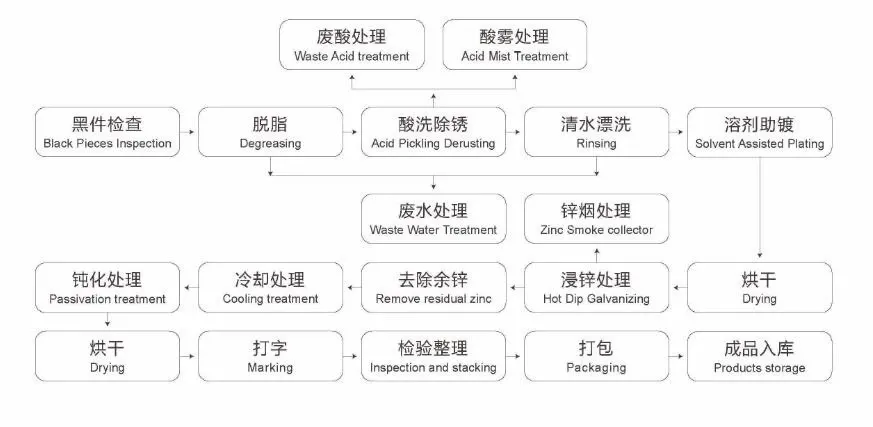

Working Process

📊

General Technical Data

Dimensions of steel pipe: 1/2-10 inches
Steel pipe length: 6m
Production speed:
- 1/2-2 inches: 10-16 pieces/min
- 2.5-6 inches: 4-8 pieces/min
- 6-10 inches: 2-4 pieces/min
Production style: 1/2-2 inches (double-stations); 2.5-10 inches (single-station)
Annual capacity: 130 thousands tons/year

Frequently Asked Questions

What types of steel workpieces can this production line process?

The line is specifically designed for continuous steel tube hot dip galvanizing, suitable for pipes ranging from 1/2 to 10 inches in diameter.

What is the annual production capacity?

The system is capable of an annual capacity of approximately 130,000 tons, with a production facility capacity of 200 sets per year.

Does the equipment meet international standards?

Yes, the equipment is CE and ISO certified, ensuring it meets strict quality and safety regulations.

What heating method is utilized for the furnace?

The HDG furnace utilizes Natural Gas as its primary heating method for efficiency and consistency.

Are technical support and installation services provided?

Yes, both professional design services and on-site installation services are available for the production line.

How is environmental impact managed?

The line includes advanced environmental protection components such as acid mist treatment, white fume removal, and waste acid/water recycling systems.
