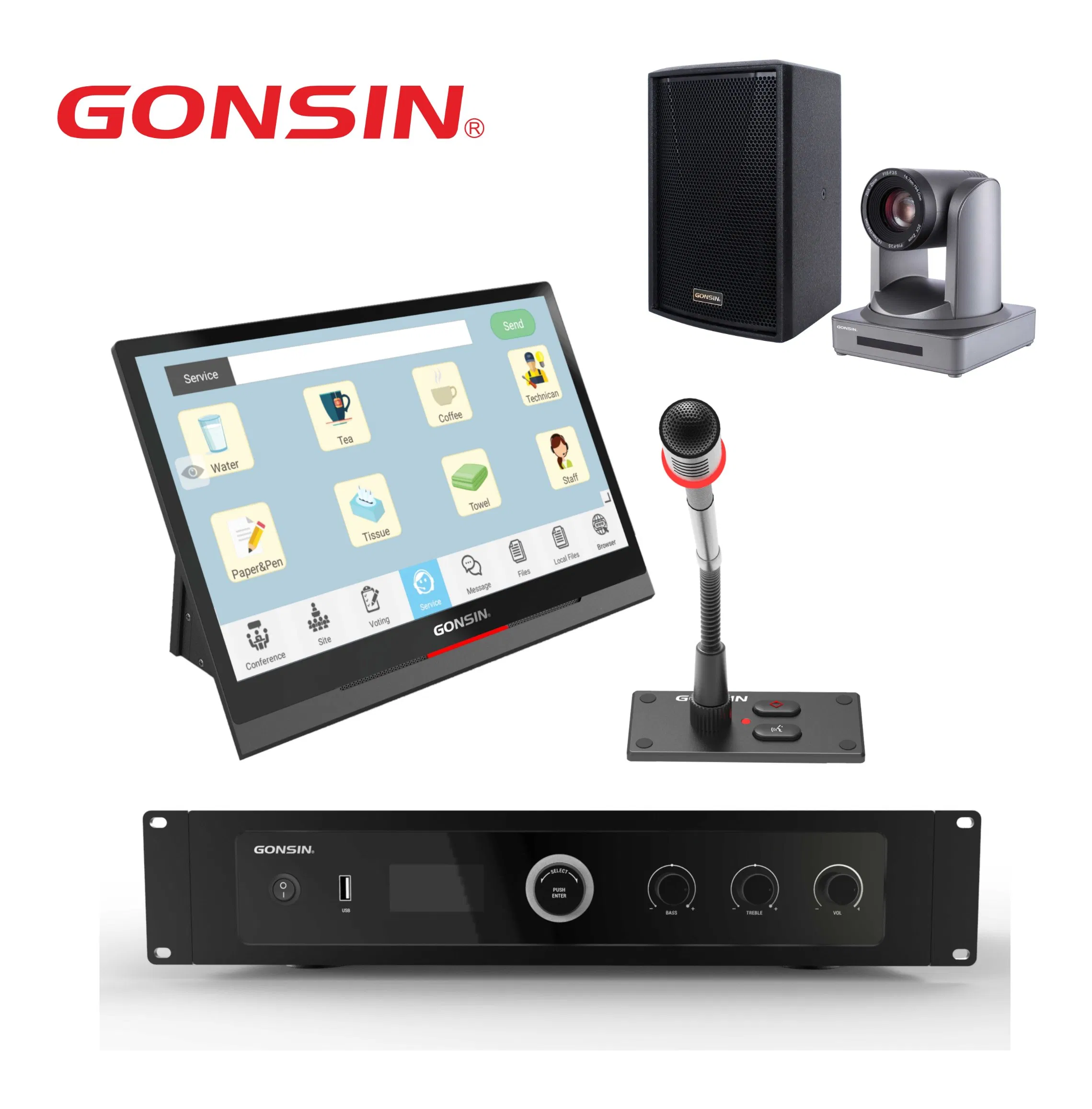

All in One Paperless Conference System with Finger Recognition with Discussion Microphone

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

Basic Info.

Model NO.
DCS-2061
Installation
Desktop
Connection
Network Cable
Display
35mm*18mm
Audio Frequency
30Hz-20kHz
Thd
<0.05%
Channels
32 Channels
Microphone Type
Uni-Directional Electret Condenser
Communication
Wired
Origin
China

Product Description

DCS-2062DI Basic Functions

  • In compliance with IEC60914 international standard, utilizing digital audio processing and transmission technology.
  • Built-in high-speed CPU and high-performance digital audio processor (DSP).
  • 15.6 inches LCD screen (1920 × 1080) with 10-point touch control and narrow bezel design.

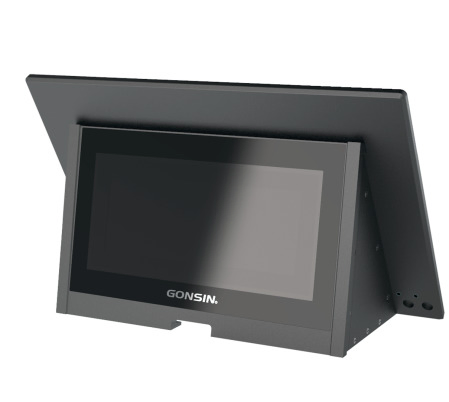

  • 10.1 inches super bright HD electronic nameplate (1280 × 800) for participant information display.
  • Wired connection via network cables supporting daisy-chain, star, and mixed topologies for high stability.
  • Full support for hot-plugging and automatic restoration.
  • Equipped with 3.5mm headphone and MIC jacks; built-in 2W dual loudspeakers.
  • Integrated paperless functions: Attendance registration, voting, and call service.
  • Comprehensive file management: Supports DOC, PDF, PPT, JPG, MP4, and screen sharing/synchronization.
  • Android-based platform with data encryption for enhanced information security.

Advanced Discussion & Interpretation

  • Luminous capacitive touch control mic button for accurate response.
  • 48KHz audio sampling frequency with response from 20Hz to 20KHz.
  • Standard electret cardioid pickup pattern with red ring indicators.
  • Multiple system modes: VOX, Auto, FIFO, and Operator.

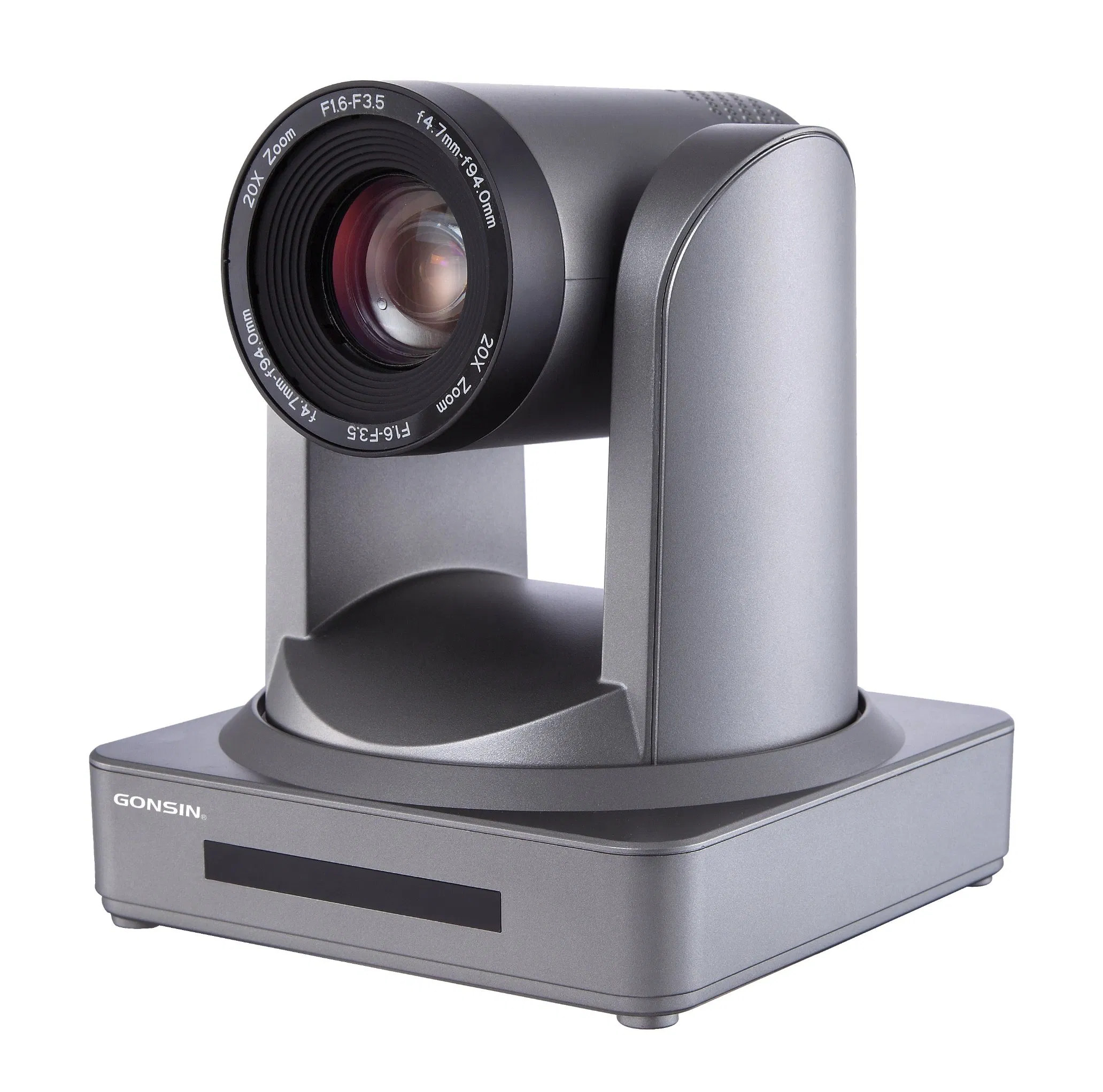

  • Automatic video tracking (SD/HD) with preset panoramic positions.
  • Support for 32 (1+31) channels of simultaneous interpretation via the LCD screen.
  • Chairman priority features including override, topic control, and mass system messaging.

Frequently Asked Questions

What screen sizes does the terminal feature?
The terminal includes a primary 15.6-inch HD touch screen for user interaction and a secondary 10.1-inch super bright HD screen acting as an electronic nameplate.
What types of connections and cabling are supported?
The system uses standard network cables and supports flexible cabling options including daisy-chain, star, and mixed connections to ensure high reliability.
Which document formats can be viewed on the terminal?
It supports a wide range of formats including DOC, DOCX, PDF, PPT, PPTX, JPG, PNG, BMP, MP3, MP4, AVI, FLV, and WMV.
Does the system support simultaneous interpretation?
Yes, it supports up to 32 channels (1+31) of simultaneous interpretation, with channel selection and volume adjustment directly on the LCD screen.
How is information security handled?
The system is developed on an Android platform and utilizes specialized data encryption and anti-restoration techniques to protect conference data.

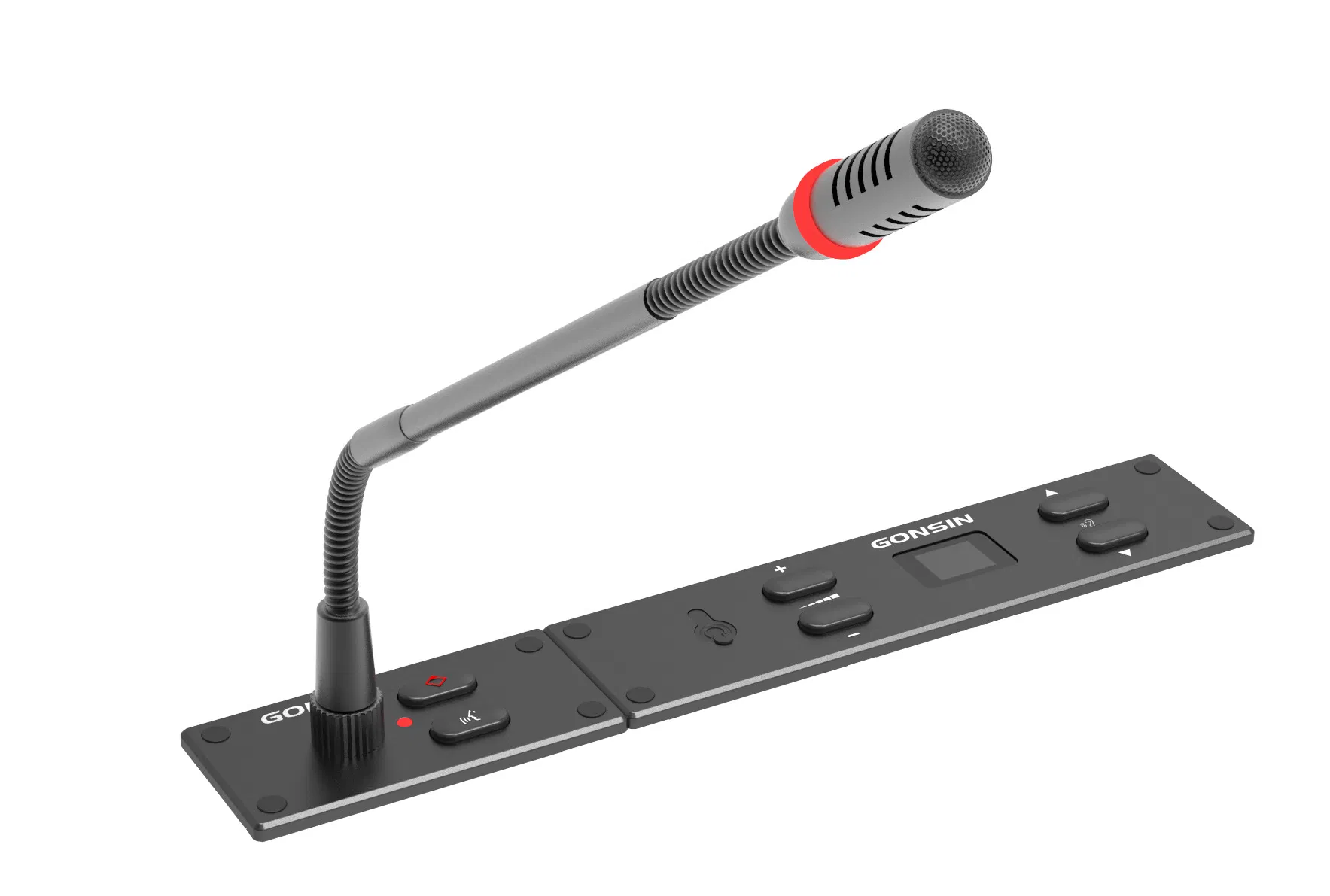

What are the microphone specifications?
It features a pluggable gooseneck electret cardioid microphone with high resistance to mobile phone interference and an adjustable frequency response up to 20KHz.
