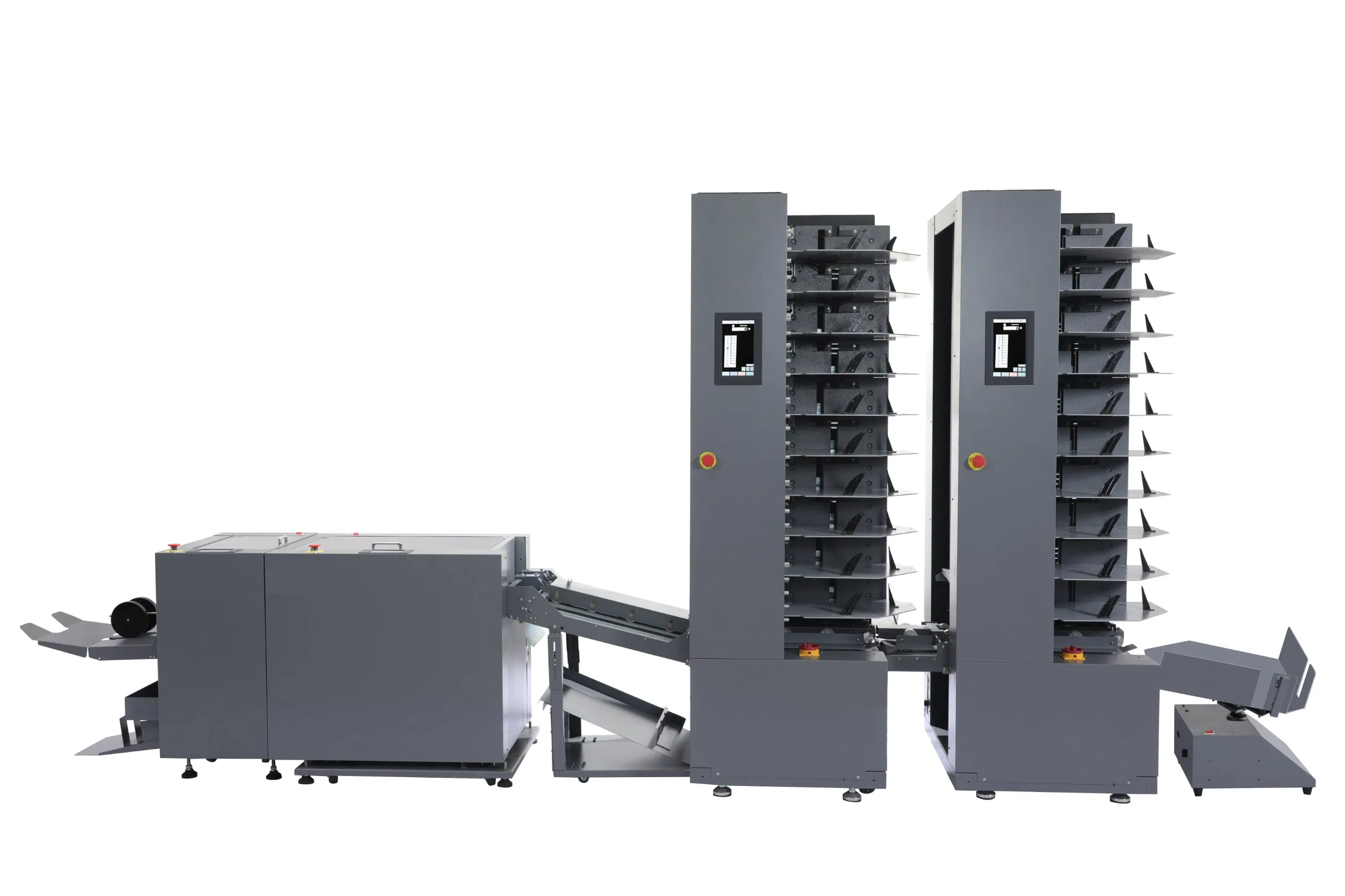

Air Suction Twin Tower Digital Paper Collator with Booklet Maker and Trimming Vkd200

1 / 5

Air Suction Twin Tower Digital Paper Collator with Booklet Maker and Trimming Vkd200

Customization:	Available
Type:	Comb Binding Machine
Thickness:	≤20mm

Send Inquiry

Product Description

Basic Specifications

Model NO.VKD200

Voltage220V

Weight560kgs

Max Paper Size490X340mm

Min Paper Size135X155mm

TrademarkVOKEDA VKD

Production Capacity500 Sets/Month

SpecificationCE

Product Description

Air suction Twin tower digital paper collator with saddle stitching and book trimmer VKD200

Model No.	Features	Stack Details
VKD06 / VKD10 / VKD12	Collating Stitching and Folding System	12 (6-bin + 6-bin); 16 (6-bin + 10-bin); 18 (6-bin + 12-bin); 20 (10-bin + 10-bin); 22 (10-bin + 12-bin); 24 (12-bin + 12-bin)
Touch Screen	8 inch color touch screen, easy to operate
Max. Paper Size	320*460mm
Speed	10,000 sets/h (A4); 9,000 sets/h (A3)
Paper Thickness	40-210gsm
Paper Type	NCR paper, copy paper, offset paper, duplicating paper

Key Features

18 inch color touch screen for intuitive operation.

2High-speed production up to 10,000 books/h.

3Comprehensive detection: double feed, missing page, and paper full sensors.

4Advanced interval and machine speed adjustment.

5Programmable page grouping and inset capabilities.

6Wireless remote control for start and stop functions.

7Double sensitivity adjustment for transparent and critical paper types.

8Failure statistics function for easy maintenance and aftermarket support.

Booklet Maker & Trimmer Specs (VKD370 / VKD40)

VKD370 Booklet Maker Machine
Saddle Stitching Max Size	490×340mm
Flat Binding Max Size	239×340mm
Stapler Thickness	40 PCS (80g paper, equivalent to 4mm)
Binding Heads	Two Germany binding heads 43/6
VKD40 Paper Trimmer Machine
Booklet Size (After Trim)	Width: 155mm - 330mm; Length: 90mm - 230mm
Trimmer Length	0.2mm - 20mm
Trimmer Thickness	50 PCS (80g paper)

Frequently Asked Questions

Q1: What is the maximum production speed of the VKD200 system? A: The system can reach speeds of up to 10,000 sets per hour for A4 sized paper and 9,000 sets per hour for A3 sized paper.

Q2: How many sheets can the VKD370 Booklet Maker staple and fold? A: It can staple up to 40 sheets of 80g paper (4mm thickness) and fold up to 25 sheets of 80g paper (2.5mm thickness).

Q3: Can I connect towers with different numbers of bins? A: Yes, the modular design allows you to connect different models, such as a 6-bin tower with a 10-bin tower, providing flexible configurations from 12 to 24 bins.

Q4: What types of paper are compatible with the air suction collator? A: It supports a wide range of paper types including NCR paper, copy paper, offset paper, and duplicating paper with thicknesses from 40 to 210gsm.

Q5: Is the machine easy to operate for new users? A: Absolutely. It features an 8-inch color touch screen with simple help information and voice prompts to guide the operator through the process.

Q6: How does the machine handle transparent or critical paper types? A: The VKD200 includes double sensitivity adjustments specifically designed to accurately detect and process critical paper types like transparent sheets.
