OEM Factory 19 Inch Wall Mount Rack Network

Customization:	Available
Type:	Network Cabinet
Usage:	Network Integration System

Send Inquiry

Product Description

Basic Specifications

Model NO.

LE-WS1

Installation

Wall-Mounted Cabinet

Fan Number

1 to 2 PCS Fans

Capacity

4u-27u

Certification

CE, ISO, RoHS, SGS, TUV, BV

Condition

New

Material Thickness

1.2mm

Tempered Glass

5mm Thickness

Loading Capacity

Static Loading: 60kg

Protection

IP20

Surface Finish

Powder Coated

HS Code

8517709000

Packaging & Delivery

Package Size

65.00cm * 65.00cm * 54.00cm

Gross Weight

50.000kg

Product Description

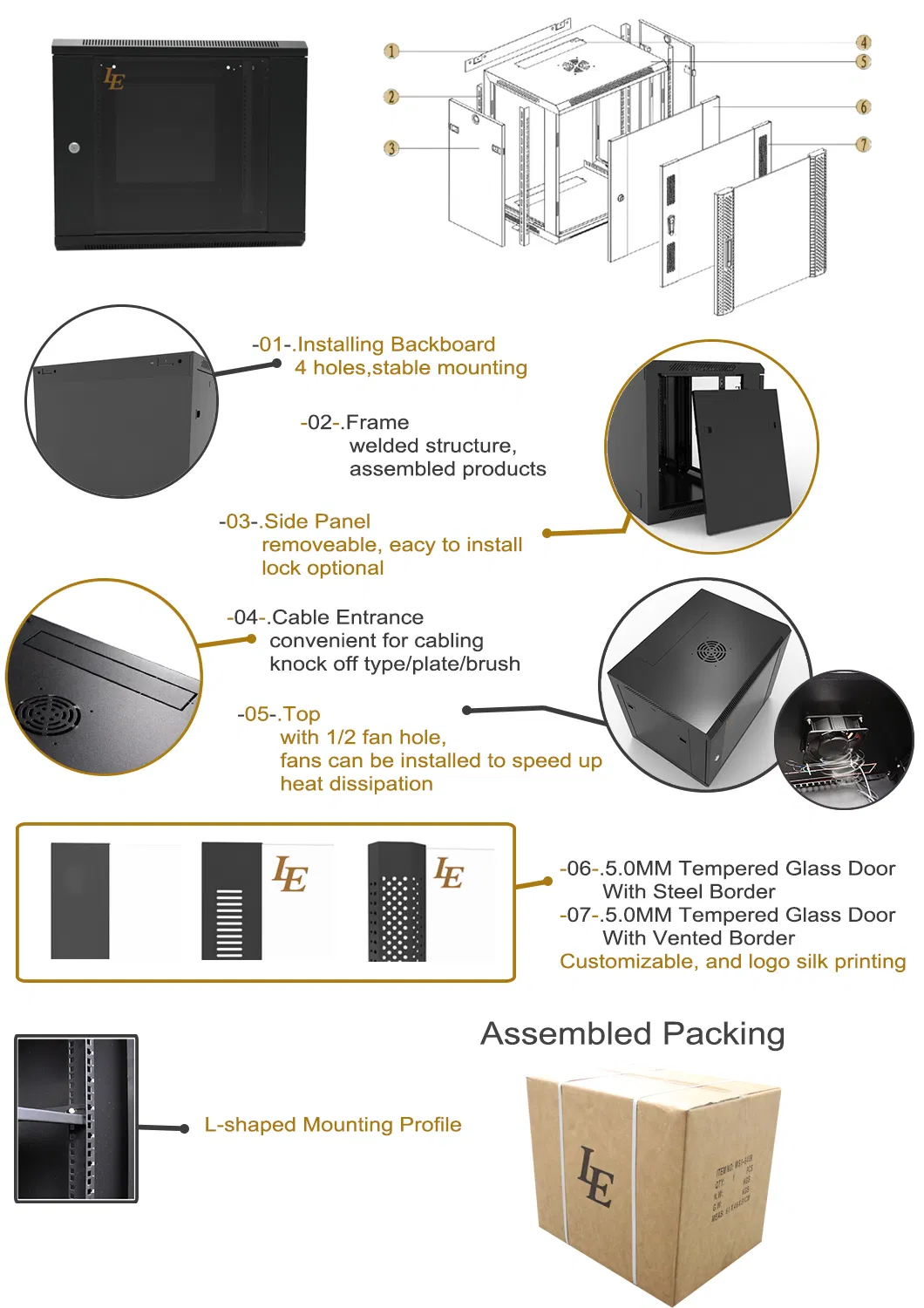

Frame Structure: Welded frame with unassembled structure featuring precise craftsmanship.
Compatibility: Single section design, fully compatible with 19" standard equipment.

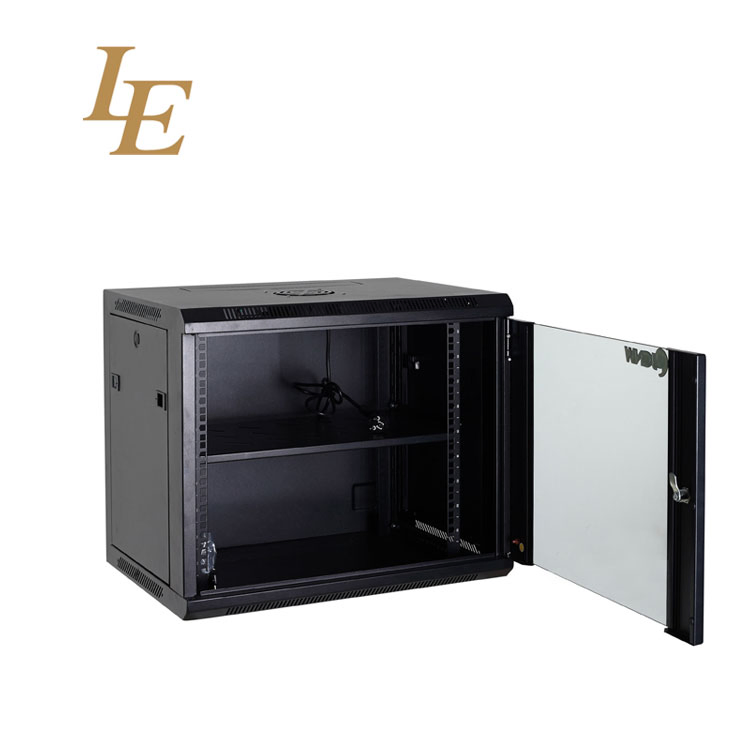

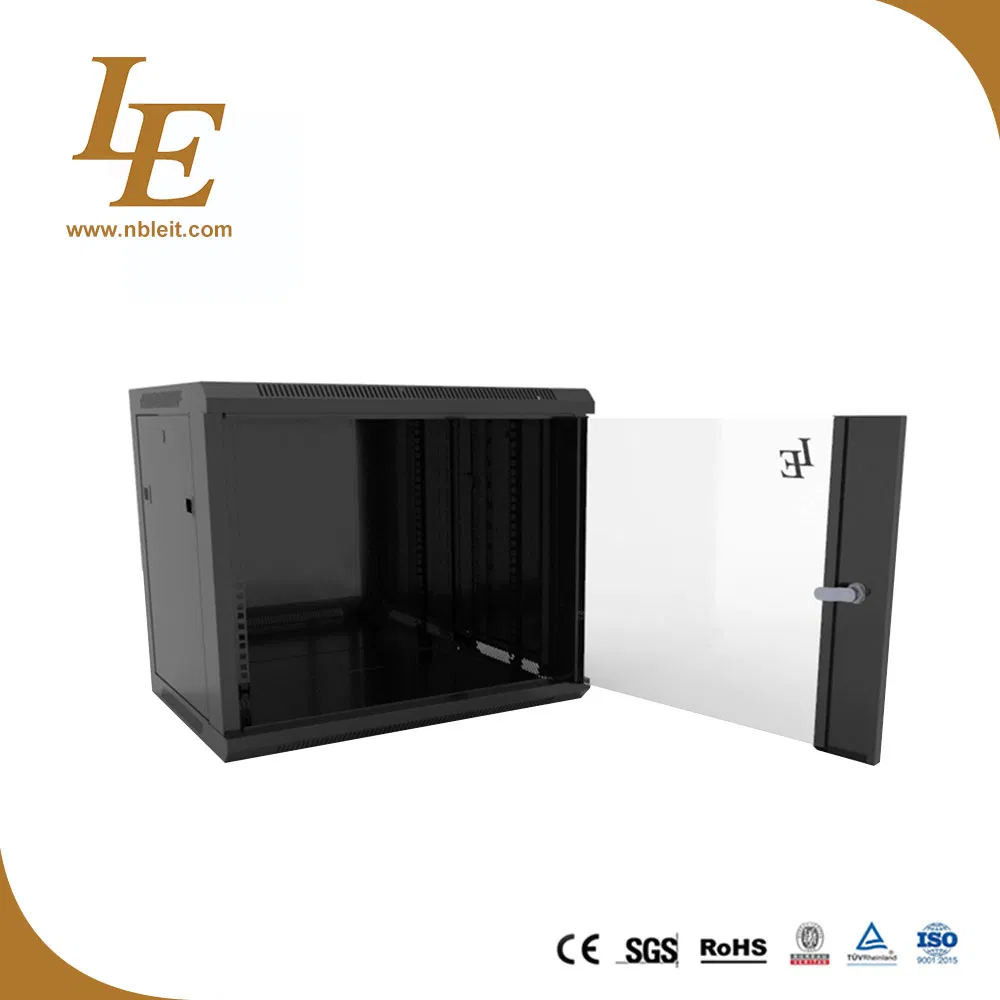

Front Door: 5mm Tempered glass front door with over 180-degree turning radius.
Side Panels: Removable side panels for easy installation and maintenance (lock optional).
Cable Entry: Integrated cable entry points on both top cover and bottom panel with knock-out plates.
Mounting Profile: L-Shaped mounting profile, easily adjustable on the mounting rail.

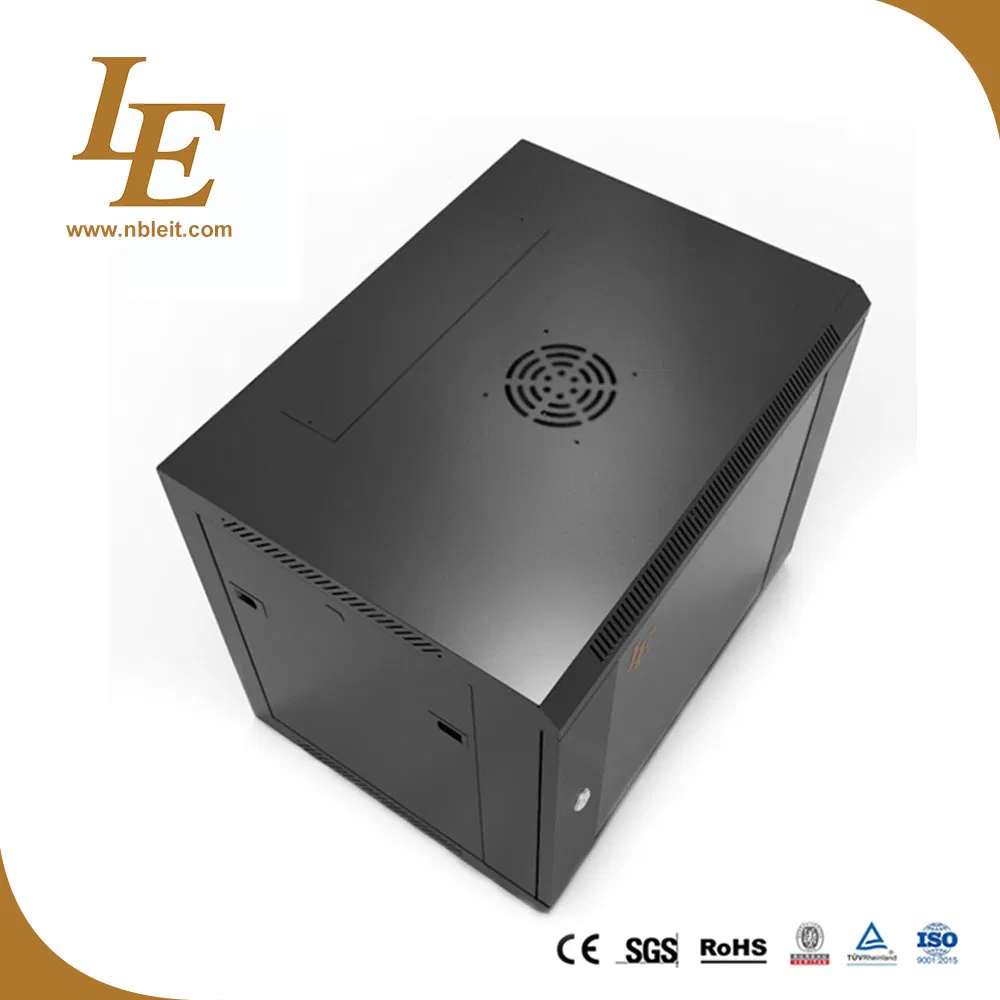

Cooling System: Pre-cut fan cutout on the top cover for easy fan installation.

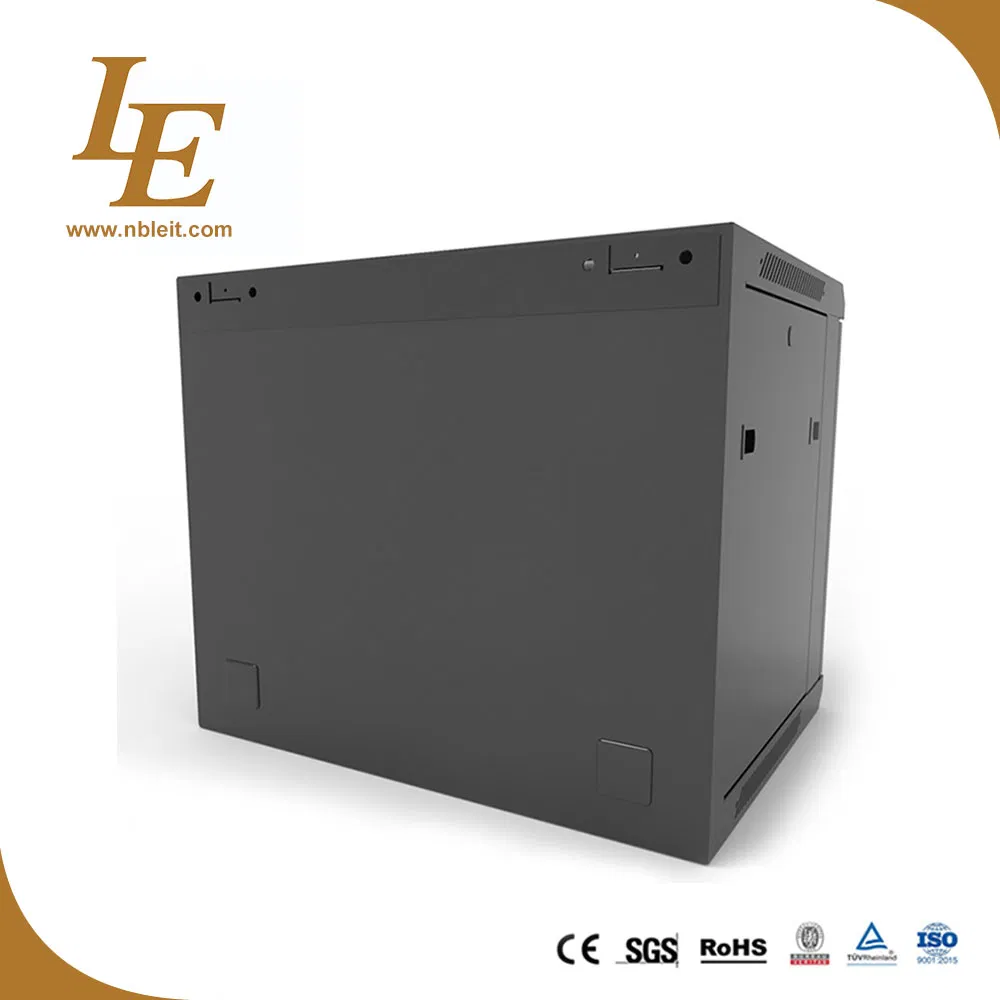

Wall Mounting: Includes a back panel for secure and easy fixing to the wall.
Versatility: Various optional accessories available to customize your setup.

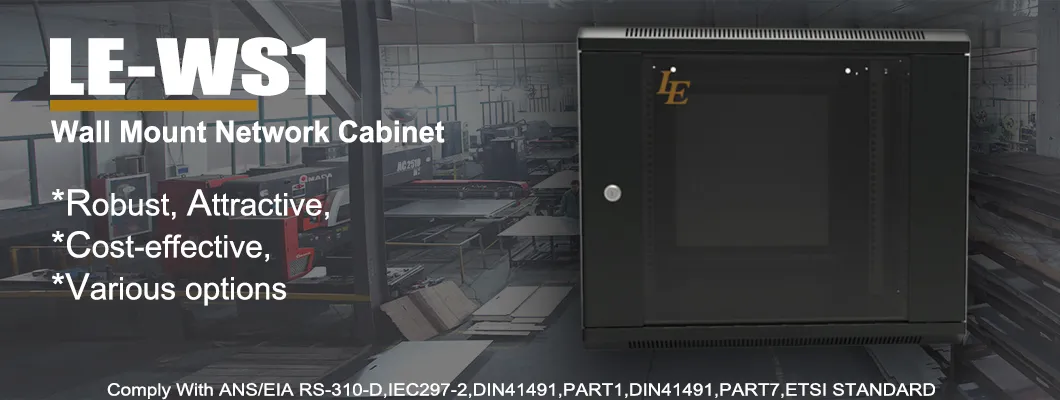

Standard	ANS/EIA RS-310-D, IEC297-2, DIN41491 (PART1 & PART7), ETSI Standard
Material	SPCC quality cold rolled steel; Thickness: 1.2mm; Glass: 5mm
Loading Capacity	Static loading: 60kg
Protection Degree	IP20
Surface Finish	Degreasing, Pickling, Phosphating, Powder Coated
Dimensions	Height: 4U-27U \| Width: 600mm \| Depth: 450mm/600mm
Available Colors	Ral9004; Ral9005; Ral7035

Frequently Asked Questions

What is the maximum weight this rack can hold?

The rack is designed for a static loading capacity of 60kg when properly mounted.

Does the cabinet come assembled or flat-packed?

This model features an unassembled structure for efficient transport, but it is designed for precise and easy craftsmanship during setup.

What materials are used in the construction?

The frame and panels are made of 1.2mm thick SPCC quality cold rolled steel, and the front door features 5mm thick tempered glass.

Can I install cooling fans in this unit?

Yes, the top cover includes fan cutouts specifically designed for the easy installation of 1 to 2 cooling fans.

Is it possible to adjust the mounting rails?

Yes, the rack includes L-shaped mounting profiles that are easily adjustable on the mounting rails to suit various equipment depths.

Are the side panels secure?

The side panels are removable for easy access and maintenance. While they are standard, optional locks can be added for enhanced security.
