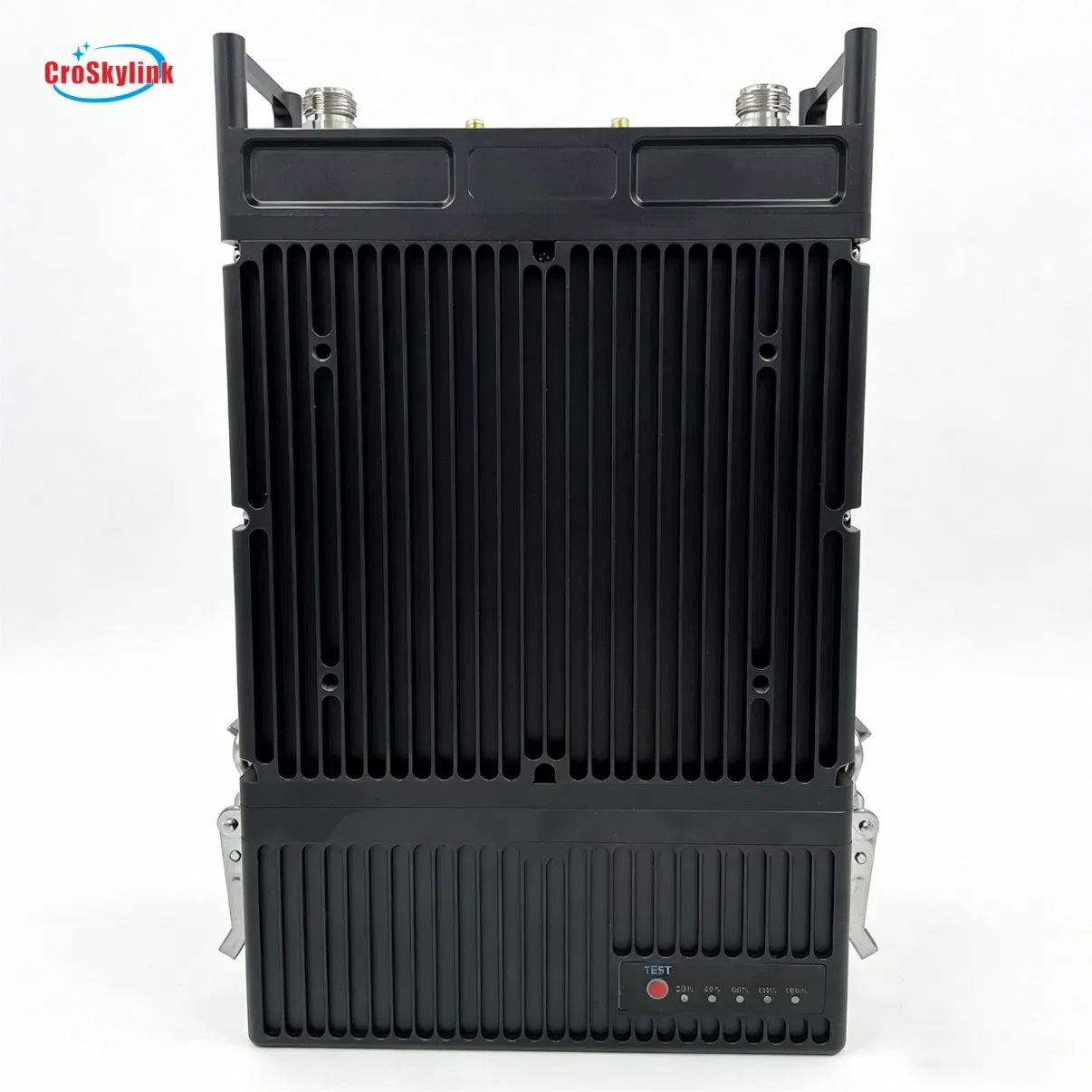

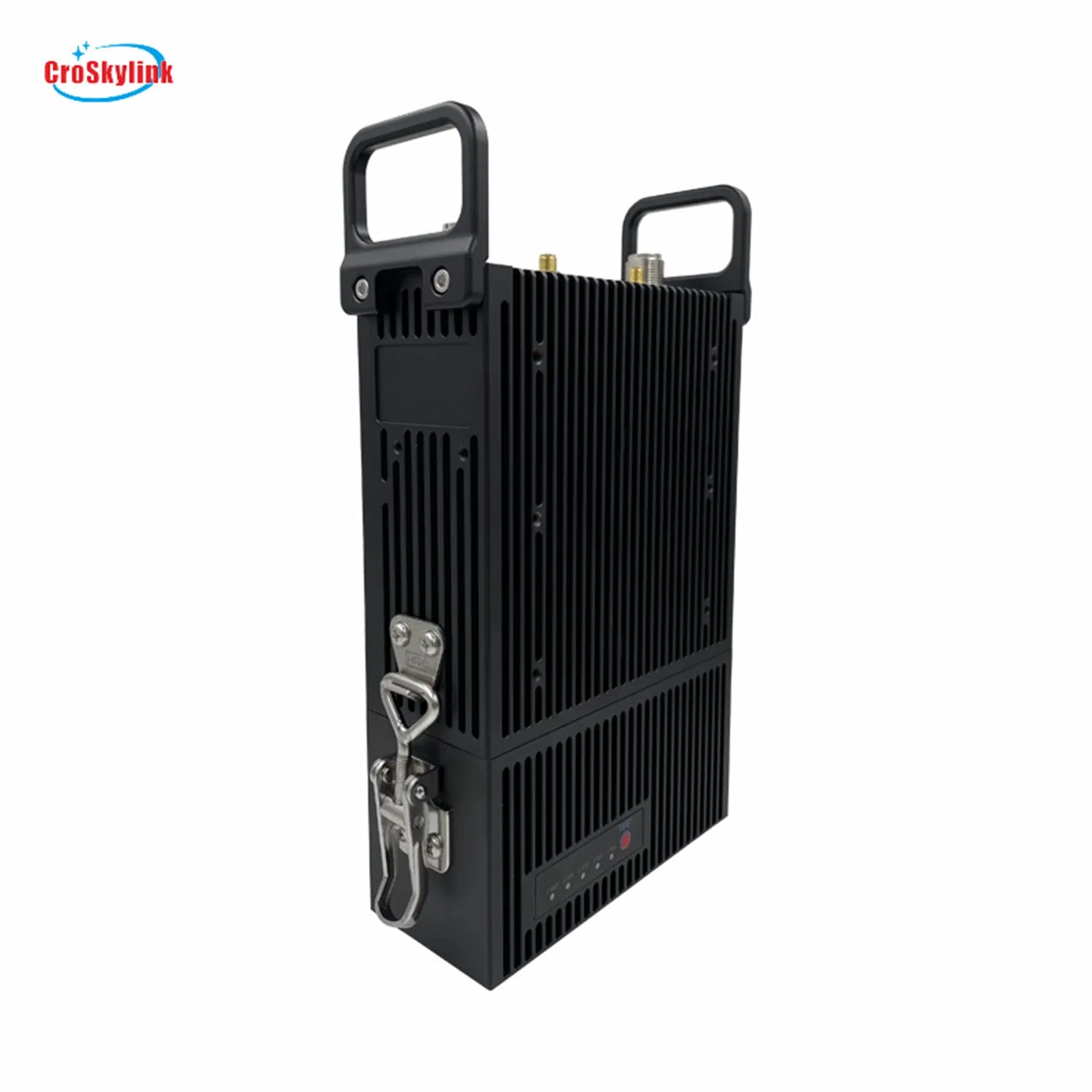

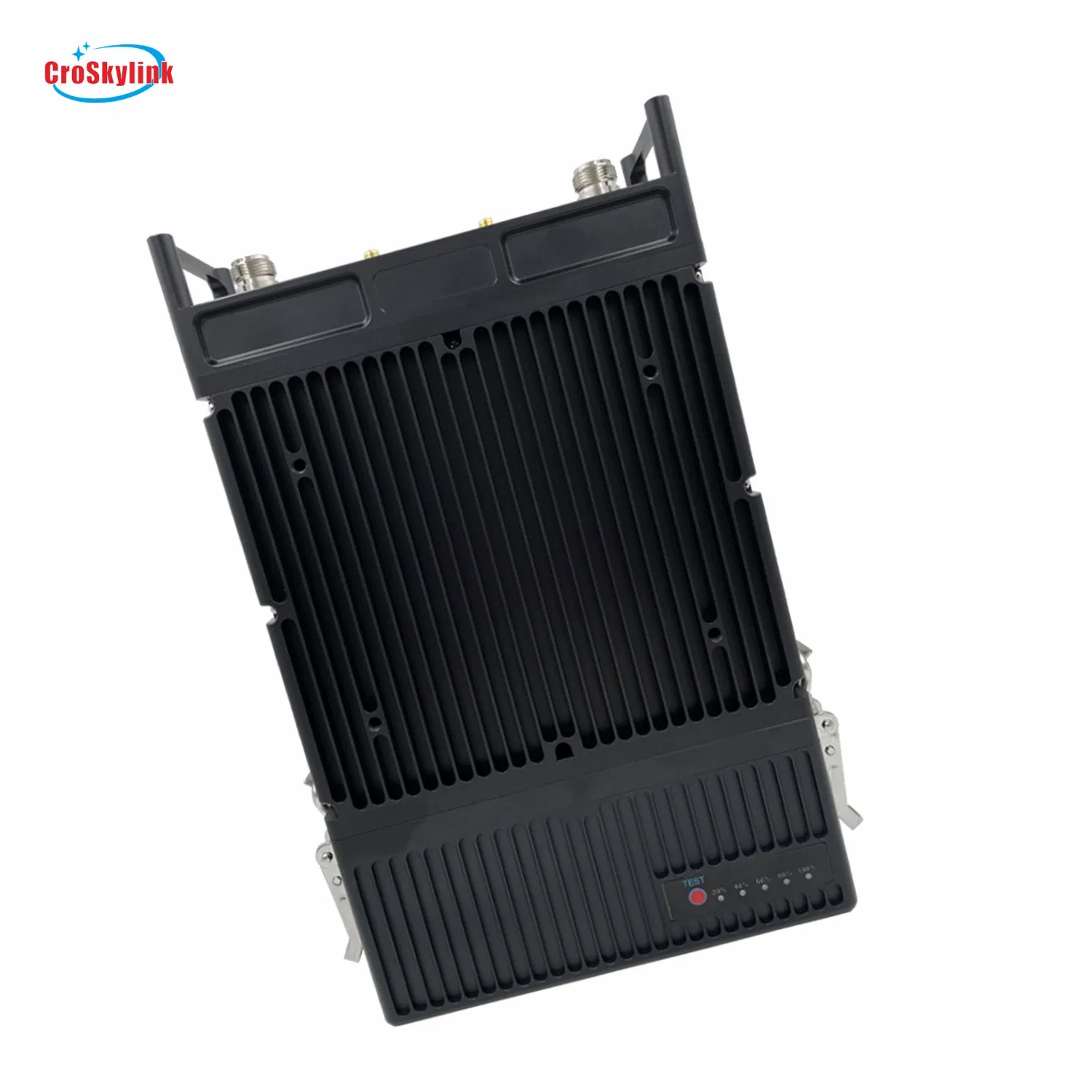

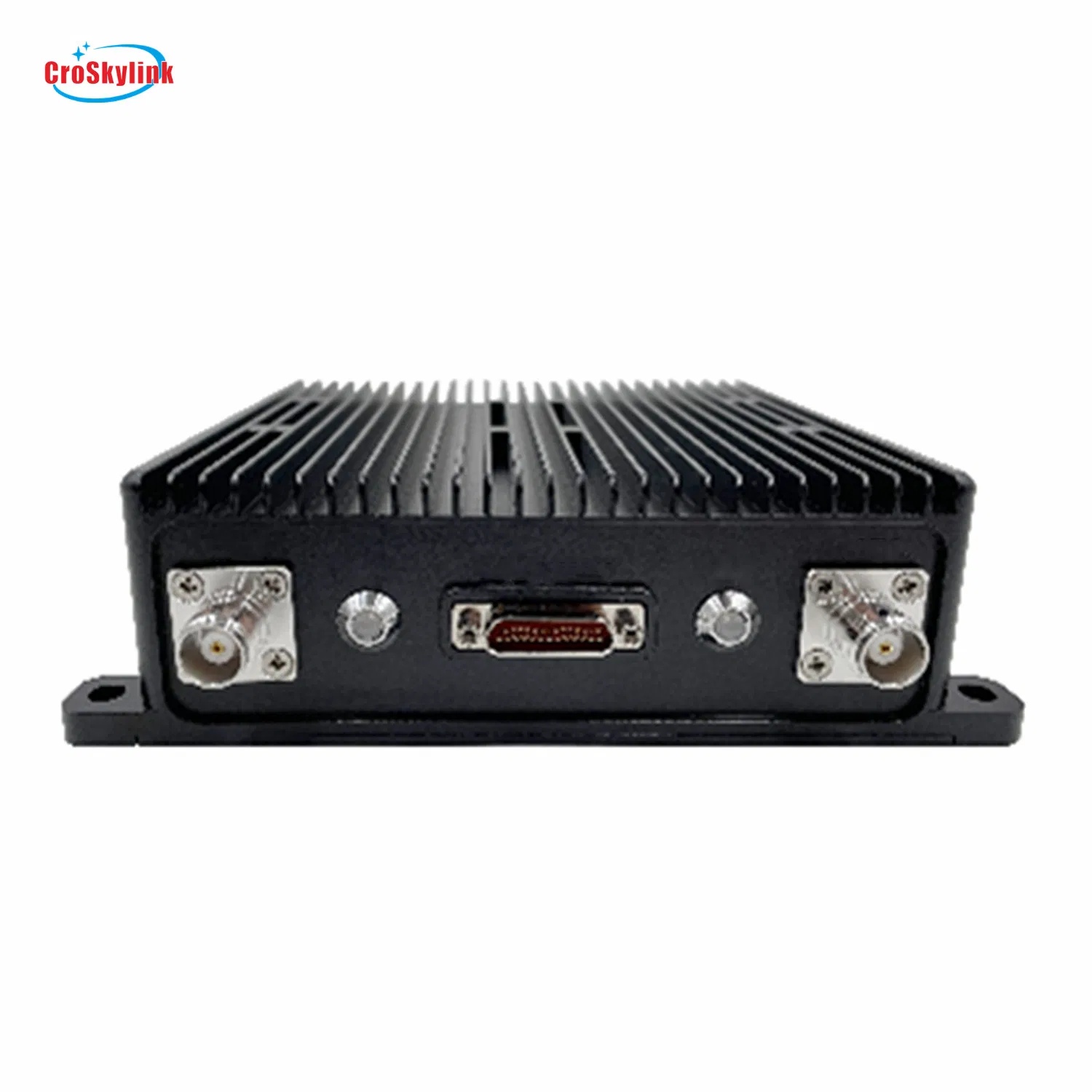

200km Line of Sight Mobile Ad Hoc Network Device for Fleet Management and Convoy Communication

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.C32S-200
Frequency Range70~6000MHz Customizable
Anti-InterferenceAdaptive Frequency Selection
Transmit Power10W (2X5W) Adjustable
Bandwidth Modes1.25 - 40 MHz
Comm. Range200 Km (LOS)
Peak Data Rate220+ Mbps
Sensitivity-103dBm@5MHz
P

Product Description

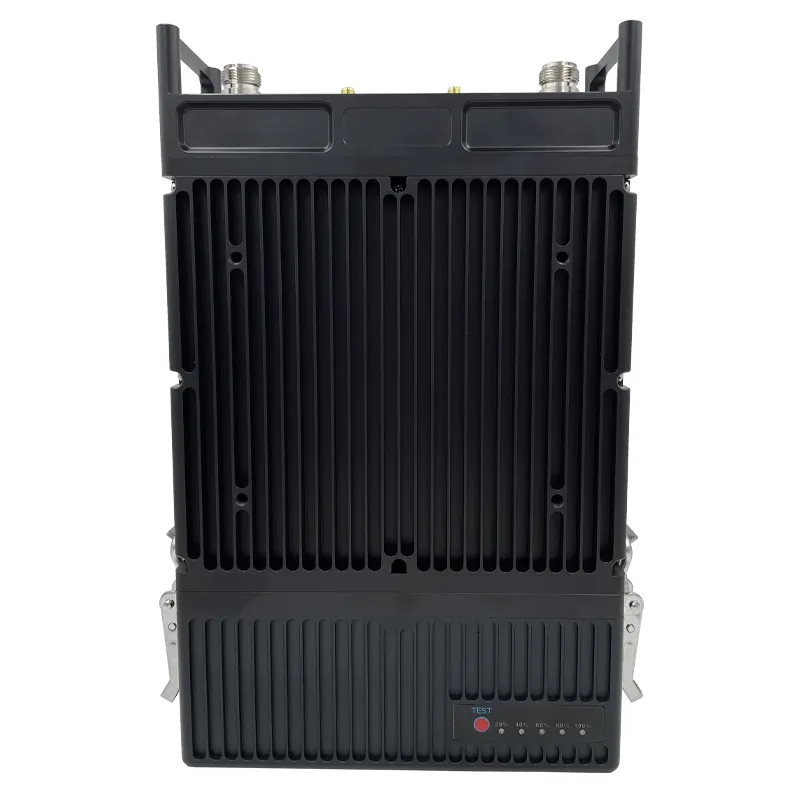

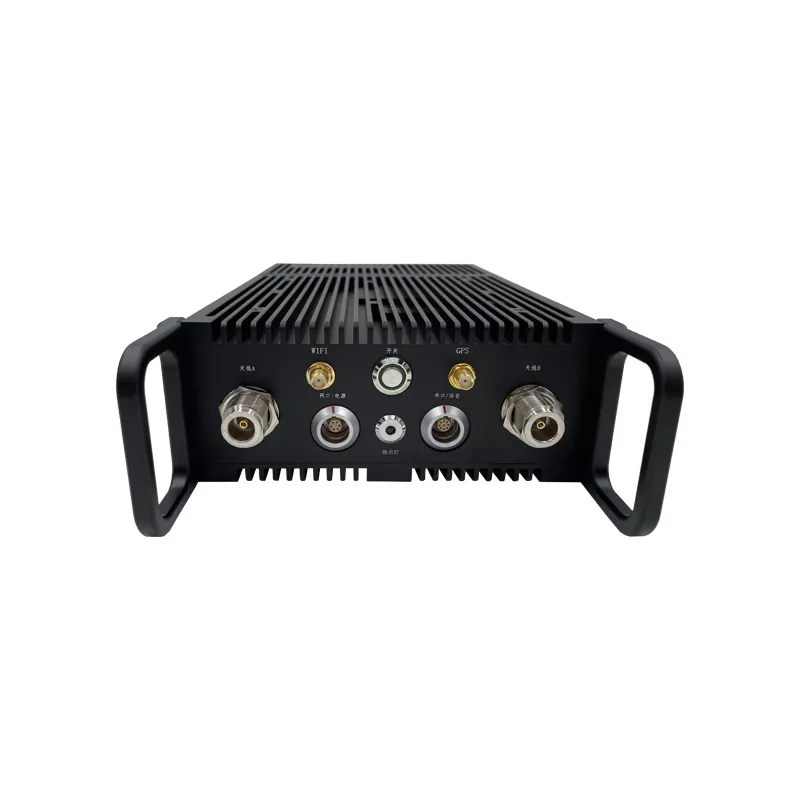

Mobile Ad Hoc Network Device Network Device Display

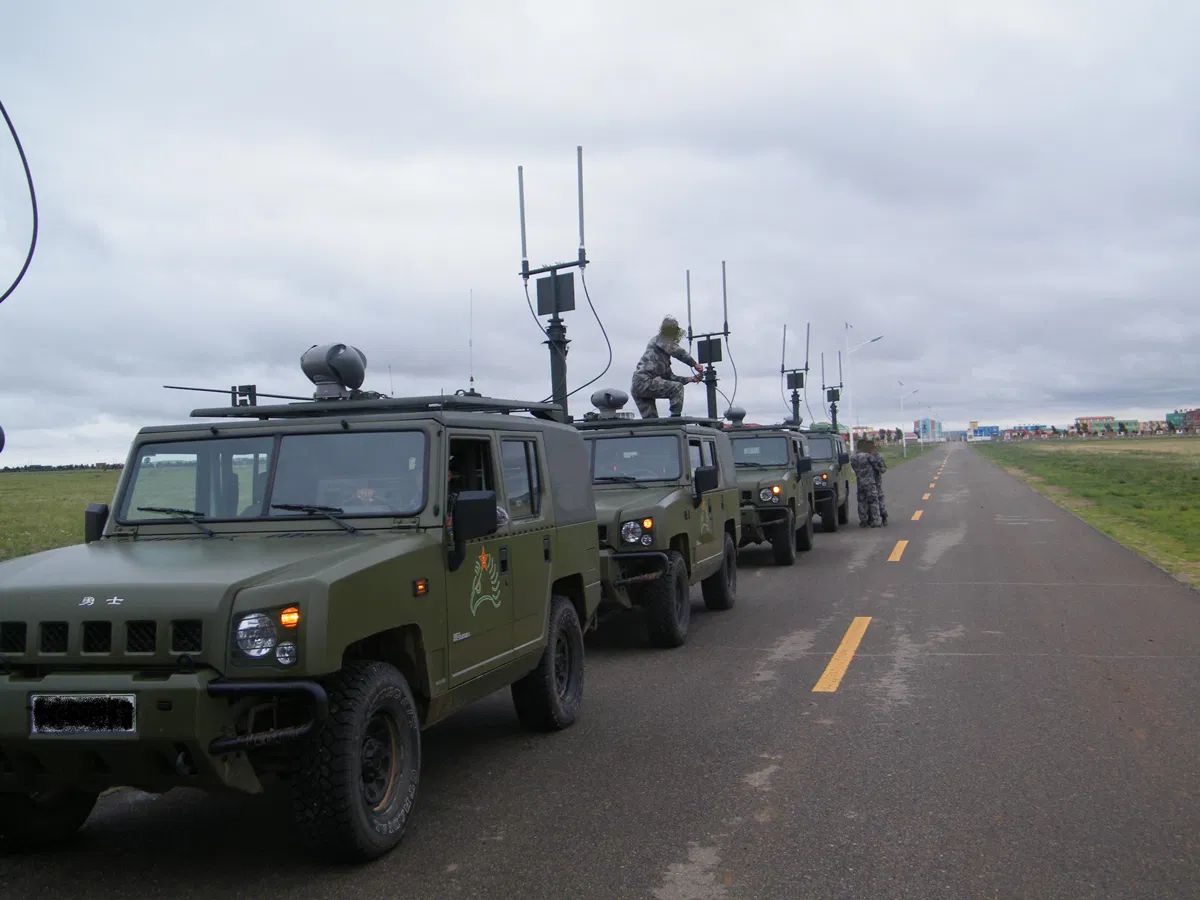

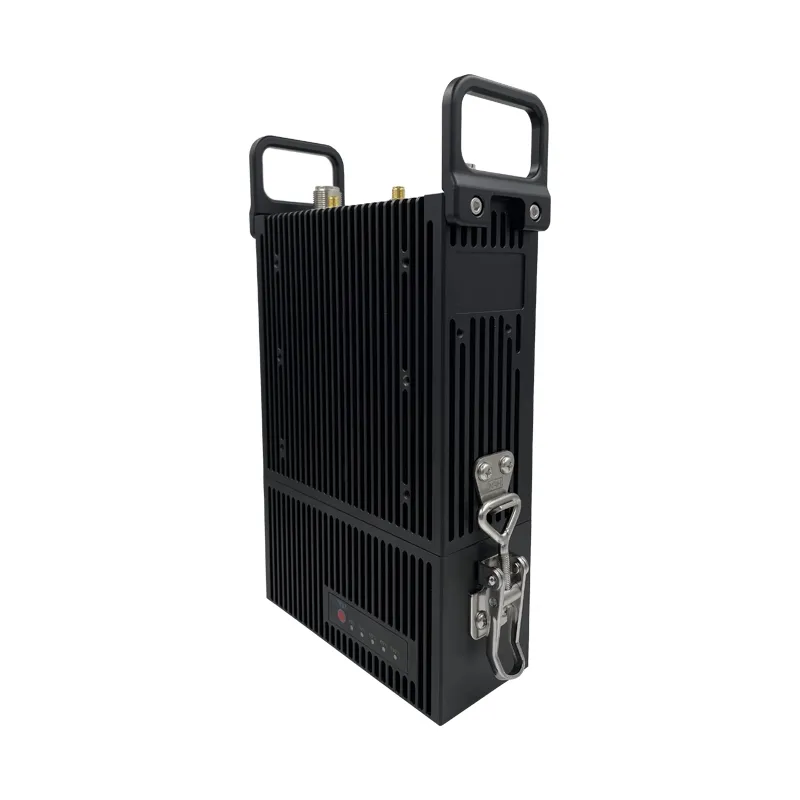

Communication Equipment Device Application
Technical Item Specifications & Values
Network Scale64 / 128 / 256 nodes
Frequency Range500~680MHz / 1300~1500MHz (70~6000MHz customizable)
Anti-InterferenceAdaptive frequency selection & Wideband frequency hopping
Transmit Power40dBm (10W), 1dBm step adjustable
Receiver Sensitivity-103dBm@5MHz
Communication RangeUp to 200 km
Data Interfaces2x Ethernet, 3x serial (TTL, RS232, RS422, RS485)
Voice CommunicationIP voice conferencing & PTT intercom
Operating Temperature-20~+65℃ (Standard) / -40~+65℃ (Customizable)
Transmission Latency≈7ms
C

Professional Capability

Industrial Solution

We have been deeply rooted in the vast field of wireless communication technology since 2013, committed to becoming a leader in innovative solutions within this field. Adhering to the core philosophy of "Intelligent Connecting beyond Borders", our team dedicates itself to the R&D and application of cutting-edge wireless technologies, including video/data transmission modules, IP mesh self-organizing networks, and ultra-long-distance communication systems.

Certificate 1 Certificate 2 Certificate 3
Certificate 4 Certificate 5 Certificate 6

These technologies are widely adopted in UAVs, robotic systems, underwater robots, and other unmanned platforms, delivering stable, efficient, and secure communication solutions for industries and emergency response operations worldwide.

Technology Integration

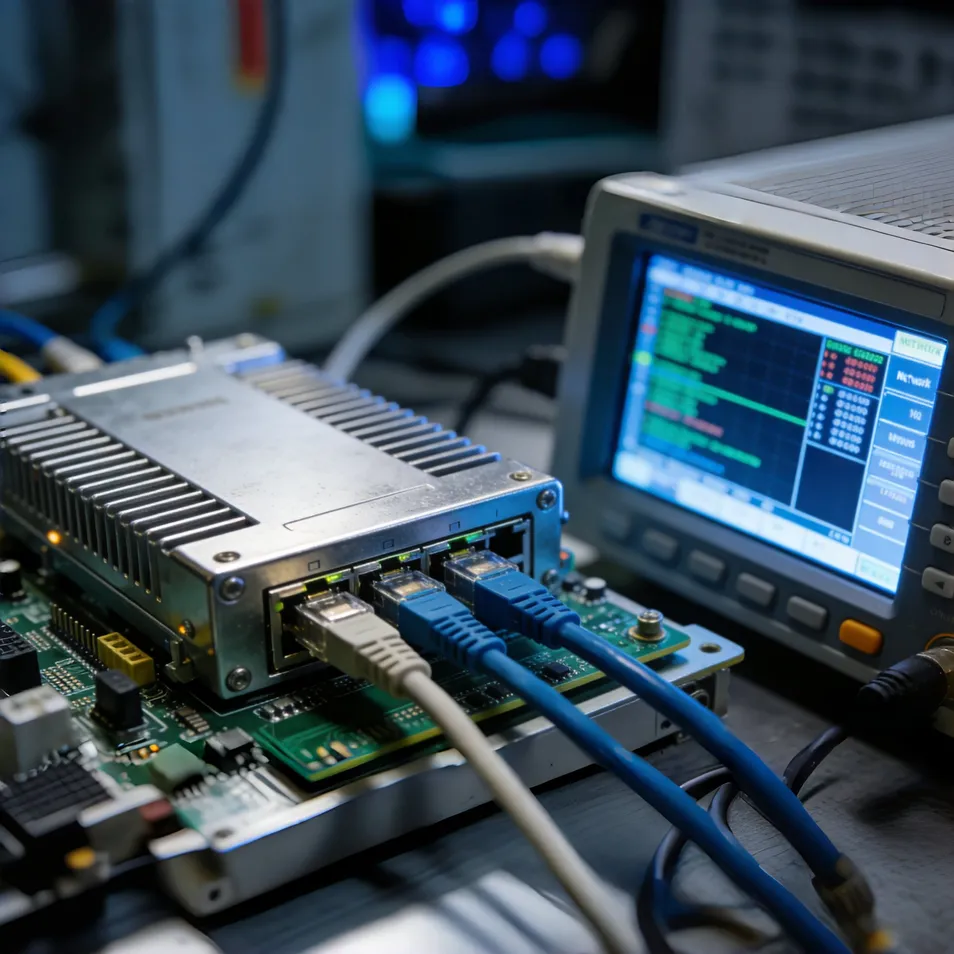

Application Scenario 1 Application Scenario 2

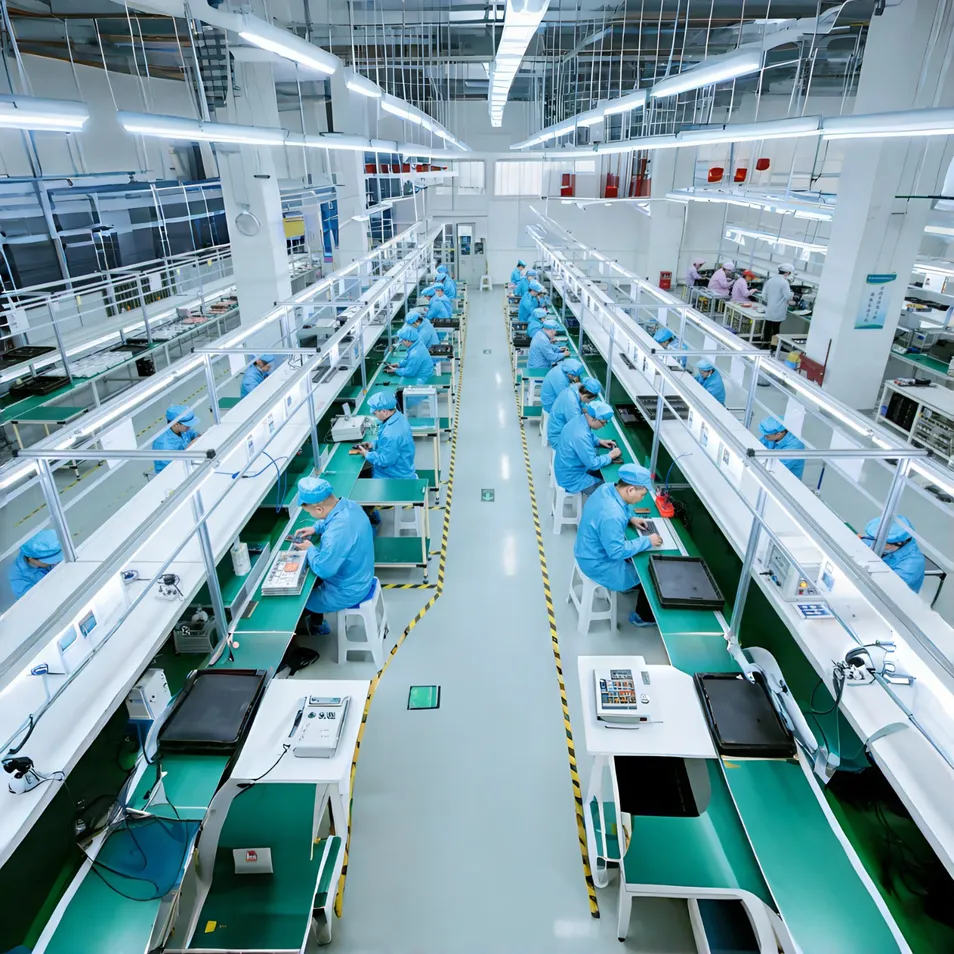

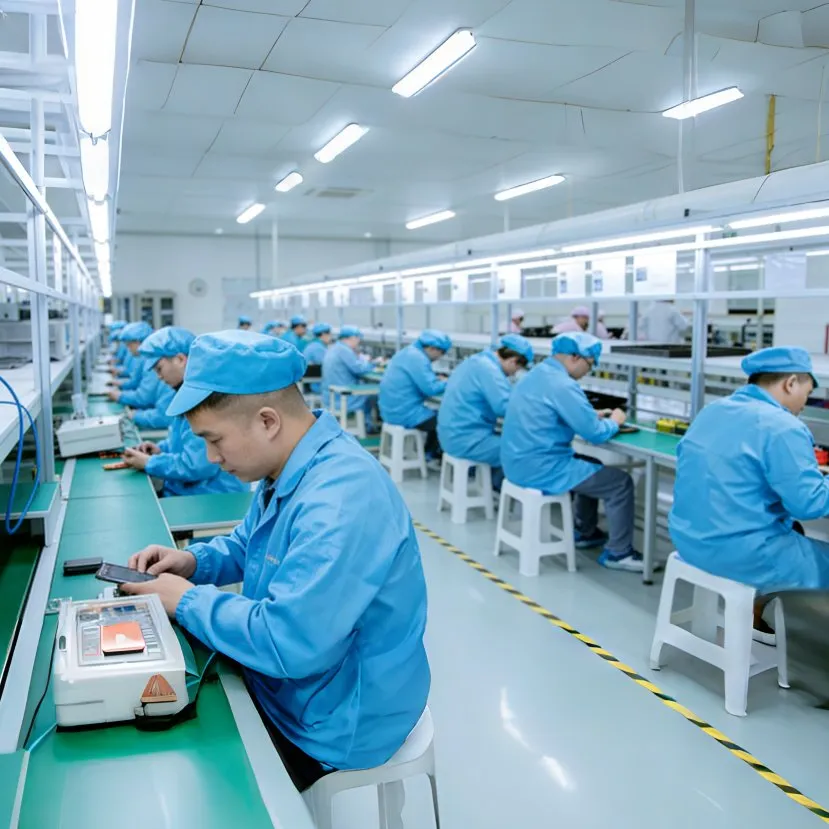

Application Scenario 3 Application Scenario 4
?

Frequently Asked Questions

What is the maximum communication range for this device?
The C32S-200 provides a line-of-sight (LOS) communication range of up to 200 km, making it ideal for long-distance unmanned platform operations.
Does the system support anti-interference features?
Yes, it features adaptive frequency selection and wideband frequency hopping to ensure stable communication in complex electromagnetic environments.
What data interfaces are available for integration?
The device is equipped with 2x Ethernet ports and 3x serial ports (customizable for TTL, RS232, RS422, or RS485).
What are the power consumption and requirements?
The power consumption ranges from 15W to 80W, depending on the configuration and transmission status.
Can the operating temperature range be customized?
While the standard operating range is -20°C to +65°C, we offer customization for extreme environments ranging from -40°C to +65°C.
What is the transmission latency of the system?
The device offers ultra-low latency, typically around 7ms, which is critical for real-time control of UAVs and robots.
