| Model NO. | RFOEM-432 |
| TX Power | 43dBm x 2 Channels |

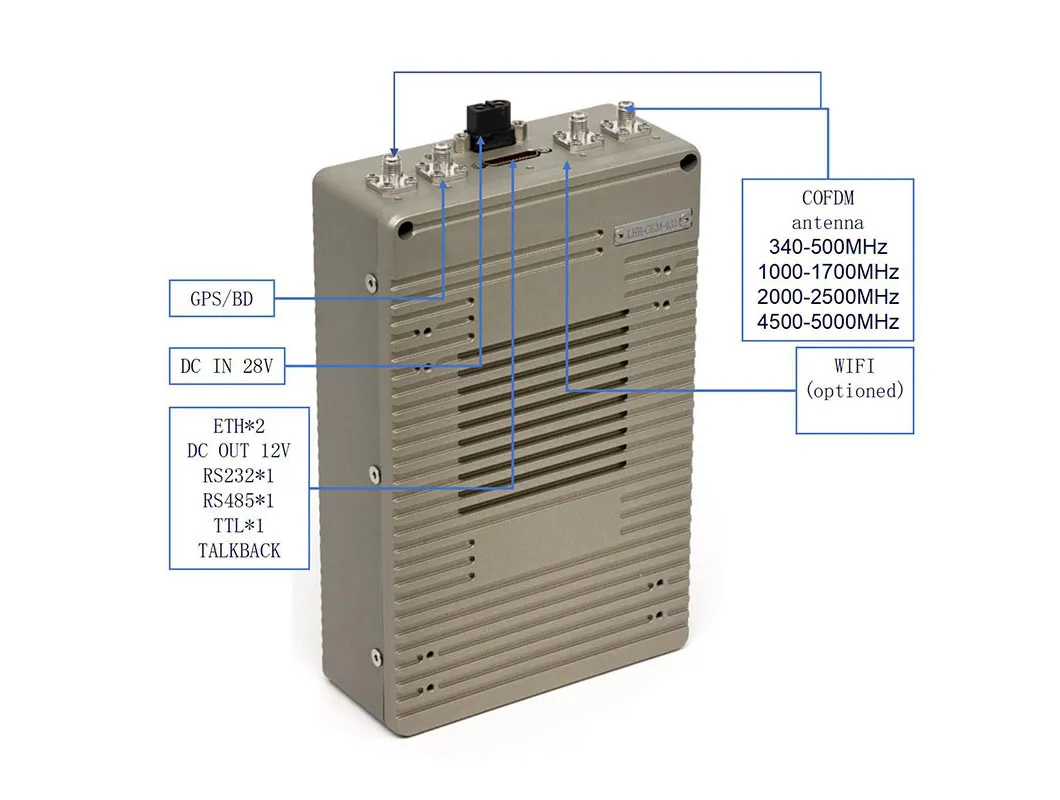

| Frequency | 340-500/1000-1700/2000-2500/4500-5000MHz |
| RX Sensitivity | -108dBm @ Bandwidth=1.25MHz |
| Bandwidth | 1.25/2.5/5/10MHz/20MHz |
| Data Throughput | Up to 30Mbps (Diversity), 60Mbps (MIMO) |
| Network Capacity | Up to 8 nodes (Options: 32, 64, 128) |
| Anti Interference | Interference Avoidance Scheme (Optioned) |

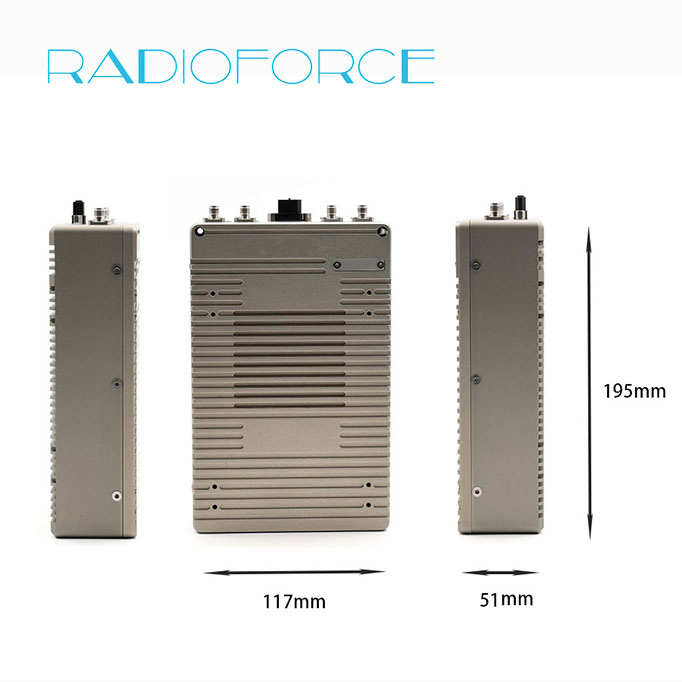

| Dimension | 56x48x11mm / 195x117x51mm |
| Distance | Typical: LOS-200km, NLOS-5km |
Based on SDR architecture, these systems can be loaded with different waveforms to meet diverse user needs. Supporting mesh mode, point-to-point, and point-to-multipoint modes, the series ensures robust connectivity with integrated Interference Avoidance Schemes (IAS).

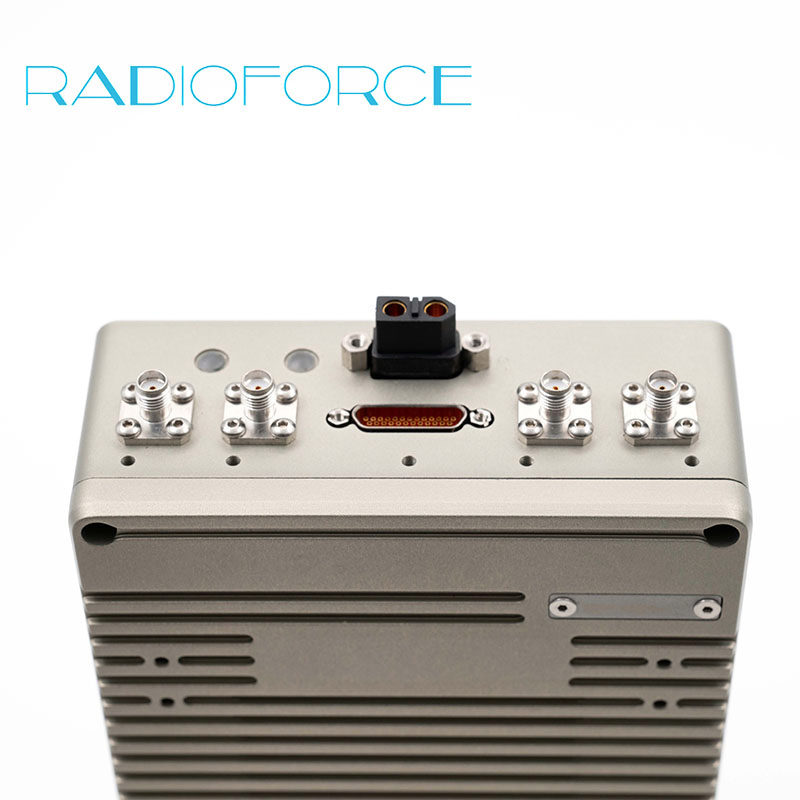

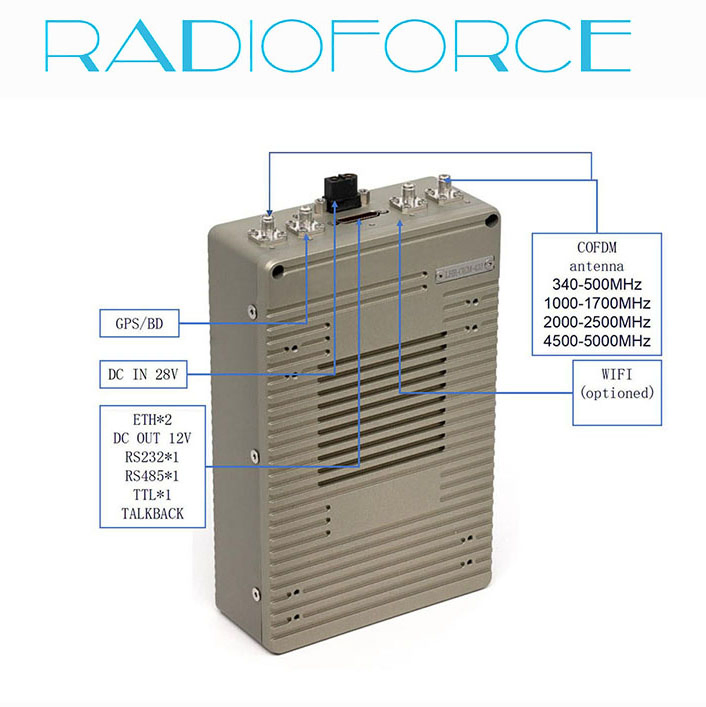

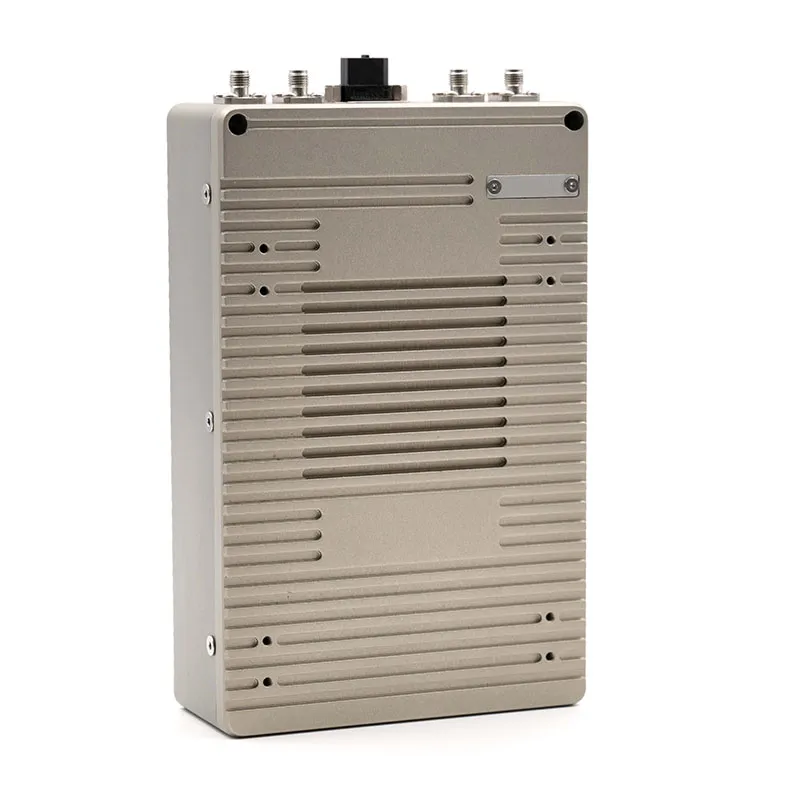

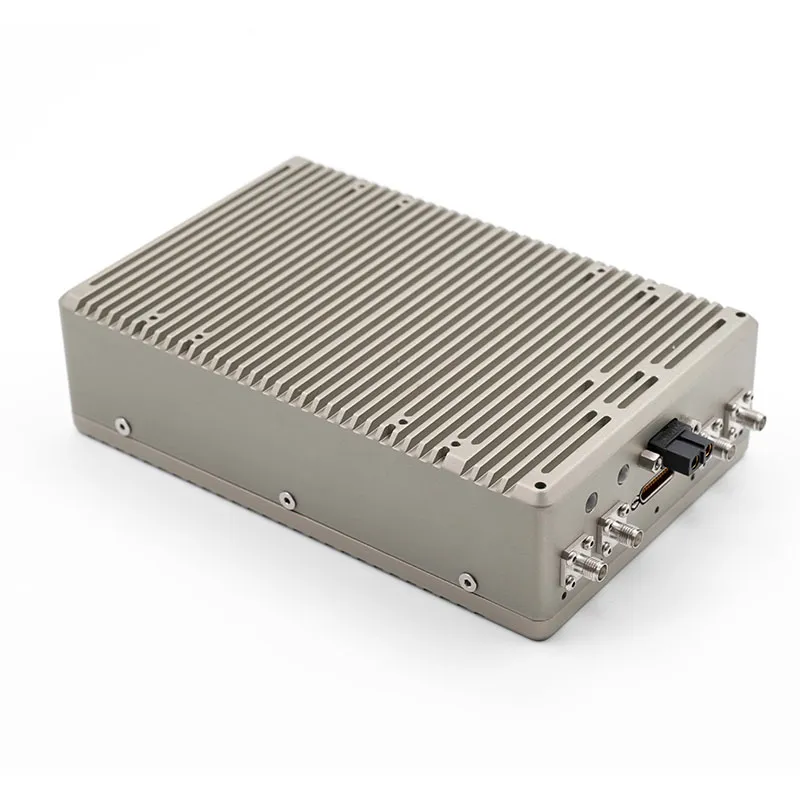

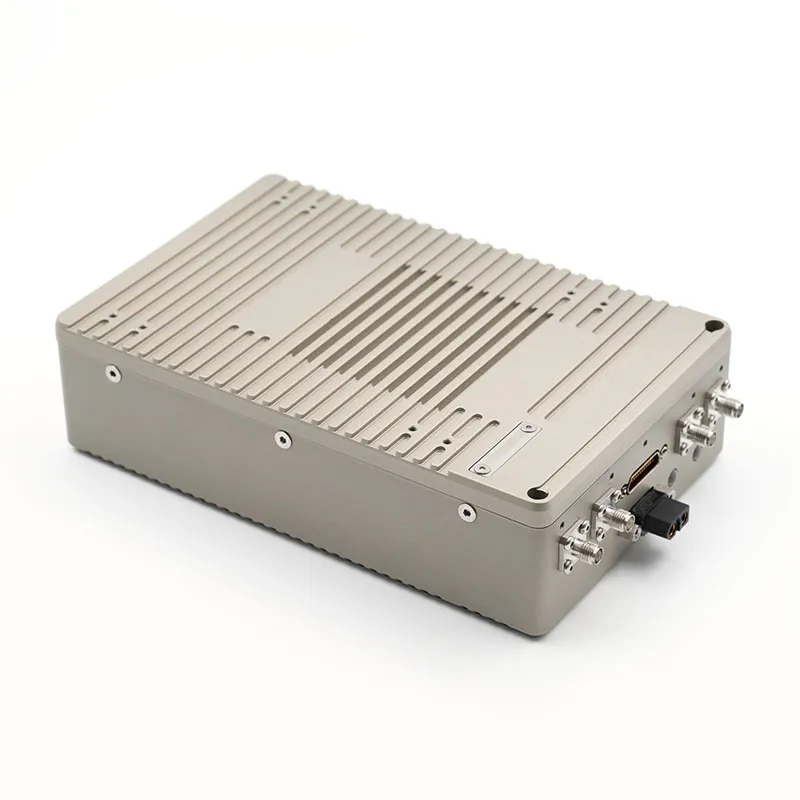

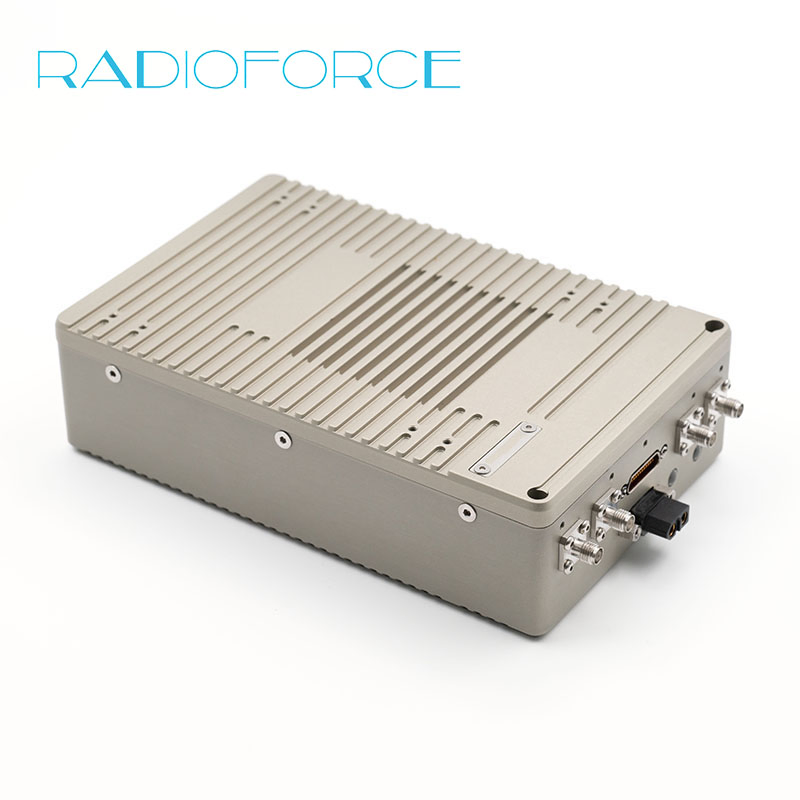

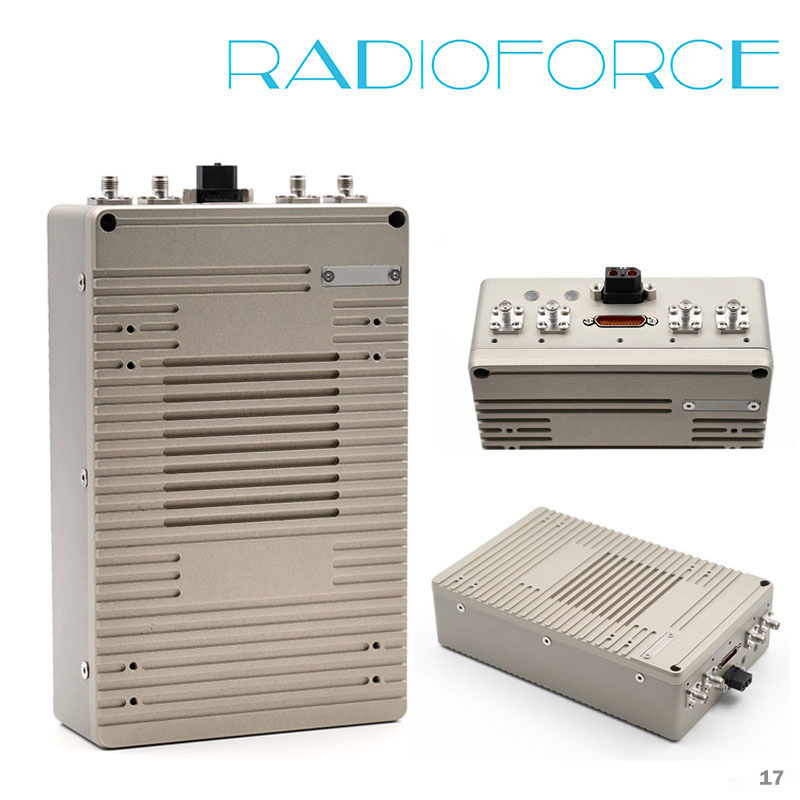

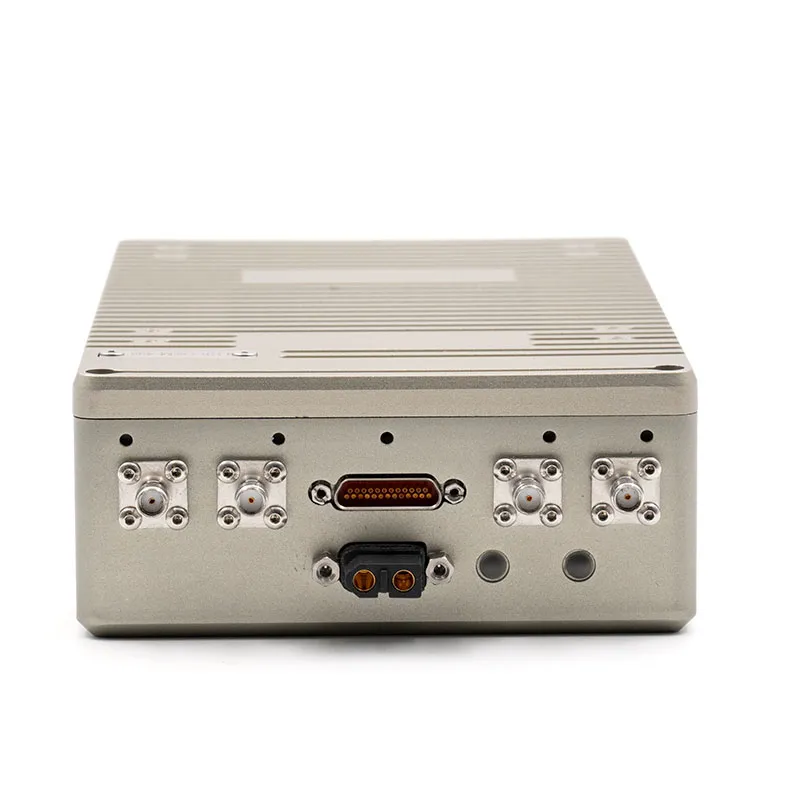

RFOEM-432 is a 2-antenna radio module with 20W power per channel. It is optimized for building networks in complicated environments, providing rich interfaces for data, video, and audio communication. Ideal for situational awareness and man-unmanned teaming datalinks.

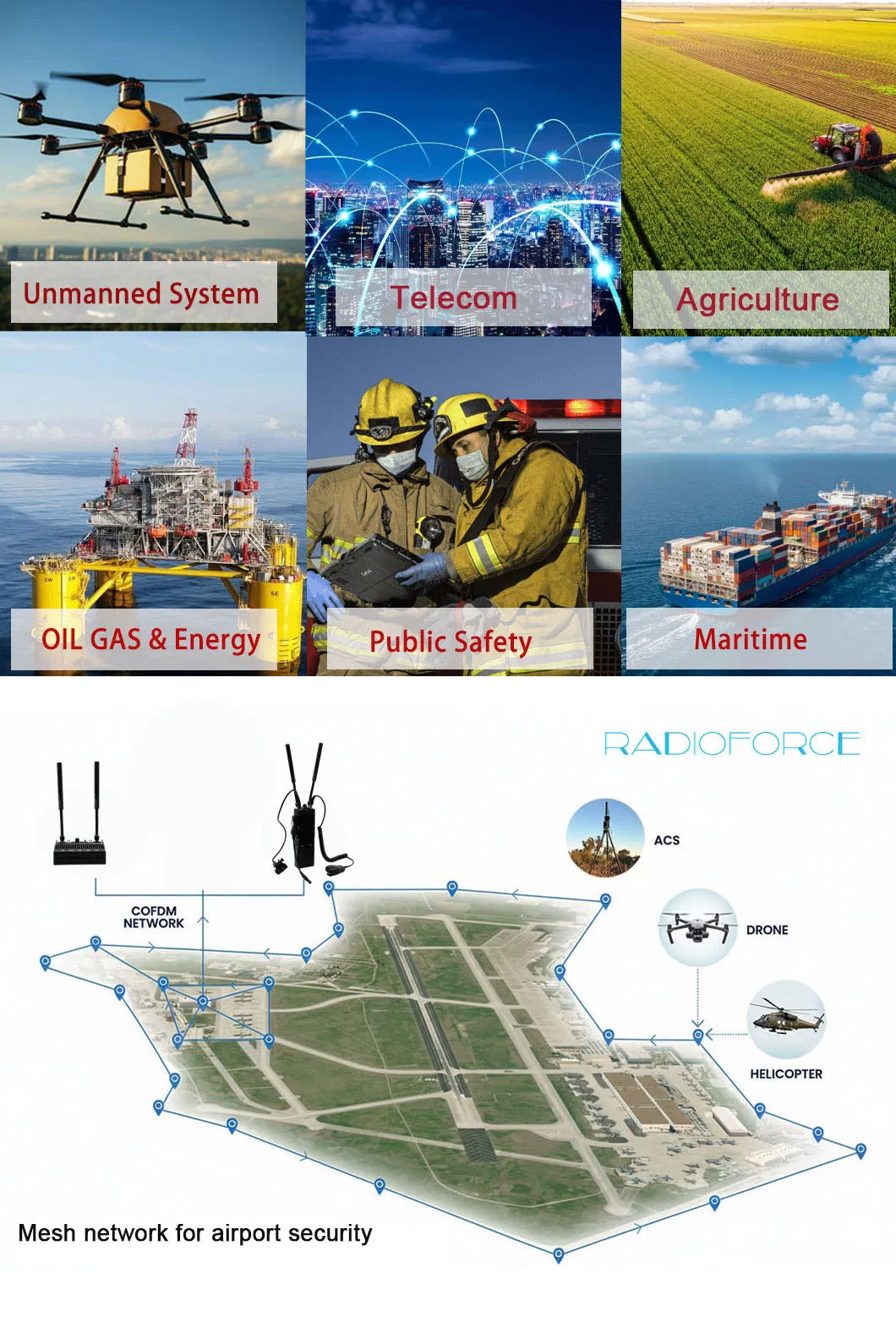

Providing wireless communication solutions for complex environments, ensuring reliable, secure mesh systems across diverse terrains.
Specializing in advanced SDR IP mesh radio products since 2017. Our modules support airborne, vehicle-mounted, and body-worn applications with power outputs from 250mW to 40W, ensuring seamless connectivity in any environment.
