Xyz Multi Axis Gantry Cartesian Robot Custom Industrial Automation Linear Motion System for CNC and Palletizing
1 / 2

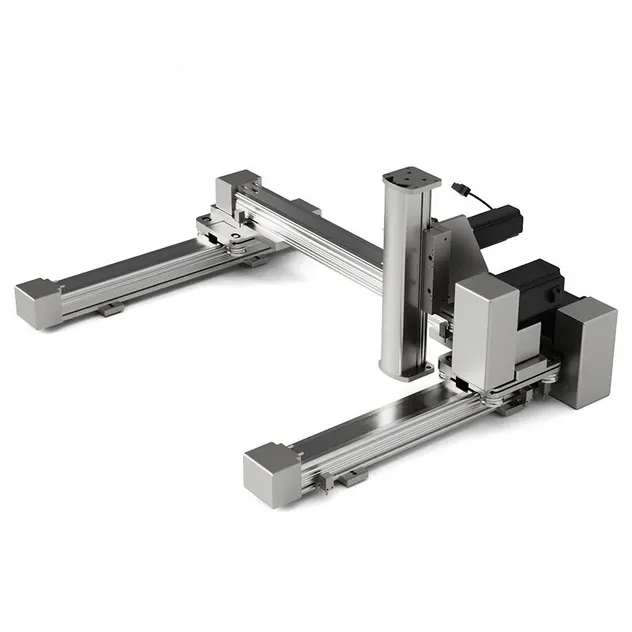

Xyz Multi Axis Gantry Cartesian Robot Custom Industrial Automation Linear Motion System for CNC and Palletizing

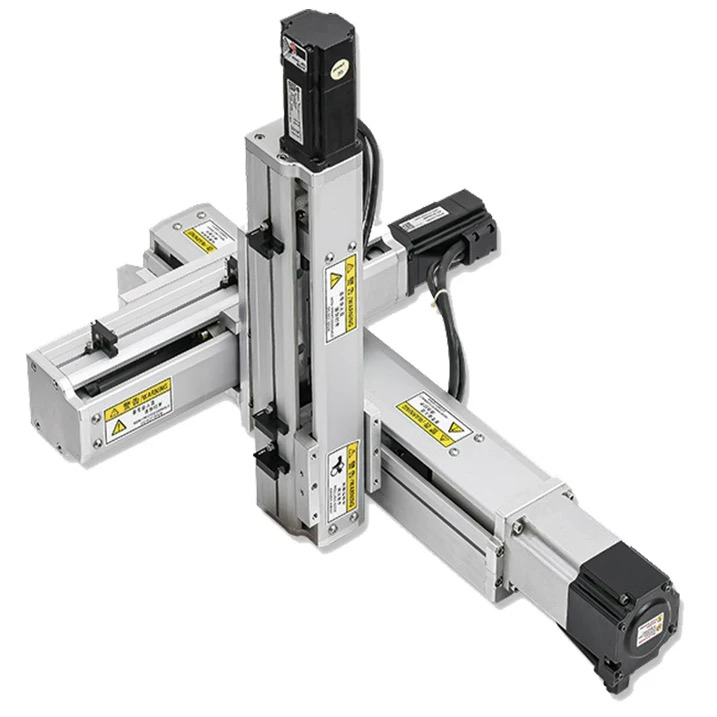

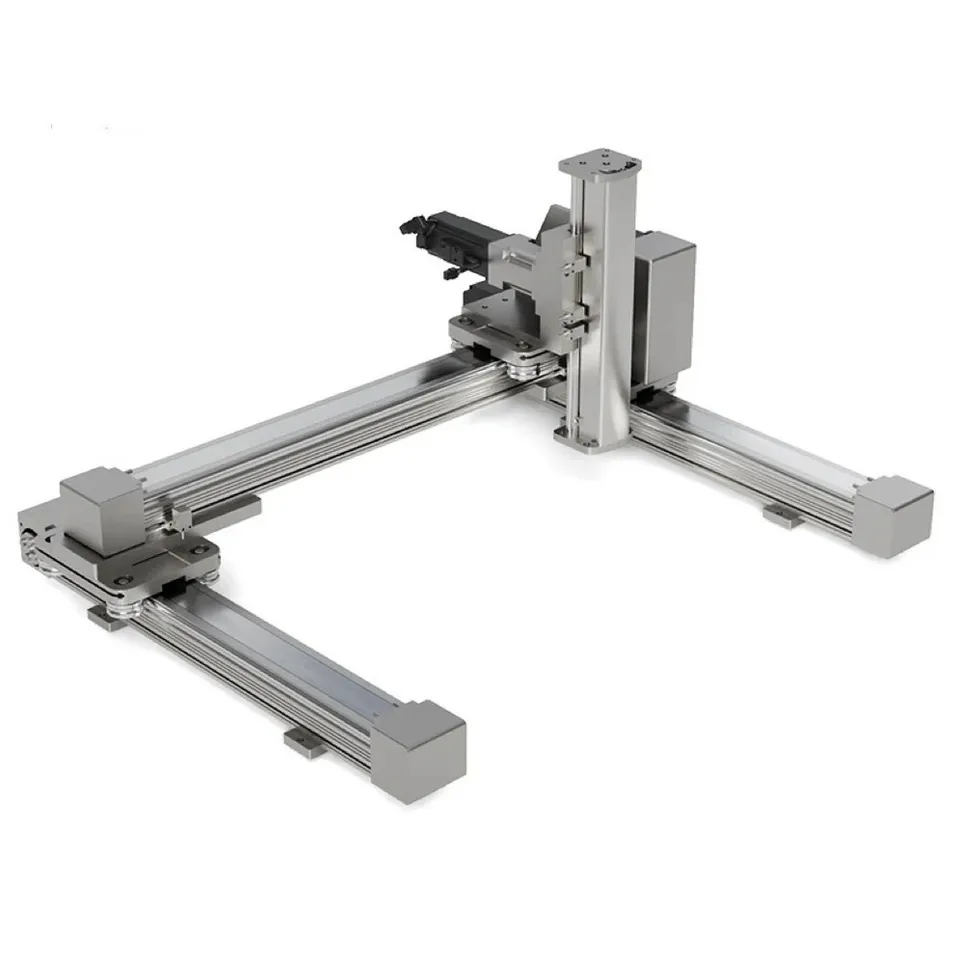

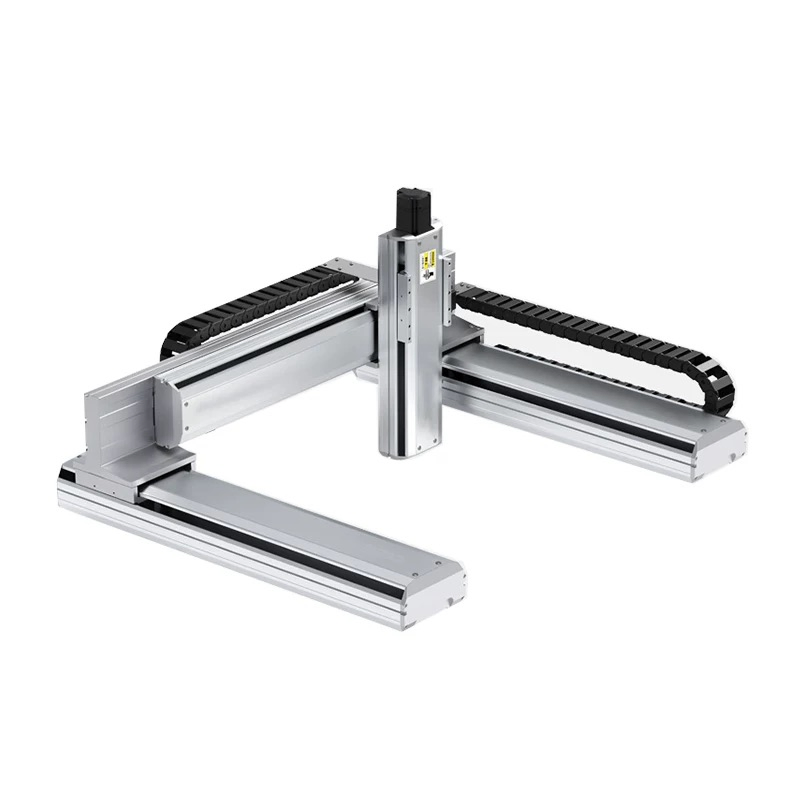

High Precision XYZ Multi Axis Gantry Cartesian Robot
The XYZ Multi Axis Gantry Cartesian Robot is a high-precision linear motion automation system designed for complex industrial applications. Built with a rigid gantry frame and modular XYZ structure, it supports long travel distances, heavy payload handling, and accurate multi-axis positioning. With advanced servo drive technology and linear guide actuators, this Cartesian robot ensures smooth, stable, and repeatable operations.
Common Applications
Pick & Place Automation – High-speed handling in electronics and assembly.
CNC Machine Tending – Automatic loading and unloading of machining centers.
Palletizing & Depalletizing – Efficient handling for warehouse and logistics.
Material Handling – Transporting and stacking with high payload capacity.
Inspection & Testing – Accurate positioning for quality control systems.
Laser Cutting & 3D Printing – Supports long-travel multi-axis operations.
Key Configurations
Motion Axes: X, Y, Z multi-axis linear gantry (customizable stroke).
Drive System: Belt-driven, ballscrew-driven, or rack & pinion options.
Payload Capacity: Ranges from 50kg to over 500kg.
Travel Length: Customizable up to 10,000mm+ for long distances.
Frame Structure: Rigid steel or aluminum extrusion gantry frame.
Control System: Compatible with PLC, HMI, and industrial PC systems.
Technical Requirements for Quotation
1. Payload RequirementsApproximate payload to be carried on the linear axis (robot + cable carrier + tooling).
2. Travel DistanceNet stroke or total rail length requirements for X, Y, and Z axes.
3. Required Speed and AccuracyDesired movement speed (mm/s) and positioning repeatability requirements.
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Professional Linear Motion Solutions
We specialize in the design, manufacturing, and customization of advanced Linear Motion Solutions tailored for a wide range of industrial applications. Our product portfolio includes Linear Actuators, 7th Axis for Industrial Robots, Palletizing Machines, and specialized Automation Equipment. We strive to offer high performance and reliability, trusted by global customers who value durability and professional support.
Frequently Asked Questions
Q: What is the typical lead time for customized gantry systems?
A: Customized units generally require 20–45 days depending on the complexity and specifications.
Q: Can the stroke length be customized beyond 10 meters?
A: Yes, our modular design allows for travel lengths customizable up to 10,000mm and beyond for long-distance handling.
Q: What level of positioning accuracy can I expect?
A: With our high-precision servo motor drives and encoder feedback, we achieve a repeatability of ±0.02mm.
Q: Do you provide international after-sales support?
A: Yes, we offer 24/7 technical assistance and have partnered service centers in key global regions to support our clients.
Q: What drive system is best for high-speed applications?
A: For high speed and long travel, we typically recommend belt-driven or rack & pinion systems, while ballscrews are ideal for maximum precision.
Q: What documents are provided for international shipping?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC (Certificate of Conformity).
