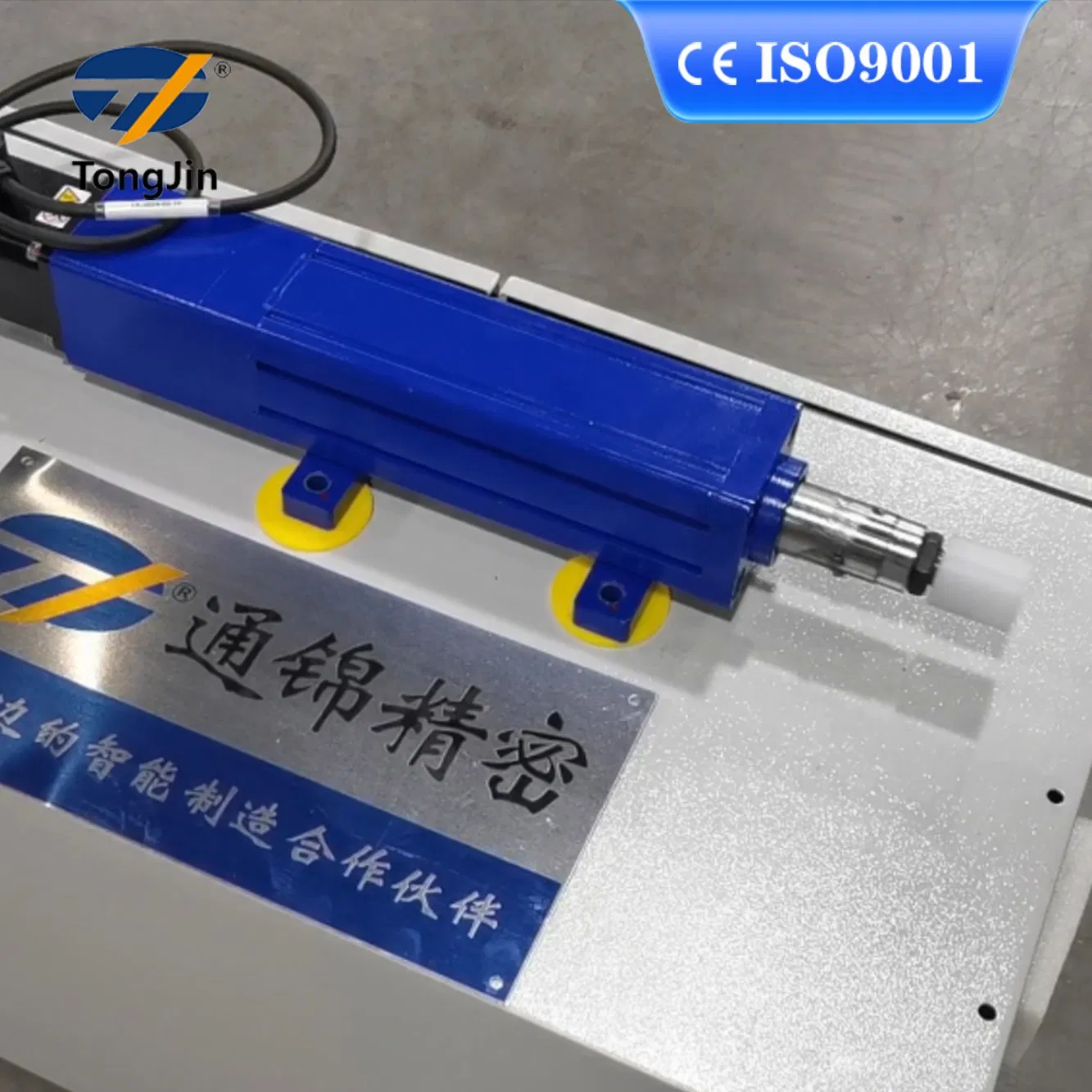

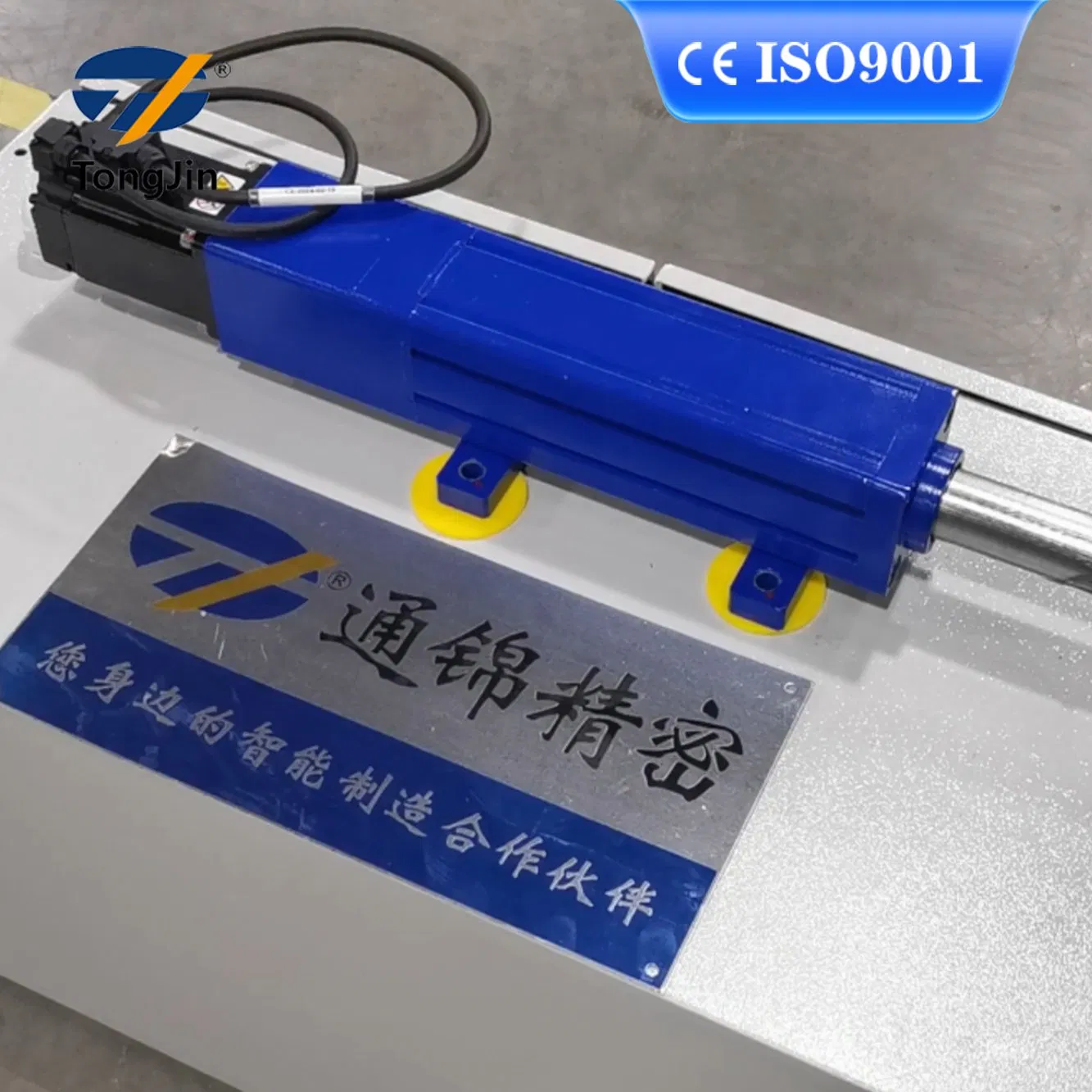

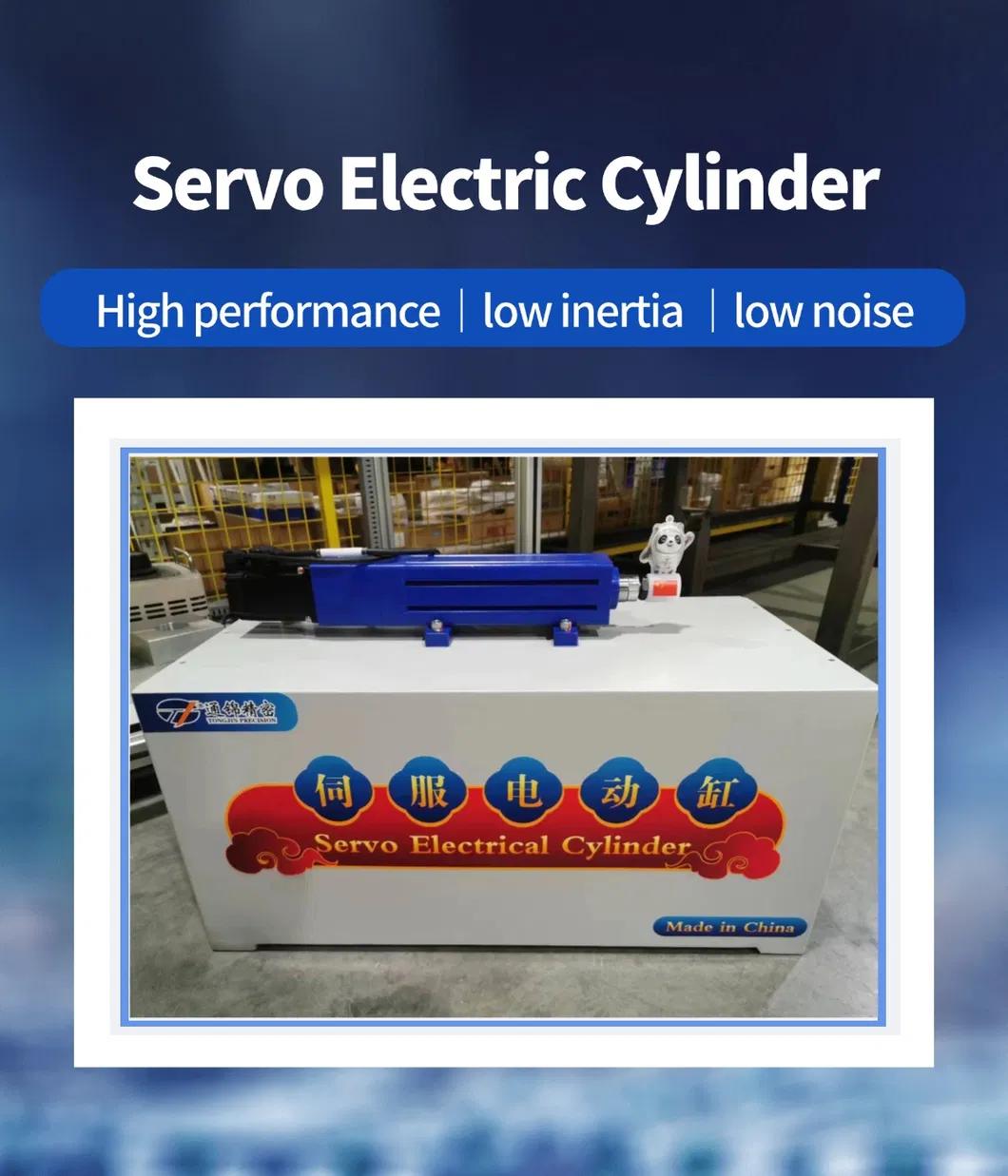

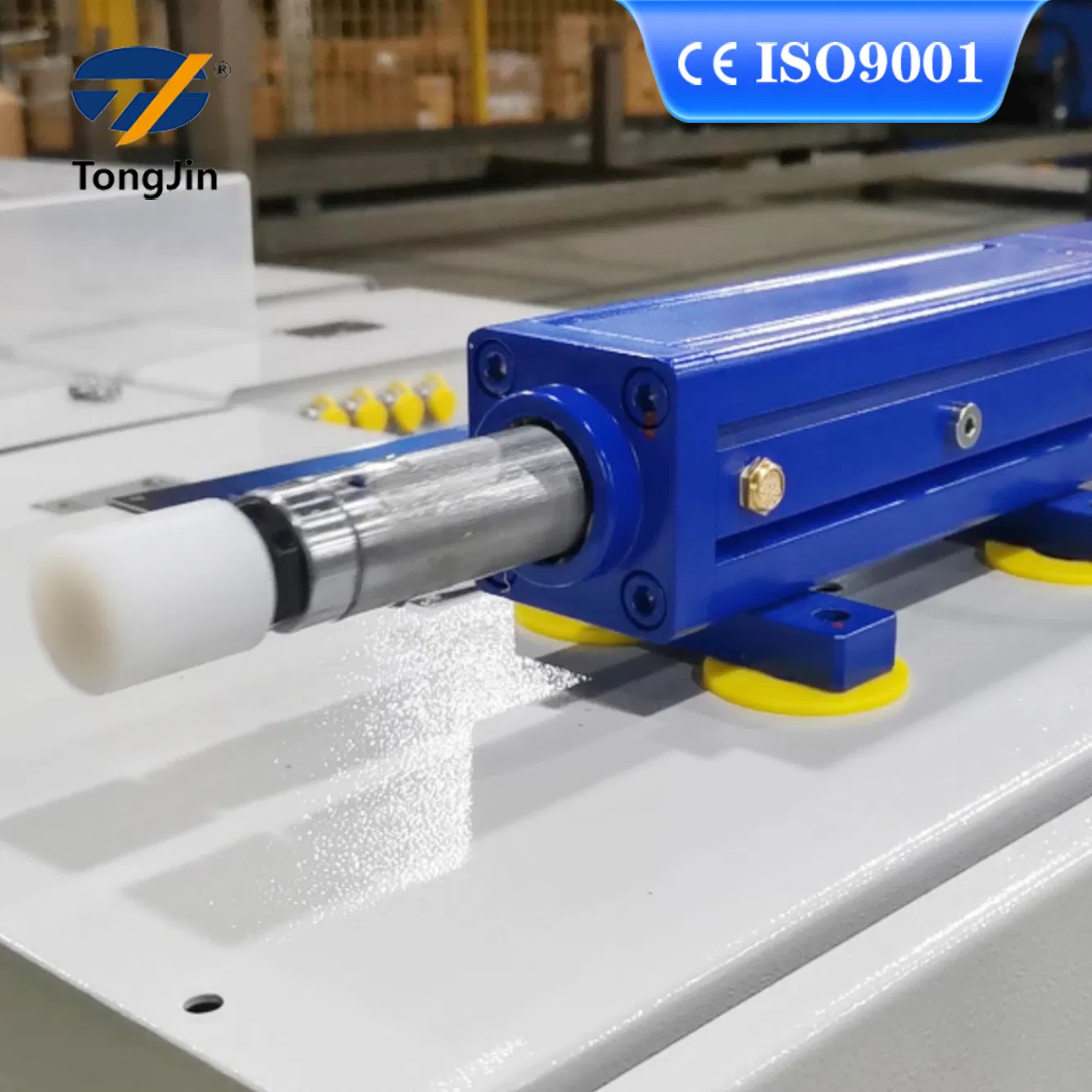

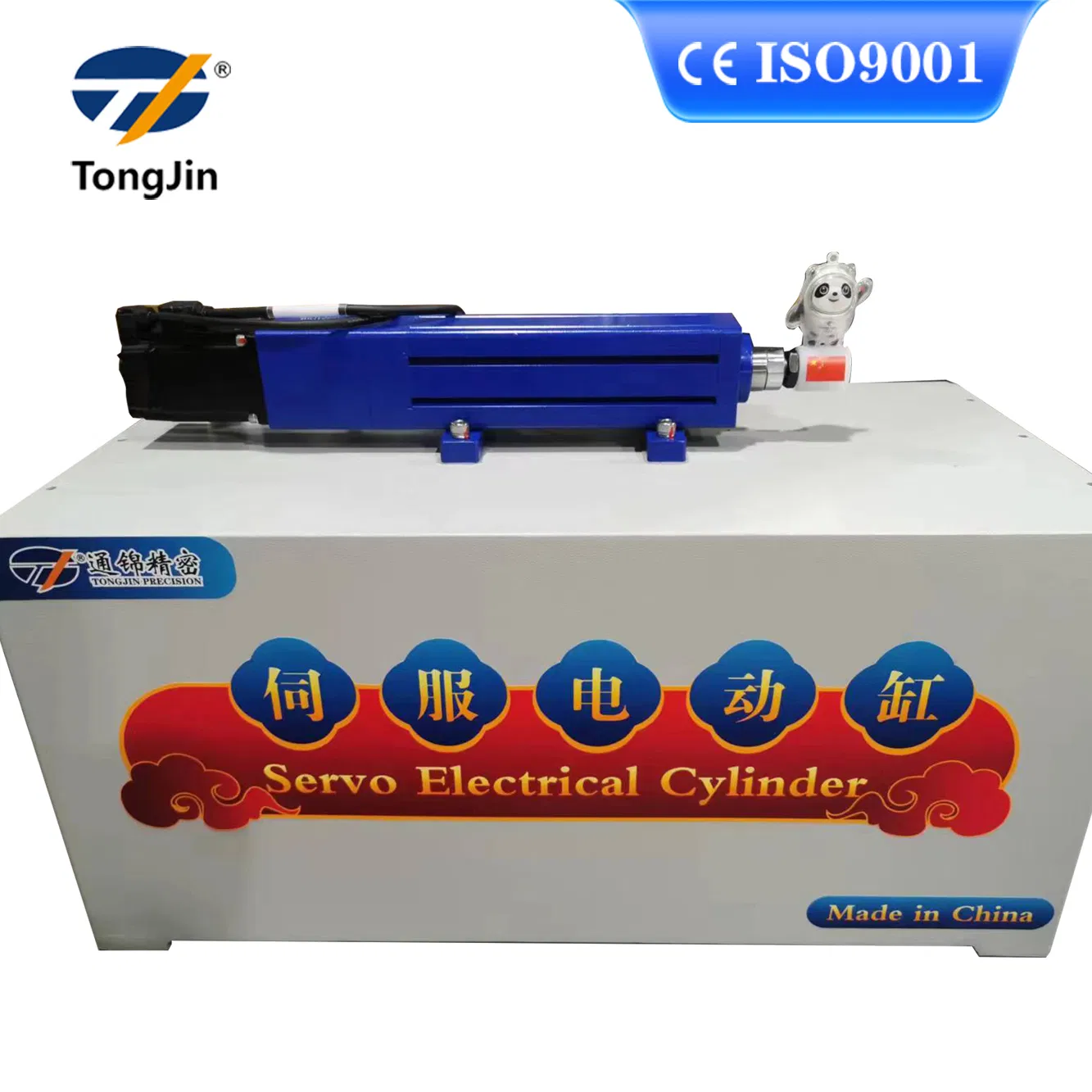

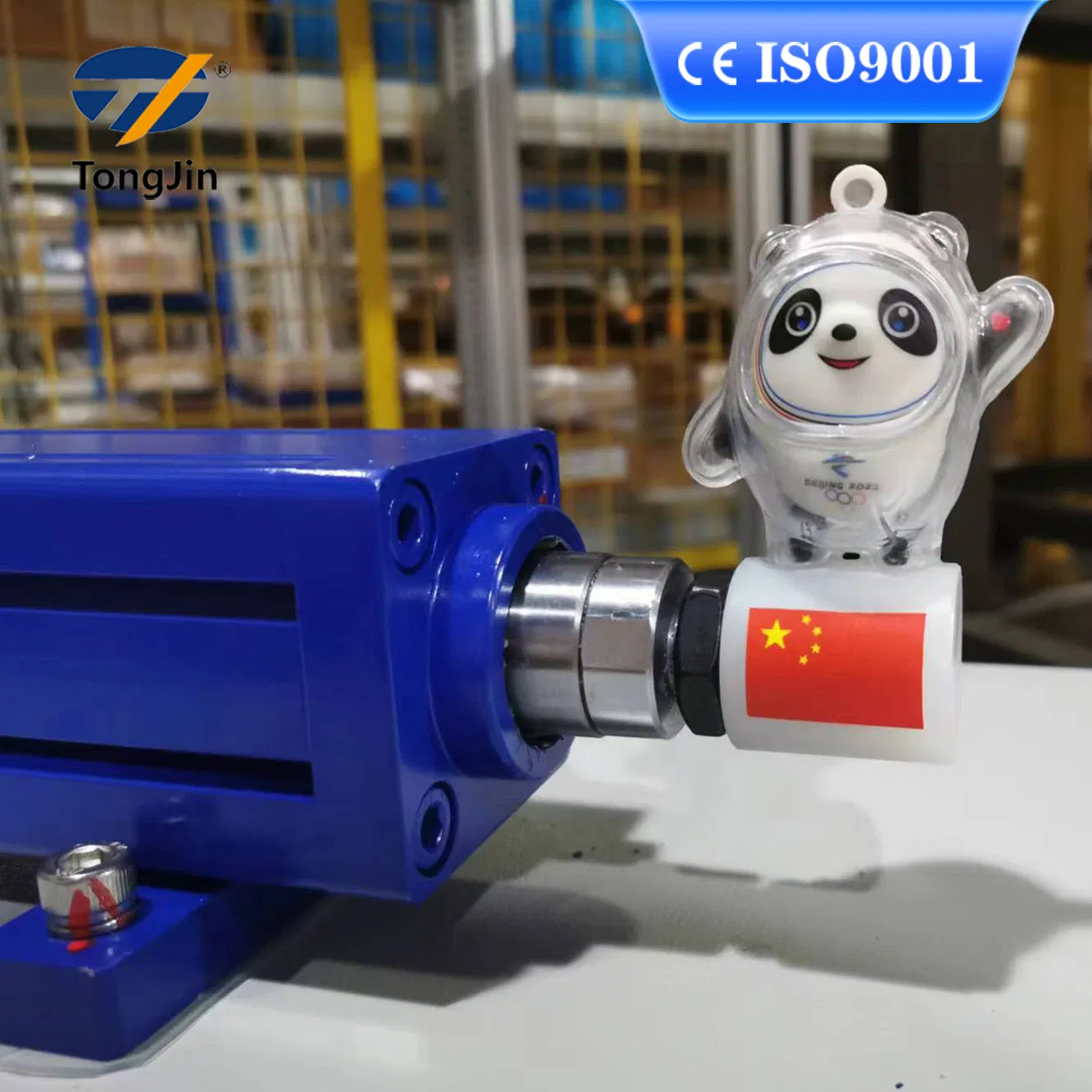

TJEN light load series uses high strength aluminum alloy material, the product adopts lightweight, modular design concept, perfect combination of appearance and performance, thrust range: 0.1kN-50kN, effective stroke up to 2 meters, working 100% speed up to 1250mm/s, high dynamic response time, 20HZ, high acceleration, high rigidity, impact resistance, long life, simple operation and maintenance, low noise special processing, It can be used in high and low temperature environment, and the protection level can reach IP54-IP68.
Key Features: High performance, low inertia, low noise, high response. The load of servo electric cylinders ranges from 5 kilograms to 200 tons, meeting application scenarios such as aerospace, new energy, motors, auto parts, construction machinery, 3D printing, medical treatment, home appliances, textile machinery and industrial equipment.

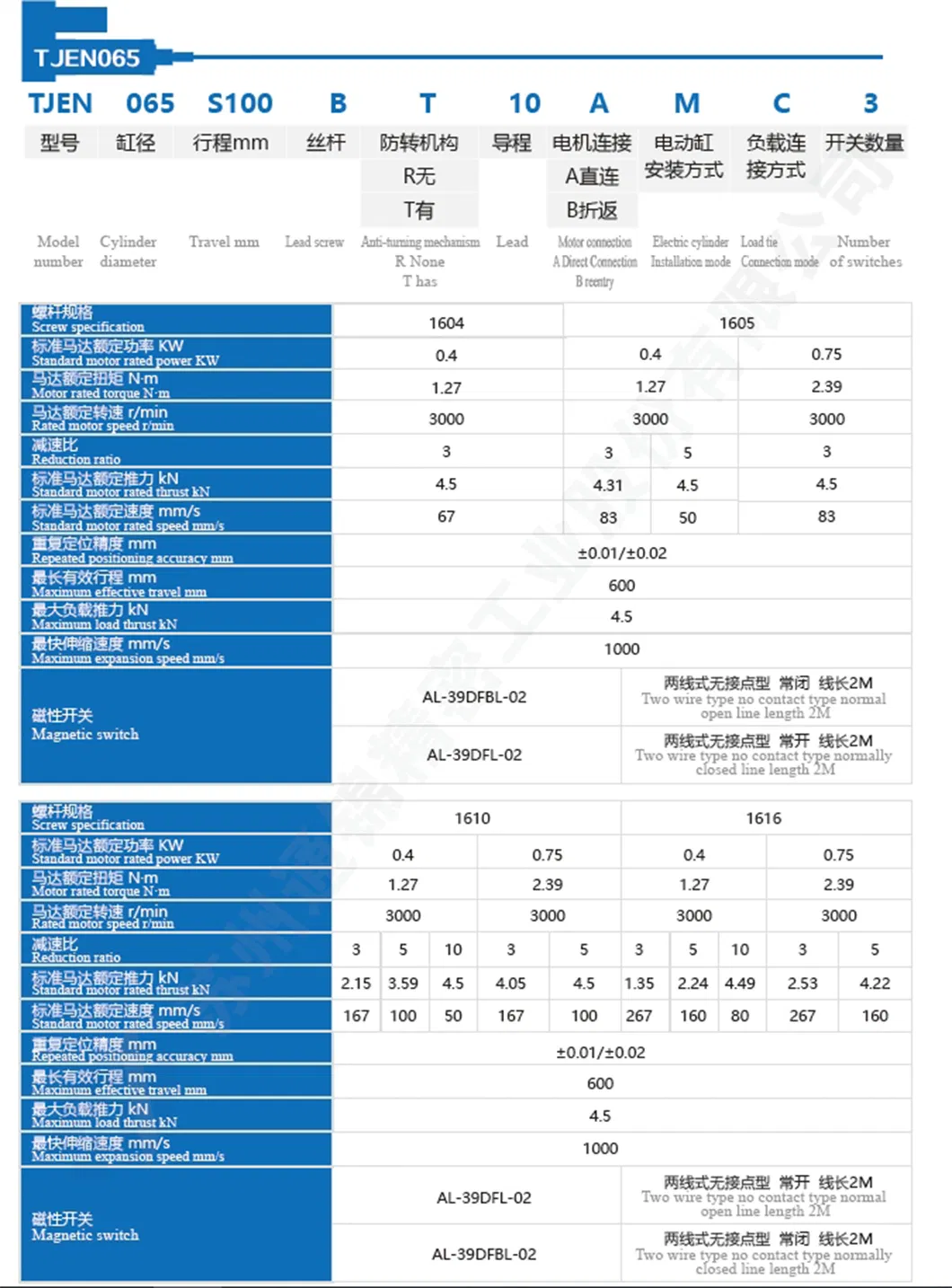

| Screw specification | 1604 | 1605 | ||
| Standard motor rated power KW | 0.4 | 0.4 | 0.75 | |
| Motor rated torque N·m | 1.27 | 1.27 | 2.39 | |
| Rated motor speed r/min | 3000 | 3000 | 3000 | |
| Reduction ratio | 3 | 3 | 5 | 3 |
| Standard motor rated thrust kN | 4.5 | 4.31 | 4.5 | 4.5 |
| Standard motor rated speed mm/s | 67 | 83 | 50 | 83 |
| Repeated positioning accuracy mm | ±0.01/±0.02 | |||
| Maximum effective travel mm | 600 | |||
| Maximum load thrust kN | 4.5 | |||
| Maximum expansion speed mm/s | 1000 | |||
