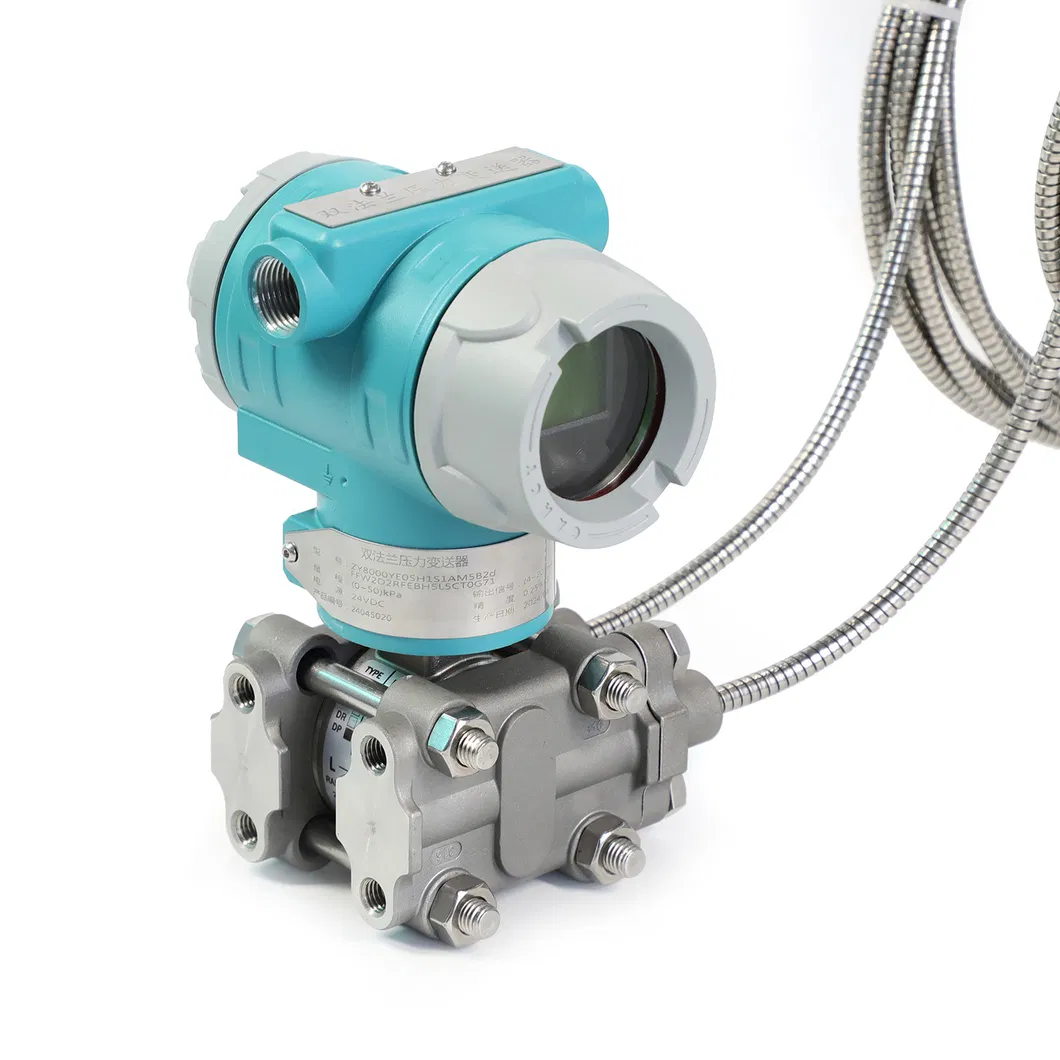

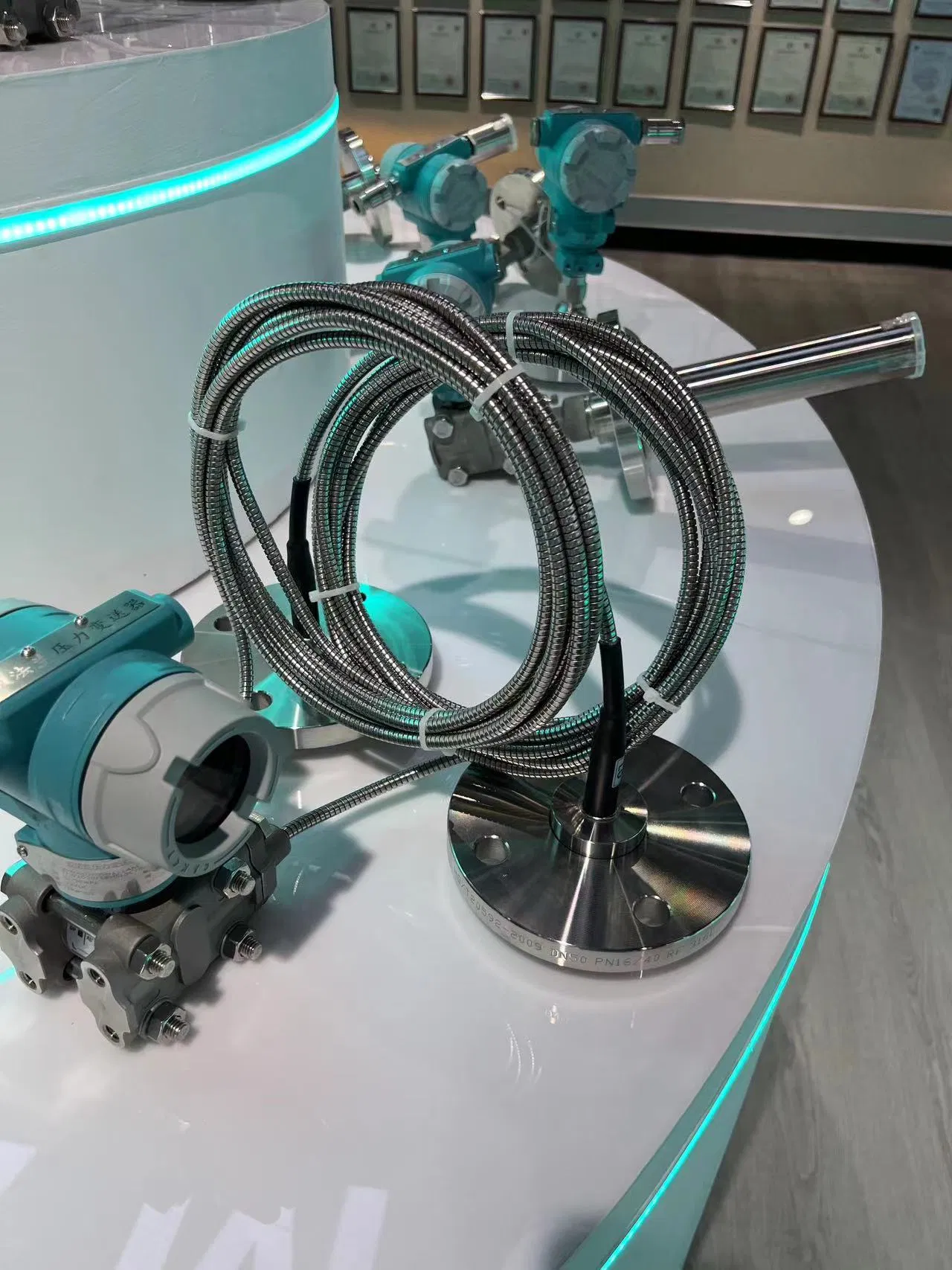

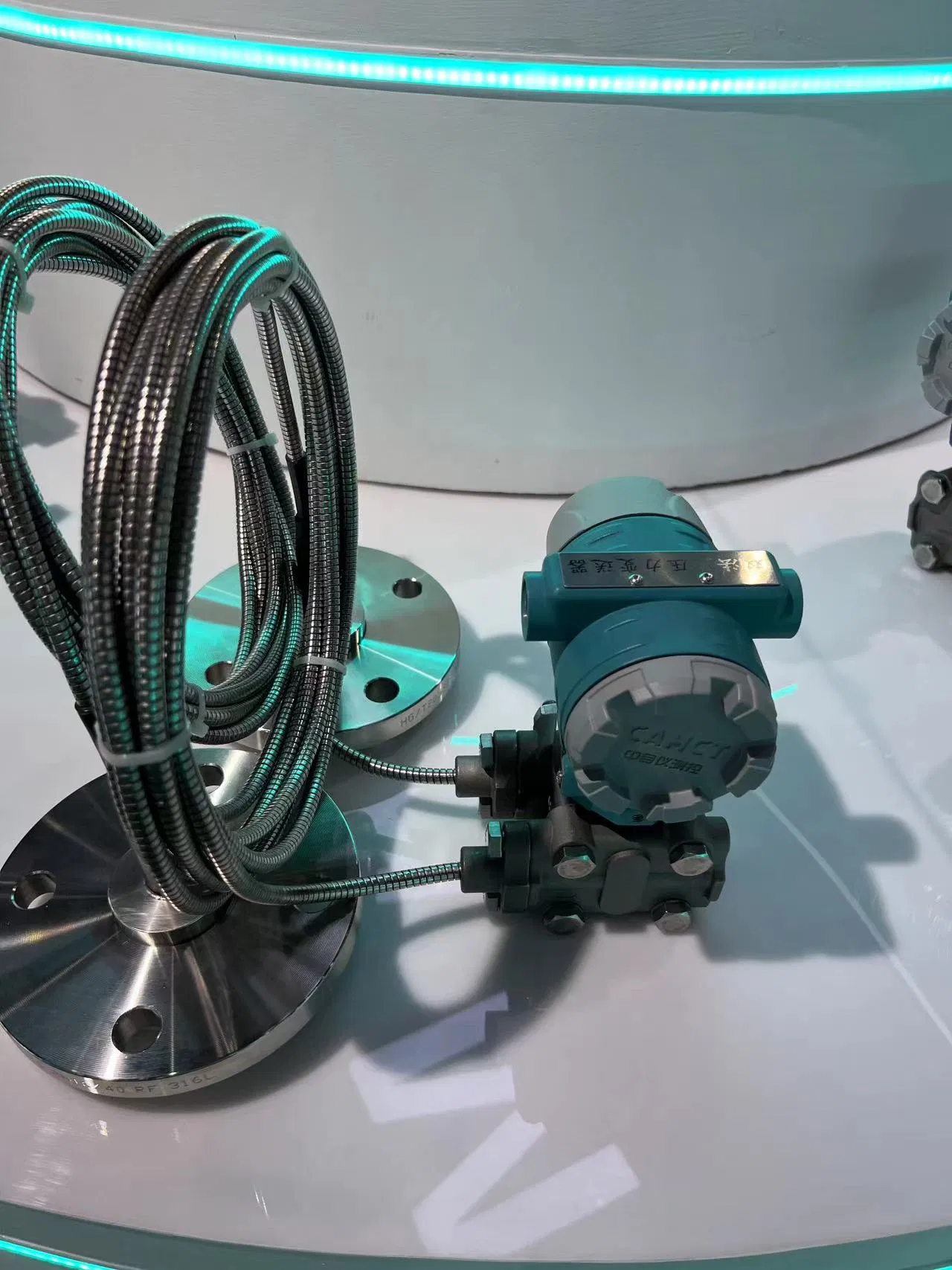

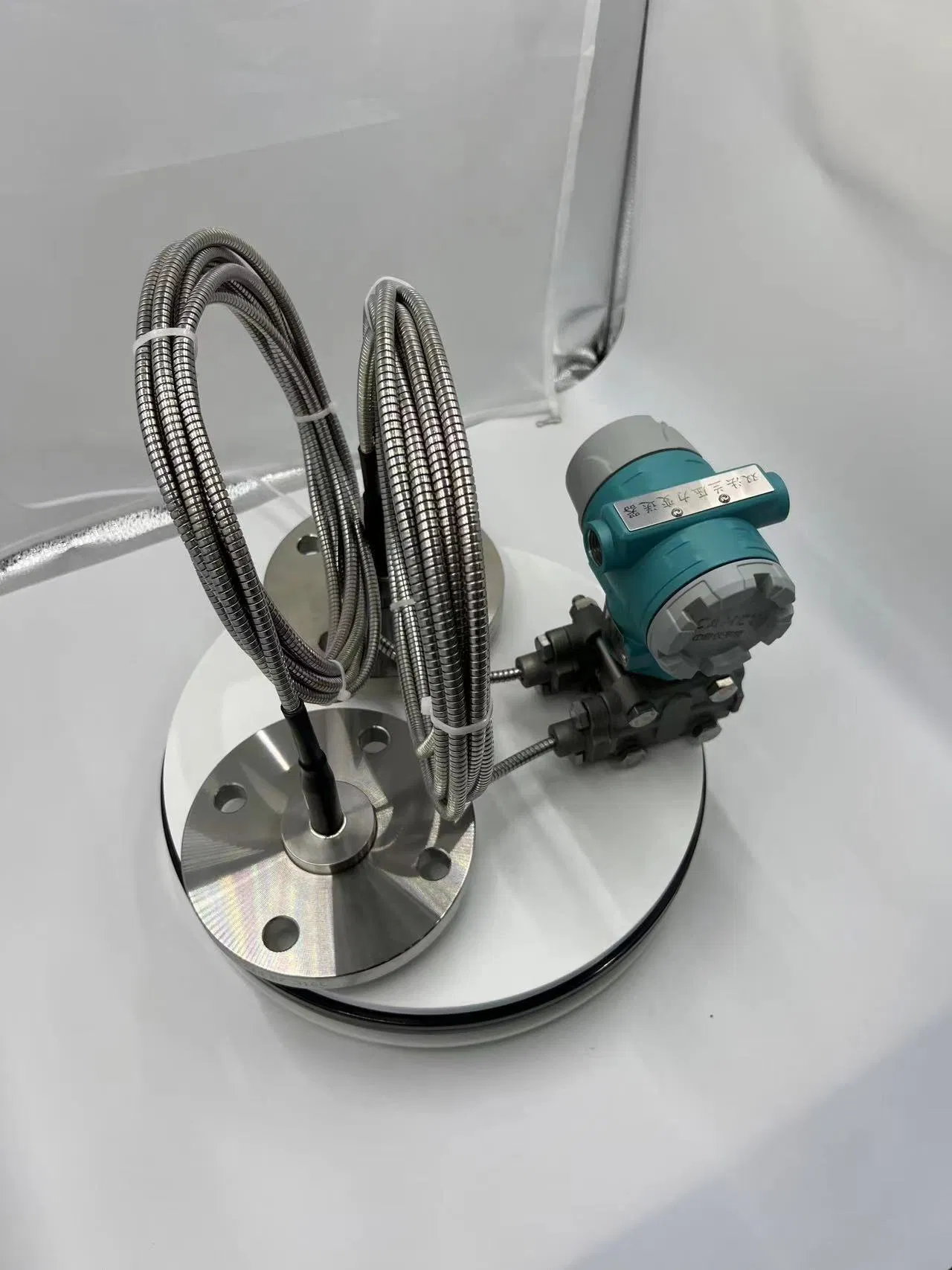

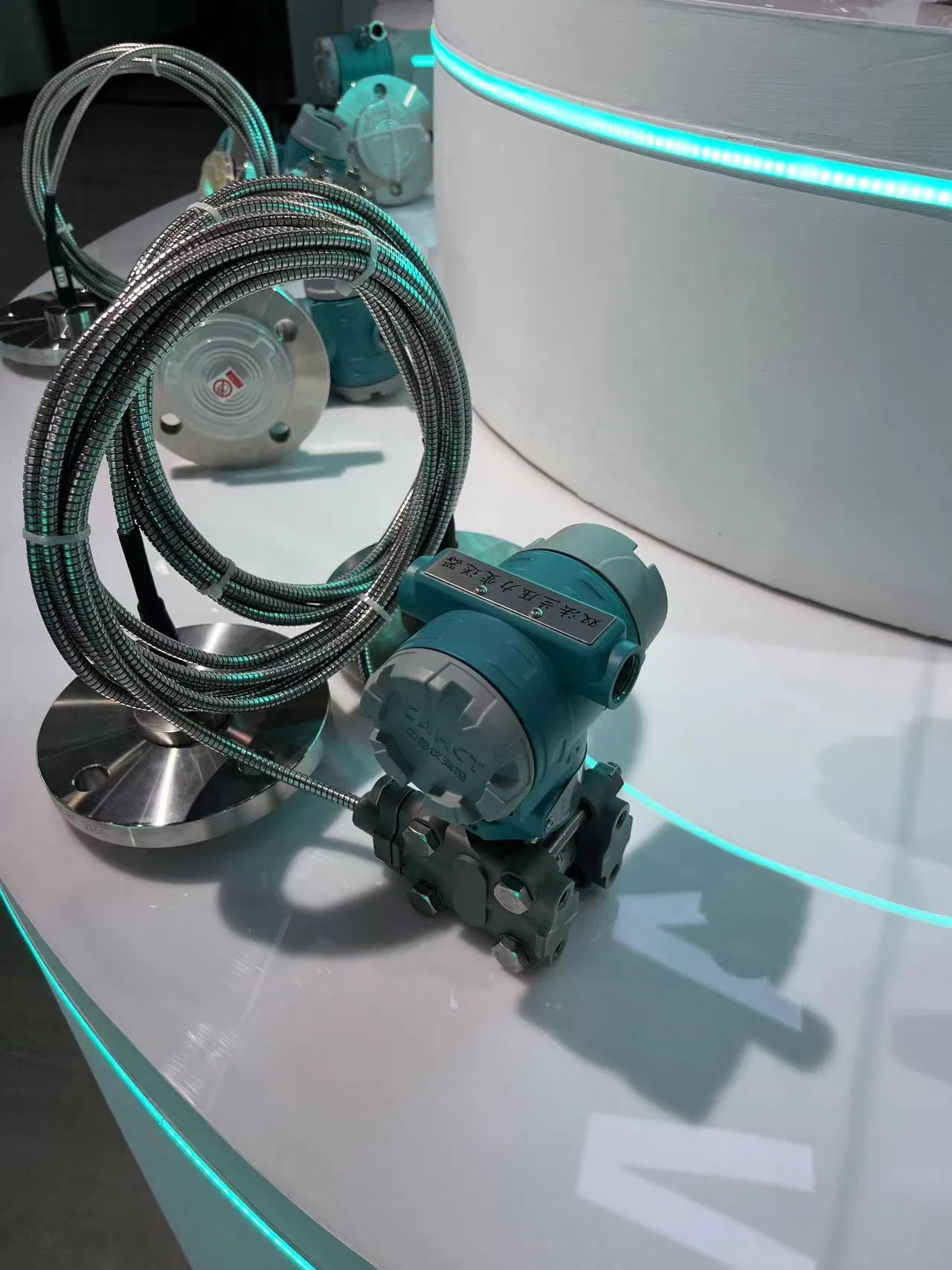

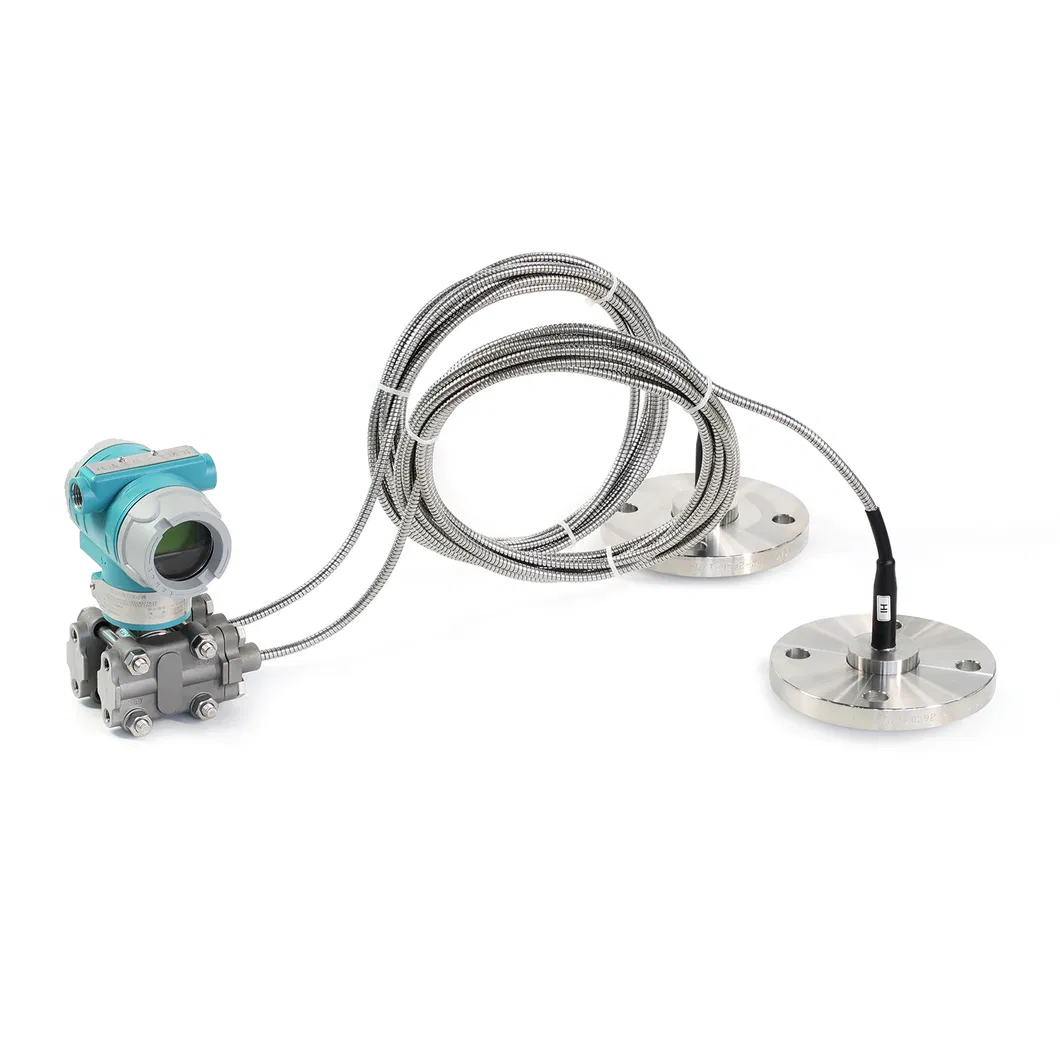

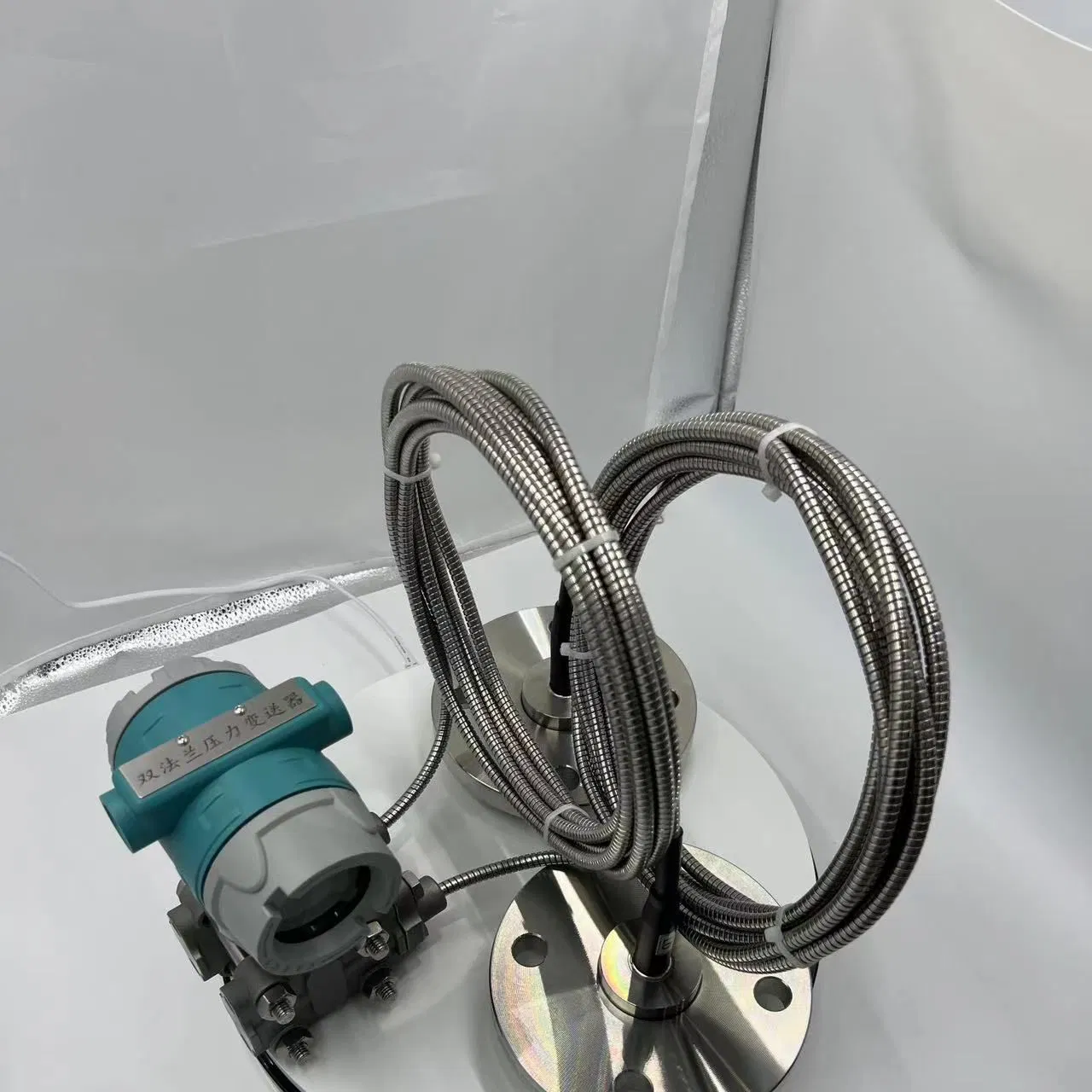

ZY8000Y Intelligent Remote Transmitter

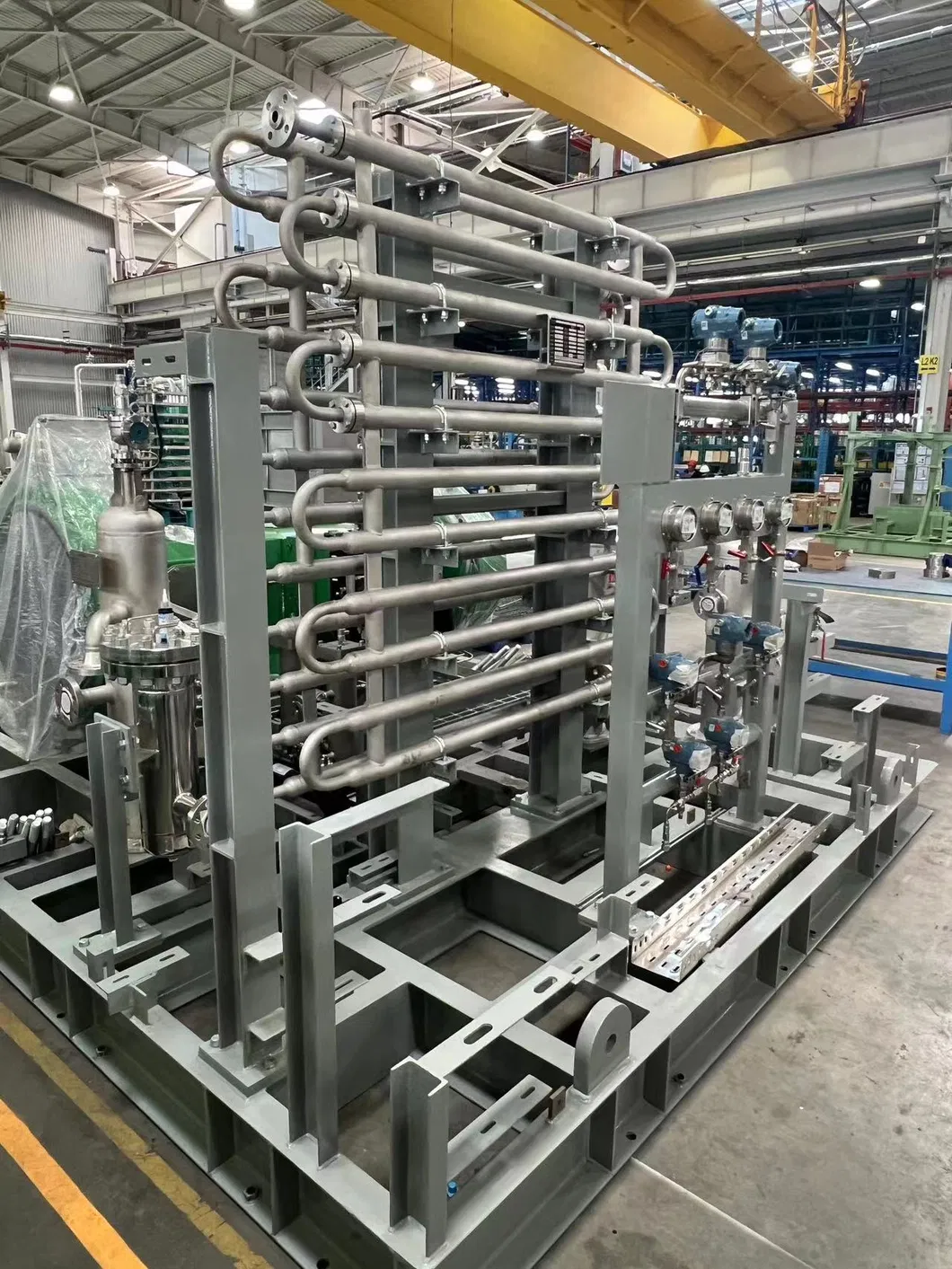

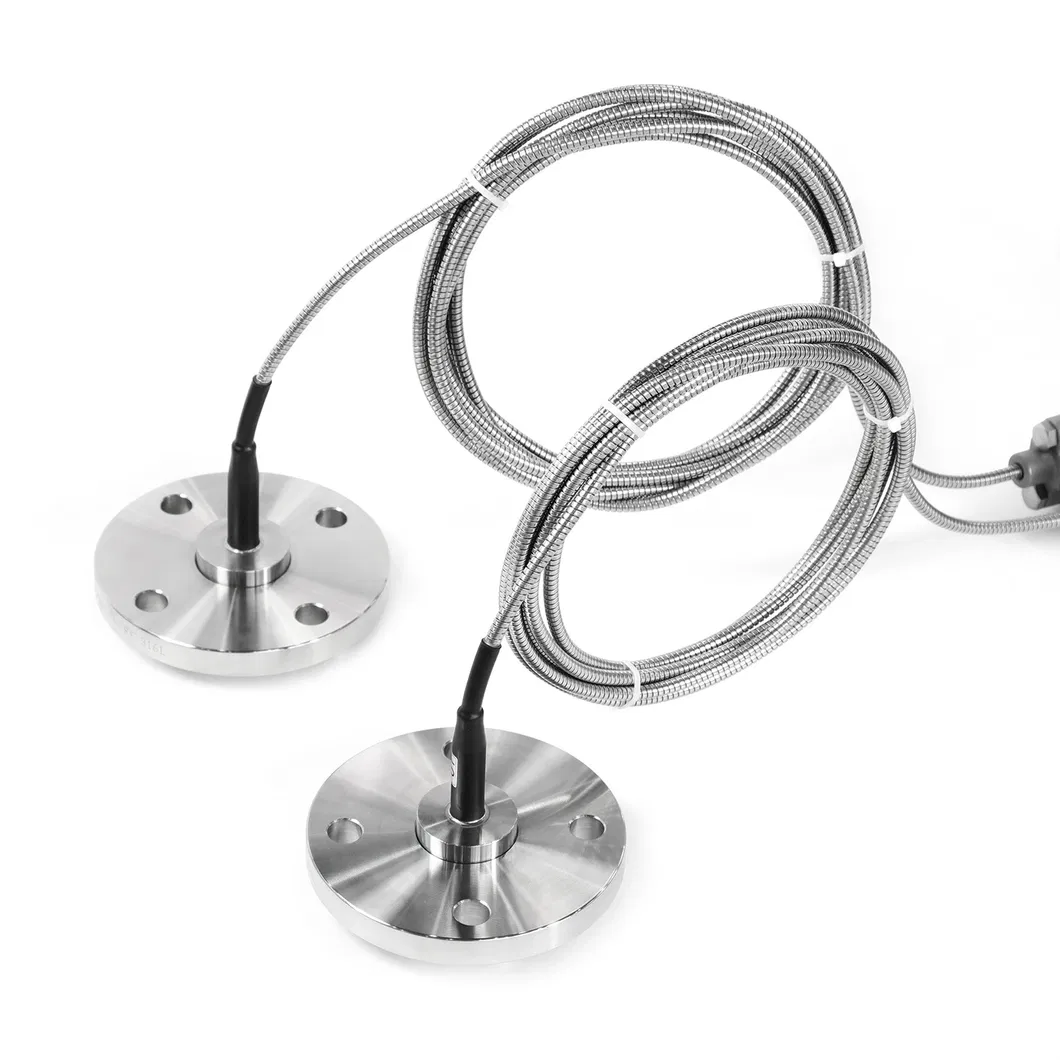

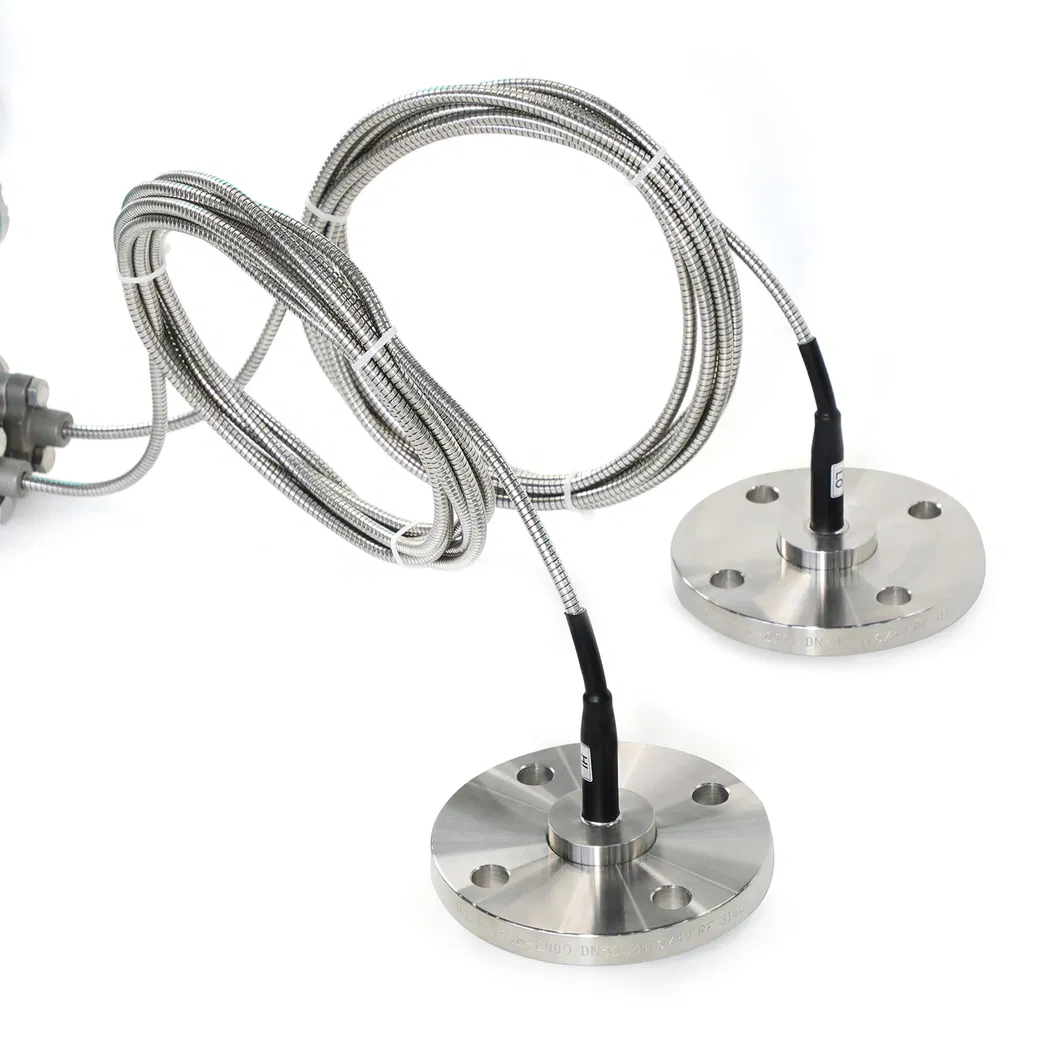

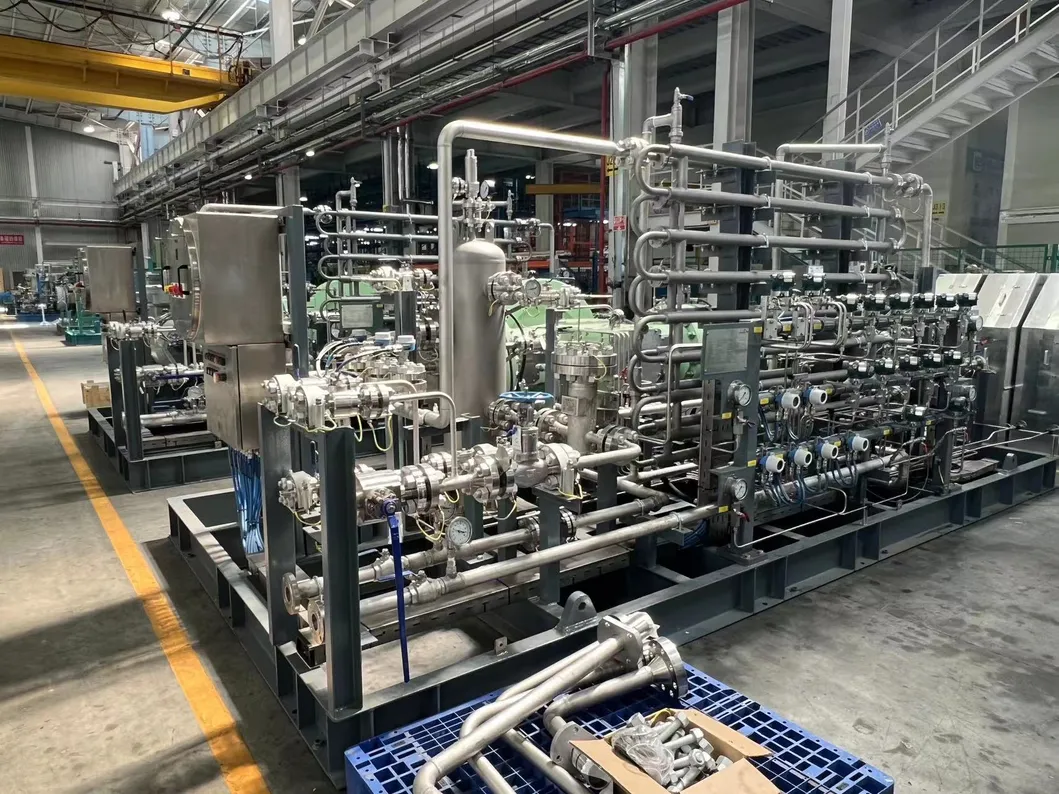

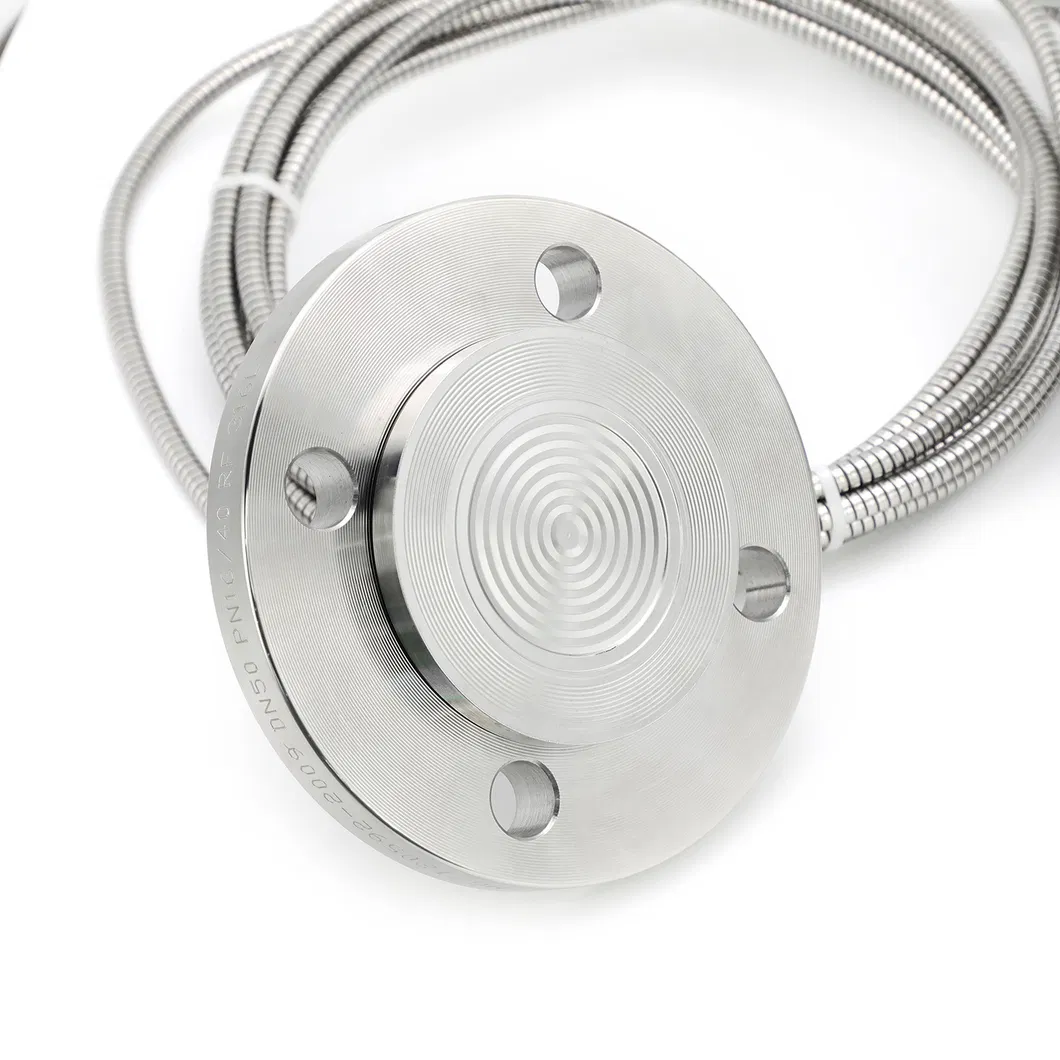

The Intelligent Flange Remote Transmitter senses measured pressure through remote transmission devices, then transmits it to the transmitter via an oil-filled capillary. It is highly effective for measuring liquid levels and differential pressure (D/P), especially in high-temperature environments, high viscosity media, or corrosive substances that precipitate crystals. Widely utilized in petroleum, chemical industry, metallurgy, power, and environmental protection.

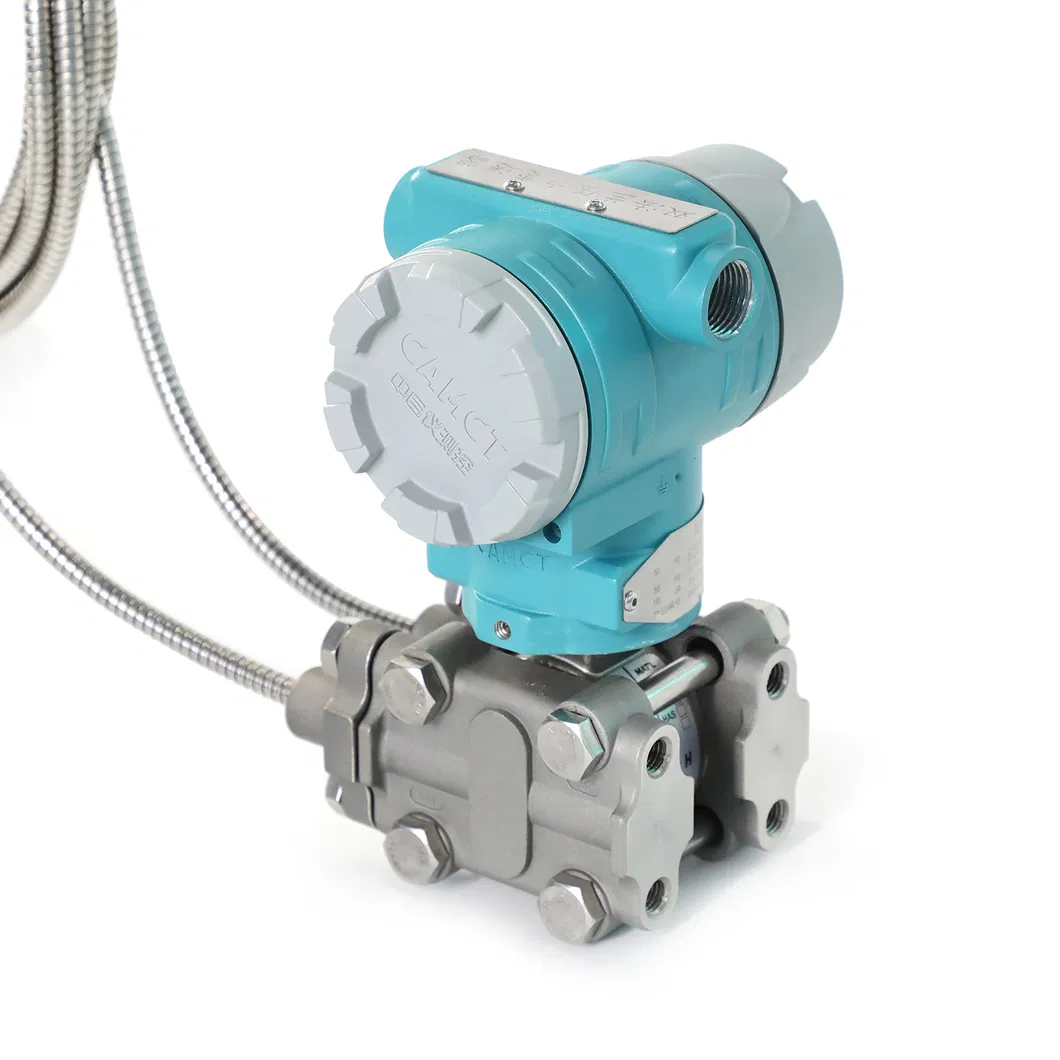

The ZY8000 series offers unmatched precision with a basic accuracy of 0.1% FS (up to 0.075% FS elite). Encased in a robust metal housing with fully sealed measuring elements, it handles extreme stress effortlessly. Its integrated diagnostic function monitors status in real-time, providing fault alerts (3.6mA or 22.8mA) for Safety Instrumented Systems (SIS).
✔Precisely measures pressure via advanced remote sensing capabilities.
✔Ideal for high-temperature and high-viscosity media measurement.
| Technical Parameter | Specifications |
|---|---|
| Accuracy | ±0.1%FS, ±0.25%FS, ±0.5%FS |
| Measured Parameters | Pressure / Differential Pressure |
| Output | 2-wire 4~20mA + HART / RS485 (MODBUS) / PA Protocol |
| Power Supply | 24VDC (Range: 12~36V) |
| Long-Term Stability | ≤0.1%FS/Year |
| Ambient Temperature | -30~70ºC |
| Protection Grade | IP67 |

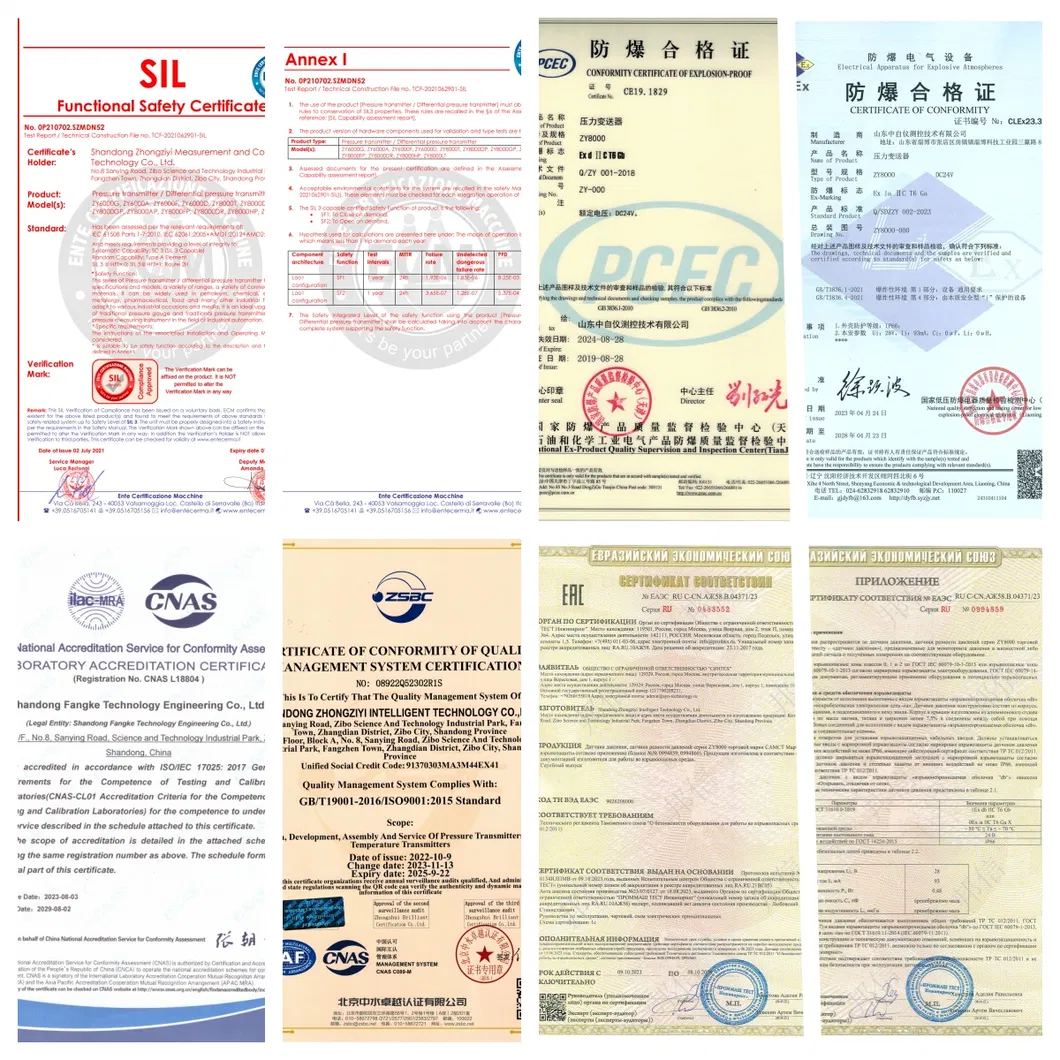

| Ex-Proof Grade | Flame Proof Exd II CT6 Gb / Intrinsic Safety Exia II CT6 Ga |
★Advanced Sensor Tech: Utilizing leading mono-crystalline silicon sensors.
★Reliability: Exceptional temperature and linear correction systems ensuring unparalleled stability.
★Field Maintenance: Modular design allows parts replacement on-site without recalibration.
