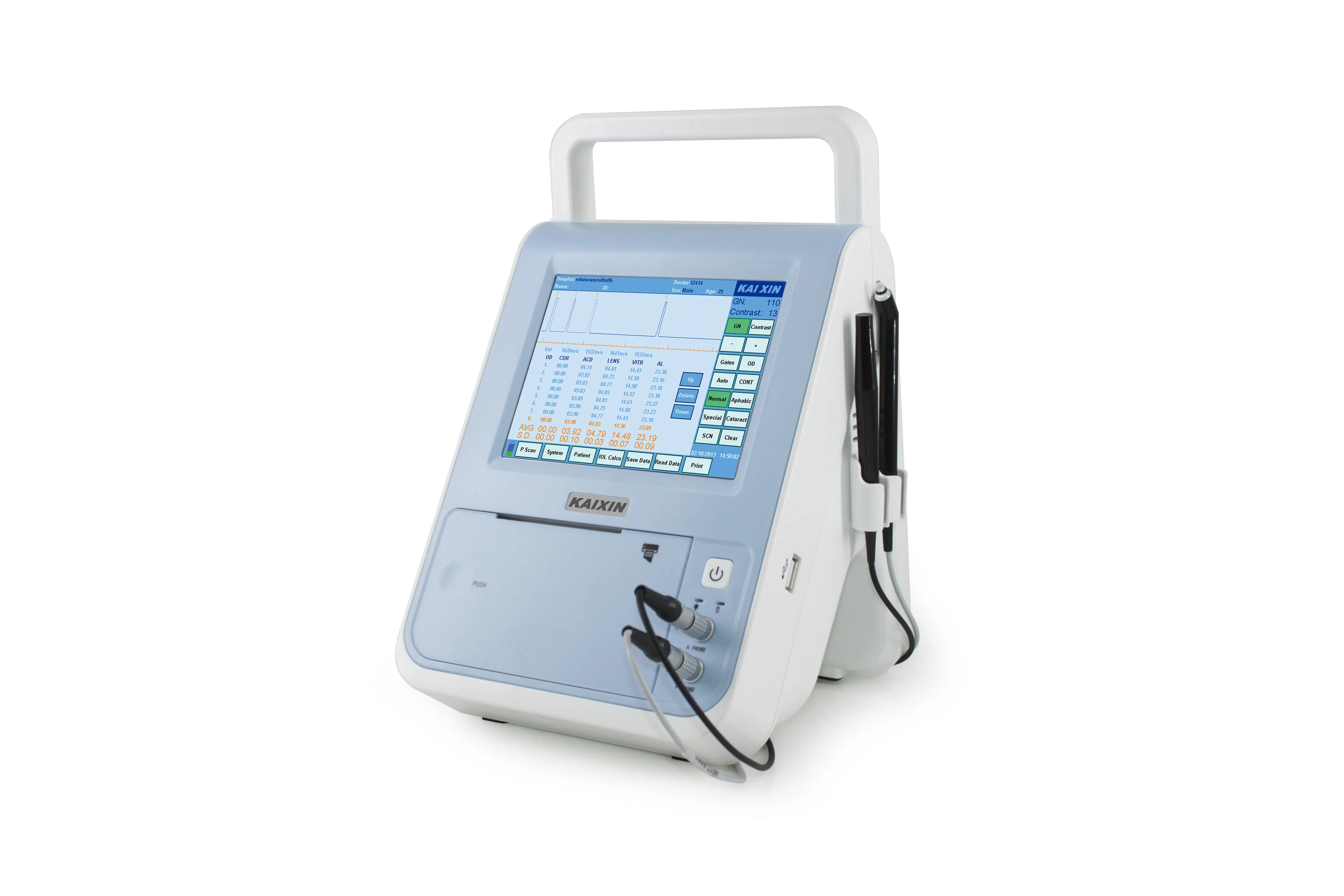

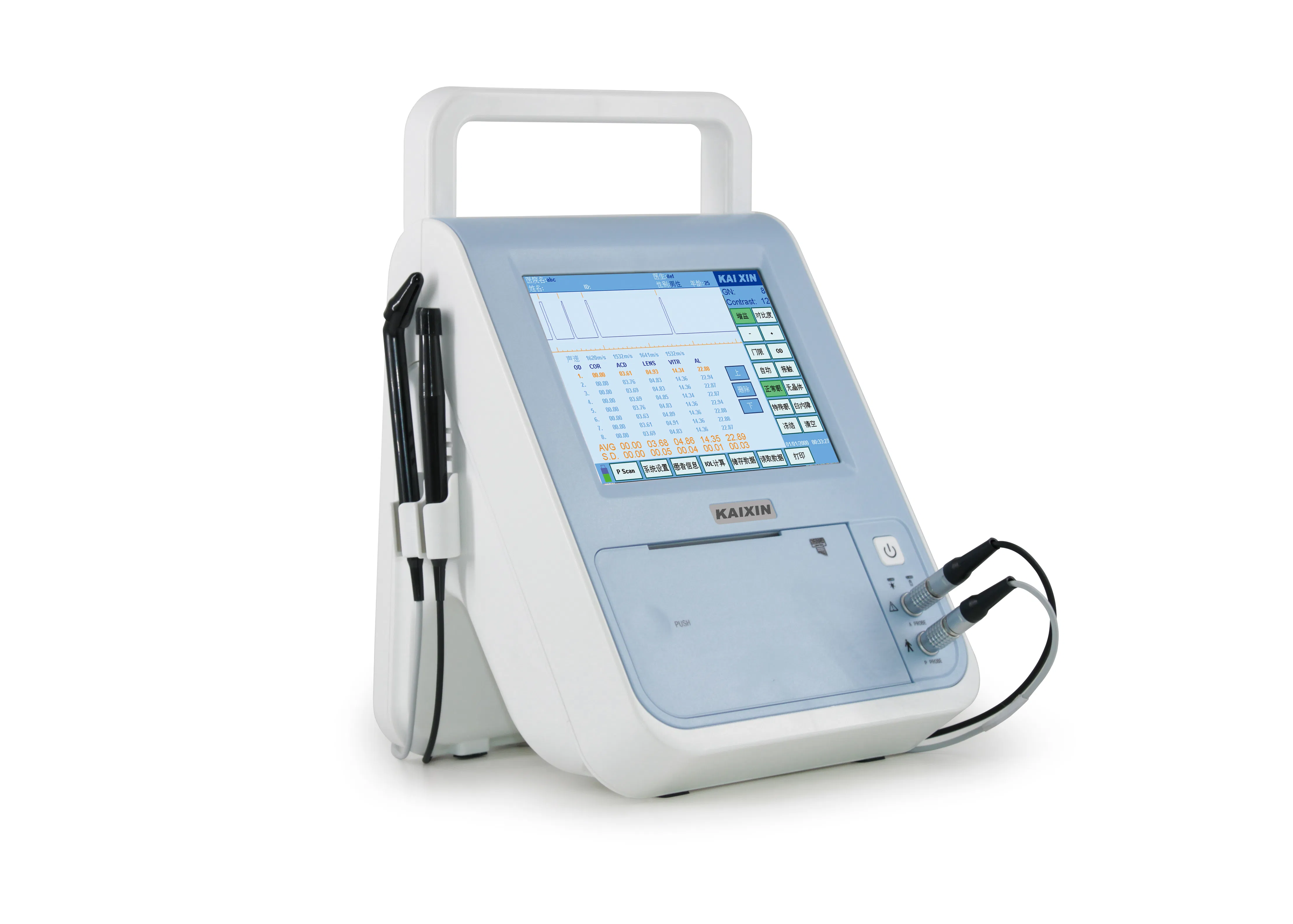

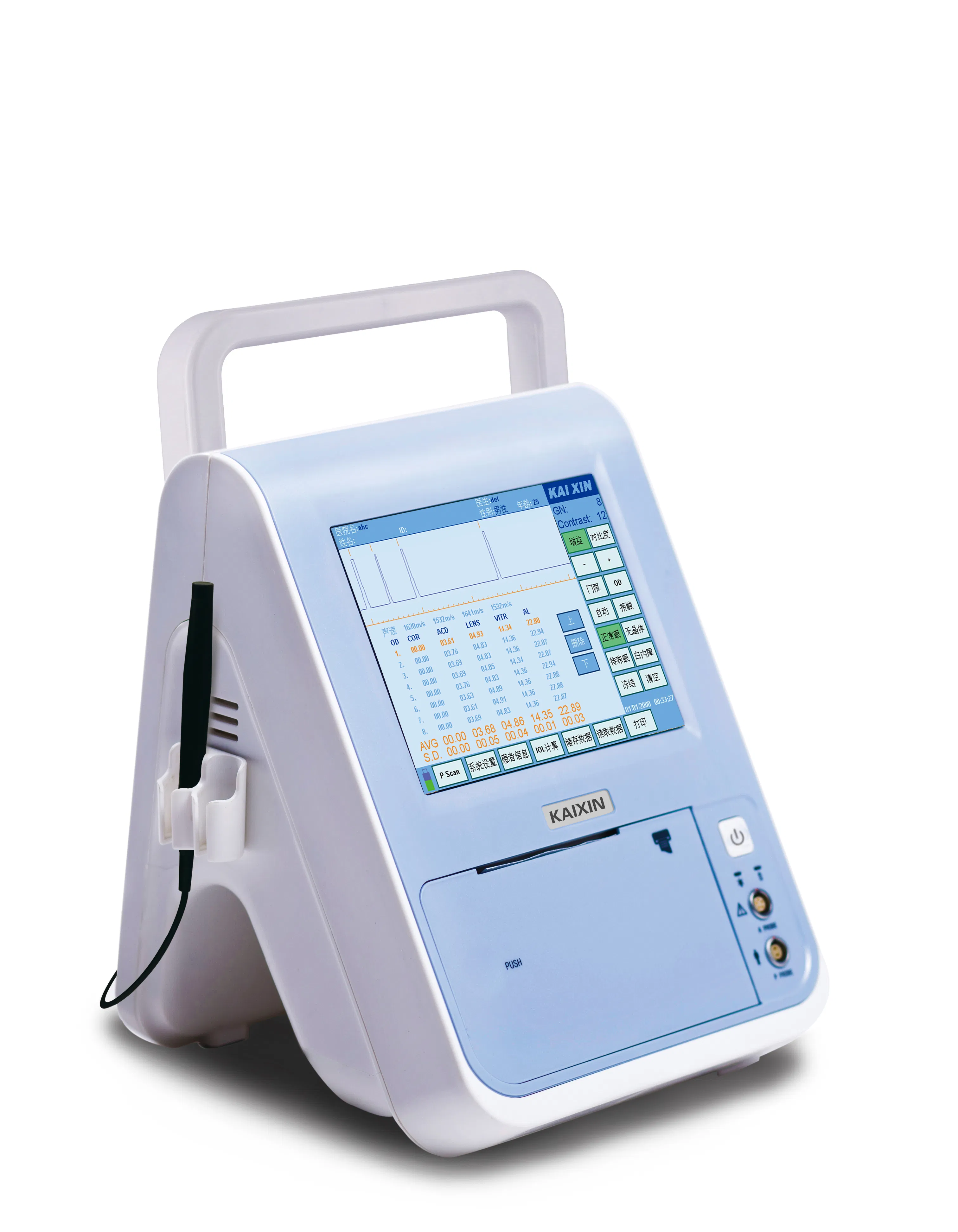

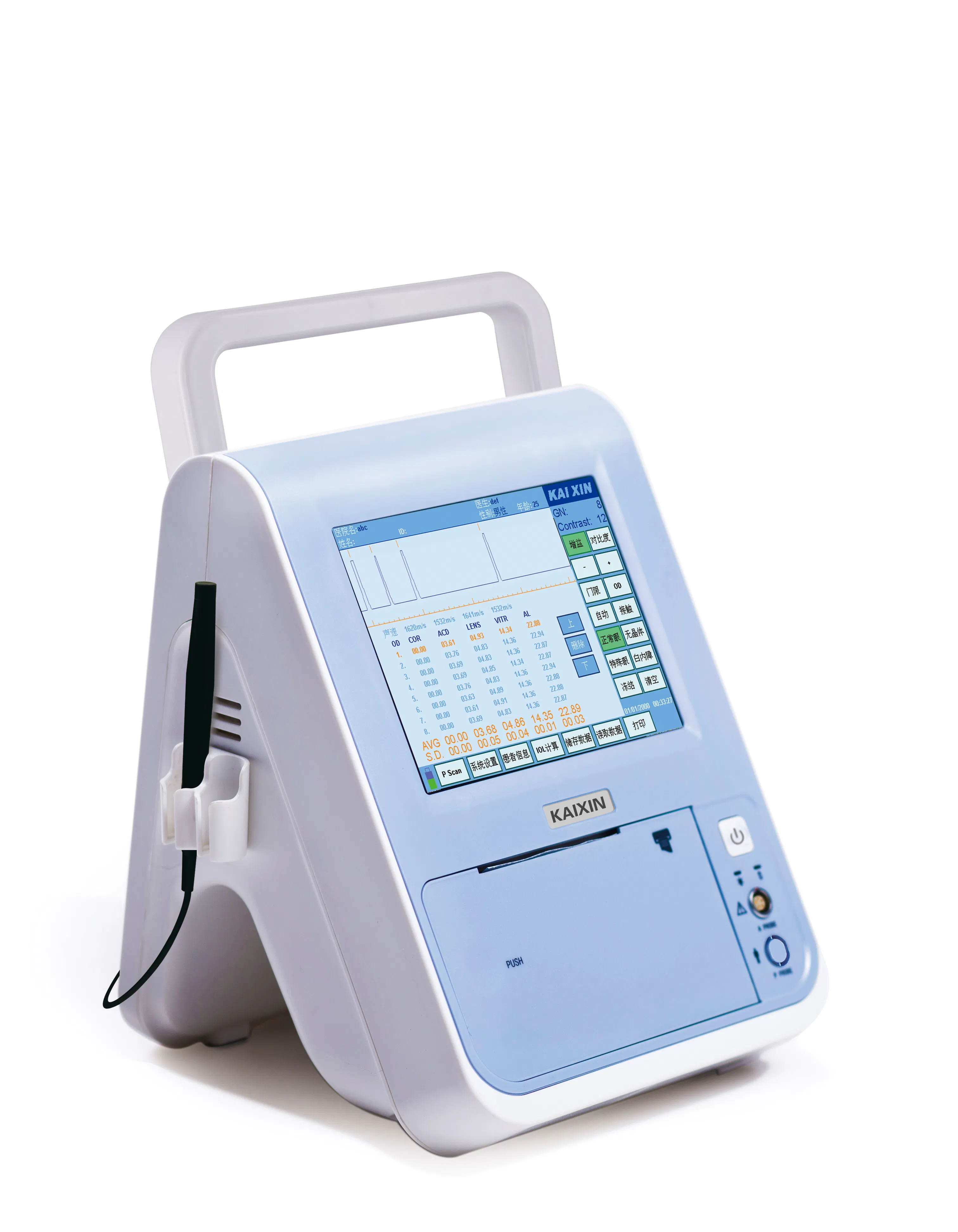

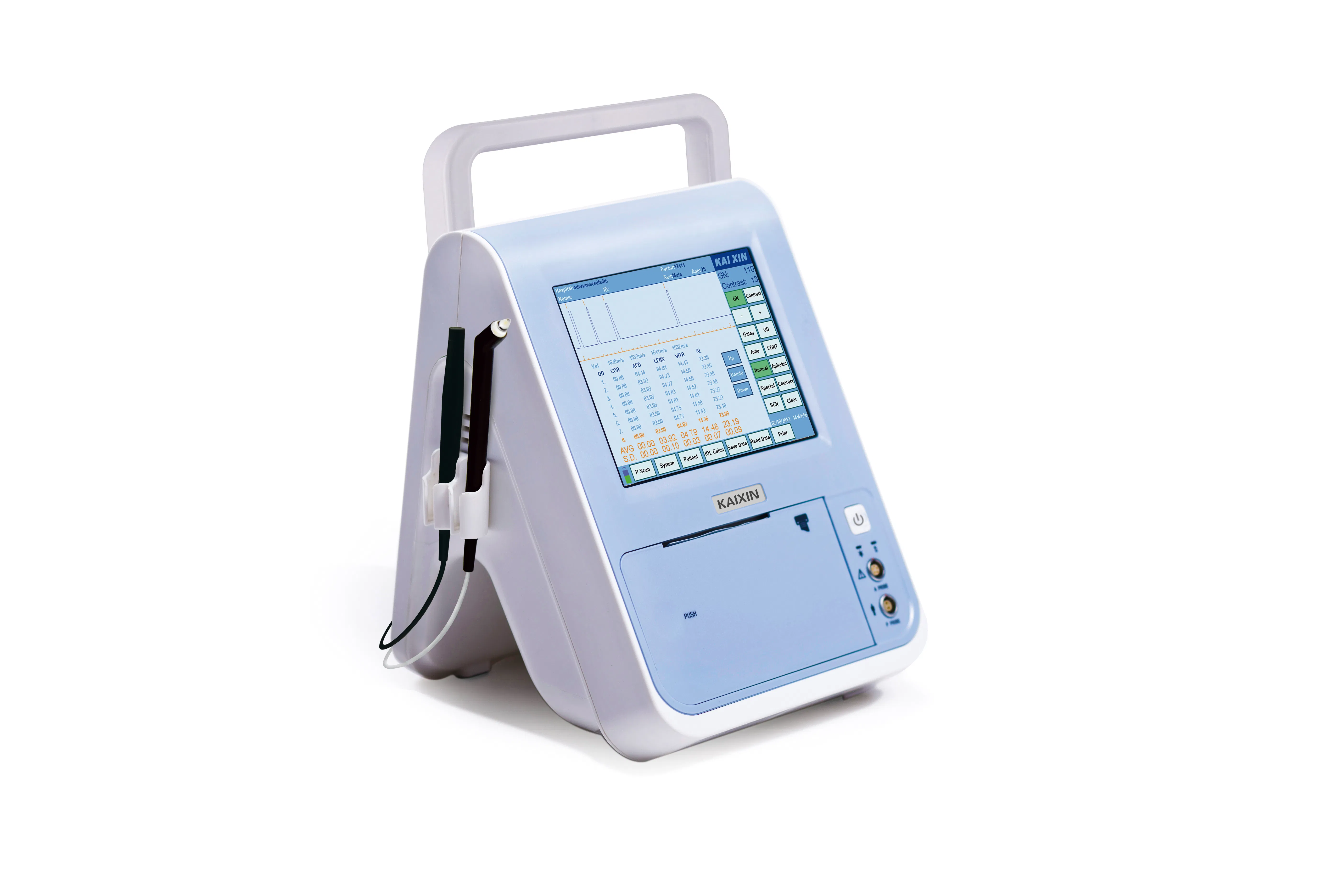

Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
1 / 5
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer
Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer

Od1-Ap Eyes Diagnostic System with Acd/Lens/Vitreous/Axl Application and Printer

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner
Send Inquiry

Product Description

Basic Specifications

Model NO.OD1-AP
CertificationCE, ISO13485
GroupAll
Usefor Human
ApplicationACD, Lens, Vitreous, AXL
PrinterInternal Thermal Printer
Medical SettingEyes Hospital
PackageStandard Export Package
HS Code9018500000
Capacity5000 pieces/Year

Technical Features

Portable and robust triangular design for versatility.
Vibrant 5.7-inch LED touch screen with intuitive navigation.
Standard workstation software for data transfer and management.
USB interface for convenient software upgrades.
Internal optional battery for reliable out-clinic diagnoses.
High-precision 10 MHz probe frequency.
Exceptional 0.01mm resolution and ±0.02mm accuracy.
Advanced IOL formulas: SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS.

Configuration Details

Standard Configuration

1 Main Unit
2 10.0MHz A Probe
3 Power Adapter
4 Gage Block for Calibration
5 Touch Screen Pen

Optional Configuration

1 Lithium Battery
2 Battery Charger
3 Footswitch
4 Prager Shell for Immersion

Product Presentation

OD1-AP Diagnostic System Display
OD1-AP Ophthalmic Equipment

Frequently Asked Questions

What measurements can the OD1-AP biometer perform?
The device provides comprehensive measurements including Anterior Chamber Depth (ACD), Lens thickness, Vitreous body length, and Axial Length (AXL).
What is the clinical accuracy of this device?
The OD1-AP features a high resolution of 0.01mm and maintains a clinical accuracy margin of ±0.02mm, ensuring reliable data for IOL calculations.
Does it support different types of cataracts?
Yes, it includes multiple examination modes: Normal, Aphakic, Pseudophakic, and a specialized mode for Dense Cataracts.
Can I export the data to a computer?
Absolutely. The system comes with standard workstation software and a USB interface for easy data management and software upgrades.
Is the device suitable for mobile eye clinics?
Yes, its compact triangular design and optional internal battery make it highly portable and perfect for out-clinic diagnoses.
What measurement methods are supported?
The OD1-AP supports both immersion and contact measurement modes, with both automatic and manual capture options.
