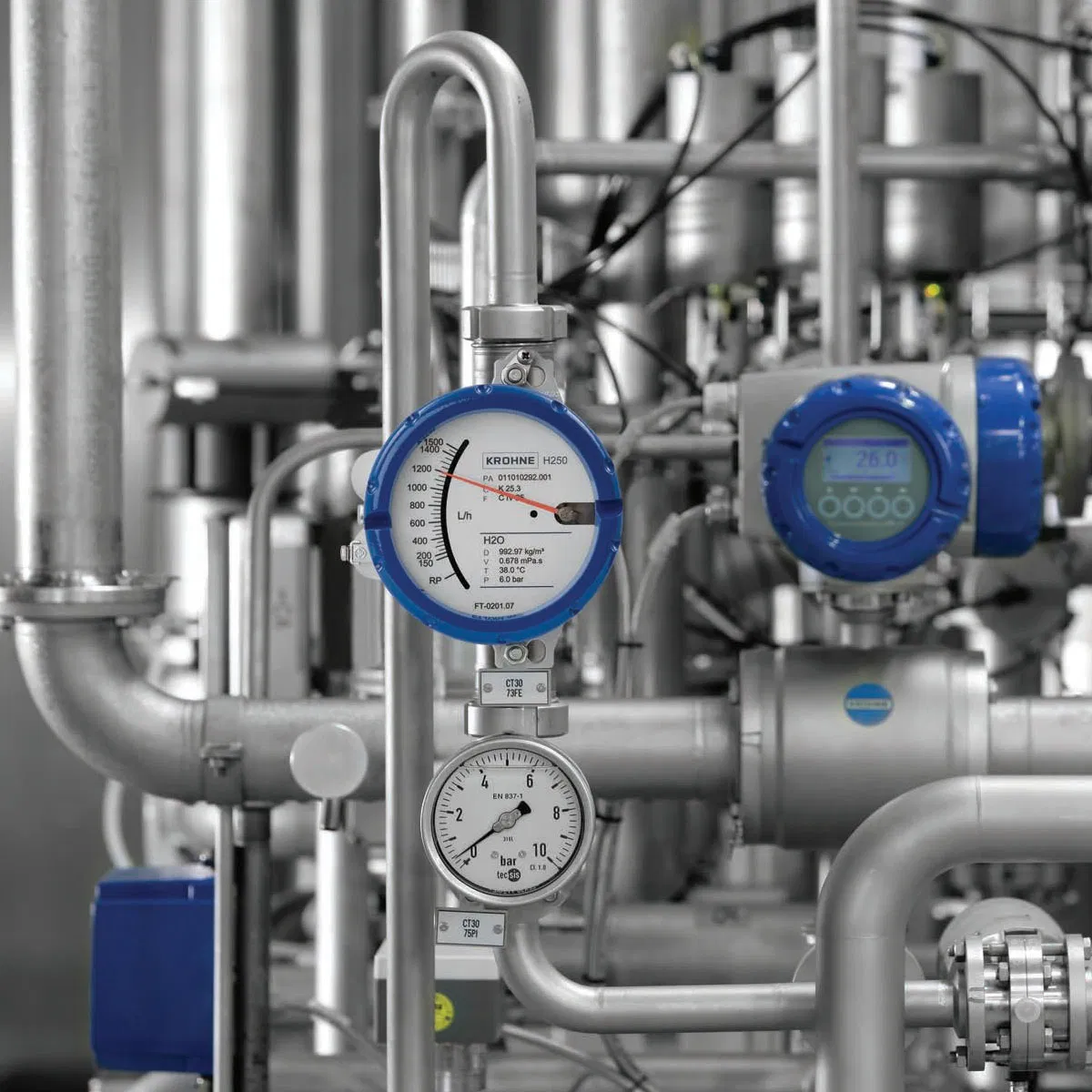

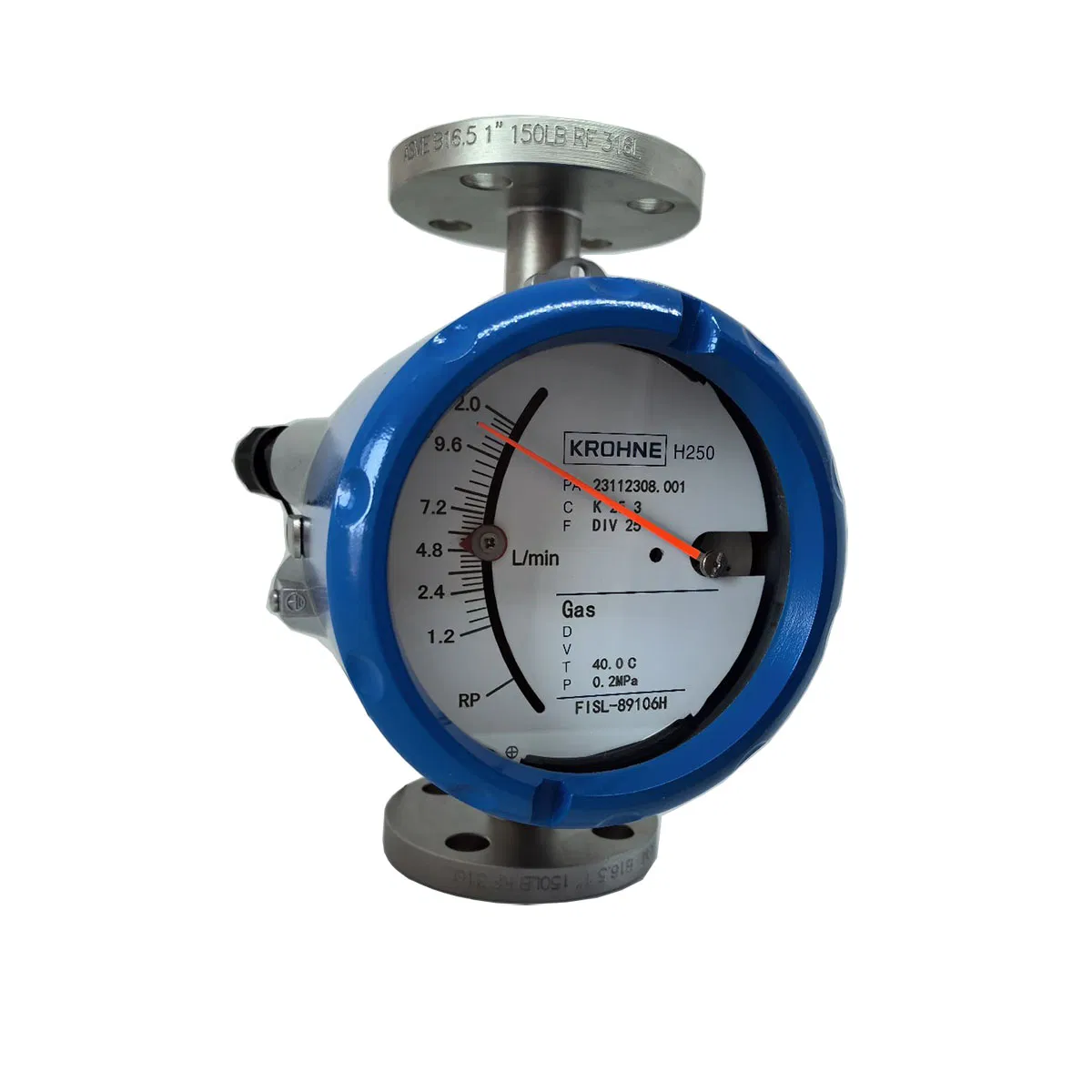

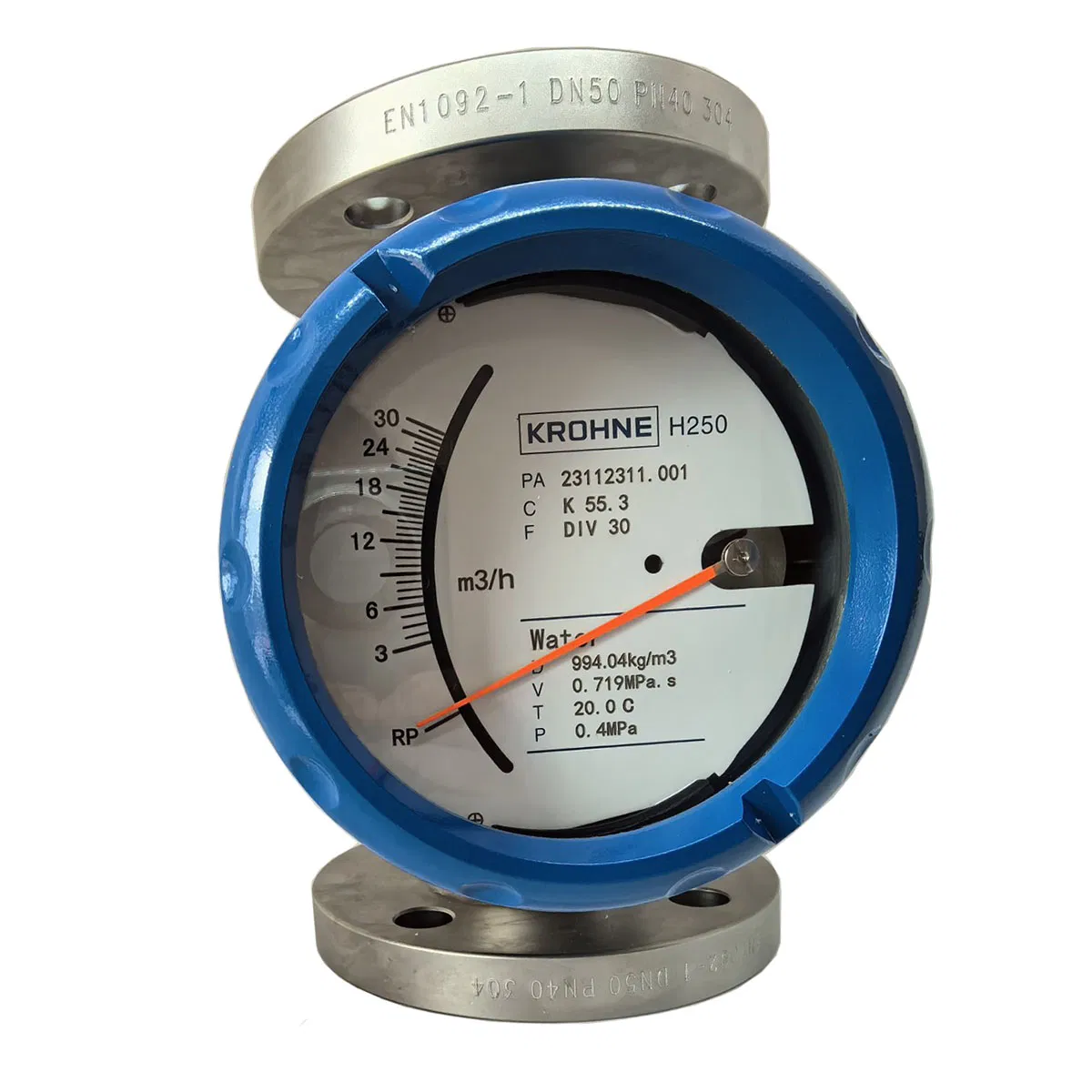

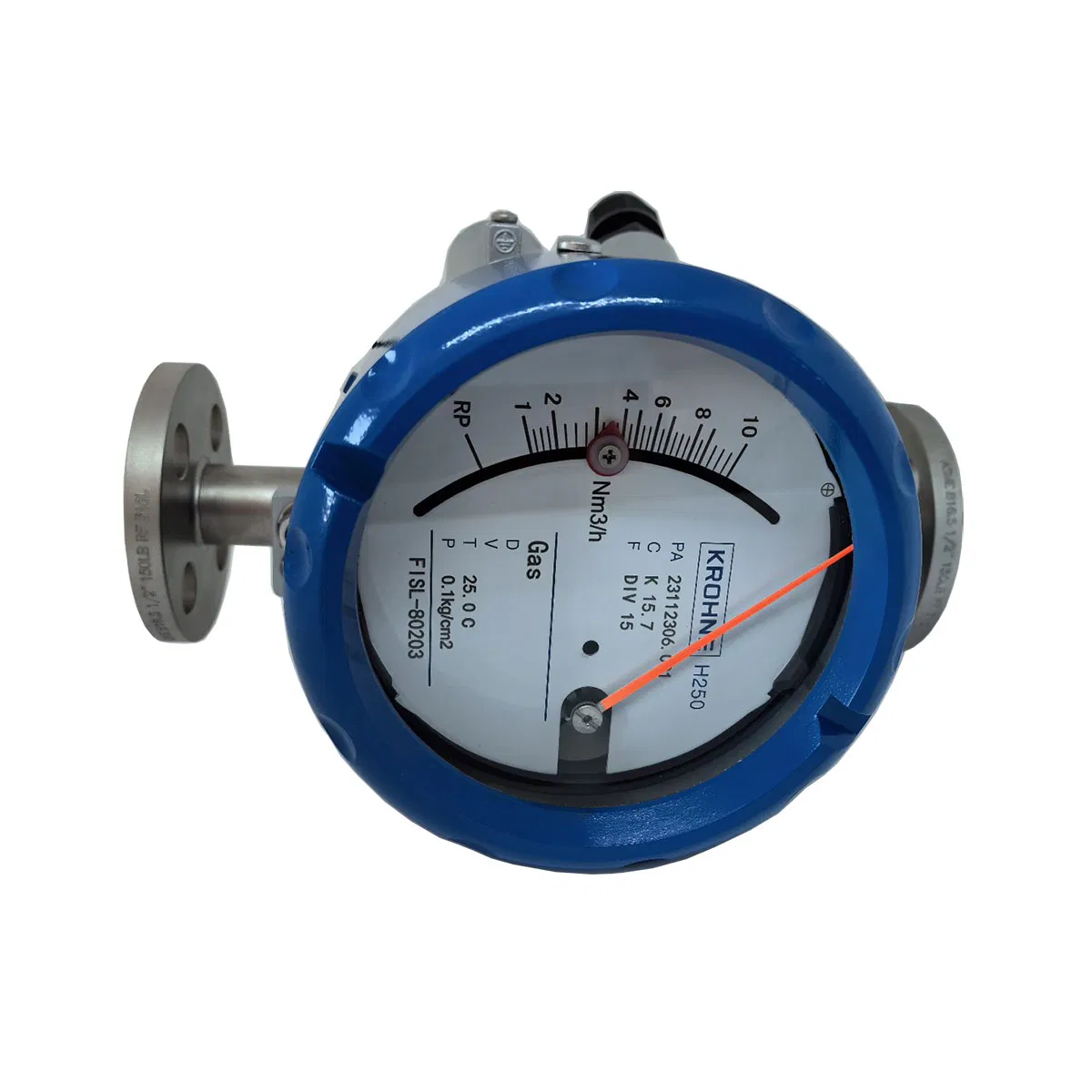

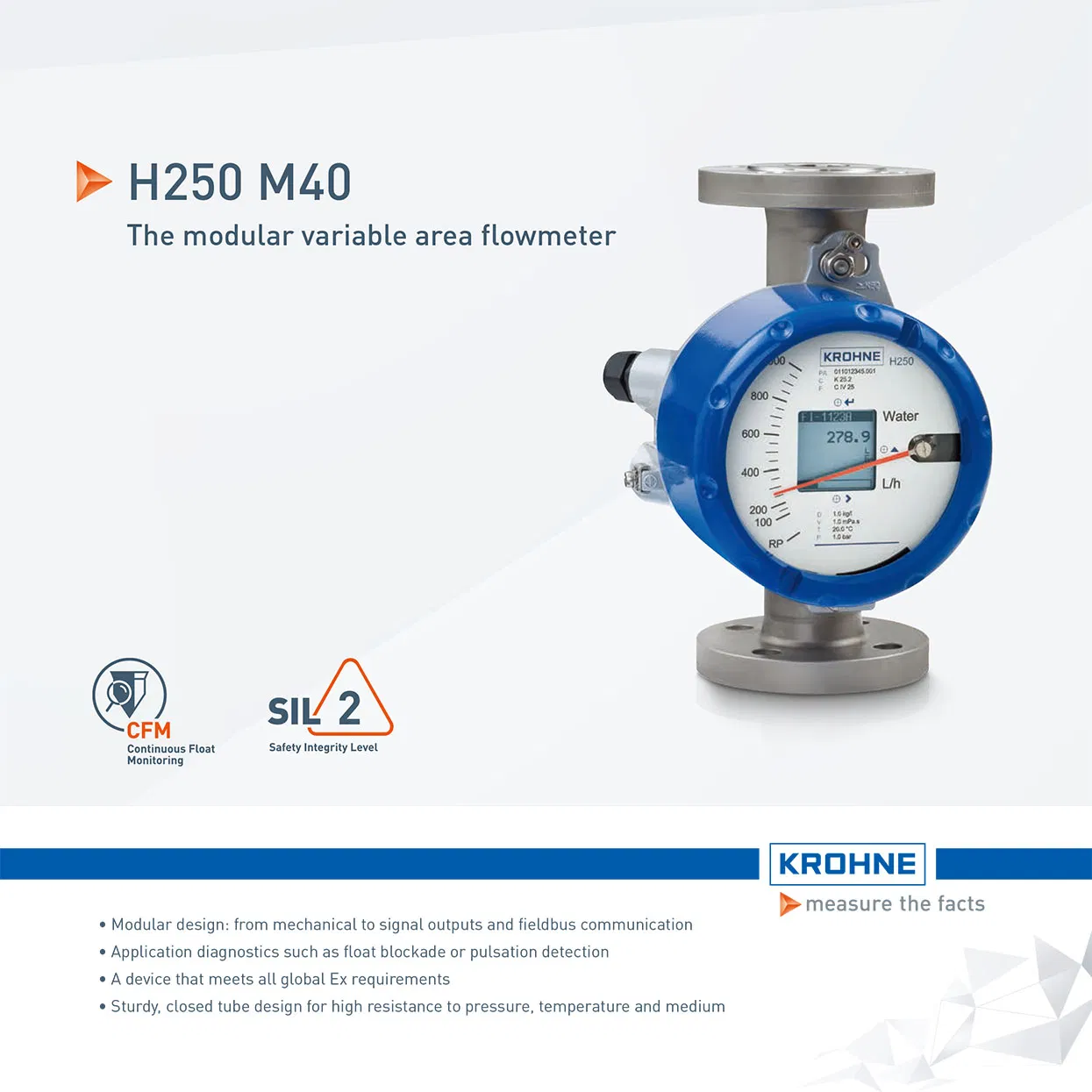

The H250 M40 is the standard variable area (VA) flowmeter for the process and OEM industry. This device combines mechanical flow measurement of liquids or gases with state-of-the-art communication capabilities. Its modular design allows for electronic modules to be added or replaced at any time without process interruption.
The sturdy all-metal flowmeter is engineered for applications with high pressures (up to 1000 barg / 14500 psig), extreme temperatures (-196 to +400°C), or aggressive media. It supports installation in horizontal or descending pipes and is intrinsically safe and explosion-proof.
| Parameter | Version | Details |
|---|---|---|
| Accuracy | H250 /RR /HC /F | 1.5% of full scale / 1.6% of measured value |
| Ceramic, PTFE, Low Flow | 2.0% of full scale / 2.5% of measured value | |
| Temperature | Standard | -196...+300°C (-321...+572°F) |
| Ingress Protection | M40, M40R | IP66/68, NEMA 4/4X/6 |

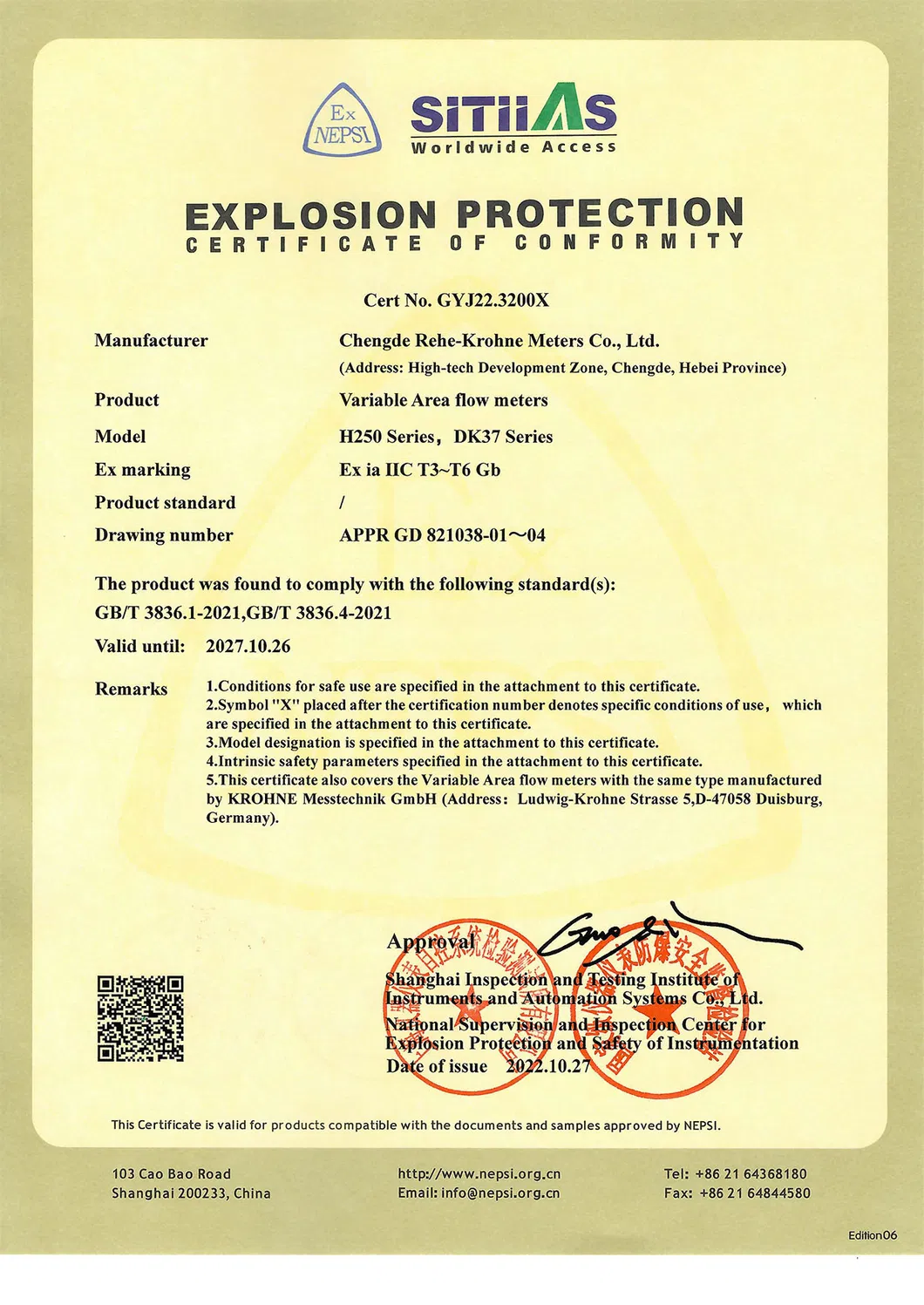

| Certification | Category | Classification |
|---|---|---|
| ATEX/UKEx | M40 Electrical | II2G Ex ia IIC T6 Gb / II2G Ex db IIC T6 Gb |
| FM (US/C) | M40 Electrical | IS Class I Div 1, XP Class I Div 1, NI Class I Div 2 |
| Other Certs | Global | NEPSI, CCOE/PESO, EAC, INMETRO, KGS |
