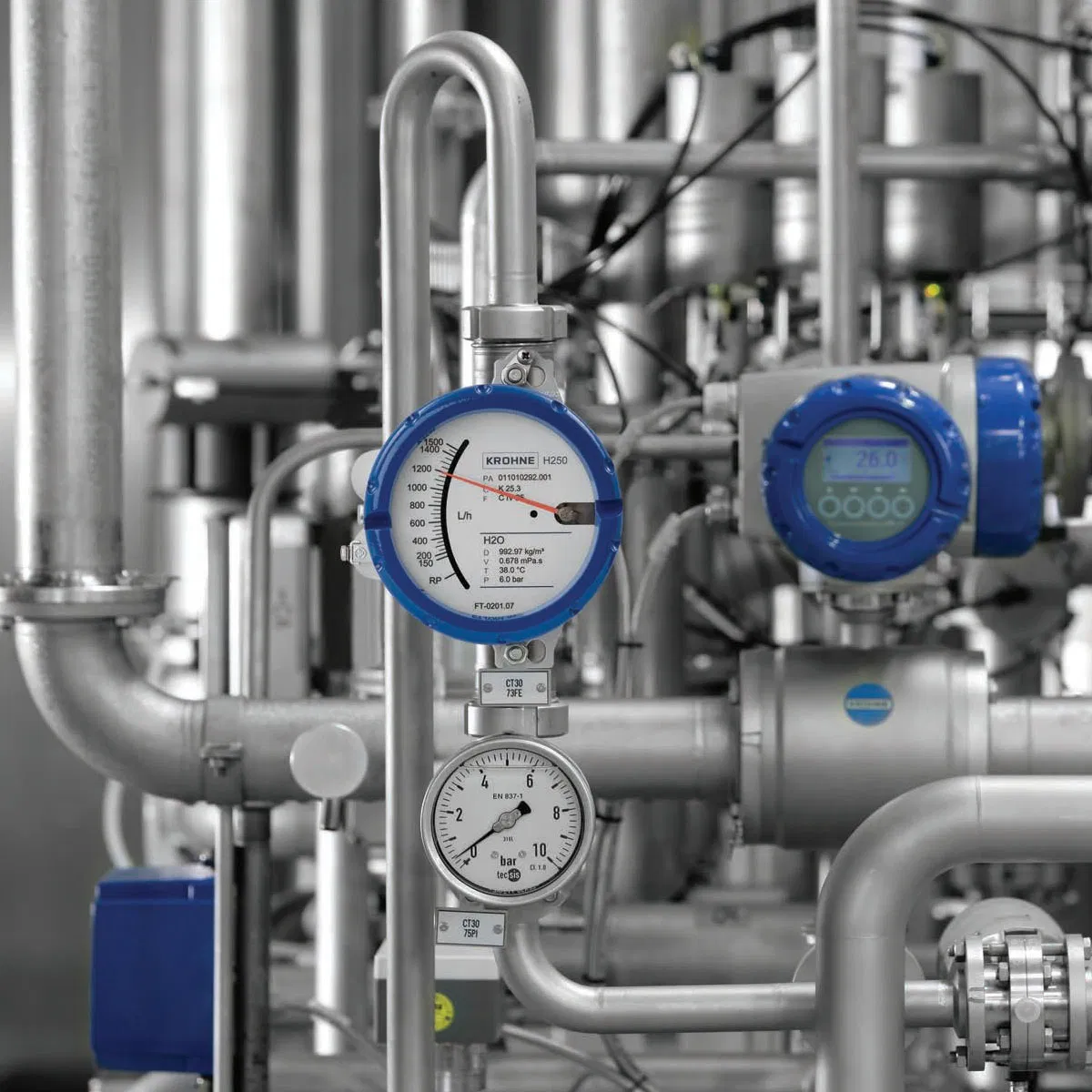

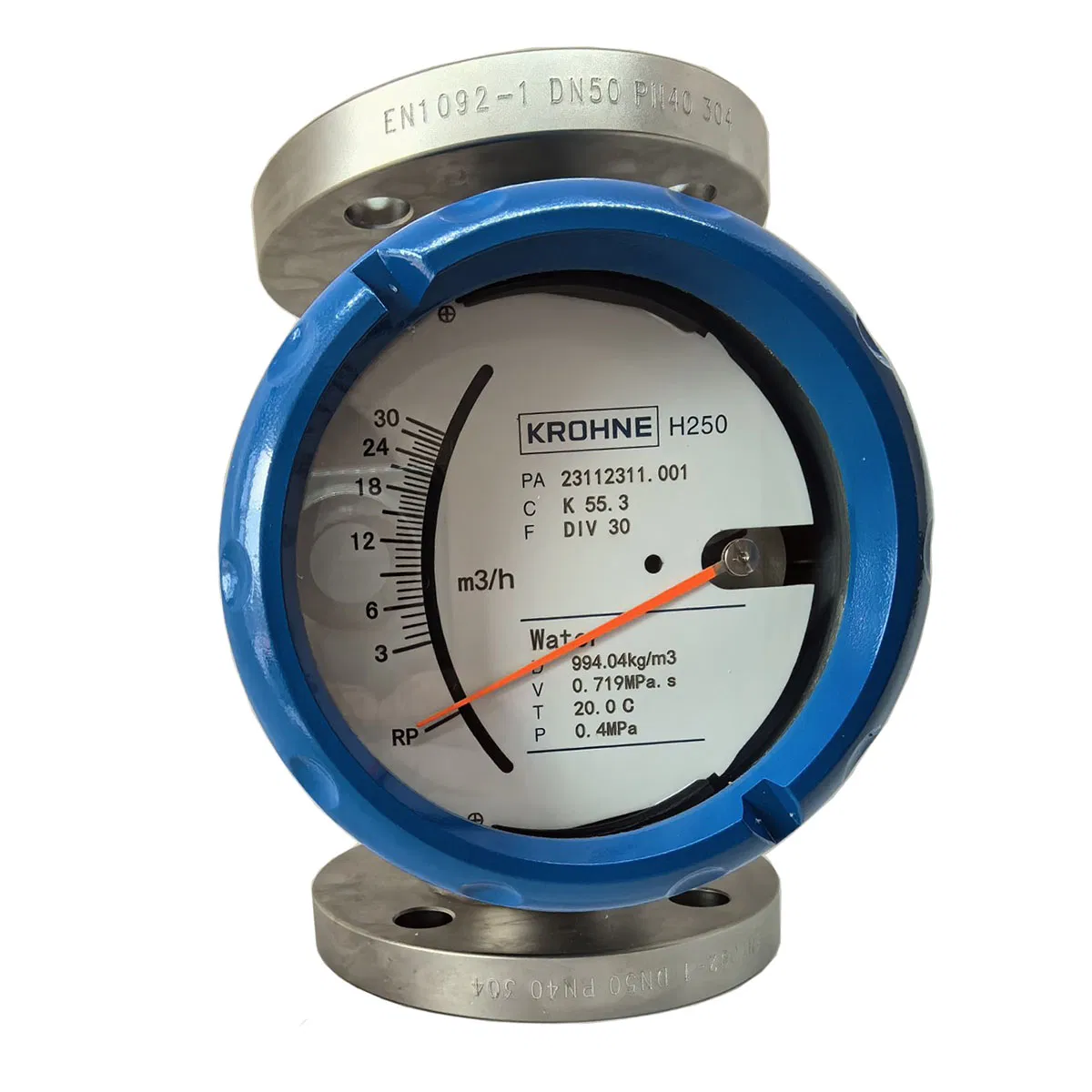

Krohne flowmeter H250 DN15-DN200 flow meter for Food Beverage

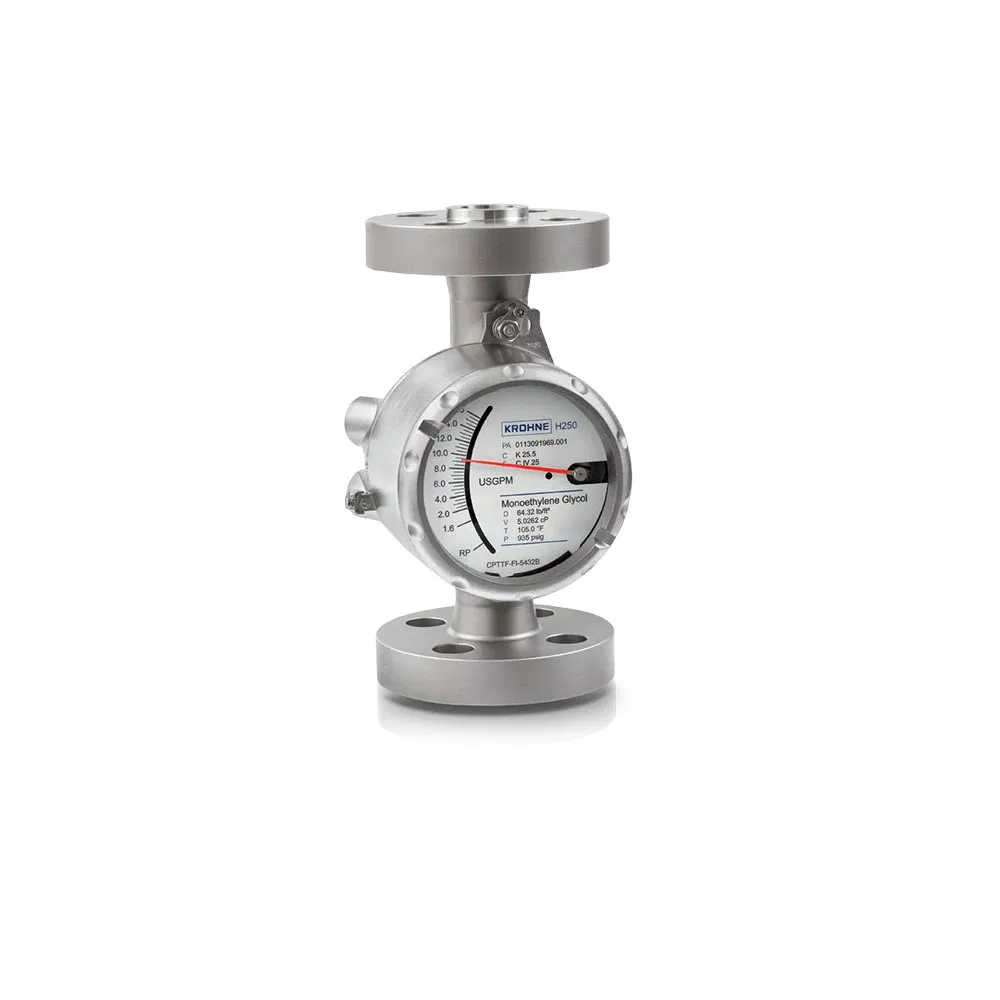

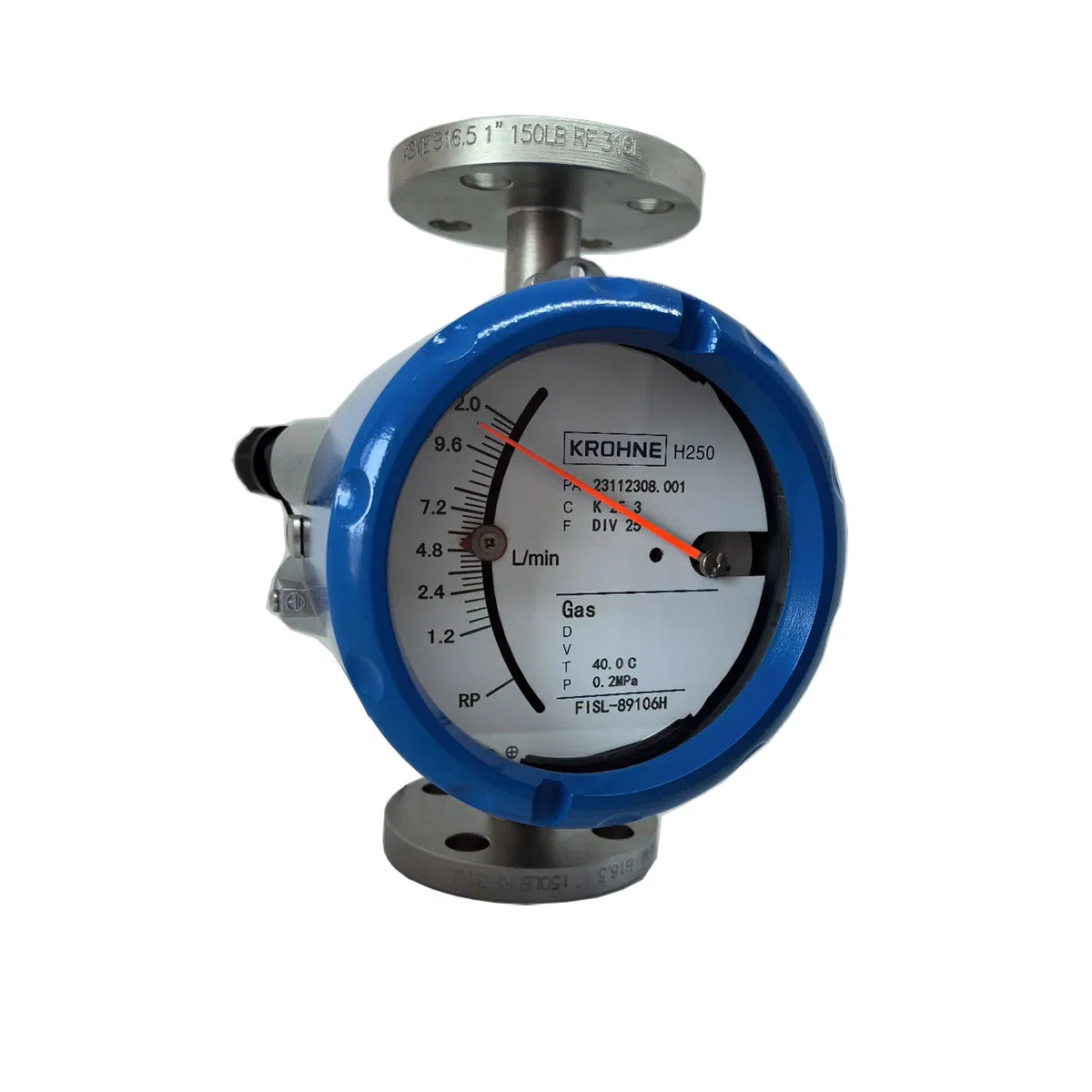

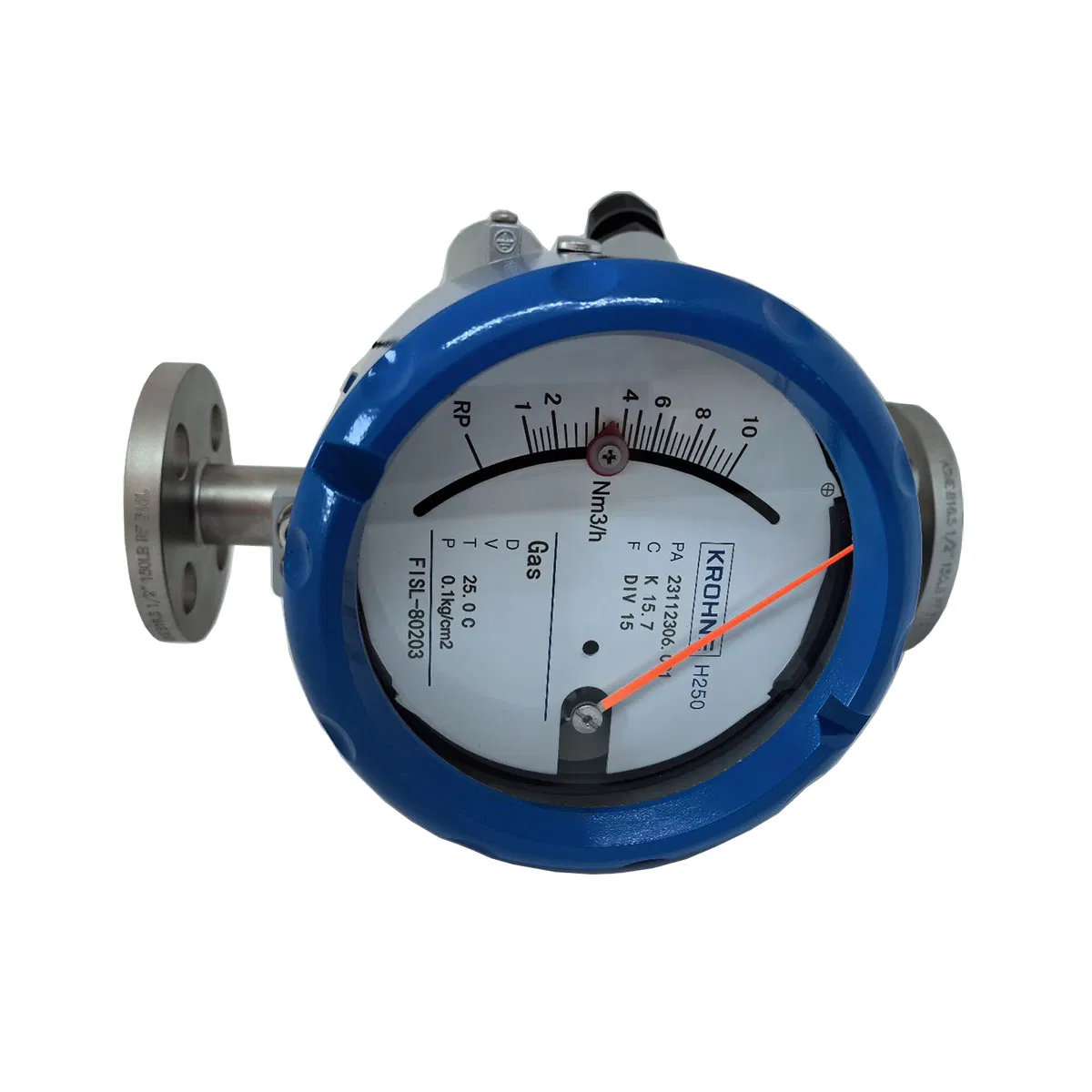

The H250 M40 is the standard variable area (VA) flowmeter for the process and OEM industry. The VA meter combines mechanical flow measurement of liquids or gases with state-of-the-art communication capabilities. The device is modularly extendable. Additional electronic modules can be added or replaced at any time without process interruption. In this way, its functionality adapts to new requirements - from analogue flow measurement without auxiliary power to digital integration into a fieldbus system.

The H250 M40 is available in various materials and in many different versions. The sturdy all-metal flowmeter can be also used in applications with high pressures (up to 1000 barg / 14500 psig), temperatures (-196…+400°C / -320…+752°F) or aggressive media. It even allows installation in horizontal or descending pipes up to DN150 / 6".

• Simple, low-cost installation: measurement and indication without auxiliary power
• Modular scalability: from mechanical to analogue to fieldbus

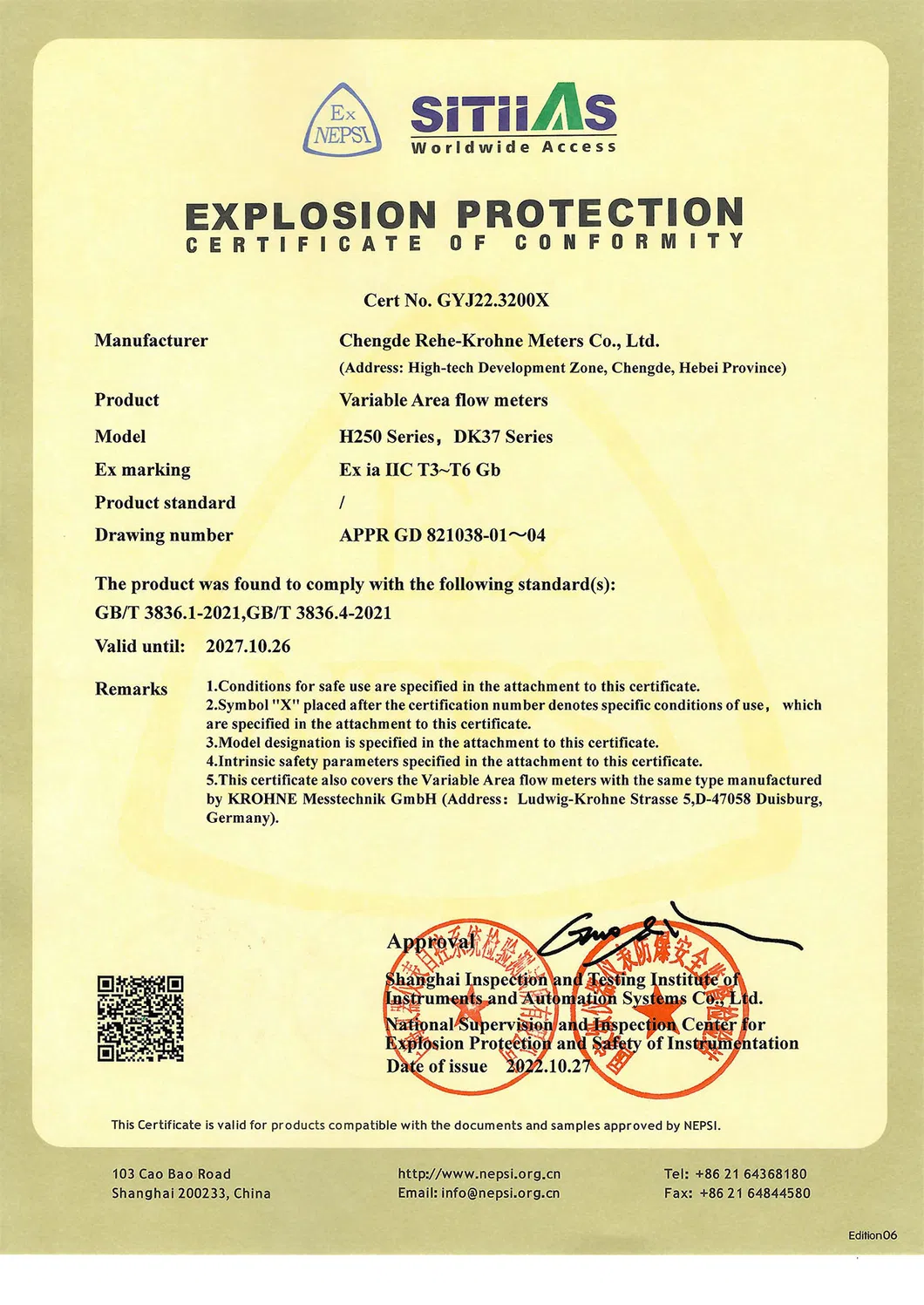

• Universal Ex concept: Exi, Exec, Exd and Ext
• Suitable for use in safety-related SIL2 applications
• CFM application diagnostics for detection of float blocks and pulsation
• Any installation position: vertical upward, horizontal, vertical downward
• Robust measuring tube construction for high pressures and temperatures
• Materials: stainless steel, Hastelloy®, titanium, Monel®, Inconel®, PTFE/TFM
