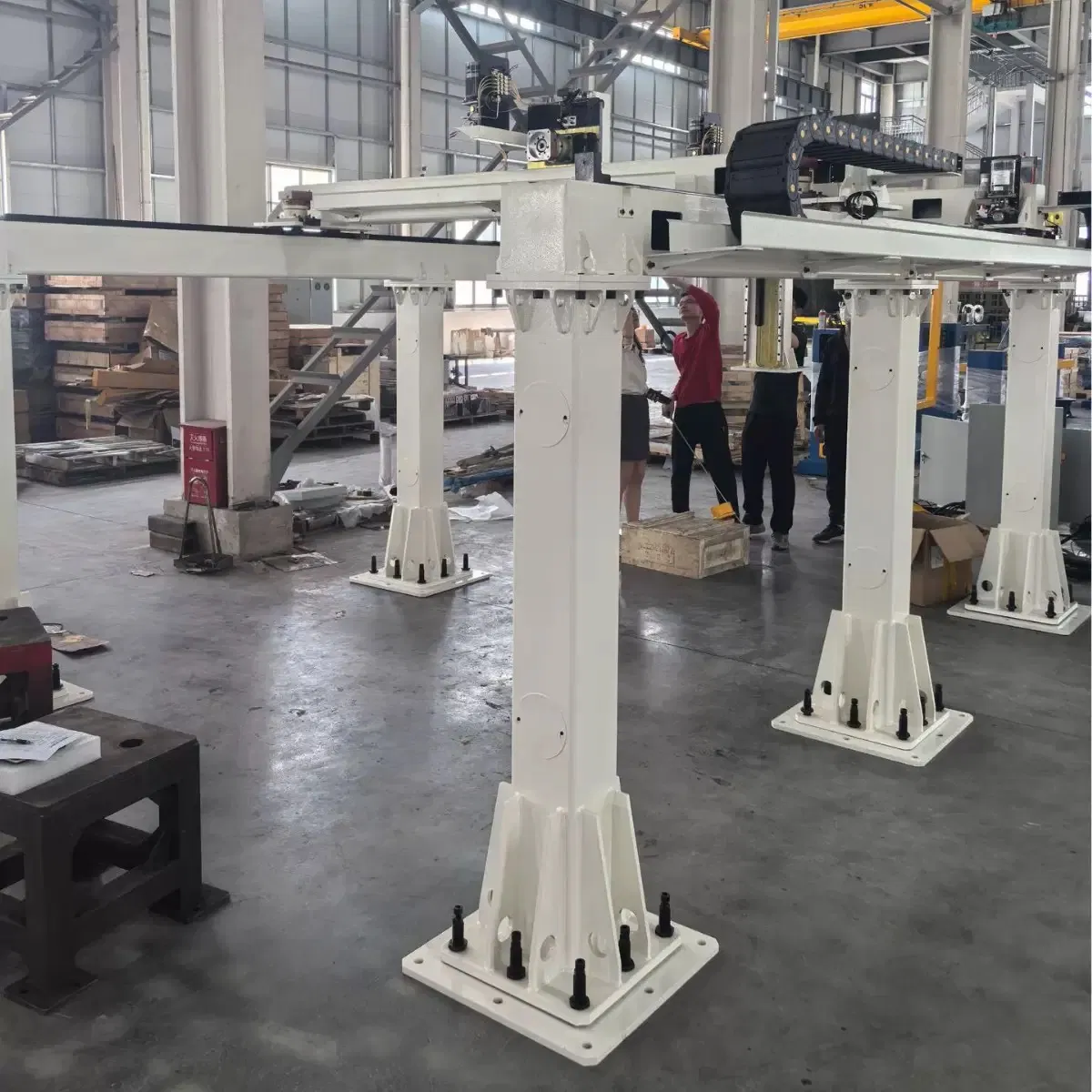

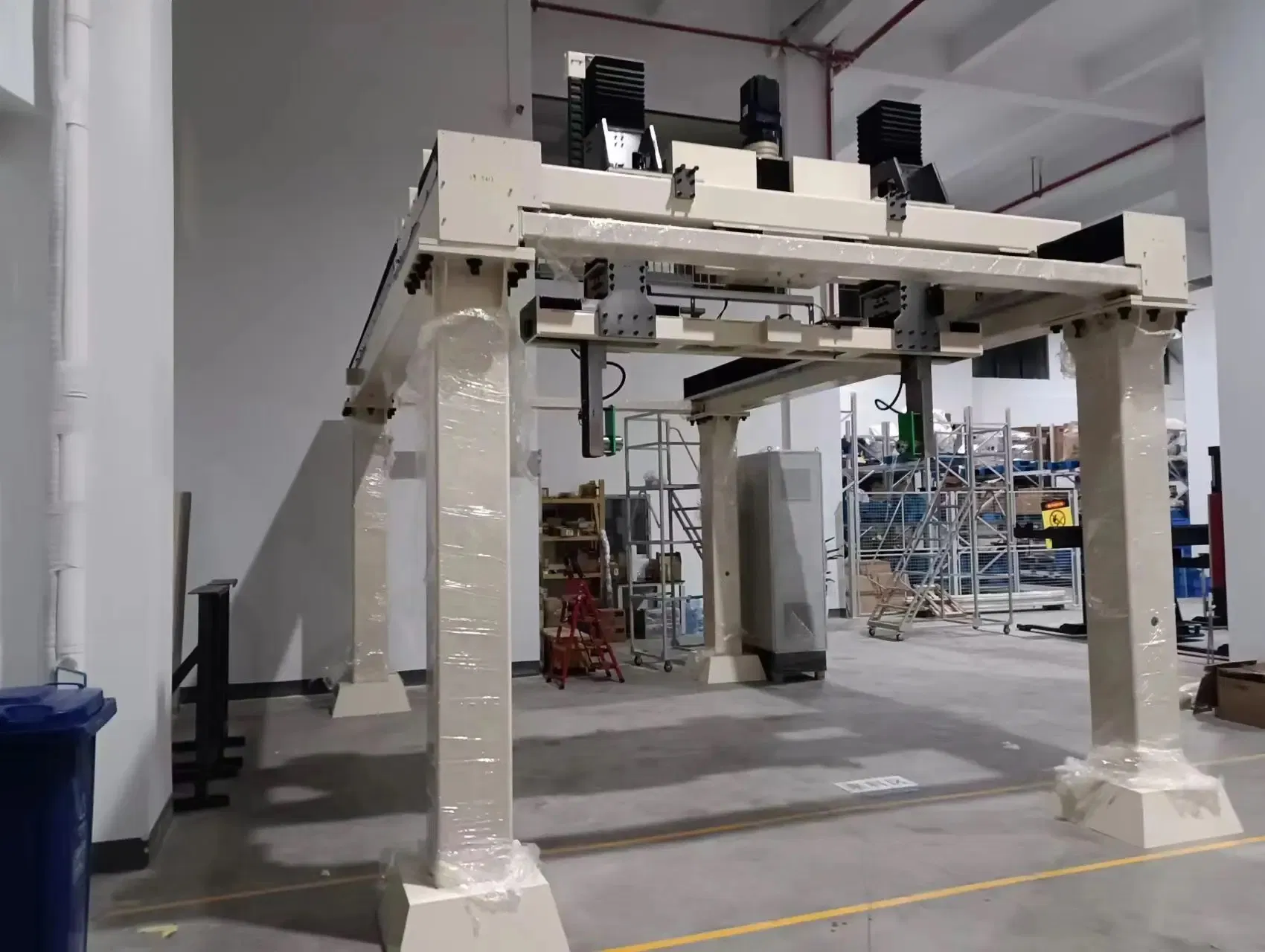

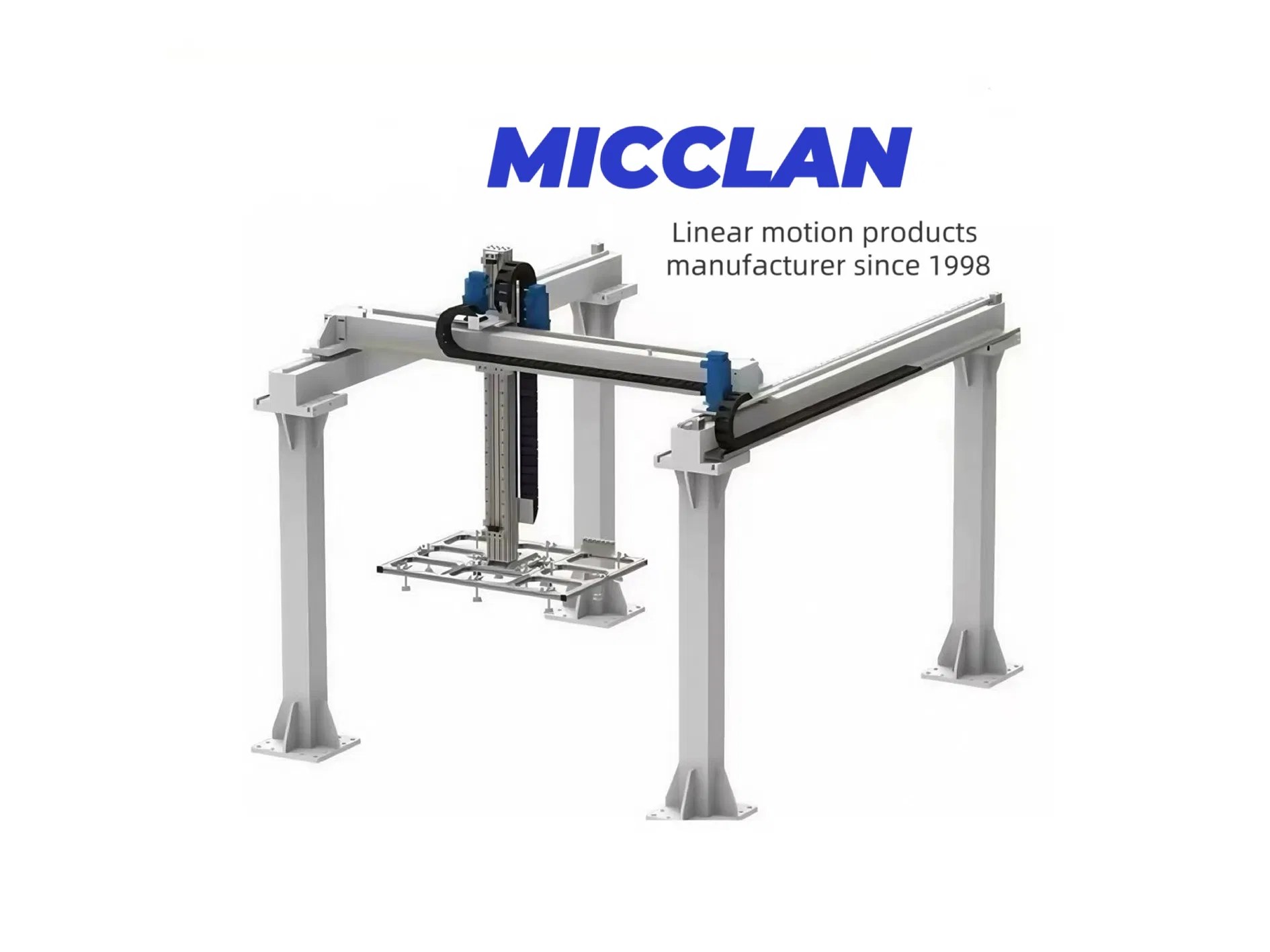

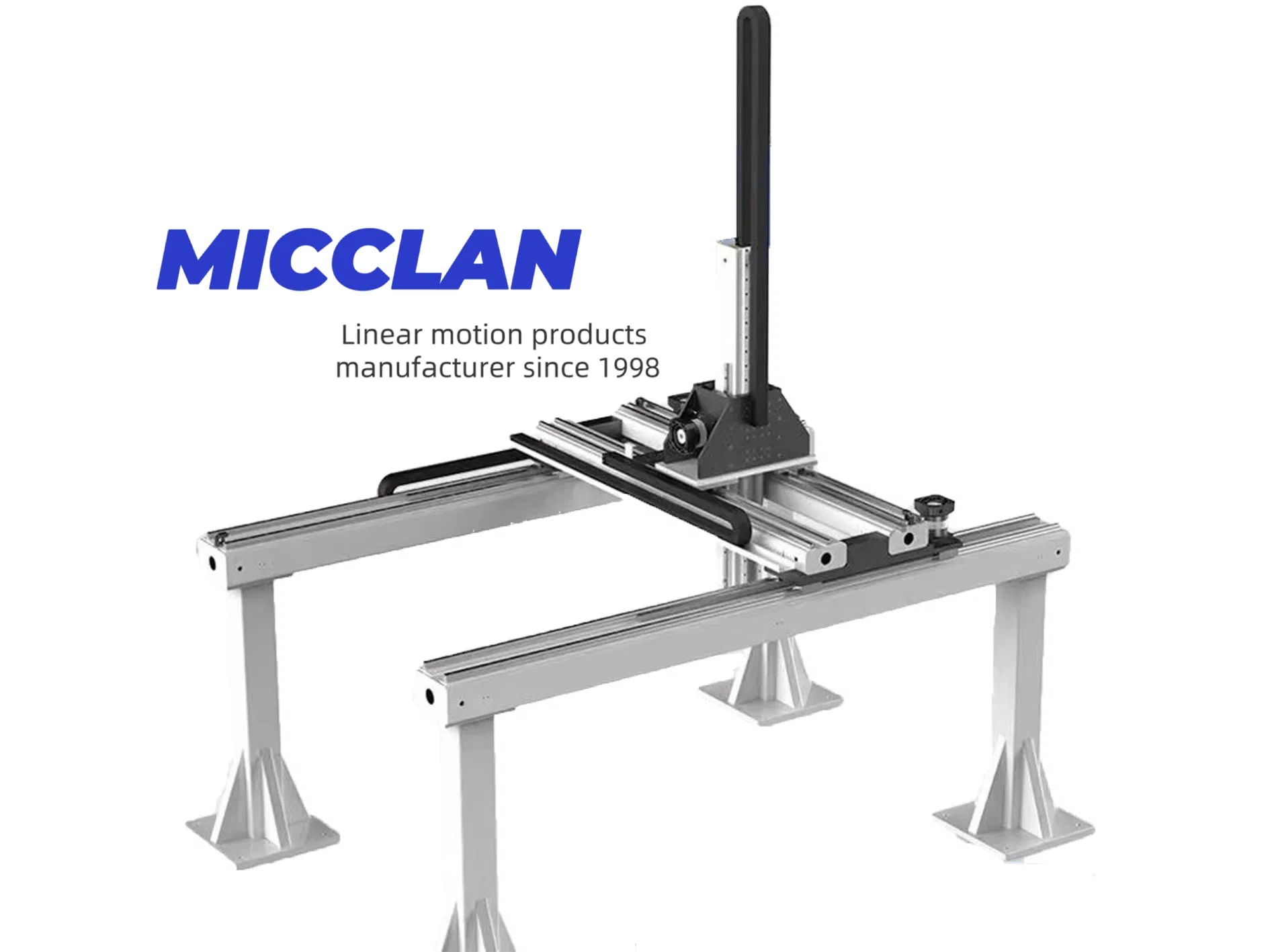

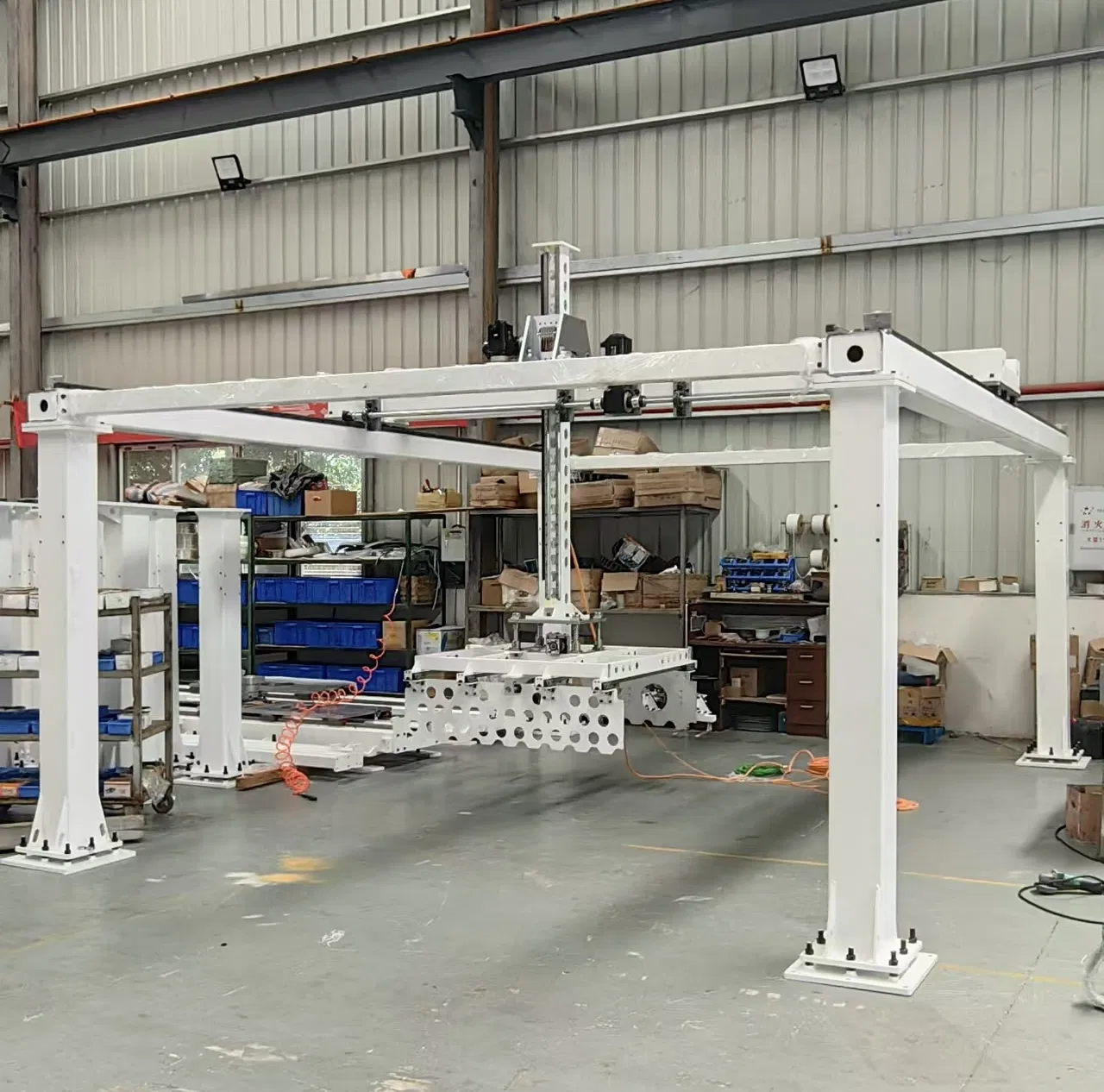

Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
1 / 5
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation
Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation

Industrial Xyz Gantry Robot Rigid Multi-Axis Linear Motion System for Industrial Automation

Customization: Available
Application: Agricultural Machinery, Automotive, Furniture, Industrial Automation, Marine, Medical Equipment, Robotics, Solar Tracking System
Certification: CCC, CE, FCC, ISO, RoHS
Send Inquiry

Product Description

📊 Basic Information
Model NO.
MH
Control Options
PLC Control
IP Rating
IP43
Limit Switch
Built-in
Max Thrust
7000N
Standard Stroke
800mm
Type
Industrial Linear Actuator
Voltage
220-380
Transport Package
Wooden Crate
Origin
China
🤖 Product Overview
Automatic Gantry Palletizer Robot – High-Speed Cartesian Palletizing Machine

Our Customized Gantry Palletizer Robot Arm is a tailor-made automation solution designed for packaging, logistics, and warehouse applications. Fully customizable in travel length, load capacity, speed, and stacking patterns, it ensures high-precision servo control and stable performance in end-of-line automation.

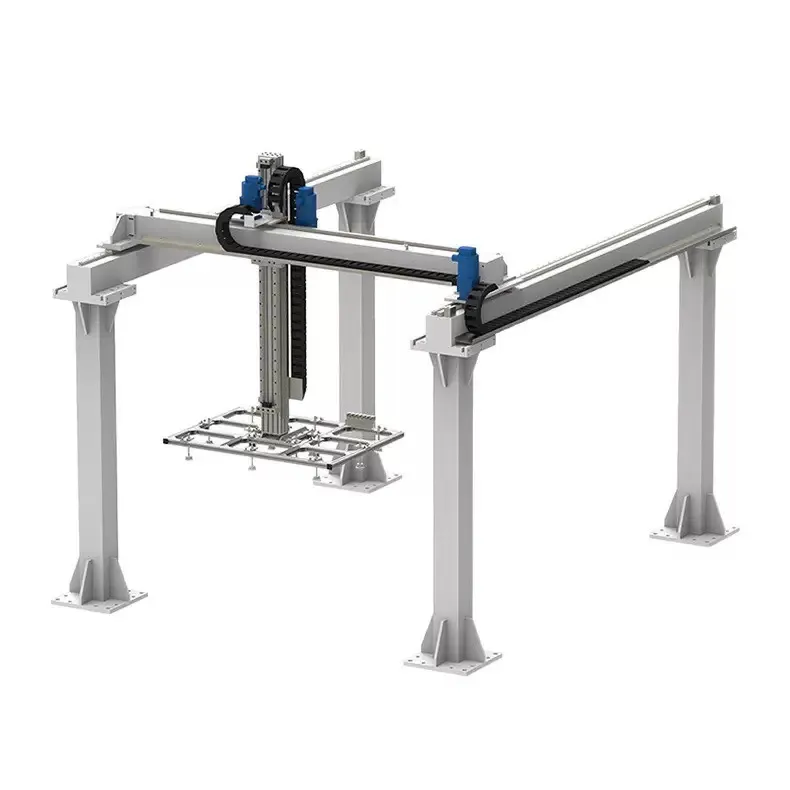

Gantry Palletizer Robot
🚀 Common Applications
Packaging Industry: Palletizing cartons, boxes, bags, or crates.
Logistics & Warehousing: Automated stacking & sorting for smart warehouses.
Food & Beverage: Stacking of packaged food, bottled drinks, and sealed bags.
Chemical & Building Materials: Handling heavy bags, cement sacks, and drums.
Industrial Automation 1
Industrial Automation 2
Industrial Automation 3
⚙️ Key Configurations
Travel Length (X/Y/Z): 1m ~ 20m (Customized).
Payload Capacity: 20kg ~ 500kg+.
Speed: Adjustable 0.2 m/s up to 1.5 m/s.
Control System: Siemens / Mitsubishi / Omron PLC + HMI.
End Effector: Vacuum gripper, mechanical gripper, or magnetic chuck.
📋 Technical Specifications & Requirements
1. Payload Requirements
Approximate payload (robot + cable carrier + tooling).
2. Travel Distance
Net stroke or total rail length required.
3. Required Speed and Accuracy
Desired movement speed (mm/s) and positioning repeatability.
4. Environment Conditions
Operating temperature and environmental factors.
🛠️ Service & Support
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
🏢 Manufacturing Capabilities
We specialize in the design, manufacturing, and customization of advanced Linear Motion Solutions. Our product portfolio includes Linear Actuators, 7th Axis for Industrial Robots, and Palletizing Machines designed to optimize productivity across industries.

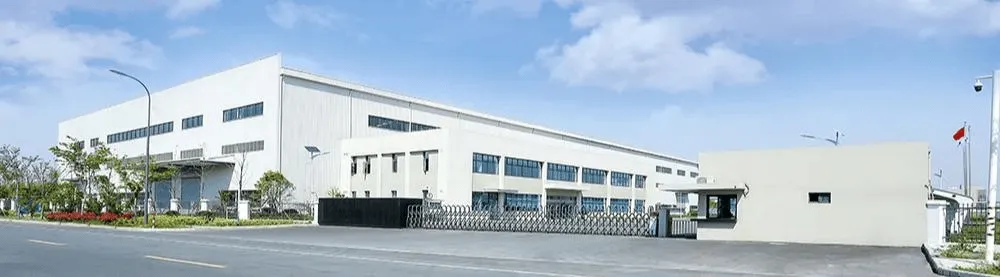

Factory Overview
Manufacturing 1

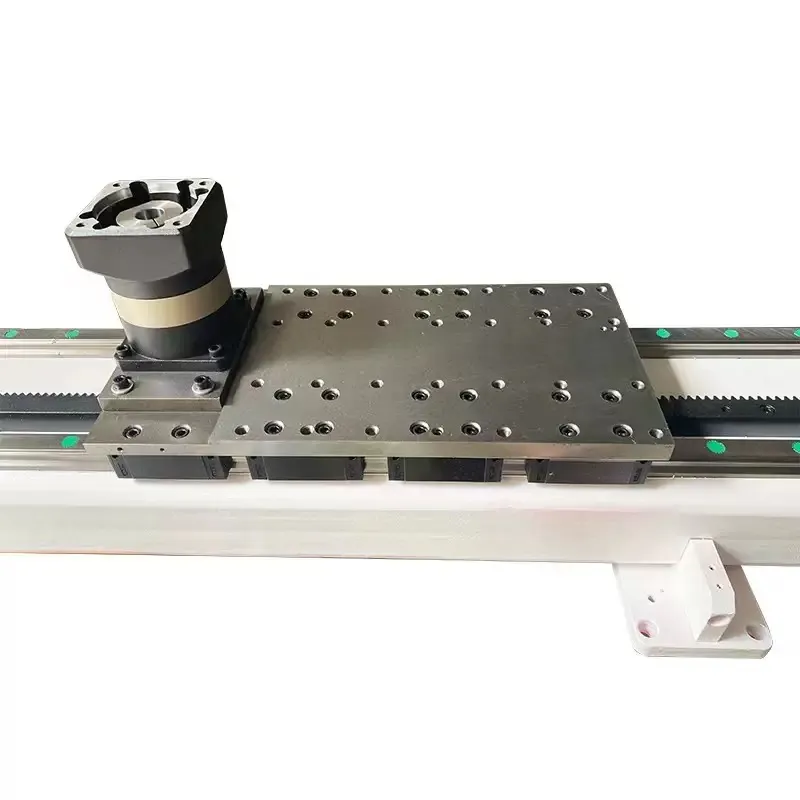

Manufacturing 2
❓ Frequently Asked Questions
What is the standard lead time for customized orders?
Customized units typically require 20 to 45 days for design, manufacturing, and testing depending on complexity.
Do you provide international after-sales support?
Yes, we provide global technical assistance and have partnered service centers in key regions to support our international clients.
Can the gantry robot be customized for specific factory layouts?
Absolutely. Our systems are fully customizable in terms of X/Y/Z travel lengths (up to 20m) and payload capacities to fit your specific workspace.
What documentation is provided for export shipments?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
What types of end effectors can be integrated?
Depending on the product, we can integrate vacuum grippers, mechanical clamps, or magnetic chucks tailored for cartons, bags, or drums.
How do I initiate an order or request a quote?
Please provide your payload, stroke, and speed requirements. We will then issue a formal quote and proceed with a Purchase Order (PO).
