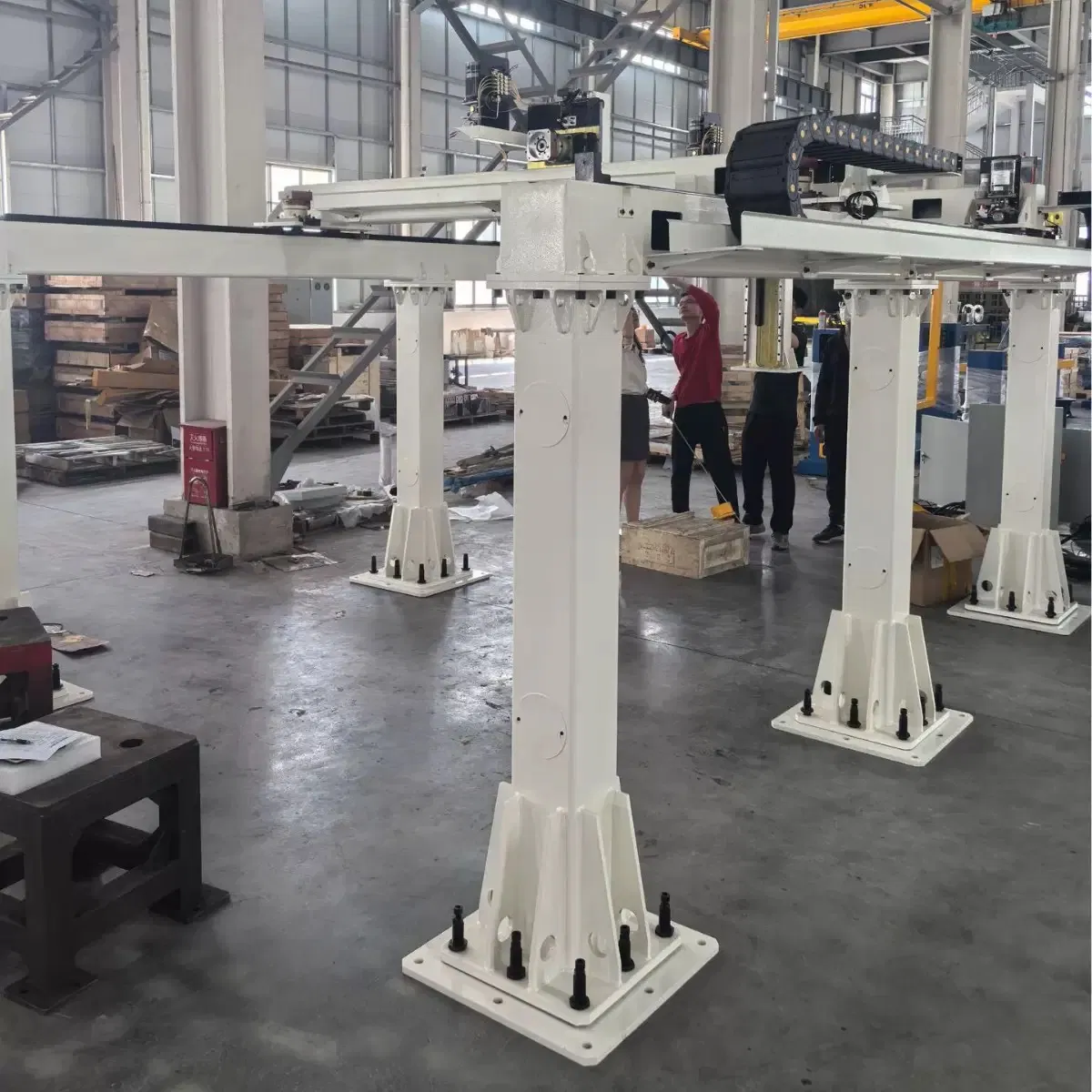

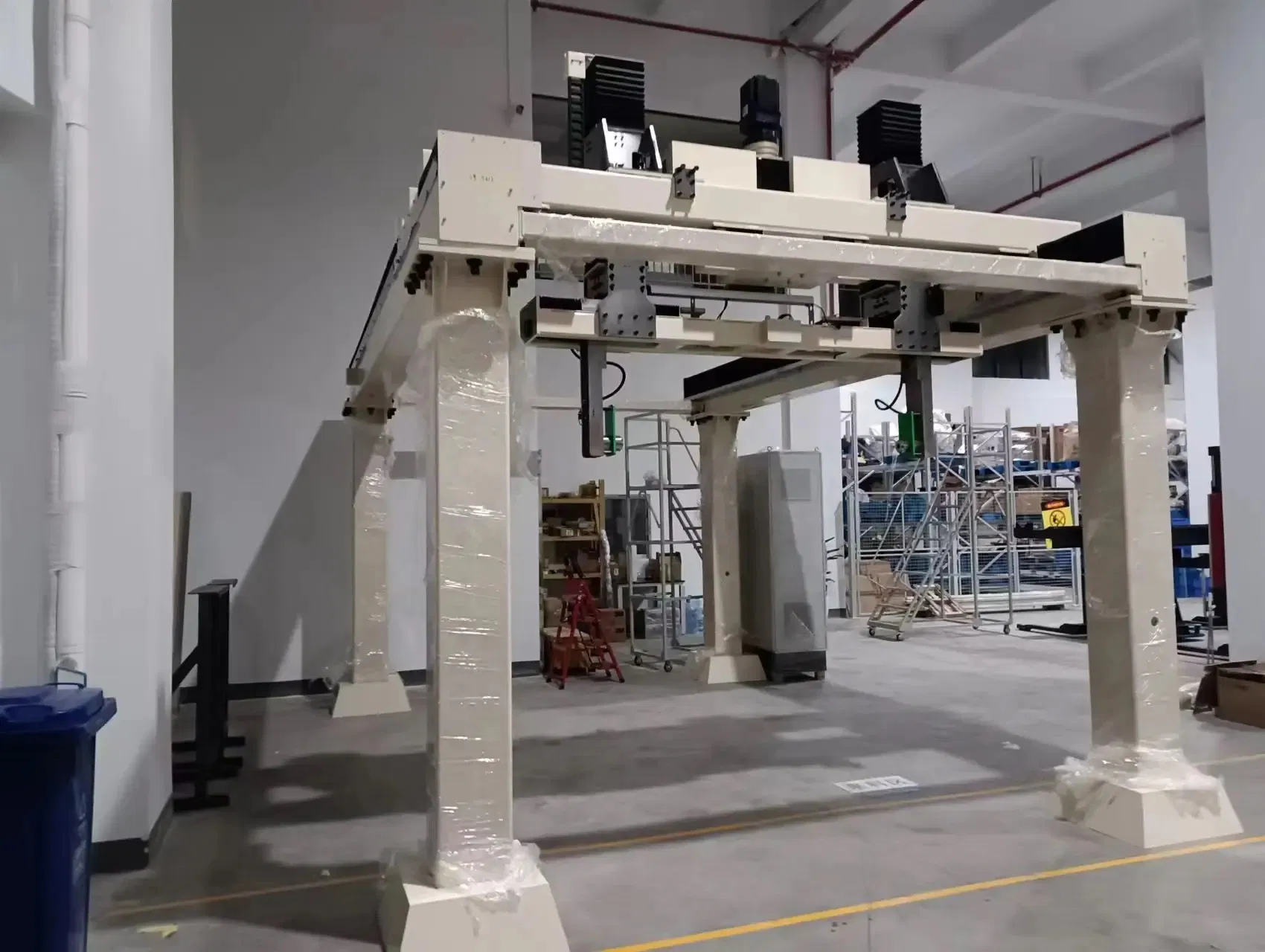

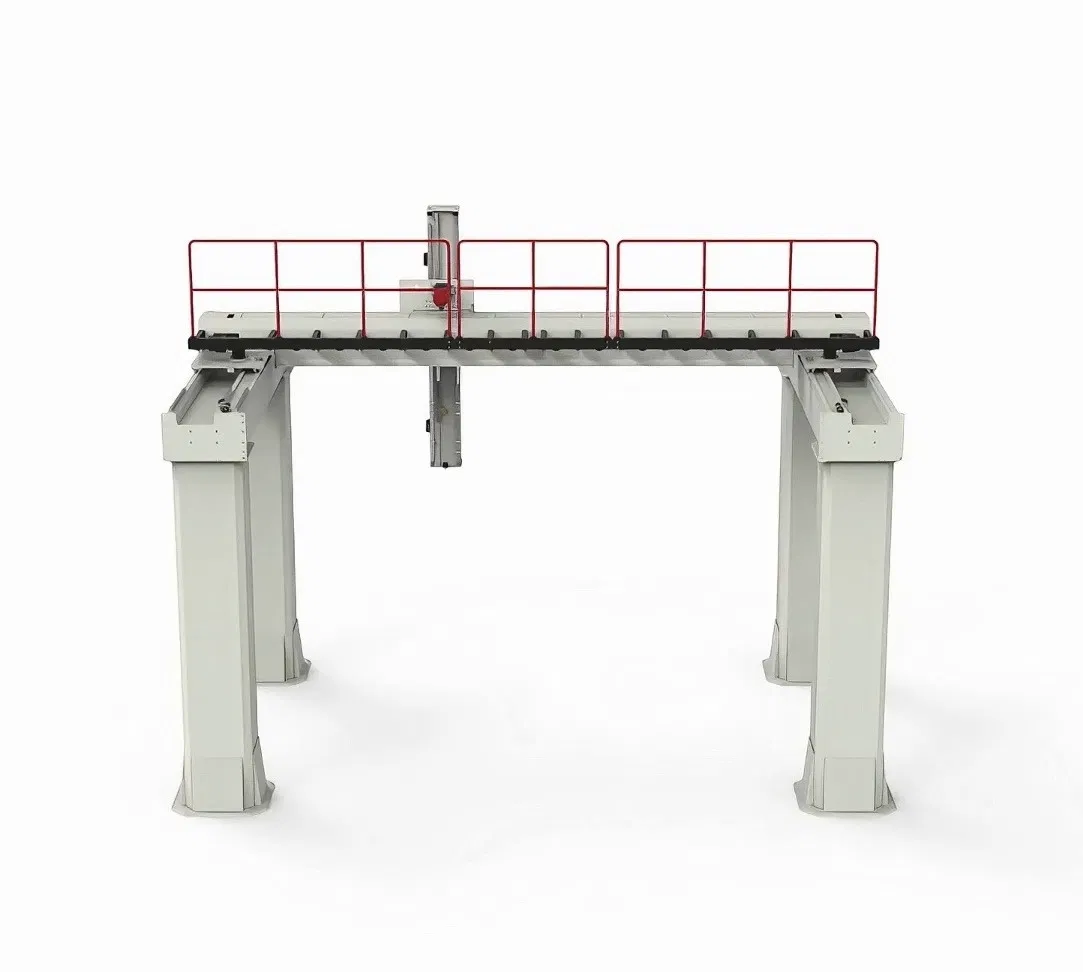

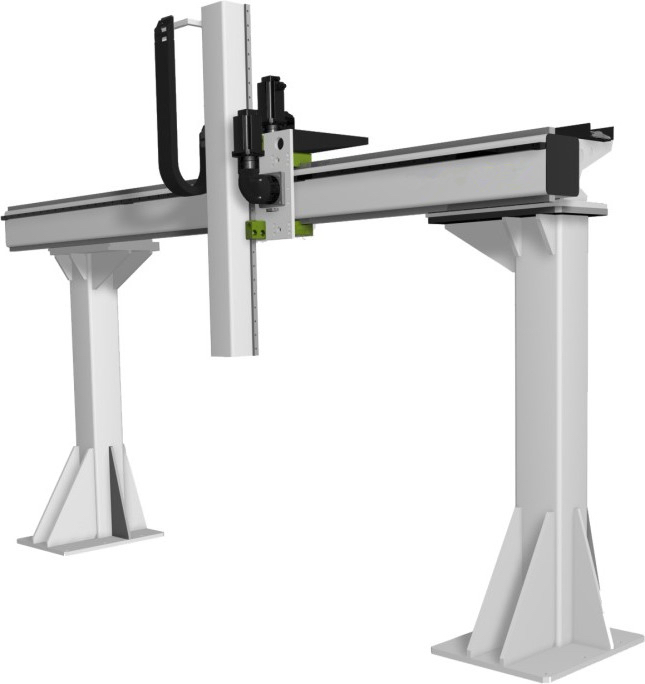

High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
1 / 5
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags
High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags

High-Speed Gantry Robot Palletizer Cartesian Palletizing System for Cartons and Bags

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
MK
Control Options
PLC Control
IP Rating
IP43
Limit Switch
Built-in
Max Thrust
7000N
Standard Stroke
800mm
Type
Industrial Linear Actuator
Voltage
220-380V
Color
Customizable
HS Code
8483409090

Automatic Gantry Palletizer Robot

Our Customized Gantry Palletizer Robot Arm is a tailor-made automation solution designed for packaging, logistics, and warehouse applications. Unlike standard palletizers, this system is fully customizable in travel length, load capacity, speed, and stacking patterns. High-precision servo control and a durable gantry structure ensure stable performance and high efficiency in end-of-line automation.

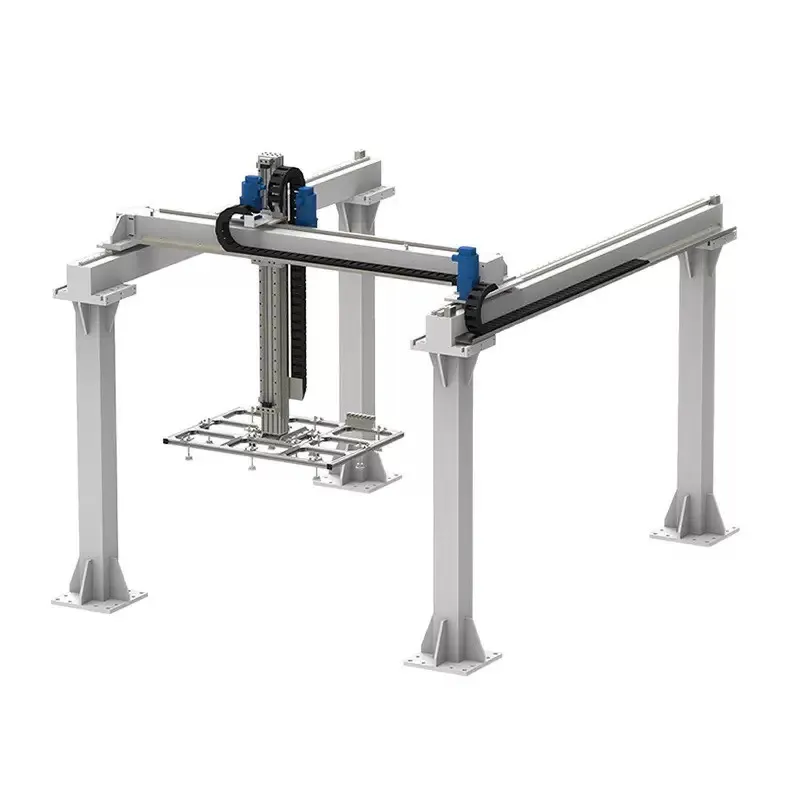

High-Speed Gantry Robot Palletizer

Common Applications

  • Packaging Industry: Palletizing cartons, boxes, bags, or crates.
  • Logistics & Warehousing: Automated stacking & sorting for smart warehouses.
  • Food & Beverage: Efficient stacking of packaged food and bottled drinks.
  • Chemical & Building Materials: Handling heavy bags, cement sacks, and drums.
  • Manufacturing Plants: Industrial automation with customized layouts.

Key Configurations

  • Travel Length (X/Y/Z): 1m ~ 20m (customized based on layout)
  • Payload Capacity: 20kg ~ 500kg+ (heavy load models available)
  • Speed: Adjustable from 0.2 m/s up to 1.5 m/s
  • Drive System: Rack & pinion / ballscrew / linear motor
  • Control System: Siemens / Mitsubishi / Omron PLC + Touchscreen HMI
  • End Effector: Vacuum gripper, mechanical gripper, or magnetic chuck

Product Gallery

Palletizing System 1
Palletizing System 2

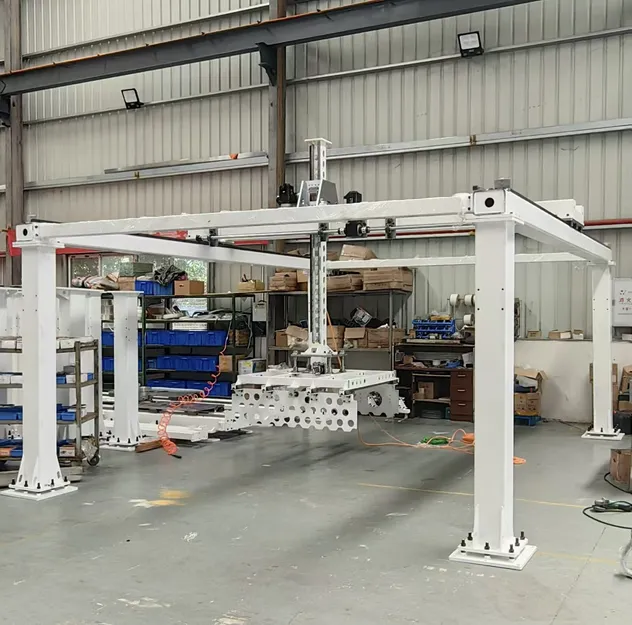

Palletizing System 3

Technical Specification Request

Please provide the following information for a formal quote:

1. Payload Requirements
Approximate payload to be carried (robot + tooling + cables).
2. Travel Distance
Net stroke or total rail length required for X, Y, and Z axes.
3. Required Speed & Accuracy
Desired movement speed (mm/s) and positioning repeatability requirements.
4. Environmental Conditions
Working environment (temperature, dust levels, etc.).

After Sales & Support

Standard Warranty
12 months / 2,000 hours
Extended Warranty
Optional up to 36 months
Global Support
24/7 technical assistance
Training
On-site or remote options

Linear Motion Solutions

Specializing in the design and manufacturing of advanced Linear Motion Solutions, we provide cost-effective automation products including:
  • Linear Actuators for precise motion control
  • 7th Axis for Industrial Robots to extend working range
  • Smart Palletizing Machines for material handling
  • Custom Automation Equipment to optimize productivity
Automation Solutions

Frequently Asked Questions

What is the lead time for orders?
Customized units typically require 20–45 days depending on the complexity of the design.
Do you provide after-sales service overseas?
Yes, we provide global 24/7 technical assistance and have partnered service centers in key regions.
Can I request a customized bucket or attachment size?
Absolutely! We offer tailored end-effectors, grippers, and attachments to suit your specific cargo.
What documents do you provide for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
What is your standard warranty period?
Our standard warranty is 12 months or 2,000 operating hours, whichever comes first, with extended options available.
How can I place an order?
Please contact our team with your technical requirements for a formal quote, then confirm with a Purchase Order (PO).
