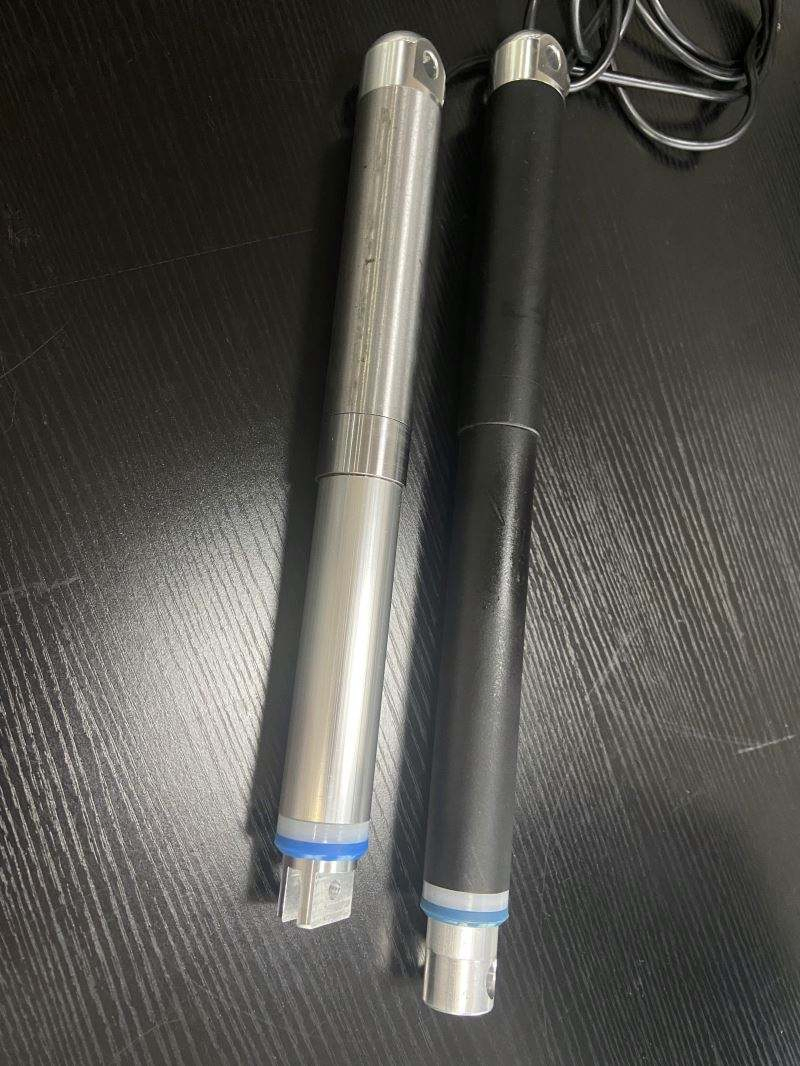

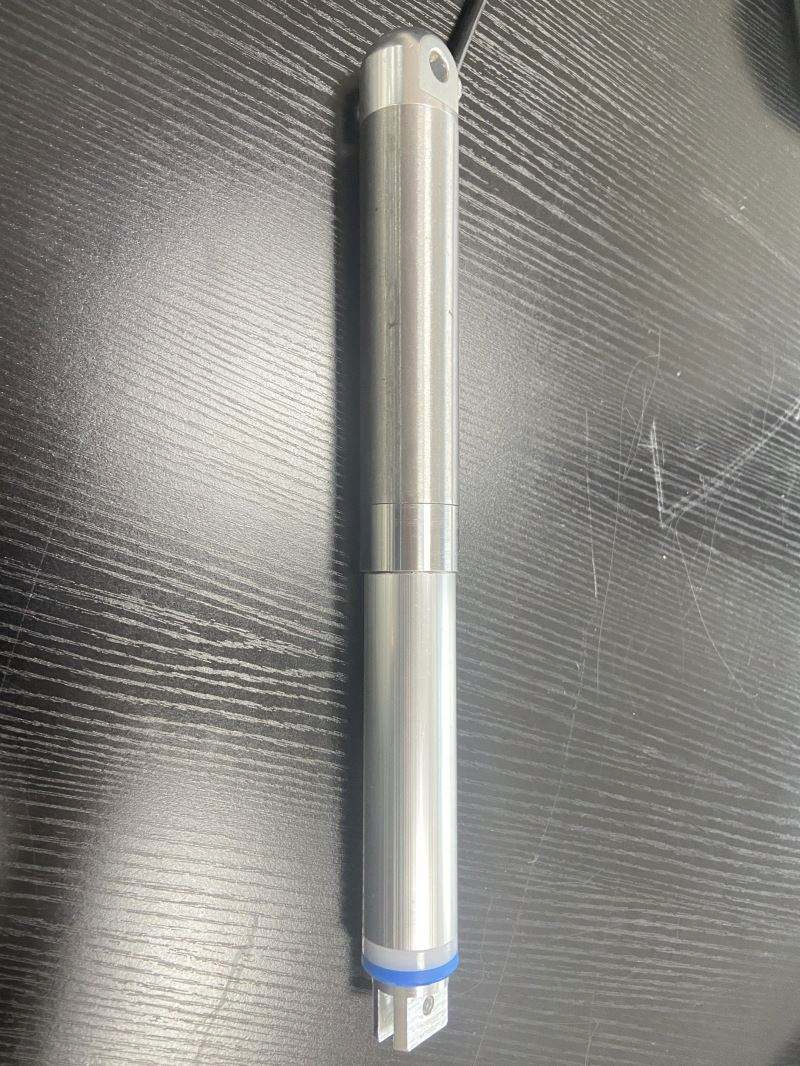

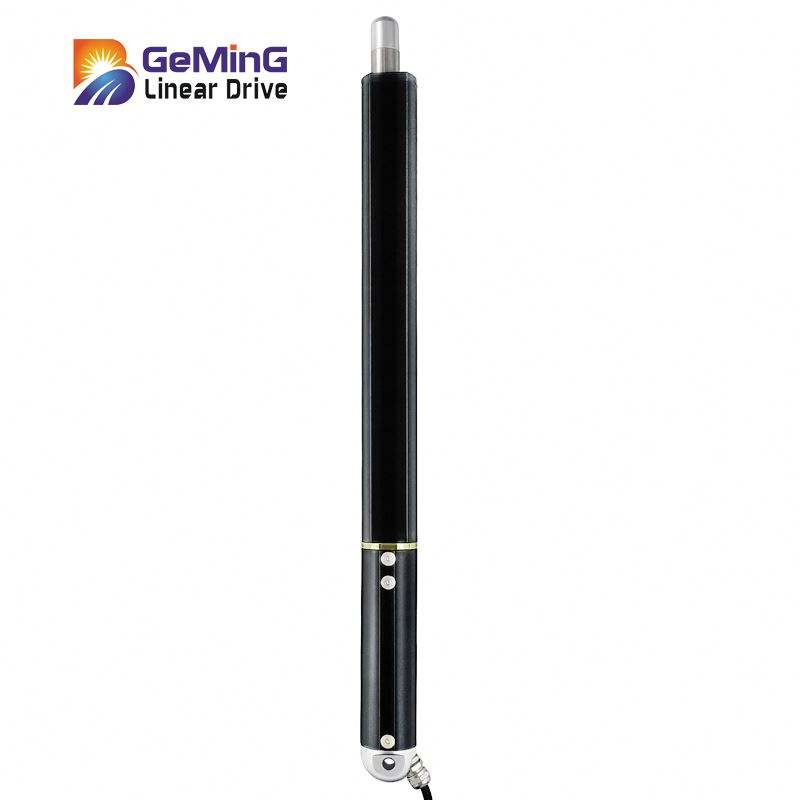

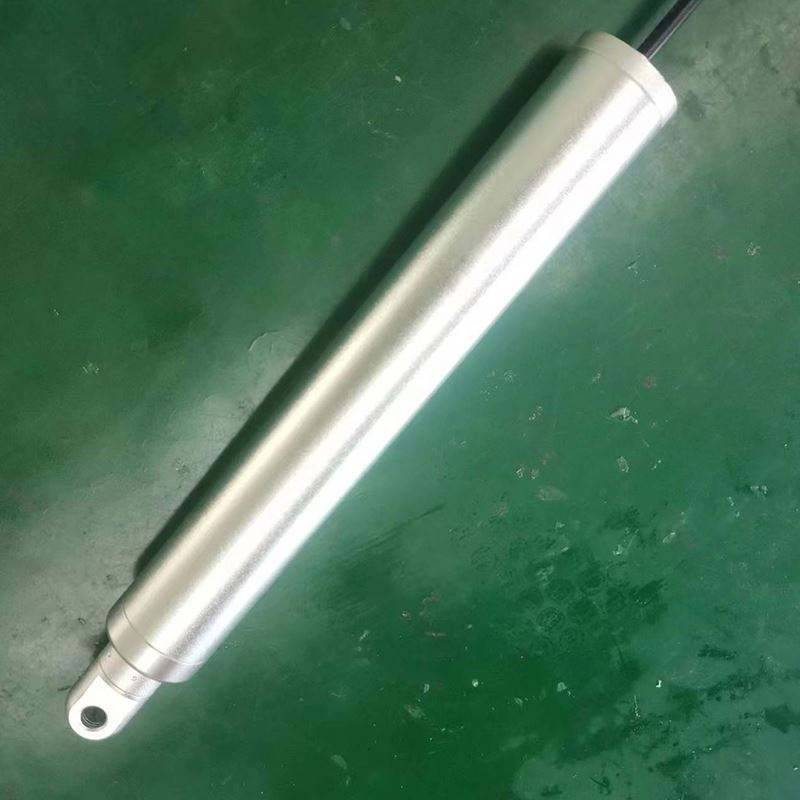

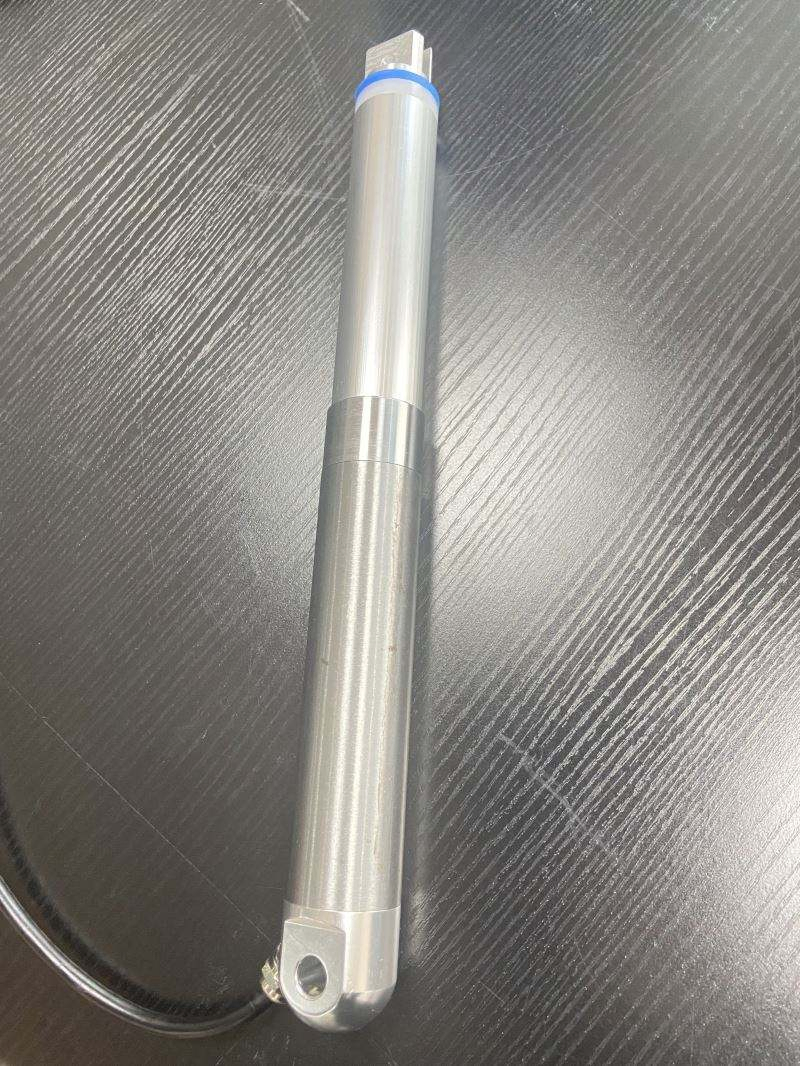

High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
1 / 5
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System
High-Power 12V Electric Swing Gate Drive Pusher System

High-Power 12V Electric Swing Gate Drive Pusher System

Customization: Available
Application: Agricultural Machinery, Automotive, Furniture, Industrial Automation, Marine, Medical Equipment, Robotics, Solar Tracking System
Certification: CE, ISO, RoHS
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
HT-KC36
Control Options
On/Off Control
IP Rating
IP65
Limit Switch
Built-in
Max Thrust
7000N
Standard Stroke
10-1500mm
Type
Gear Motor
Voltage
12V/24V/36V/48V DC
Speed
4-44.5mm/S
Motor Power
60W
Motor Type
PMDC Brushed Motor
Construction
Permanent Magnet
Efficiency
IE 1
Ambient Temp
-25°C to +65°C
📝 Product Overview

Our core competence lies in the development and customization of high-performance linear motion solutions. In 2023, we expanded our technology portfolio to include linear actuators with CANbus systems and specialized lifting columns for Cobots and charging piles.

We provide versatile solutions for Boat, Car, Electric Bicycle, Fan, and Home Appliance applications. All projects are open for customization to meet specific thrust, stroke, and speed requirements.

General Features & Specifications
Voltage of motor 12V DC, 24V DC
Load Capacity Customized up to 7000N
Full Load Speed 4-44.5mm/s
Stroke Length 8-900mm (Customizable up to 1500mm)
Minimum Dimensions Stroke + 210mm
IP Rating IP65 Waterproof
Material Metallic zinc alloy
Limit Switches Built-in
🖼️ Product Display
Linear Actuator Display 1

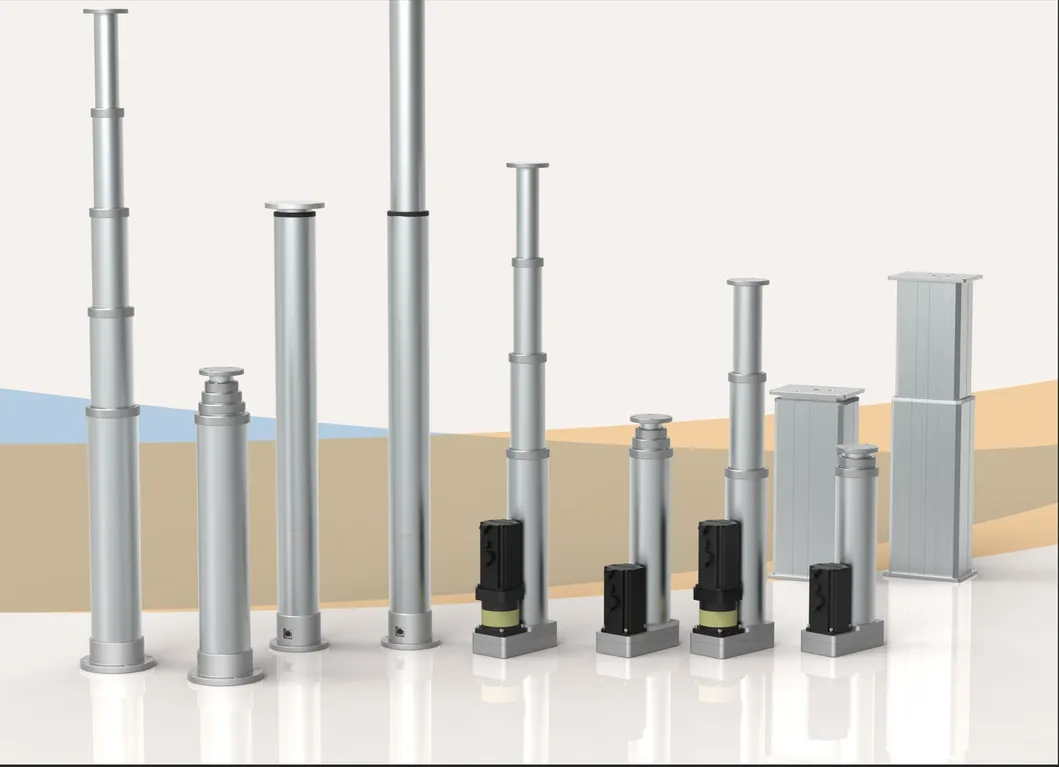

Linear Actuator Display 2

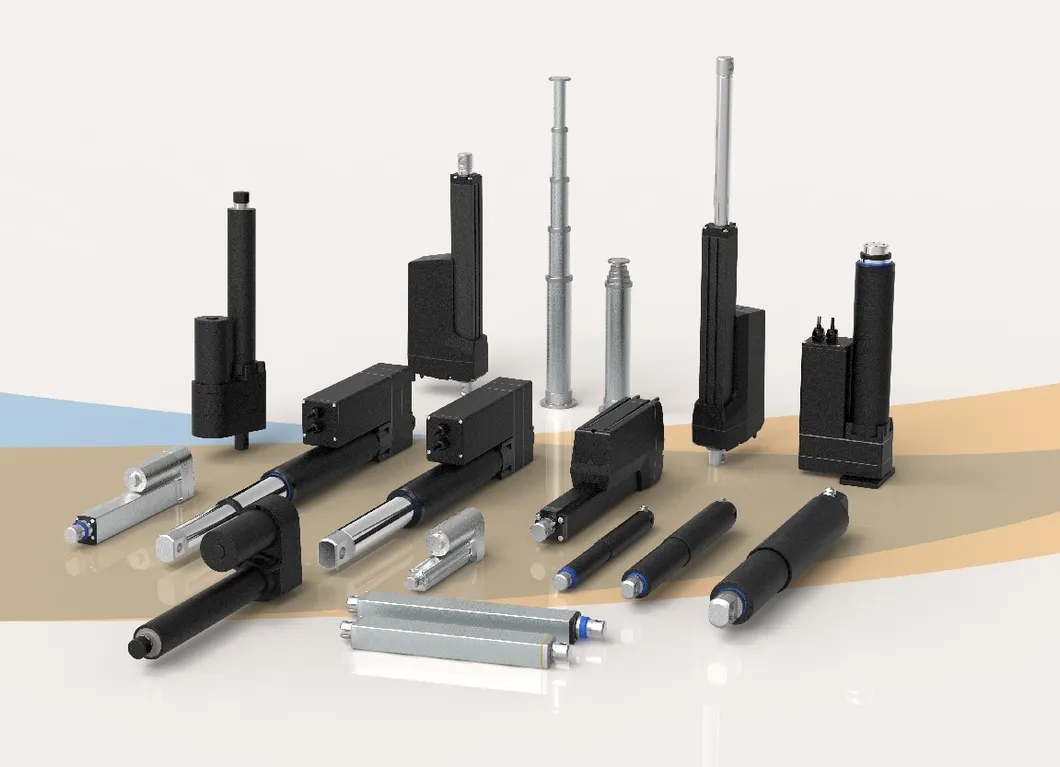

Linear Actuator Display 3
Dimension Drawing
🏭 Manufacturing & Certifications

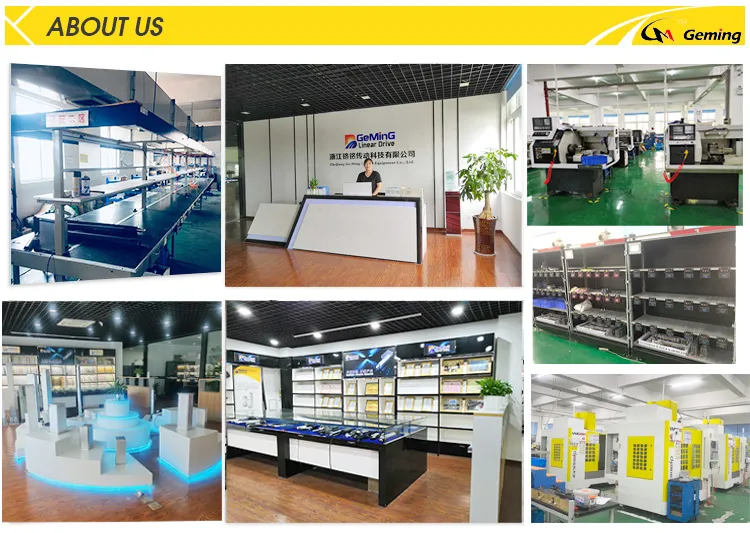

Production Line
Testing Facility
Workshop 1
Workshop 2

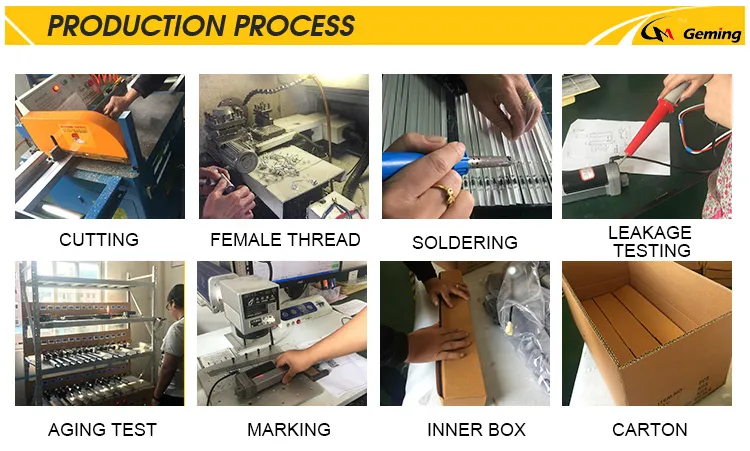

Workshop 3
Product Certifications
📦 Packaging & Logistics
Packaging Process
Shipping Logistics
❓ Frequently Asked Questions
What if I need an actuator with a specific stroke length or force not listed?
We offer extensive customization options. We can configure actuators with specific travel lengths and thrust capacities to meet your unique project requirements.
How can I mount these linear actuators?
Each actuator features mounting holes at both ends. These are compatible with standard mounting brackets (offering a 180° turning radius) to provide a flexible range of installation solutions.
Do the actuators include internal limit switches?
Yes, all models come with built-in limit switches. These automatically stop the motor at the end of travel in either direction, preventing over-extension and reducing power consumption.
Where can I find detailed dimensions and technical drawings?
Detailed product specifications, wiring schematics, and CAD model drawings are available. Our technical data section provides precise measurements for each model.
Can the actuator hold a heavy load when partially extended?
Absolutely. Our actuators are designed to hold their rated force at any point along the stroke length, even when power is disconnected.
What is the environmental protection level of these units?
These actuators feature an IP65 rating, making them waterproof and suitable for harsh environments with temperatures ranging from -25°C to +65°C.
