Heavy-Duty 7th Axis Linear Rail System for Industrial Robot Automation

Customization:	Available
Application:	Automotive, Industrial Automation, Robotics
Certification:	CCC, CE, FCC, ISO, RoHS

Send Inquiry

Product Description

📊

Overview & Basic Info

Model NO.	YTD
Control Options	Continuous Path Control
Max Thrust	Customizable
Standard Stroke	Customizable
Type	Delivery Robot / 7th Axis Linear Rail
Voltage	Customizable
Transport Package	Wooden Crate
Specification	STEEL
Origin	China
HS Code	8428909090

Packaging & Delivery

Package Size	5000.00cm * 4000.00cm * 2000.00cm
Package Gross Weight	1000.000kg

⚙️

Product Description

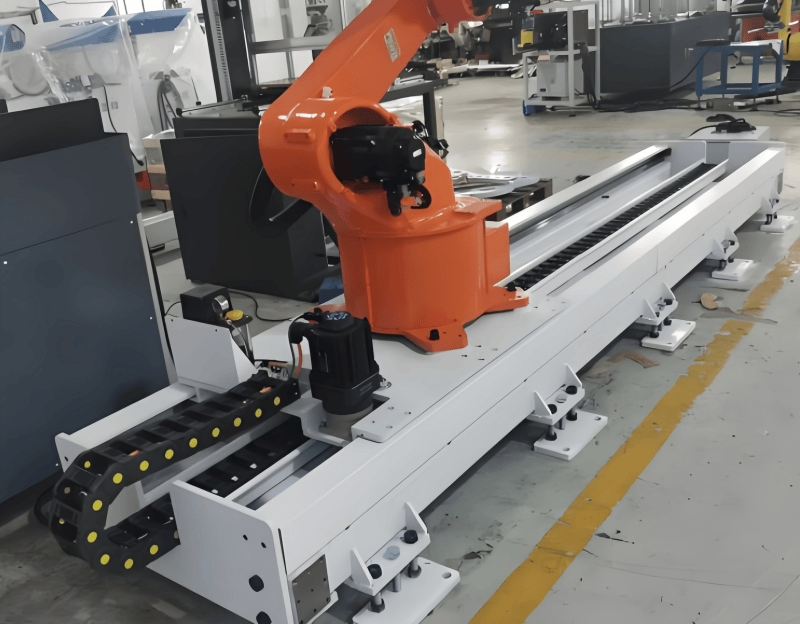

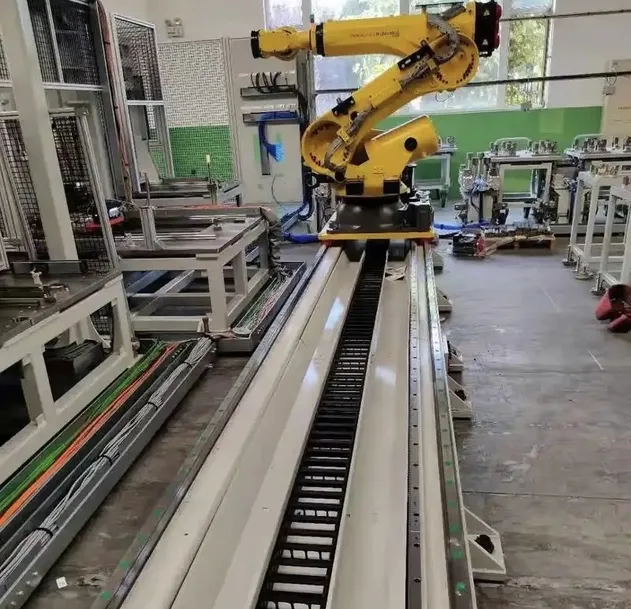

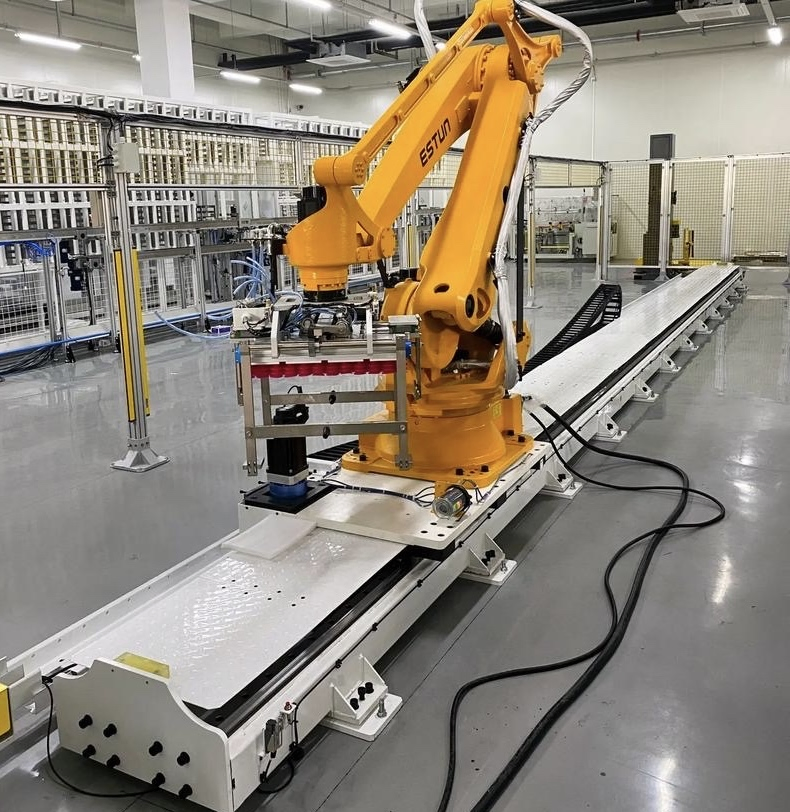

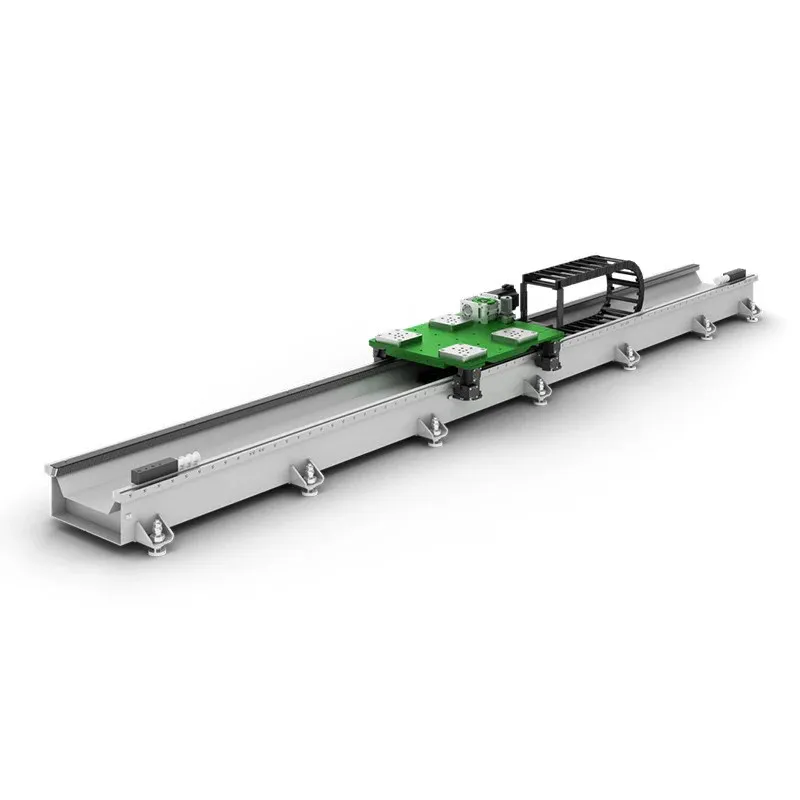

7th axis ground Linear rail tracks for Collaborative robot

The seventh-axis floor linear rail is an additional linear motion system that extends the range of a robotic arm or CNC machine. It provides an extra degree of freedom by allowing the entire robot to move along a linear path, effectively increasing its working envelope.

Key Features:

Extended Reach: Moves the robotic arm along a straight path for larger workspace.

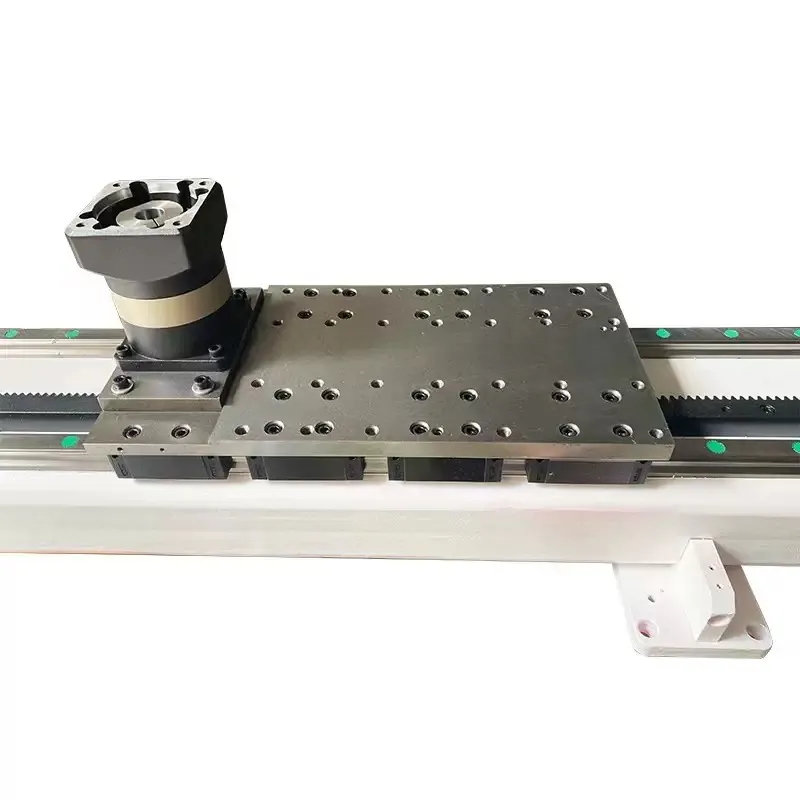

High Precision: Includes servo motors and linear guides for accurate movement.
Heavy Load Capacity: Designed to support industrial robots and heavy machinery.
Customizable Length: Tailored lengths depending on application requirements.

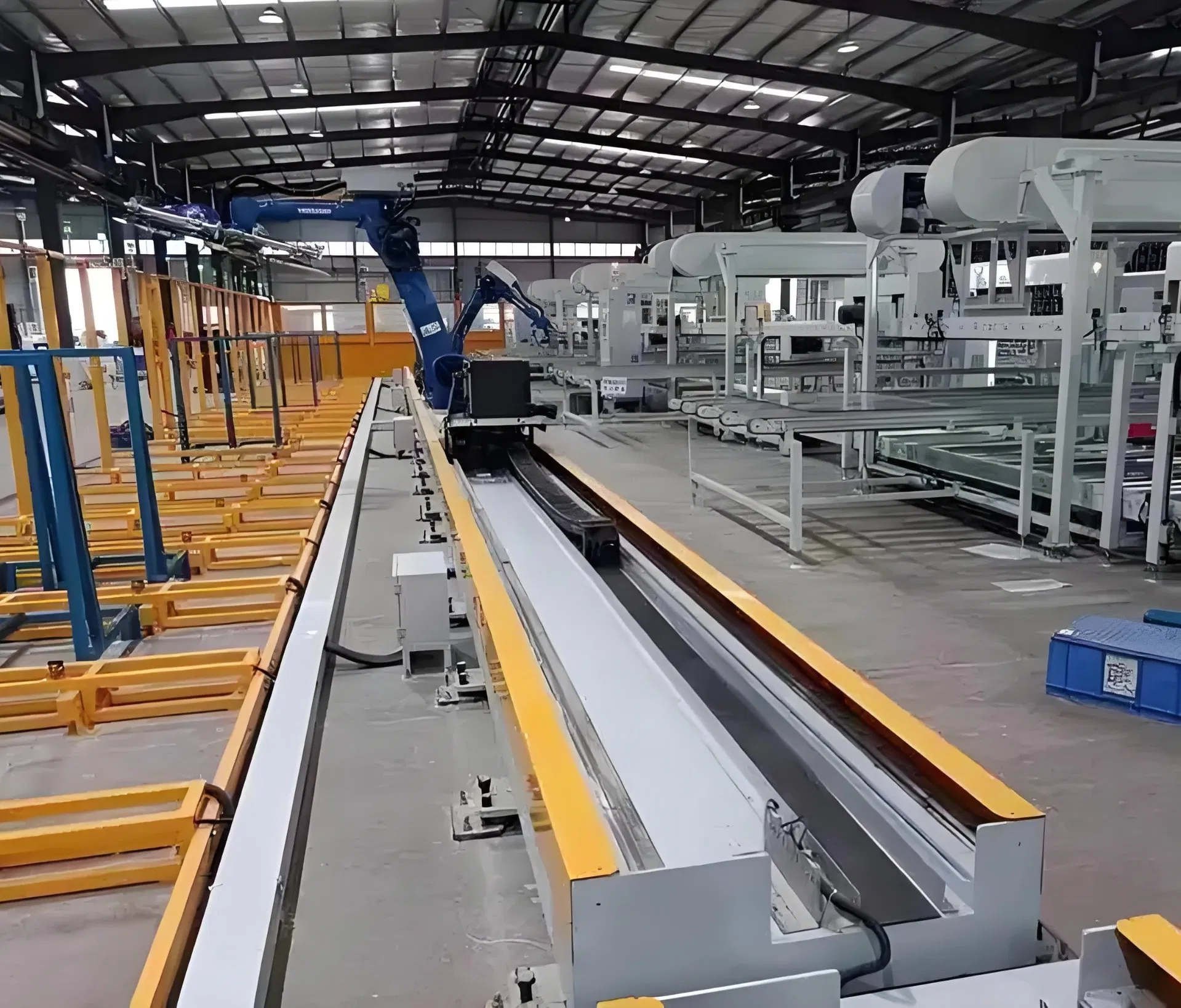

Common Applications:

Welding large structures.
Material Handling between workstations.
3D Printing & CNC workspace expansion.
Palletizing across wider areas.

Key Configurations

Engine: High-torque, low-emission diesel engine (Tier III compliant)
Hydraulic System: Precision-controlled pumps and valves for smooth operation
Undercarriage: Reinforced steel tracks with adjustable tension
Cab: Ergonomic ROPS/FOPS-certified cabin with air conditioning
Arm & Bucket: Multiple size options (standard, long-reach, heavy-duty)
Control System: Intelligent monitoring panel with fault diagnostics

📝

Technical Quotation Requirements

Please provide the following information to receive a customized quote:

Category	Requirements
Robot Model	Exact model number and total weight including tooling.
Payload	Approximate payload (robot + cable carrier + tooling).
Travel Distance	Net stroke or total rail length required.
Performance	Desired movement speed and positioning repeatability.
Motor Info	Details of additional motors (brand, model, encoder type).

🛠️

After Sales Service

Warranty

Standard: 12 months or 2,000 operating hours.
Extended: Optional coverage up to 36 months.

Support & Training

Global 24/7 technical assistance and on-site or remote maintenance training.

🏢

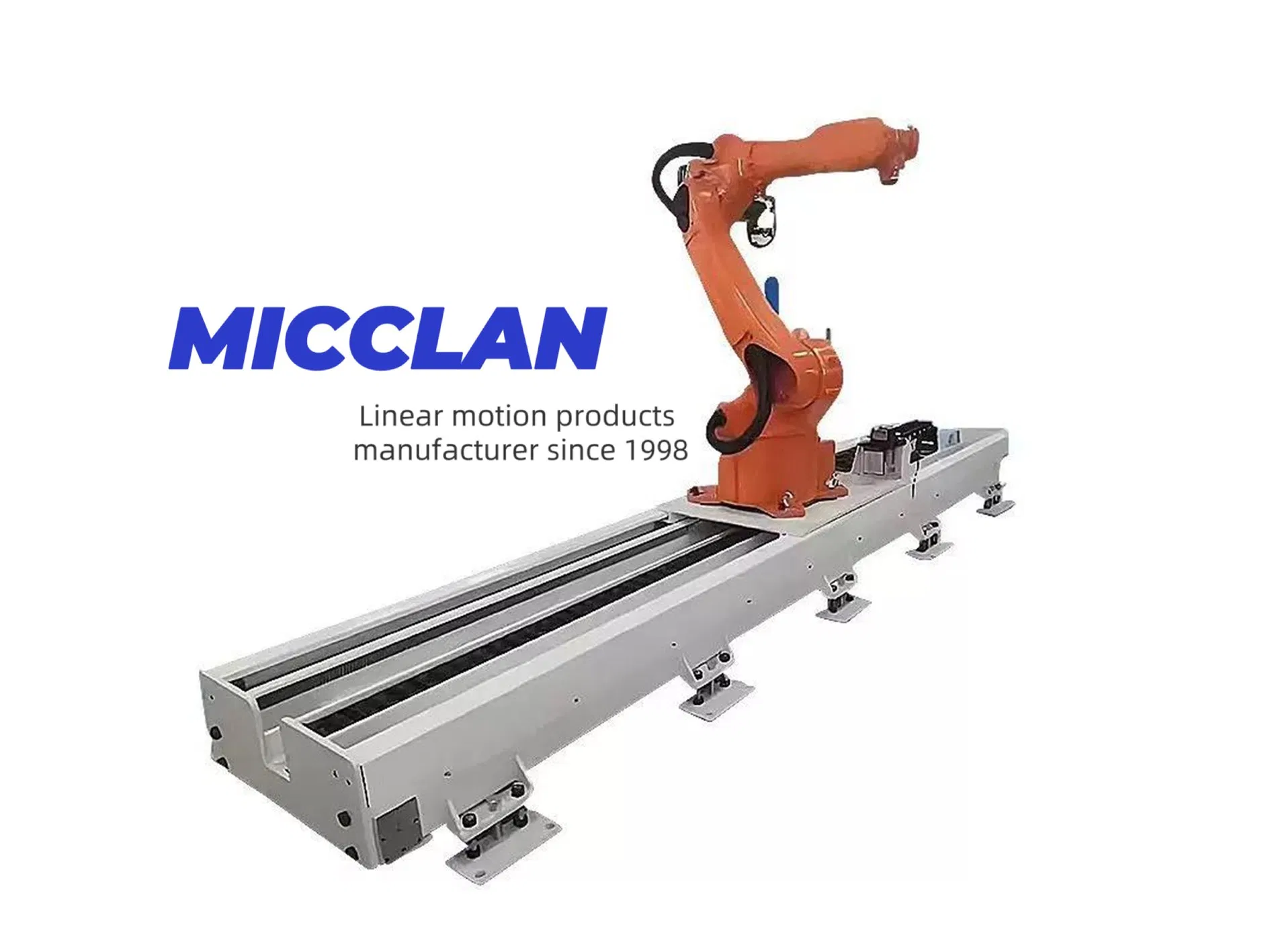

Professional Solutions

We specialize in the design, manufacturing, and customization of advanced Linear Motion Solutions tailored for industrial applications. We provide cost-effective automation products backed by reliable factory warranties.

Product Portfolio

Linear Actuators - Precise motion control
7th Axis for Industrial Robots - Extended flexibility
Palletizing Machines - Smart material handling
Automation Equipment - Productivity optimization

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs support

❓

Frequently Asked Questions

Q1: What's the lead time for customized orders? A: Standard customized units typically require 20–45 days depending on the complexity of the specifications.

Q2: Do you provide after-sales service for international customers? A: Yes, we provide 24/7 technical assistance and have partnered service centers in key global regions to ensure support.

Q3: Can the 7th axis length be customized for specific robot models? A: Absolutely. We offer tailored track lengths and mounting configurations to match your specific robot model and workspace requirements.

Q4: What documents are provided for the export process? A: We provide a full export package, including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q5: How can I place an order or request a quote? A: You can reach out to our team with your technical requirements. We will provide a detailed quote, which you can then confirm with a Purchase Order (PO).

Q6: Are the linear rail systems compatible with all major robot brands? A: Yes, our systems are designed to be compatible with a wide range of industrial robots. We just need your specific model details to ensure perfect integration.
