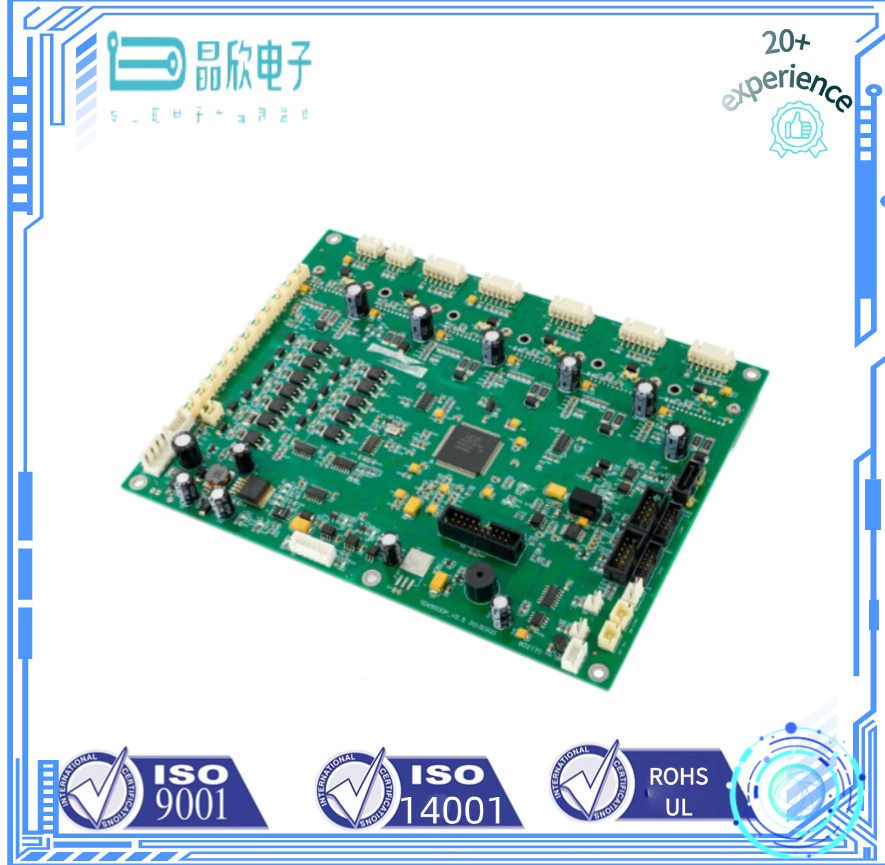

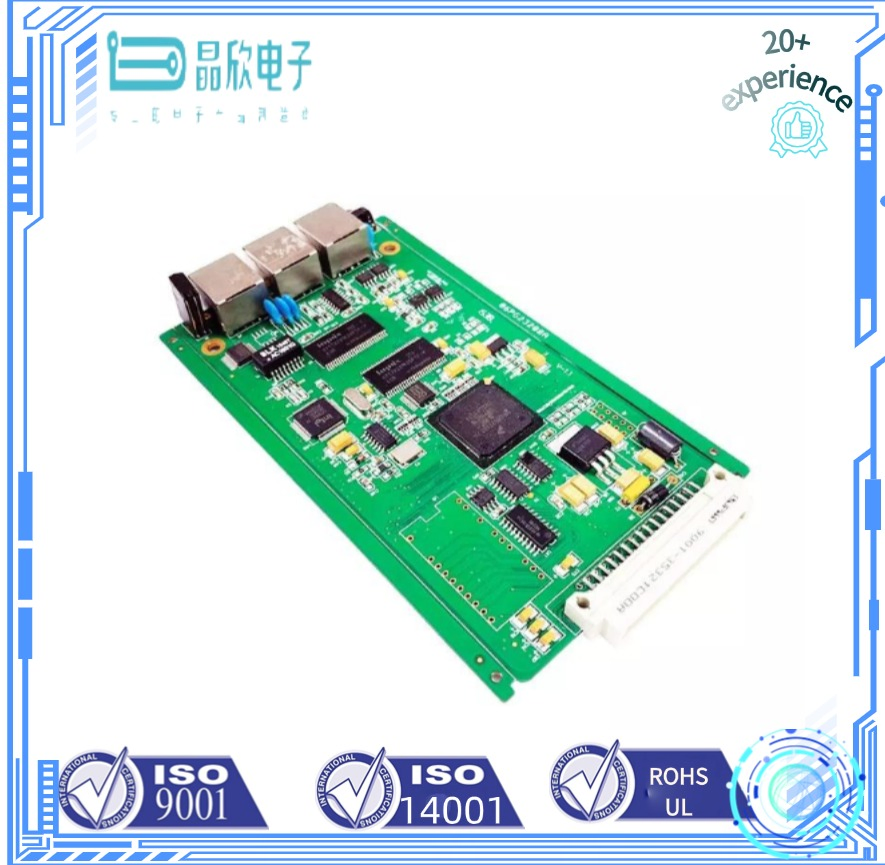

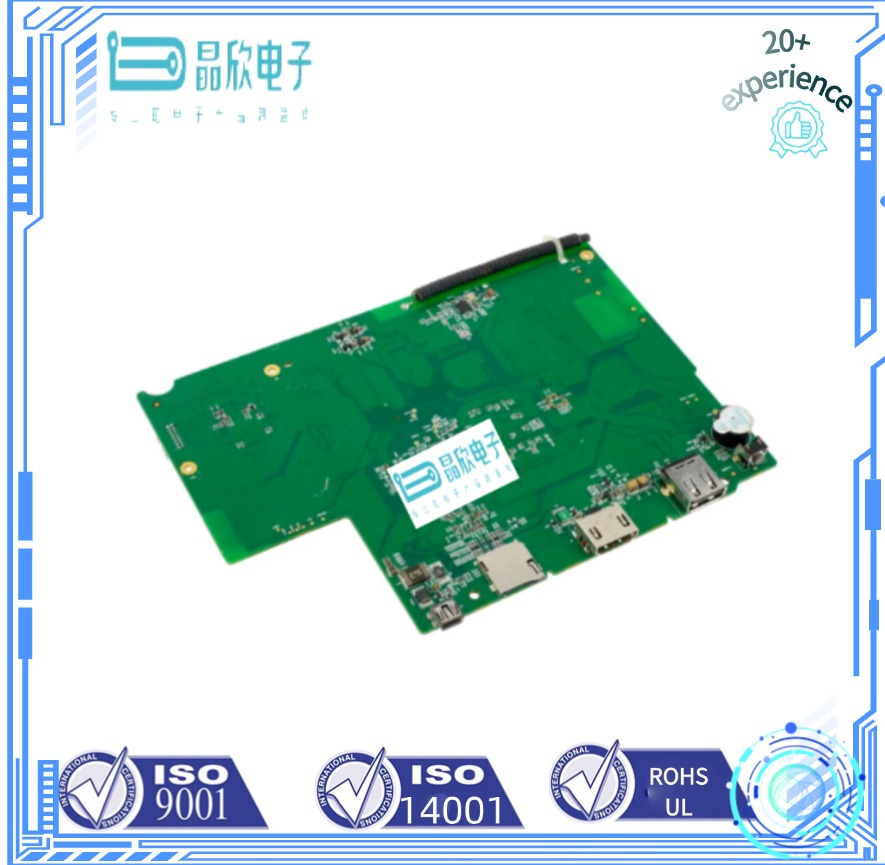

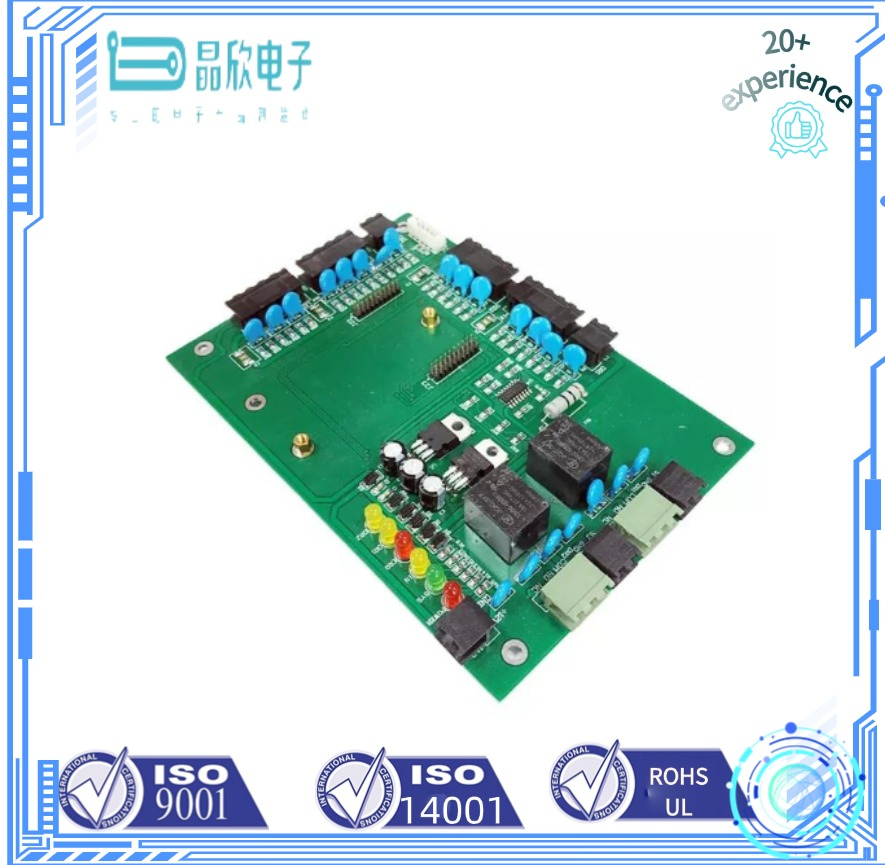

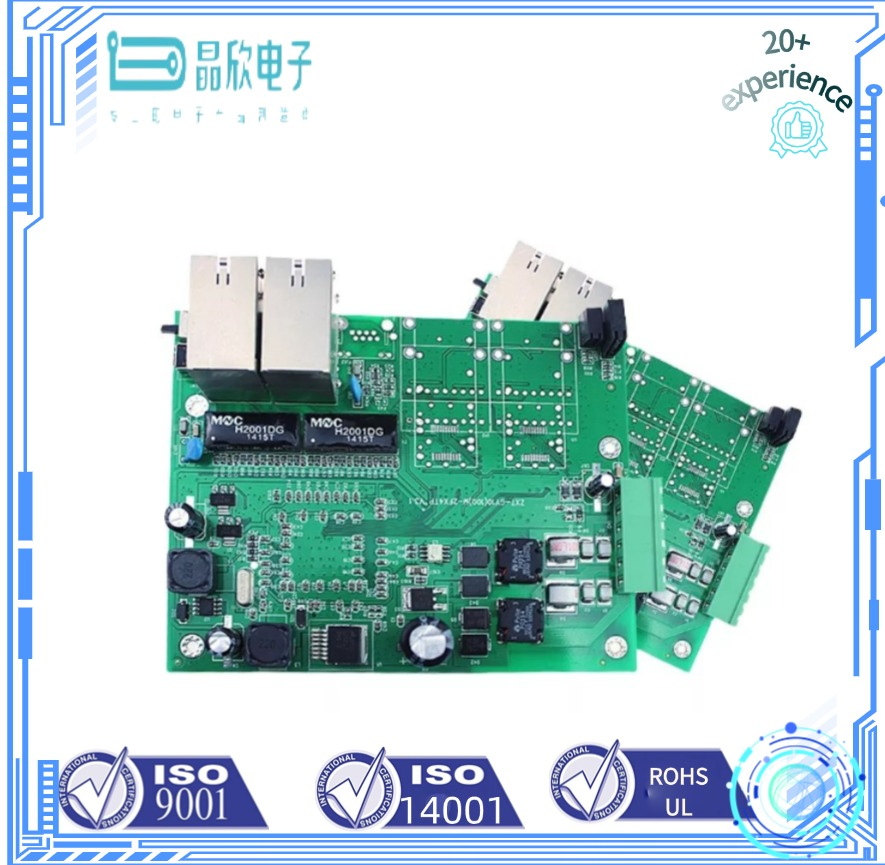

Comprehensive EMS Solutions for High-Quality PCB Assembly Services

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
m26
Material
Complex
Flame Retardant
V0
Mechanical Rigid
Rigid
Processing Tech
Electrolytic Foil
Base Material
Copper
Insulation
Organic Resin
Model
FR-4
Brand
OEM
Test
Aoi/Spi/X-ray
Certification
ISO/RoHS/UL
HS Code
8534009000
📦

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Gross Weight
0.500kg

Product Description

PCB Assembly Services

Dedicated to PCB and PCBA manufacturing for 20 years, we provide professional electronic manufacturing services (EMS) for customers globally. Our expertise covers PCB layout design, SMT process solutions, component sourcing, supply chain management, and integrated manufacturing from assembly to final testing.

PCB Capabilities
PCBA Manufacturing

PCB Capabilities

  • 1500mm long board PCB (FR4 and aluminium)
  • FR4, 1 to 49 layer PCB with HDI support
  • 2 layer aluminium PCB
  • Quick turn: 2L (24h), 4L (48h), 6L (72h), 8L (96h)
  • No minimum order quantity (MOQ)

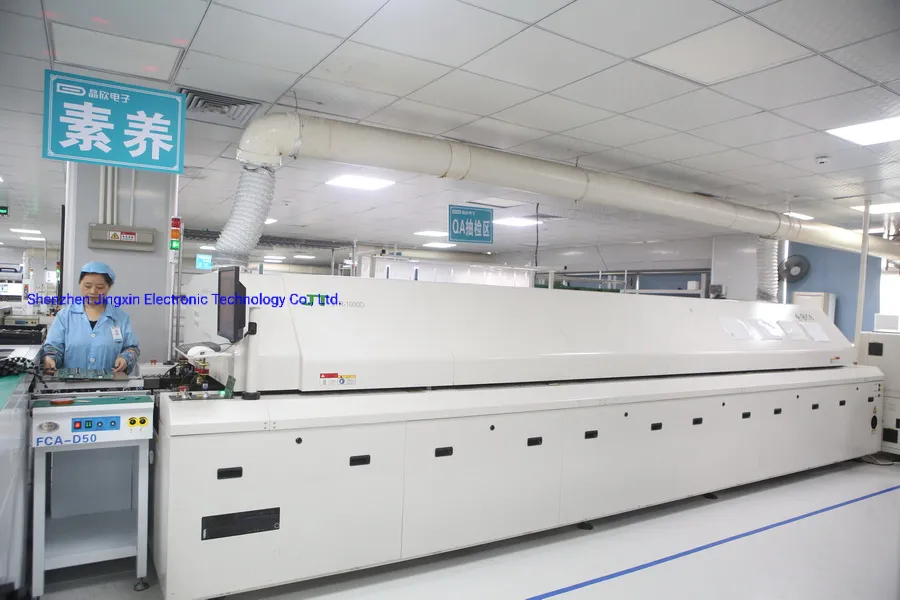

Equipment

PCBA Capabilities

  • SMT & DIP assembly including BGA assembly
  • Accepted chips: 01005, BGA, QFP, QFN, TSOP
  • Pick-placement precision: ±0.01 mm
  • Component height: 0.2-25 mm; Min packing: 0201
  • SMT capacity: 7,000,000 points per day

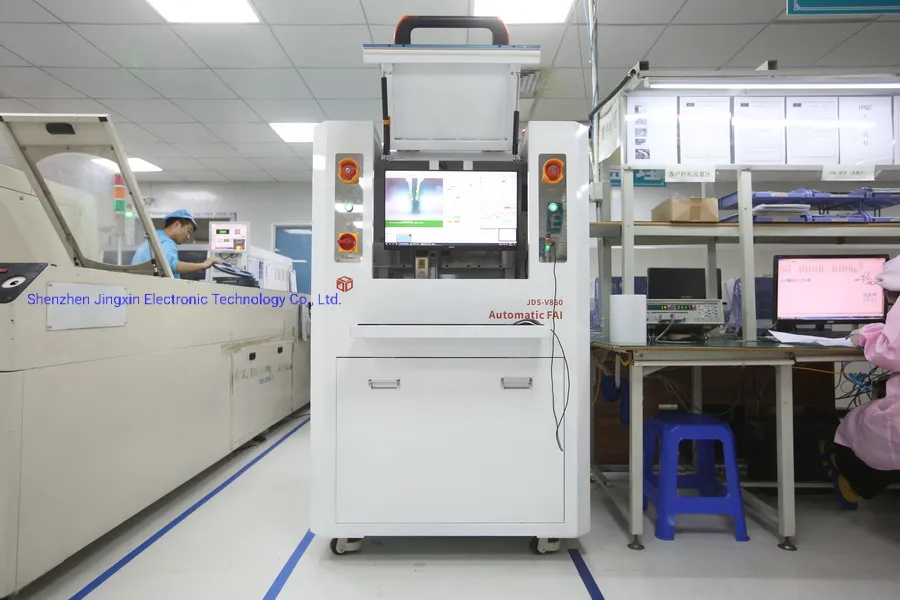

Factory Workshop

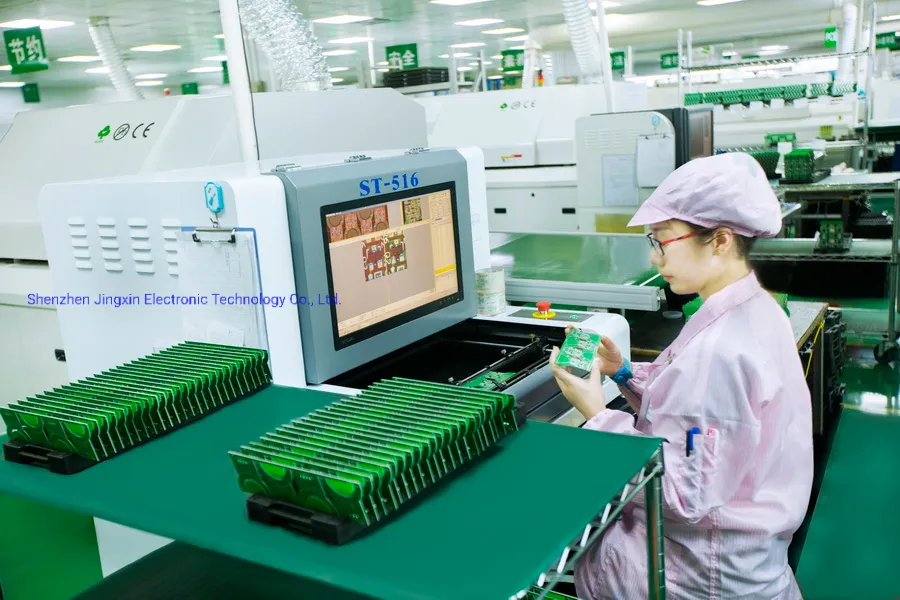

Production Line
Testing Equipment

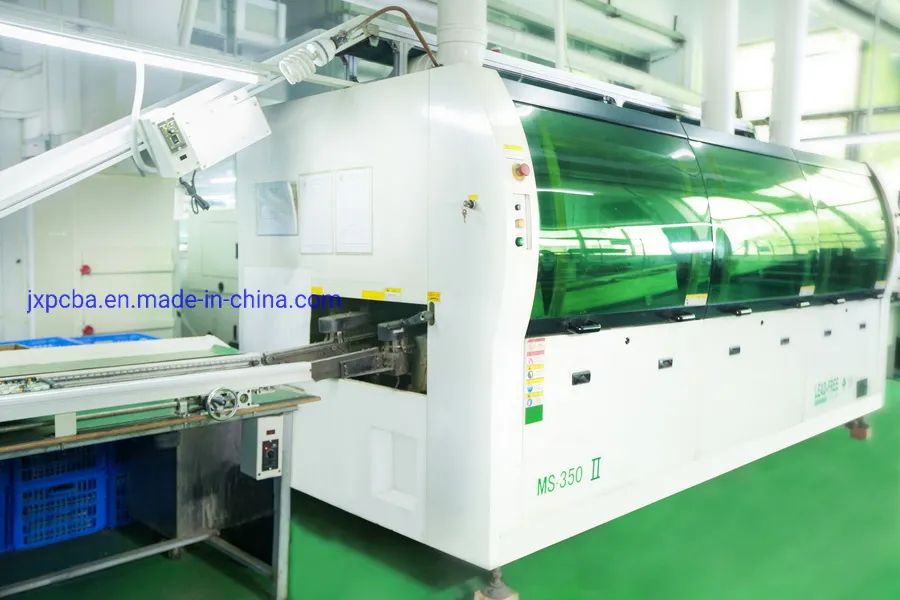

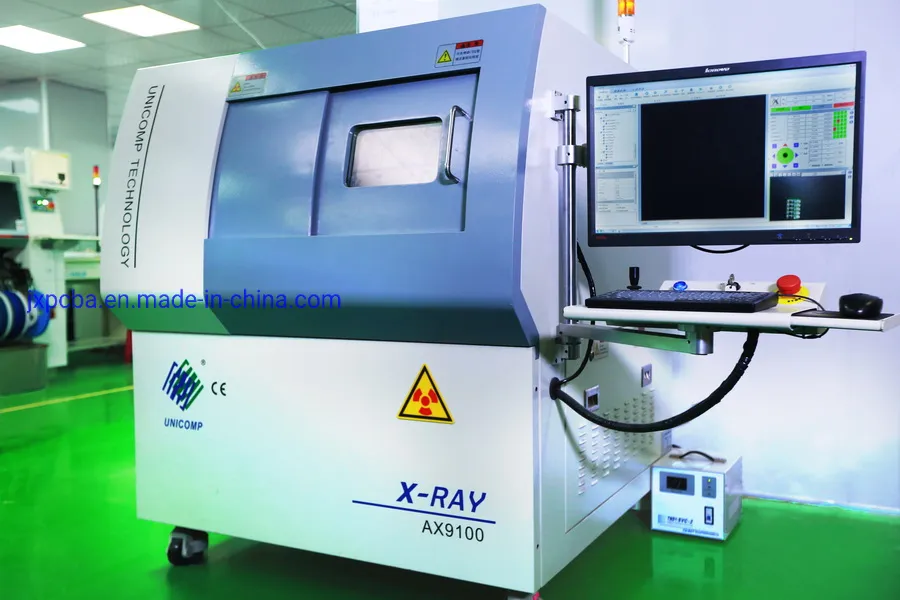

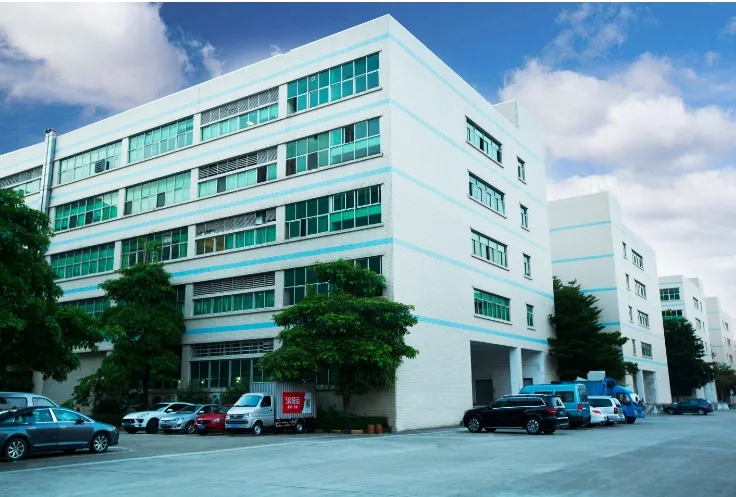

Our facility features a 10,000 m² dust-free workshop with over 600 employees and 30+ production lines. Equipped with 50+ SMT machines from Japan and Korea, SPI, AOI, X-RAY, and wave soldering equipment, we maintain a daily production capacity of 40 million points. We strictly follow ISO9001 and ISO 14001 quality system standards.

Certification and Quality
?

Frequently Asked Questions

Q1. What is needed for a quotation? A: For PCB, we need quantity, Gerber files, and technical requirements. For PCBA, we require PCB information, a BOM list, and testing documents if applicable.
Q2. What file formats do you accept for production? A: We accept Gerber CAM350 RS274X, Protel 99SE, P-CAD 2001 PCB, and BOM lists in Excel, PDF, or Word formats.
Q3. Are my files safe? A: Yes, your intellectual property is fully protected. All documents are held in complete safety and never shared with third parties.
Q4. Is there a Minimum Order Quantity (MOQ)? A: No, there is no MOQ. We handle both small prototype runs and large-scale volume production with high flexibility.
Q5. How is the shipping cost determined? A: Shipping costs are determined by the destination, total weight, and packaging dimensions of the goods. We can provide a shipping quote upon request.
Q6. Do you accept components supplied by clients? A: Yes, we provide full component sourcing services, but we are also happy to accept and process components supplied by our clients.
One-Stop OEM PCB Assembly Professional Turnkey PCBA
