Comprehensive Ear Health Assessment System for Medical Facilities

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Certification:	CE, ISO13485

Send Inquiry

Product Description

📋

Basic Information

Model NO.

CKZY-I

Group

All

Properties

Ent Department

Product Name

Integrated Diagnostic System

MOQ

1 PCS

Input

AC220V/110V

Output

DC3.5V

Board

Aluminium/Wood

Capacity

300 Set/Sets Per Month

🔍

Product Description

Configuration

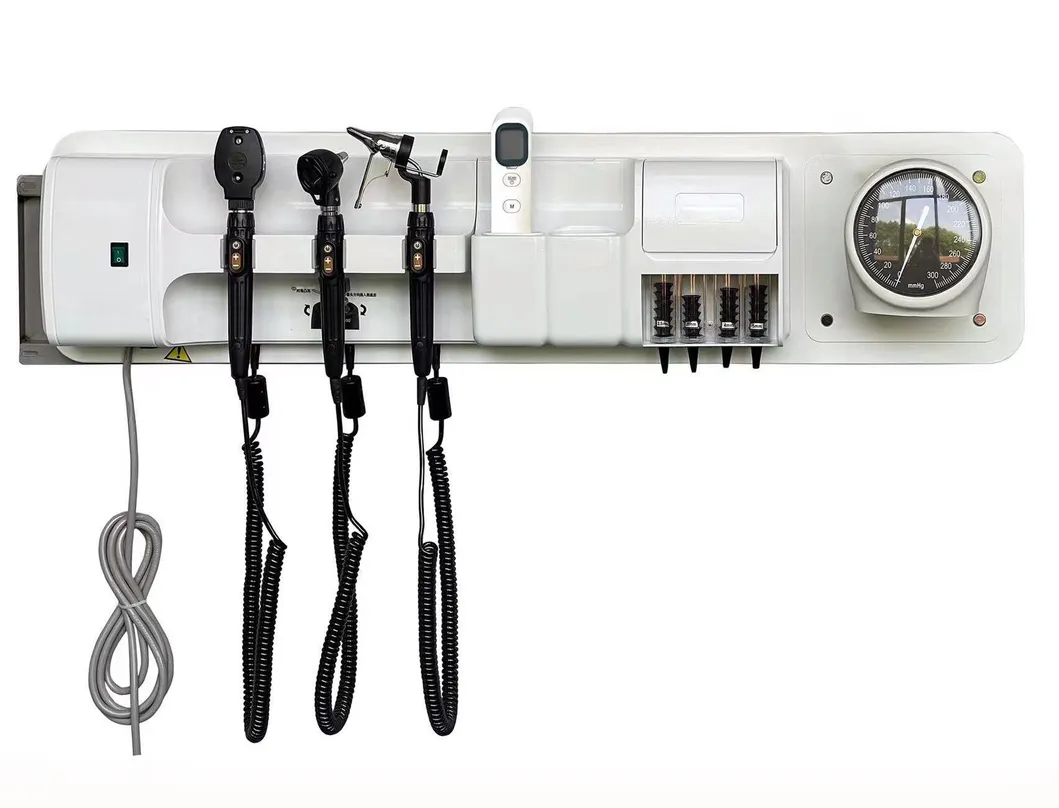

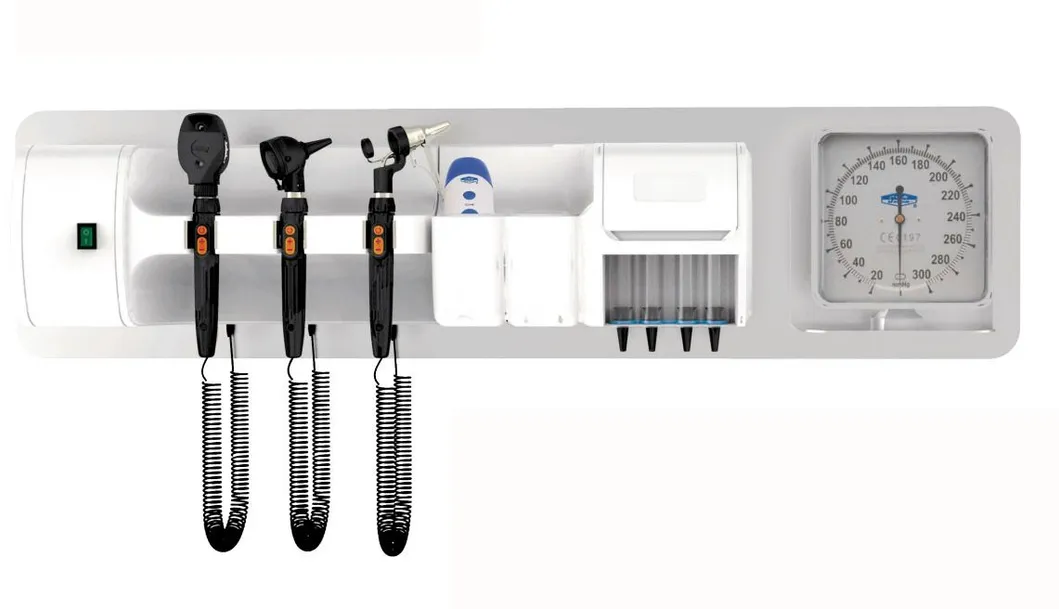

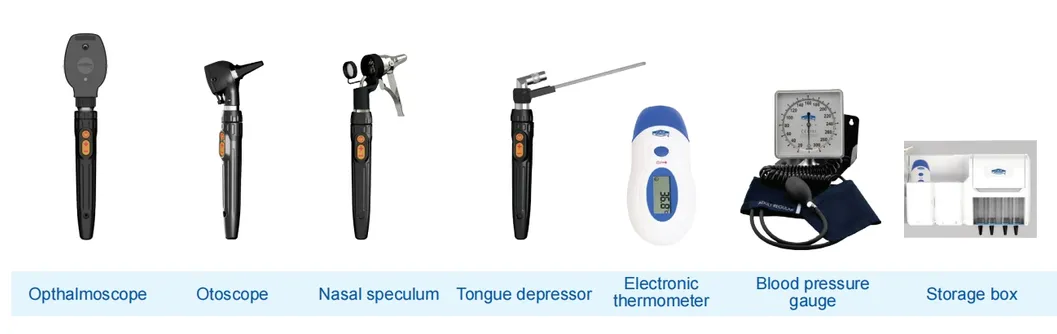

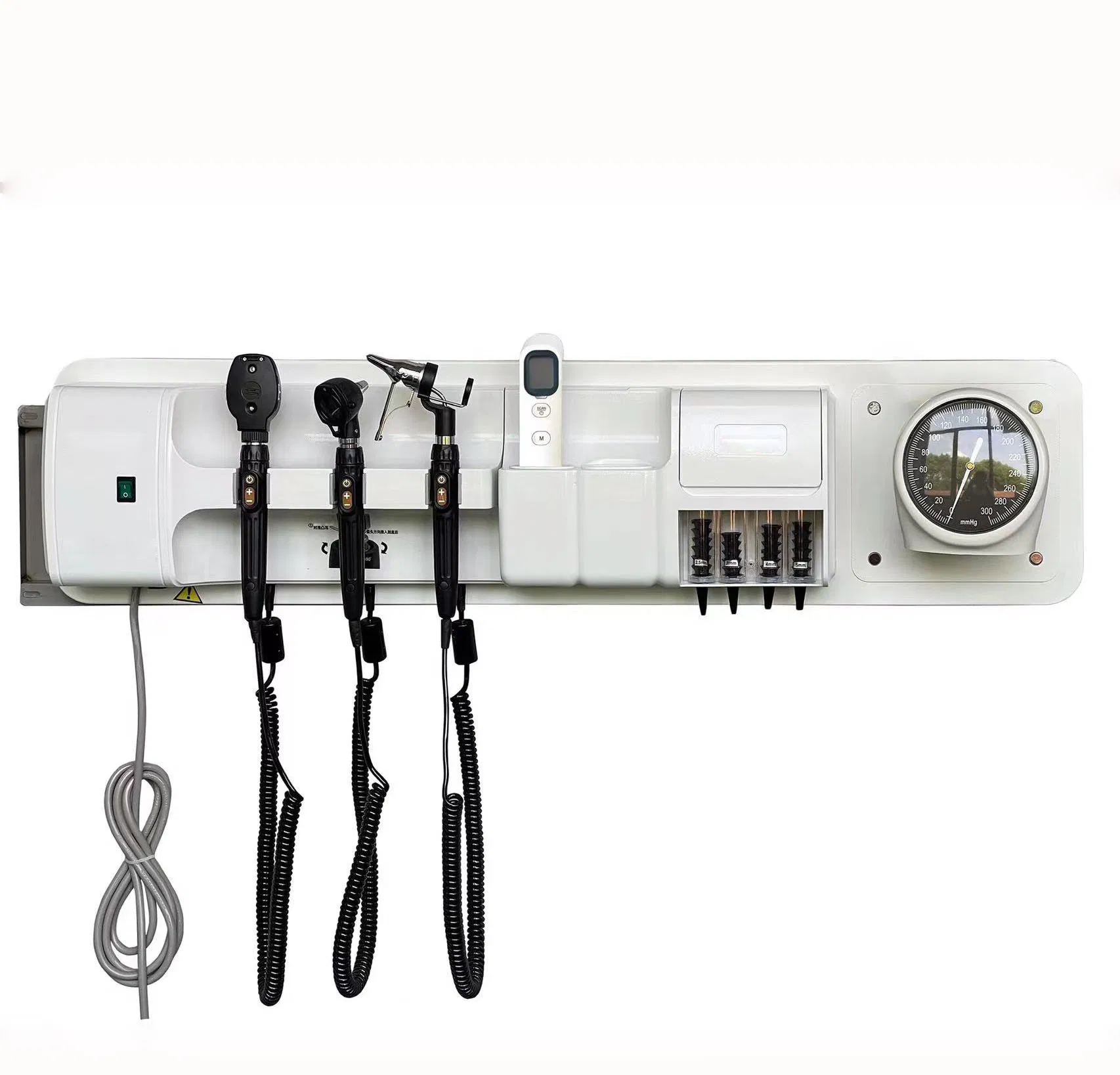

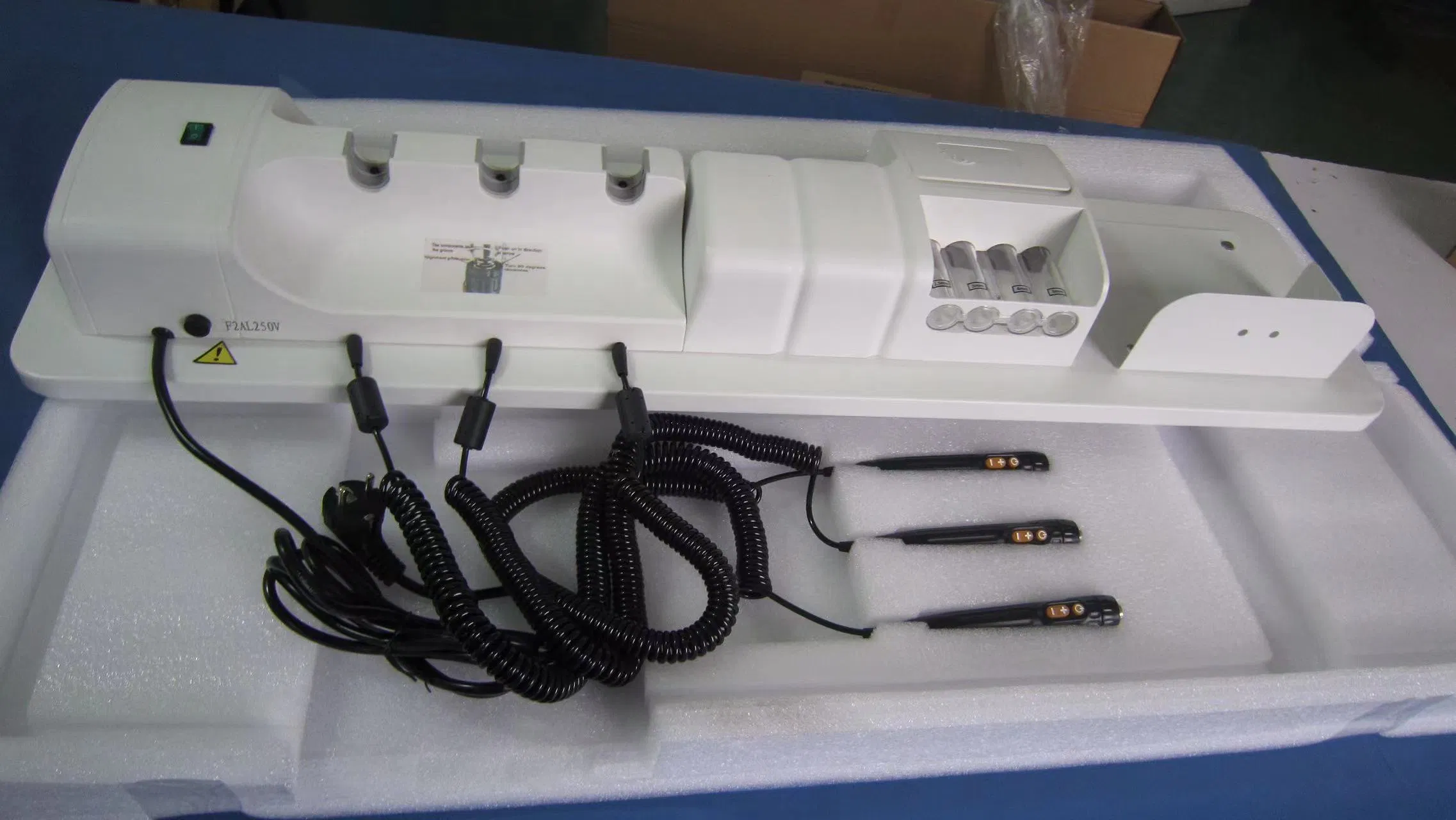

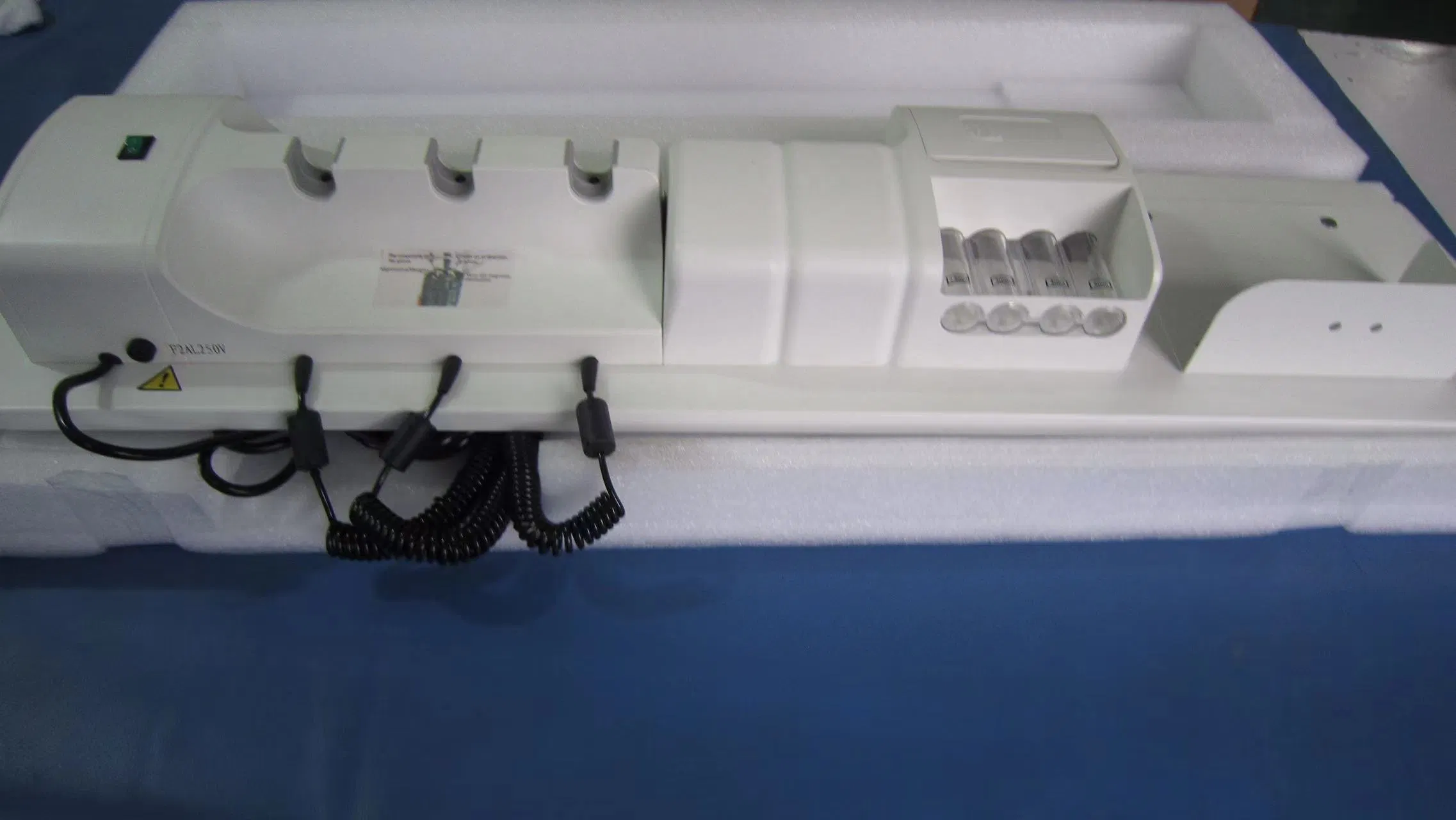

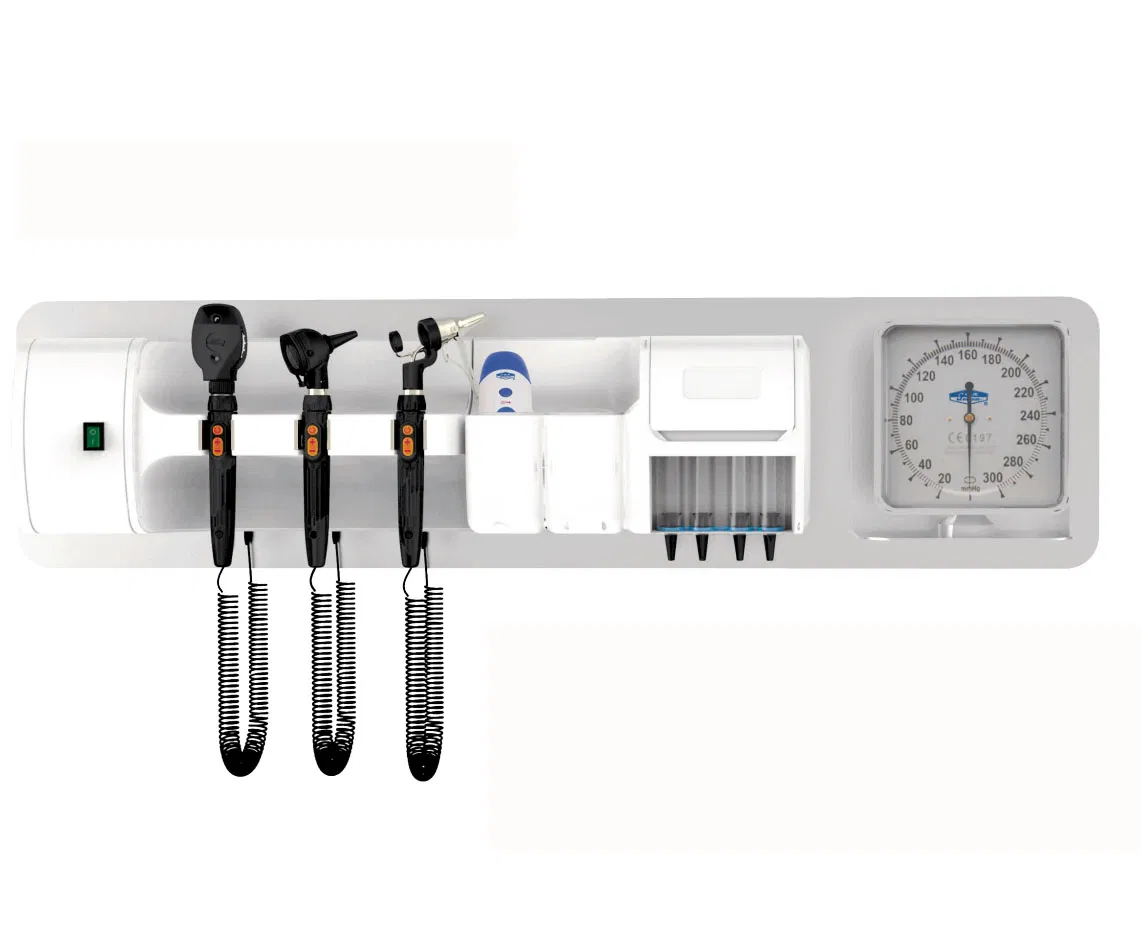

Wall-mounted, composed of ophthalmoscope, otoscope, nasal speculum, electronic thermometer (Forehead and ear type), storage box and hanging plate. The battery handle is shared. Light can be adjusted via key control. Power is AC 110~240V, 47~63HZ.

Optional parts: tongue depressor, finger clip type pulse oximeter, and blood-glucose meter.

Ophthalmoscope

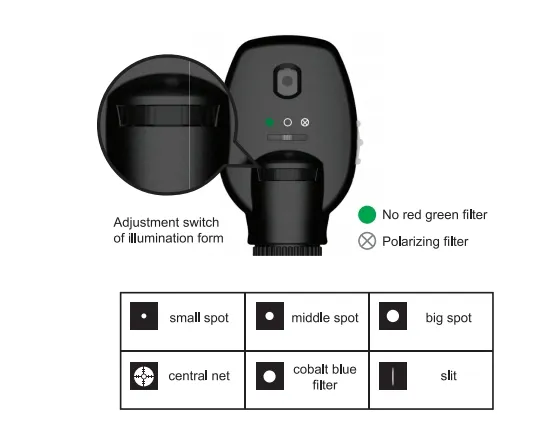

Illumination form: small spot, middle spot, big spot, central net, cobalt blue filter, slit

Compensation filter: Polarizing filter, no red green filter

Diopter Compensation: -25~+40 D

Otoscope

Circle form optical fiber transmission

Size of the aural speculum: 2.5, 3, 4, 5mm

Magnifier: more than 3 times

Fiber transmission technology

Electronic Thermometer

Temperature measurement range: 34°C~43°C

Temperature measurement Precision: ≤±0.2°C

Mechanical Spring Blood Pressure Meter

Composed of meter, band and air ball

Blood pressure gauge: 0~300mmHg

Upper-arm manual measurement

Data error: ±3.75mmHg

Storage box: Accommodates 4 kinds of various size aural speculum and other consumables.

🖼️

Detailed Photos

🏭

Production & Certification

❓

Frequently Asked Questions

1. What are the primary components of the Integrated Diagnostic System? The system includes an ophthalmoscope, otoscope, nasal speculum, electronic thermometer, and a mechanical blood pressure meter, all wall-mounted for convenience.

2. Is the light intensity adjustable on the handles? Yes, the system features shared battery handles where the light intensity can be precisely adjusted via key control.

3. Does the system support different power voltages? The unit is compatible with international standards, supporting AC 110V to 240V at 47~63HZ.

4. What is the magnification capacity of the otoscope? The otoscope provides a magnification of more than 3 times, utilizing high-quality optical fiber transmission for clear diagnostics.

5. Are there any optional diagnostic tools available for this system? Yes, you can choose to include a tongue depressor, a finger clip pulse oximeter, and a blood-glucose meter as optional parts.

6. What range of temperatures can the electronic thermometer measure? The integrated thermometer measures between 34°C and 43°C with a high precision of ≤±0.2°C.
