Product Description

📊

Basic Info

Model NO.
BK-280
Certification
CE, ISO13485
Name
Chemistry Analyzer
Throughput
200 Tests/Hour
Analysis Method
End-Point, Fixed-Time, Rate(Kinetic)
Sample Positions
49 Sample Positions
Reagent Position
56 Reagent Positions
Washing
Automatic Washing
Temperature
37+0.1℃ Real-Time
Cuvettes
120 Reusable Cuvettes
📷

Detailed Photos

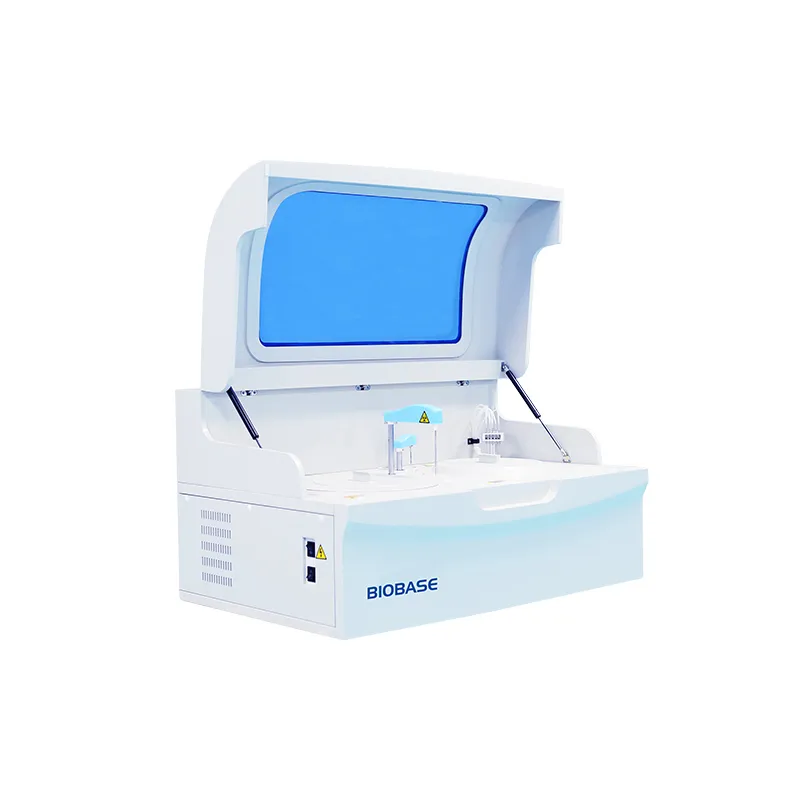

Fully Automatic Chemistry Analyzer
• 49 Sample positions
• 56 Reagent positions
• 120 Reaction cuvettes
• 200 Tests per hour
• Anti-collision probe
✨

Product Features

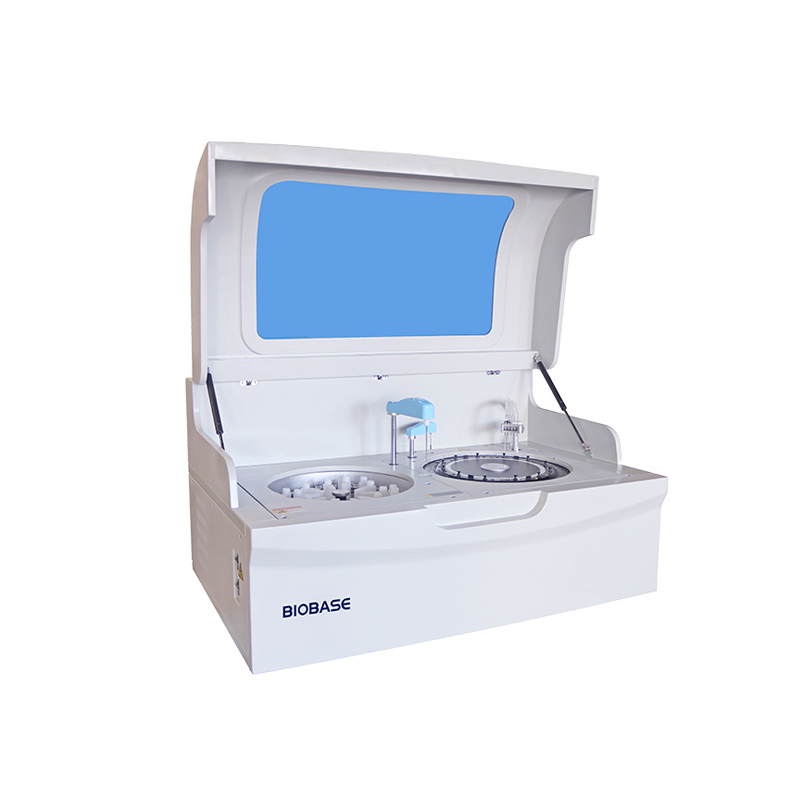

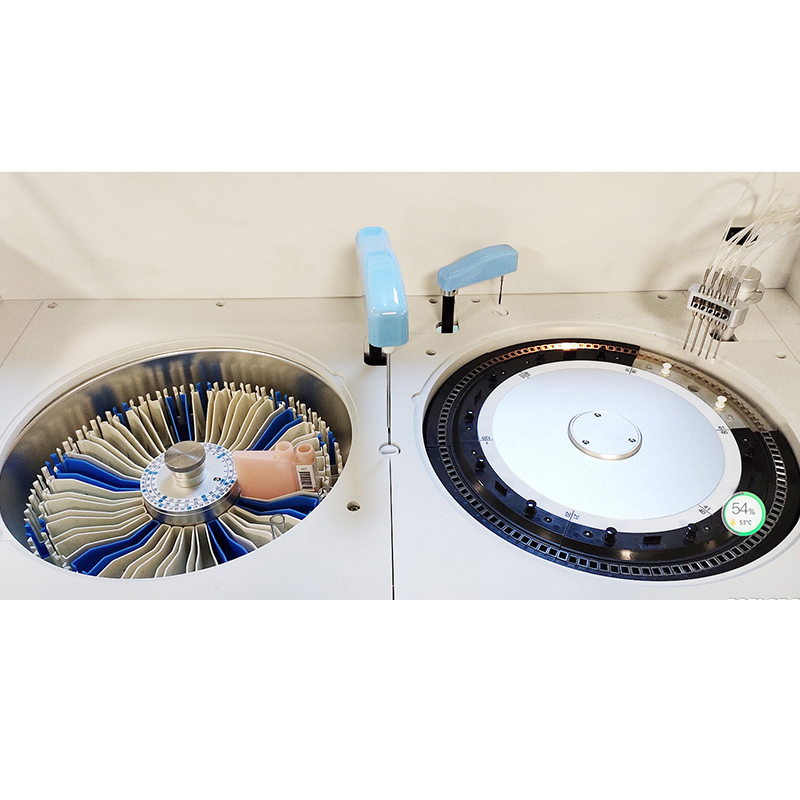

Overall Appearance One probe for reagents and sample; One mixer; Independent washing probe system.
Reaction Tray Constant 37ºC±0.1ºC with real-time monitoring to ensure accurate results.

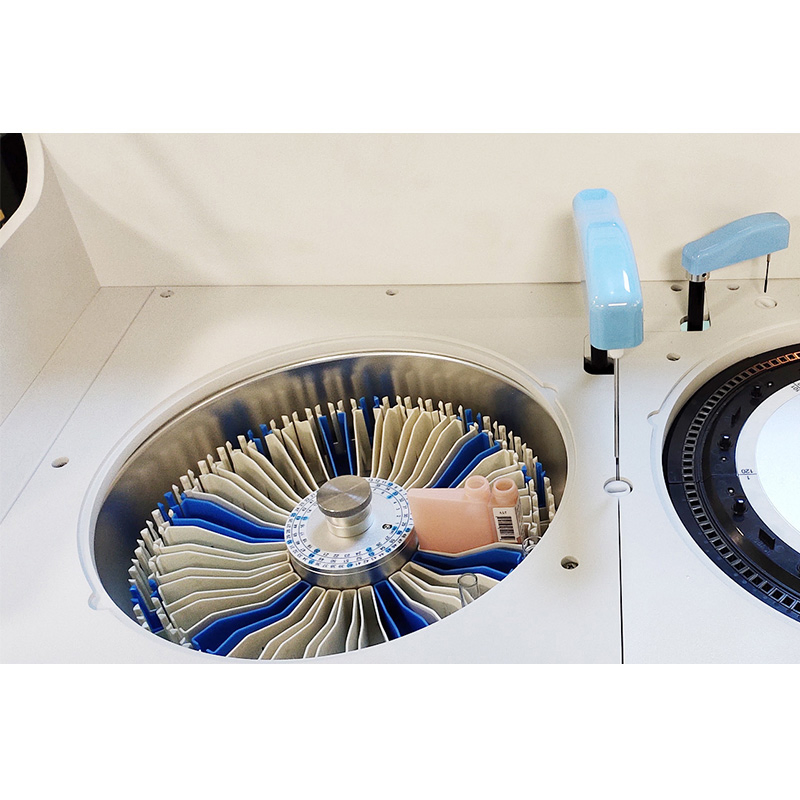

Reagent Tray Refrigerated tray with an independent switch for continuous cooling.

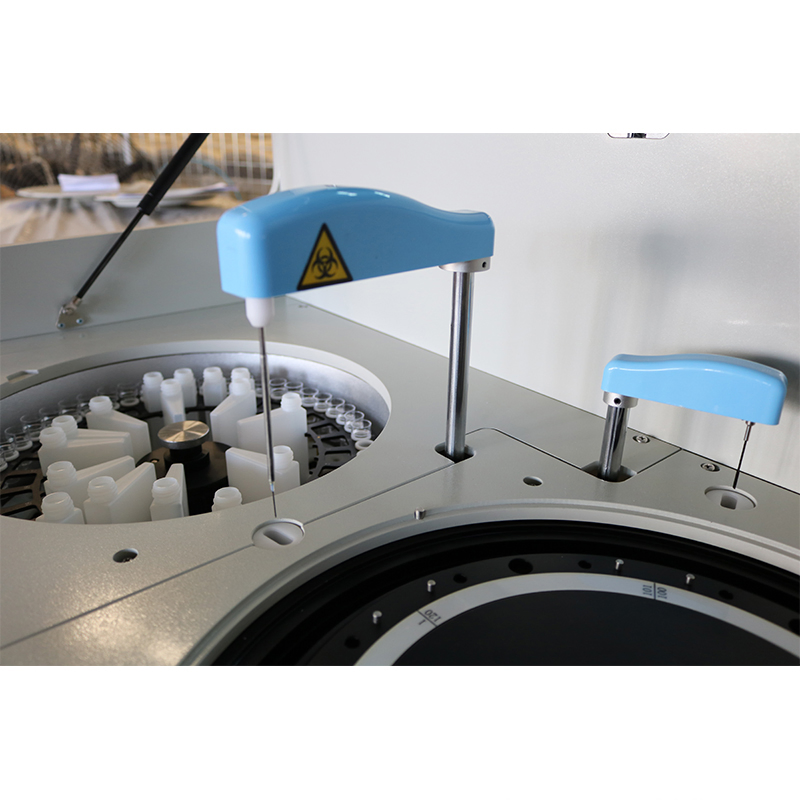

Sample Needle Equipped with liquid level sensors, anti-collision protection, and real-time reagent volume detection.
Washing System Independent 2-step automatic washing system for cuvettes.
⚙️

Technical Parameters

Model BK-200 (NEW BK-280)
Throughput 200 Tests/Hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Optical System 12V/30W halogen lamp, Post-spectral spectrophotometry
Wavelengths 340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance Range 0~3.0Abs
Cuvettes 120 reusable cuvettes, optical length 6mm

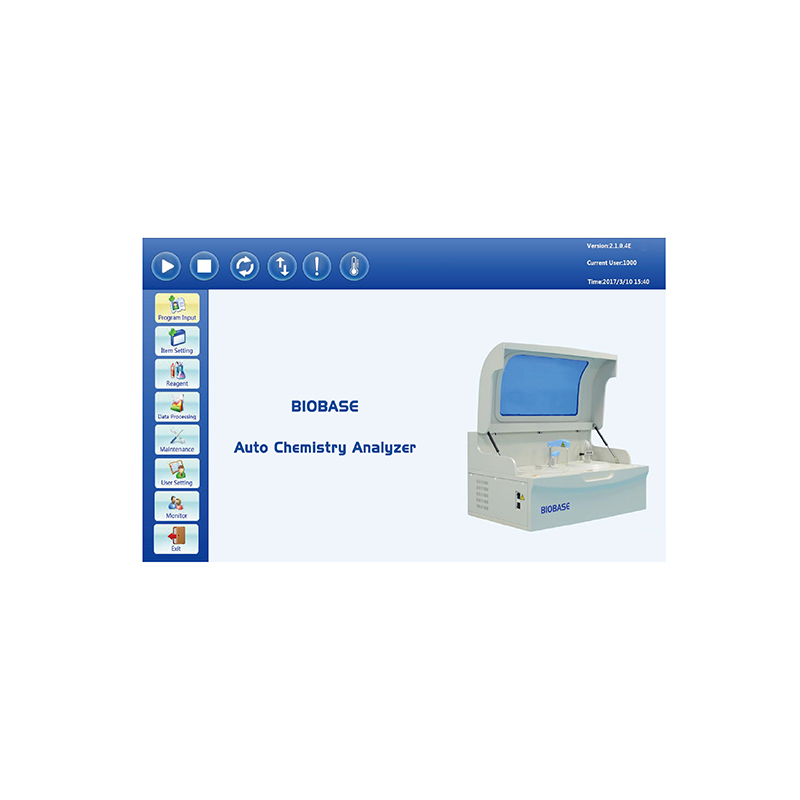

Software Windows 7/8/10, LIS system available
Water Consumption Deionized water: 5L/H
Dimensions 950*612*510mm (External Size)
Specifications Diagram
Production Workflow
Quality Control

Frequently Asked Questions

What is the testing capacity of the BK-280?
The analyzer has a constant throughput of 200 tests per hour.
How many reagent and sample positions are available?
It features 49 sample positions and 56 reagent positions with a refrigerated tray.
Does the system support LIS connectivity?
Yes, it is compatible with Windows 7/8/10 and supports Bi-direction LIS systems and HL7 protocols.
Is the cuvette system reusable?
Yes, the device uses 120 reusable cuvettes with an automatic washing system to ensure efficiency and cost-effectiveness.
What analysis methods can be performed?
It supports End-point, Fixed-time, Rate (Kinetic), and Turbidimetry analysis methods.
What are the power requirements?
It supports AC220V±10%, 50/60Hz or 110V±10%, 60Hz with a power consumption of 300W.
