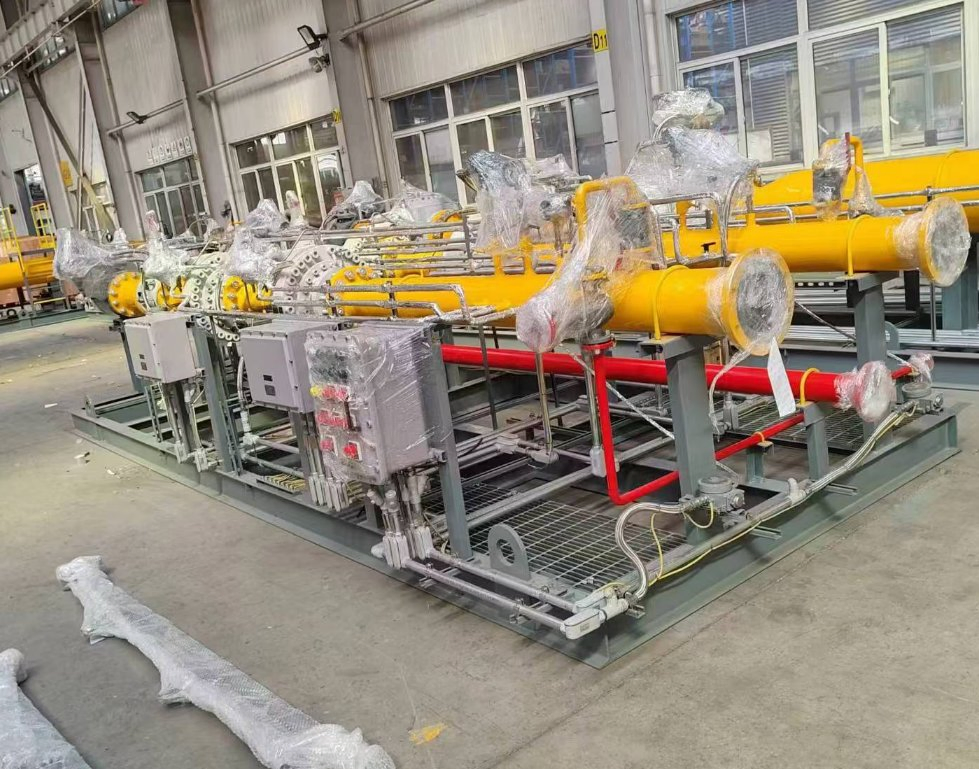

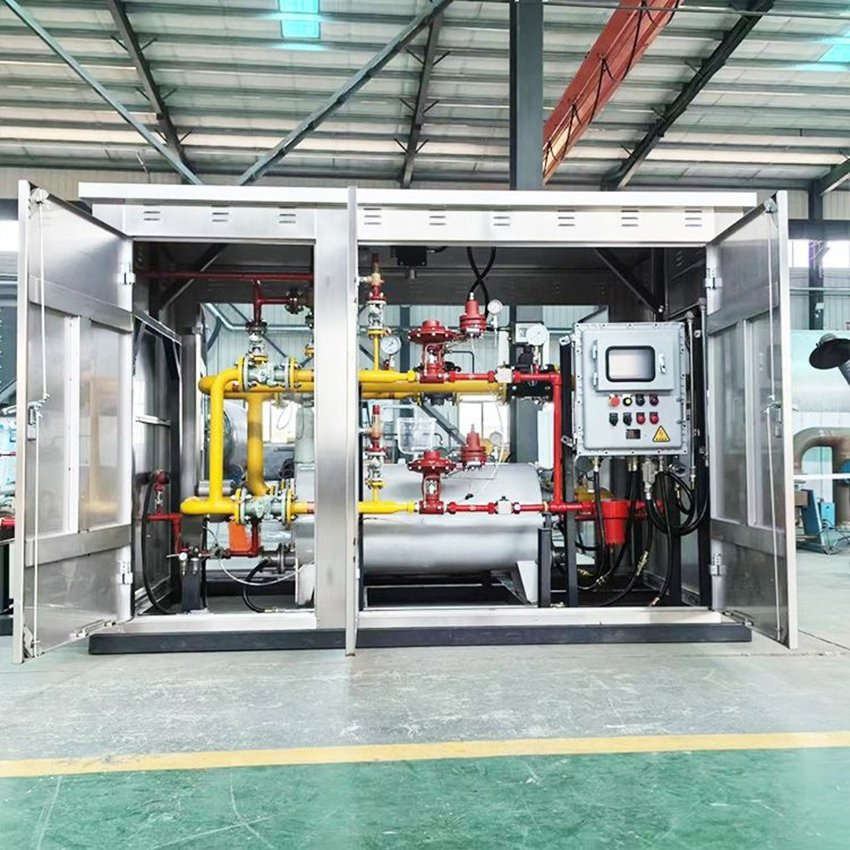

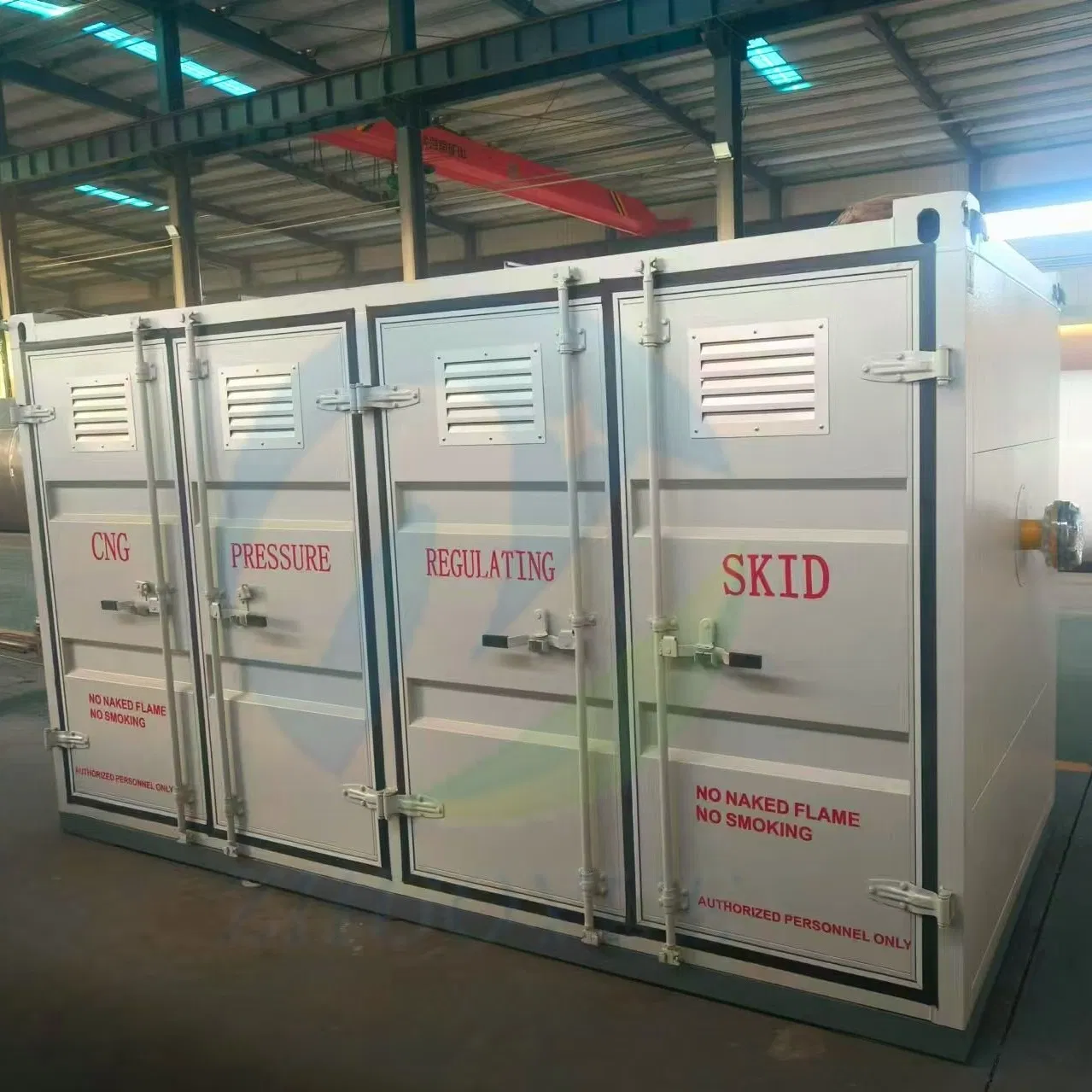

Fully Automatic Natural Gas Metering Pressure Reduction Skid Gas Pressure Regulation System with Scada Monitoring

Customization: Available
Certification: CE
Logo: Customized

Product Description

Basic Specifications
Model NO.metering
Storage MediumCNG, Compressed Hydrogen, Nitrogen, Helium
Pressure LevelUltra High Pressure (P>100.0MPa)
Working Pressure25MPa
Main Material30crmolx
Working Temperature-50~65
Transport PackageContainers. Bulk Ship. RO-RO
Specification12192x2438x1400mm
Production Capacity10000PCS/Year
About Our Solutions

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production, and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team, and cutting-edge manufacturing technology to provide high-quality special transportation equipment.

Our core offerings include gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers, and a full range of semi-trailers for energy, hazardous chemical transportation, and engineering logistics. With more than 20 years of export experience, we serve more than 30 countries worldwide, ensuring compliance with global technical standards through ISO9001, ASME, and ADR certifications.

Gas Metering System
Product Description

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure. The box features a compact structure, easy maintenance, and reliable safety performance.

Component 1
Component 2

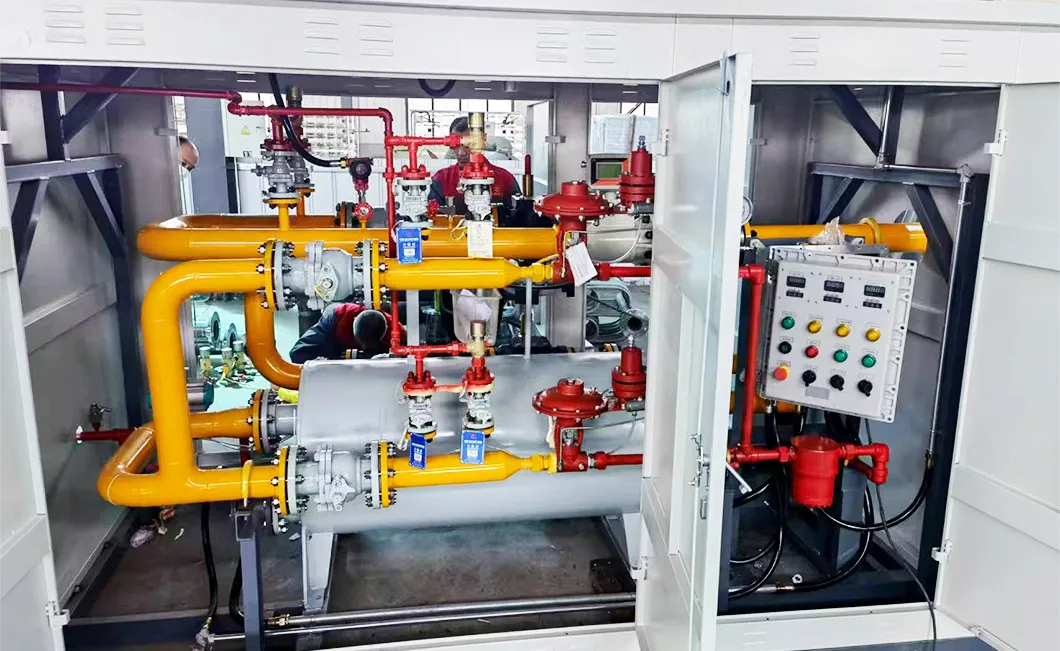

System Overview
Technical Parameters
Structural modeTwo-stage pressure regulation, overall skid-mounted
Rated gas supply1000m³/h
Inlet pressure25MPa
Outlet pressure0.2-0.4MPa
Pressure reduction level2 levels
Heat exchange level2 levels
Heat exchange temperature60-75ºC
Outlet temperature≥-5ºC
Shut-off valve power0.2-0.6Mpa (compressed air)
Alarm modeSound and light dual alarm
MediumCompressed natural gas
Recommended Equipment

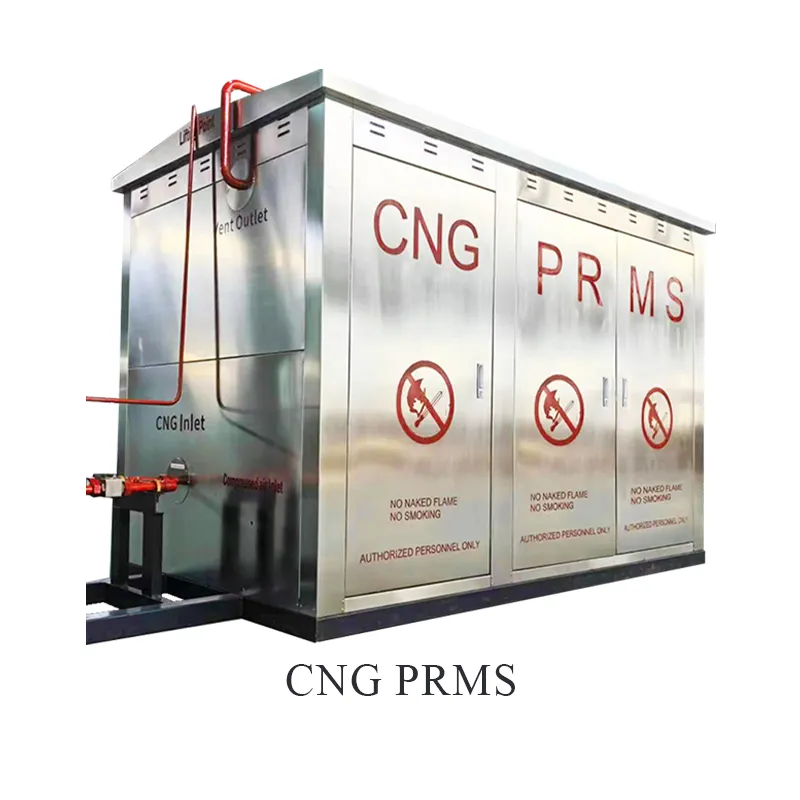

CNG Skid

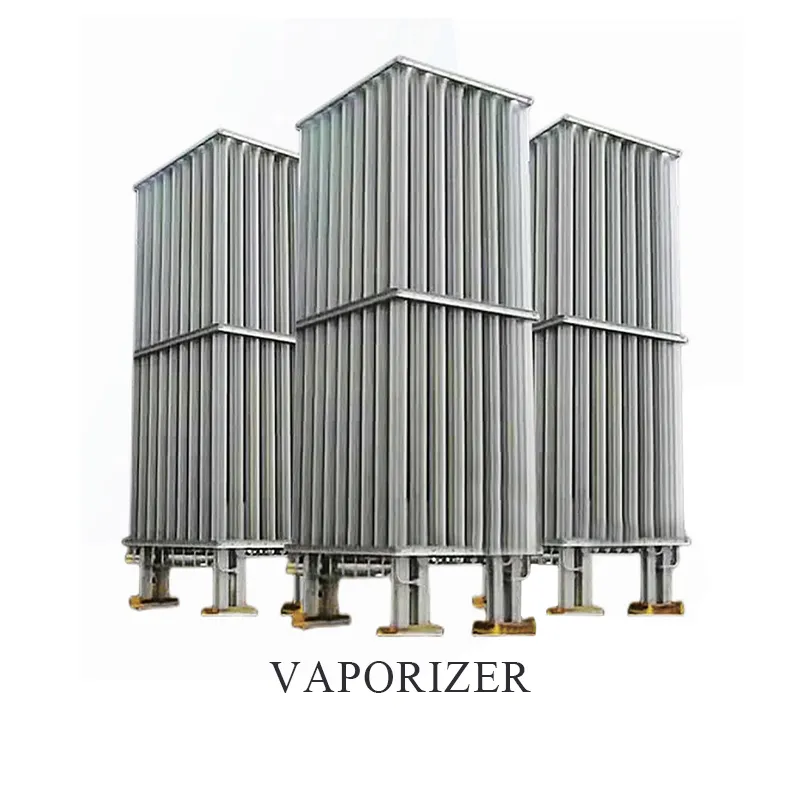

Gasifier

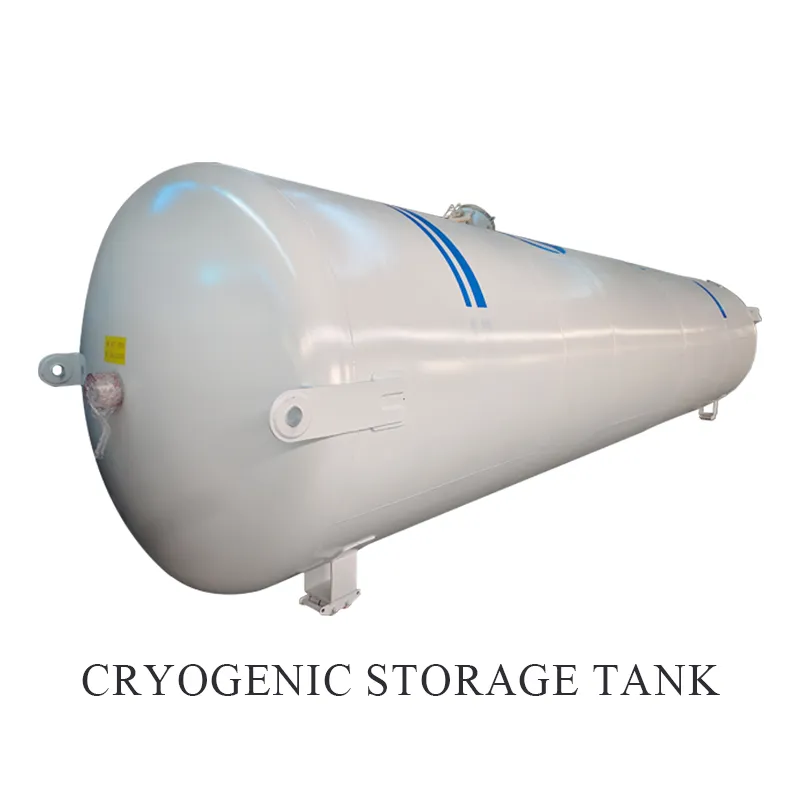

Storage Tank
Core Features & Advantages
Integrated Design: Combines pressure regulation, metering, filtration, and safety cut-off in a compact, small-footprint unit.
Rigorous Testing: Every unit undergoes strict air tightness and pressure tests before leaving the factory to ensure maximum safety.
High Durability: Parts feature shot-blasted surfaces with epoxy and acrylic coatings for superior rust resistance.
Smart Monitoring: Supports remote monitoring and data acquisition for unattended operation in various climates.

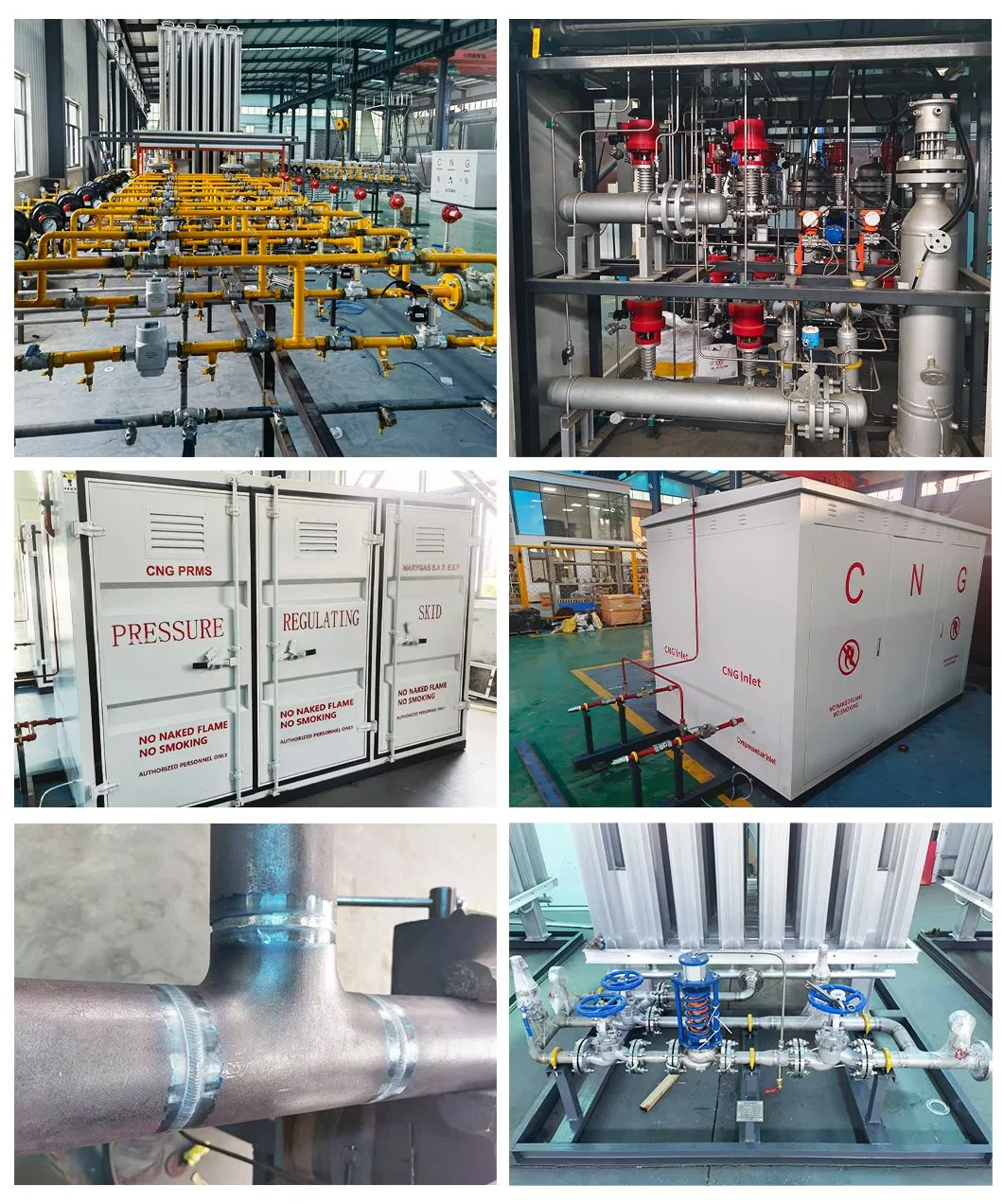

Internal Structure
Certifications & Global Presence

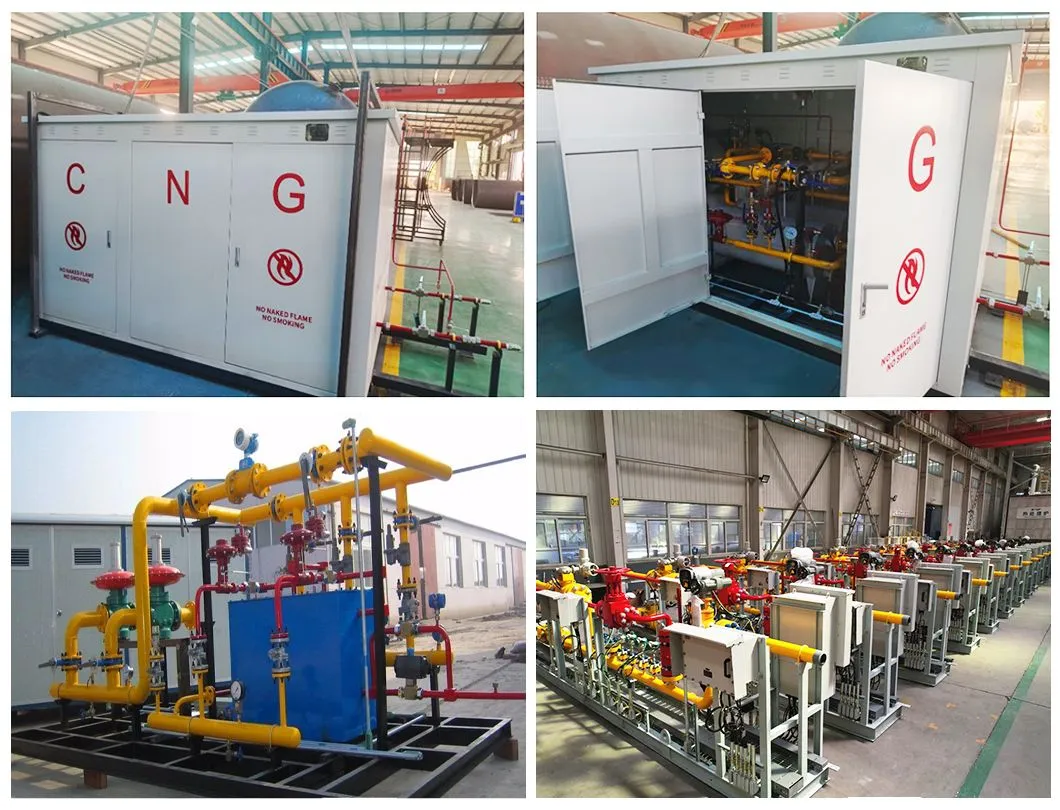

Certificates Patent Certificates
Partners
Customers
Exhibition Team Cooperation Process
Packing & Delivery

We provide comprehensive logistics capabilities for both domestic and international delivery. Every project includes a detailed delivery schedule to ensure timely arrival.

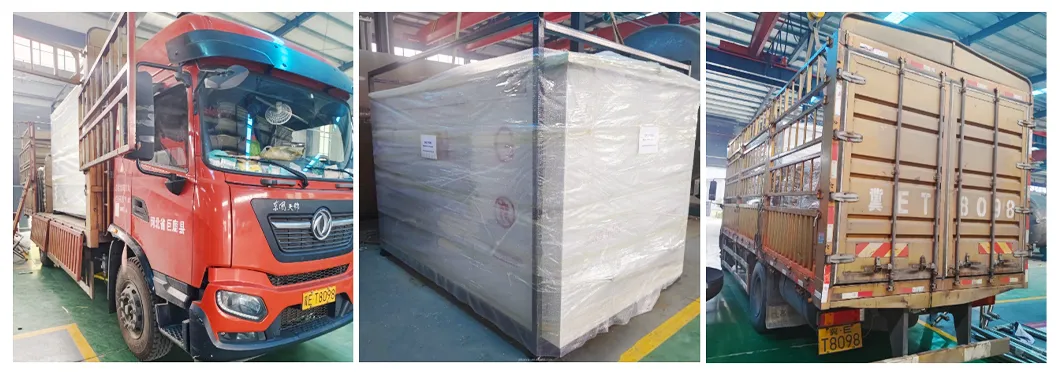

Delivery 1
Delivery 2
Frequently Asked Questions

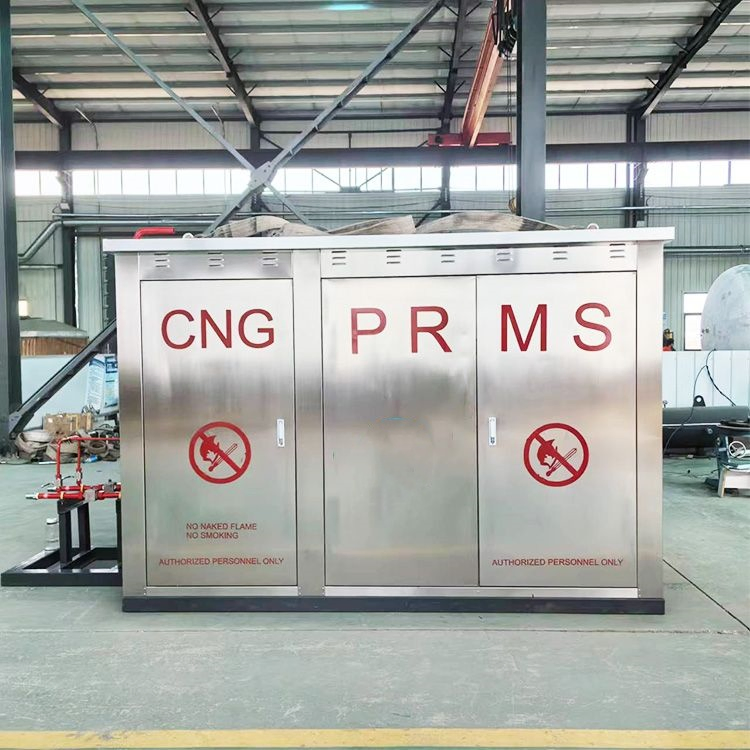

What are the main components of a CNG PRMS?
The system typically includes a regulator, flowmeter, water heater, high-precision valves, and specialized pipelines.
What range of gas products do you provide?
We offer CNG Skid containers, tube trailers, PRMS units, mobile stations, gas compressors, and various vaporizer equipment (LNG Station, BOG, EAG).
Can the equipment be customized for specific needs?
Yes, all products can be customized according to your technical requirements, including pressure levels, flow rates, and environmental conditions.
What is the typical delivery time for orders?
Standard models in stock can be shipped within 30 days. For fully customized equipment, the typical lead time is approximately 40 days.
How do you ensure the safety of the equipment?
We implement a multi-layer safety approach including emergency shut-off valves, overpressure release devices, and rigorous factory testing (air tightness and pressure tests).
Do you provide one-stop logistics services?
Yes, we provide integrated domestic and international logistics delivery to save your time and labor costs.
