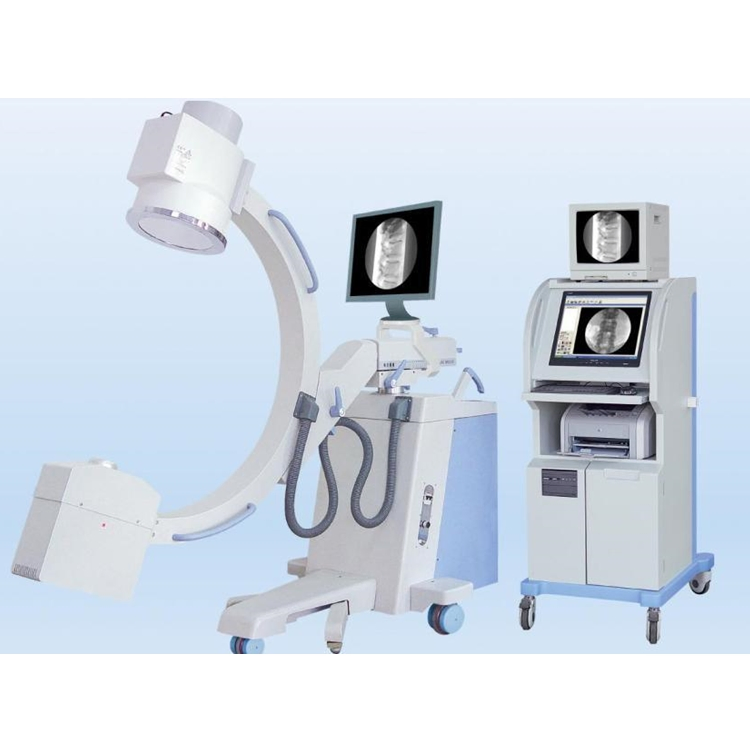

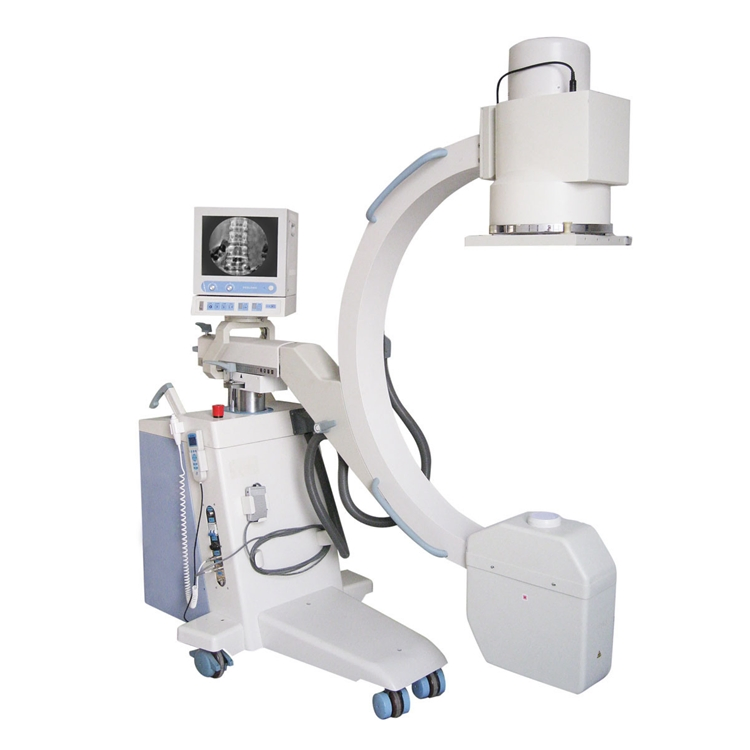

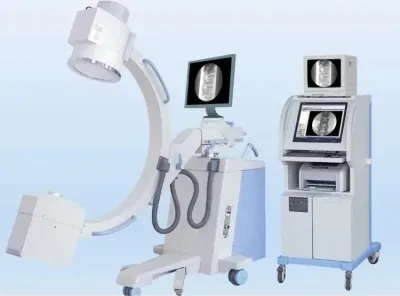

3.5kw Medical High Frequency X-ray Mobile C-Arm System

Basic Information

Model NO.

YJX112D

Certification

CE, FDA, ISO13485

Target Group

Middle-aged and Old

Product Name

High Frequency Mobile C-Arm System

Net Weight

350kg

Scale

Medium

Power Output

3.5kw

Gross Weight

480 Kg

HS Code

9022140090

Production Capacity

3000 pieces/Month

Product Description

3.5kw Medical High Frequency X-ray Mobile C-Arm System

Usage Application

Orthopaedics: Osteopathy, diaplasis, nailing.
Surgery: Removing foreign bodies, cardiac catheterization, implanting pacemakers, interventional therapy, partial radiography, local photography, and other clinical work.

Key Features

New integrated design with compact appearance and convenient operation.
High-quality combined HF-HV X-ray generator, significantly reducing X-ray irradiation.
Electric rotatable adjustable collimator for precise targeting.
Unique hand-held remote controller for more efficient operation.
Graphical colorful LCD touch screen console interface with fashionable design.
Equipped with a Toshiba image intensifier for stable, high-definition imaging.
Perspective KV and MA automatic tracking feature to optimize image brightness and definition automatically.

Technical Specifications

Category	Project	Content
Electrical Performance	HF Inverter Power Supply	Output Power: 3.5kW; Inverter Frequency: 40kHz
	Automatic Fluoroscopy	Tube Voltage: 40kV~110kV; Tube Current: 0.3mA~4mA
	Manual Fluoroscopy	Tube Voltage: 40kV~110kV; Tube Current: 0.3mA~4mA
	Photography	40 kV~110 kV; 20-63mA; 1-125mAs
	Film Holder Size	200mm×250mm or 250mm×300mm
X-ray Tube	Special HF Tube	Fixed anode Dual-focus; Focus: 0.3 / 1.5mm; Thermal capacity: 35KJ
Video System	Image Intensifier	TOSHIBA 9″ Image Intensifier
	CCD Video Camera	Medical 0.47 Mega-pixels digital CCD camera
	Monitor	Horizontal center resolution 1000/L; Refresh rate 75HZ
Structure	C-arm Movement	Pillar movement: 400mm; Forward/Backward: 200mm; SID: 960mm

Standard Configuration

No.	Item Description	Quantity
1	Main frame of C-arm	1
2	X-ray generator and HF inverted power supply	1
3	Toshiba 9'' image intensifier	1
4	Medical 0.47 Mega-pixels digital CCD camera	1
5	CCU Control Unit	1
6	14'' high-definition Medical VGA monitor	1
7	Imported minigroove grid	1
8	Electric adjustable collimator	1
9	Hand controller	1
10	Red light cross localization	1

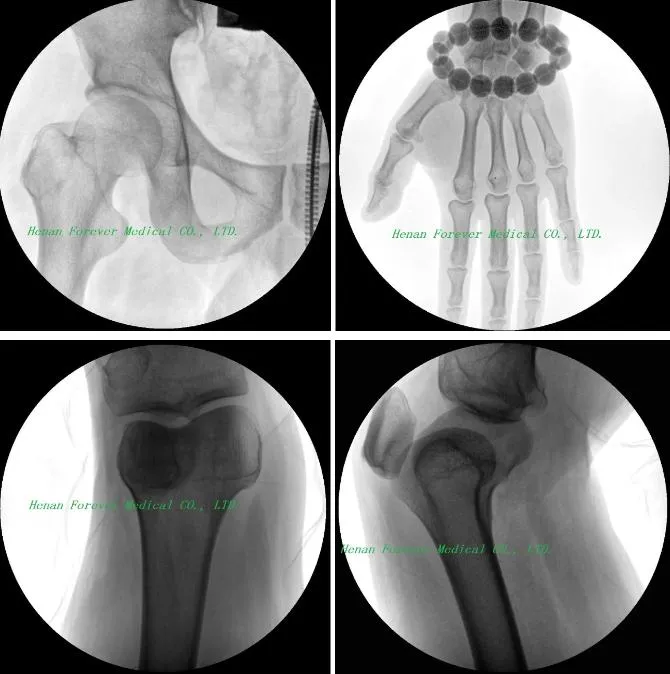

Detailed Images

Frequently Asked Questions

1. Does the product have any international certificates?

Almost all the medical equipment provided is CE and ISO approved, ensuring high quality and safety standards.

2. What are the available payment terms?

Accepted payment methods include T/T, Western Union, Money Gram, PayPal, and cash.

3. What is the typical lead time for delivery?

Most medical equipment is kept in stock, allowing for delivery within 3 working days after payment receipt.

4. How is product maintenance handled if an issue arises?

Professional engineers are available to resolve problems via remote communication. If hardware is completely non-functional, replacement options are available according to policy.

5. What shipping methods are offered?

Various shipping methods including courier, air freight, and sea shipping are offered. Clients can choose based on their specific needs.

6. Is the C-arm easy to maneuver?

Yes, the system features a directive wheel with 360° rotation and electric ascending/descending pillars for effortless positioning.
